FT34-200 L005015
Scroll on photo to zoom in or Click to enlarge
FT34-200 L005015

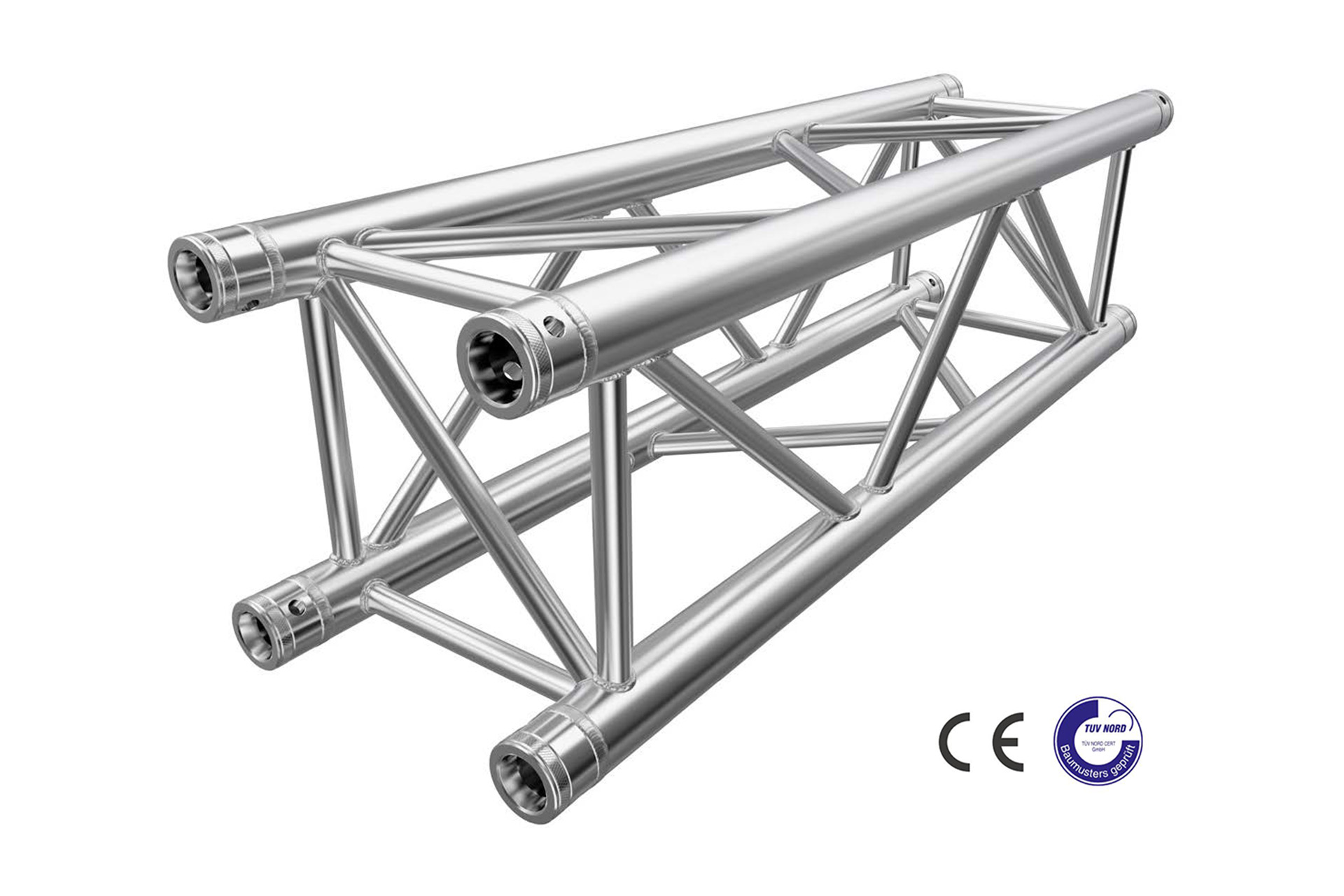

200 cm FT Truss is defined by the quick connection system. 50x2 mm tubes , 20x2 mm braces , TUV aproved , Made in Europe.
Price
Please login to see the price.
  • Quick lock Truss

    Quicklock Truss® is defined by the quick-lock connection system. The greatest advantage of this type of connection lies in fast and easy assembly of the trusses while maintaining high level of strength and durability. This trussing system, also known as spigoted truss, represents the widest range of  aluminium trussing products in one connection type. Their application is almost limitless from small lighting truss design to large scale roof systems.



    First of all we offer several shapes of Quicklock Truss segments. Once you choose the shape that suits you best, you will see all the available trussing lines for the chosen shape. These lines differ in their dimensions as well as in the type of the main tube and braces constructing the traverses.



    Click on the link of the specific Quicklock Truss and all the individual products from the line are going to pop up. The navigator constantly indicates what shape and trussing line of  Quicklock truss you are viewing at the moment.

TUBES

50x2 mm (2 x 0,08 inch)
BRACES

20x2 mm (0,8 x 0,08 inch)
ALLOY

EN-AW 6082 T6
