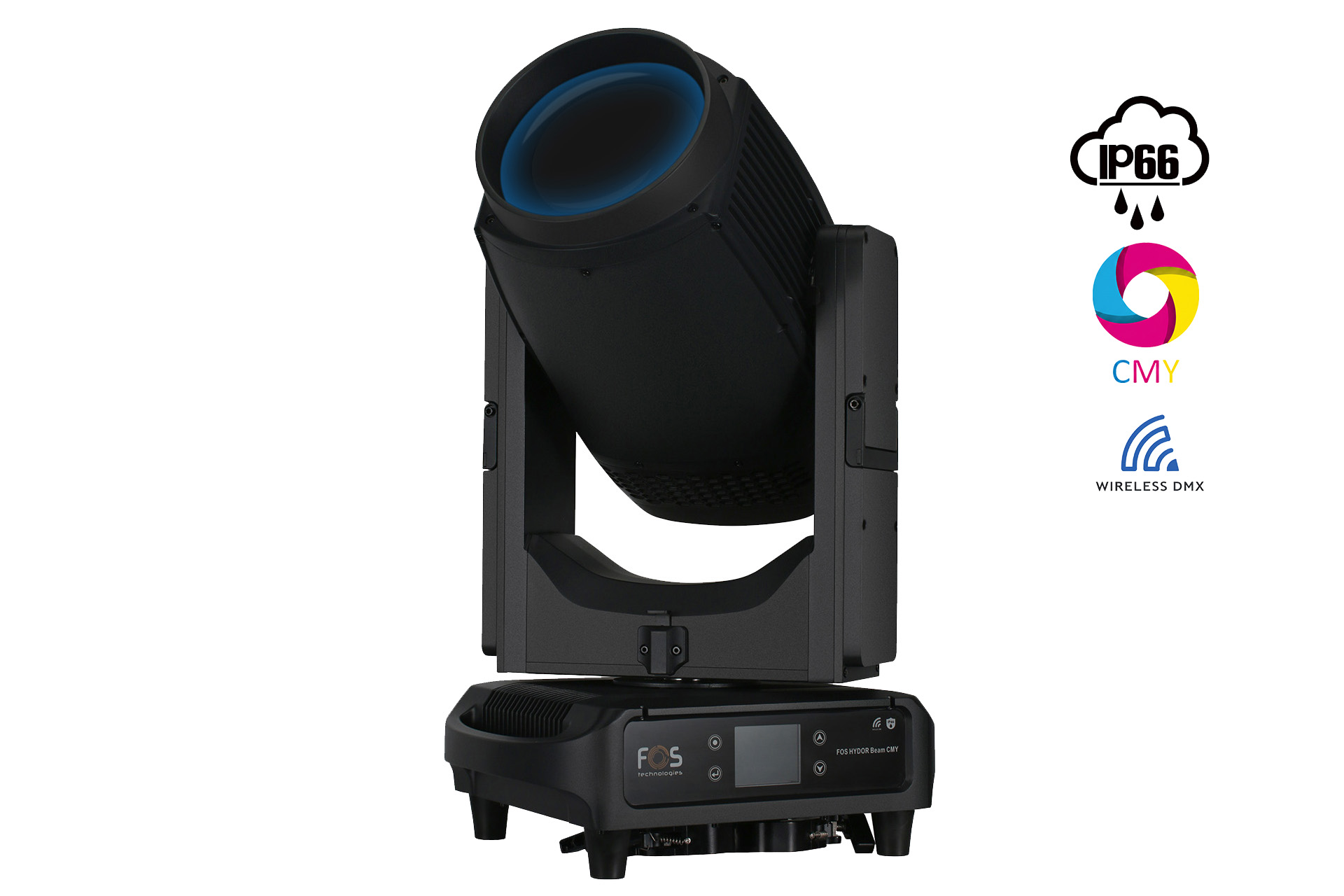

FOS HYDOR Beam CMY IP66

Product code:L007868
Innovative outdoor IP66 Beam moving head with CMY, super powerful lamp source Philips 420W LL, Lifespan: 3500hours, Color temperature: 7800K, CRI up to 77, Lens diameter: 180mm, Beam angle: 1.7 degrees, CMY color mixing system and linear CTO 3600-6600K, creative selection of 6 prims, 12 dichroic colors, 17 static gobos, Linear heavy frost 15° for wash effect, Electric focus system, Magnesium Aluminum IP66 body, Wireless DMX, Seetronic PowerCon True1 IN/OUT, 26kg
TEXT_PRODUCT_DESCRIPTION
Description

The FOS HYDOR Beam CMY is a high-performance, weather-protected moving head engineered for large-scale outdoor productions, architectural landmarks, and festival stages. Combining the raw power of the Philips 420W Long-Life source with a sophisticated CMY color mixing system, this fixture delivers unparalleled mid-air effects regardless of the environment.

Optical Excellence & Power
At the heart of the HYDOR Beam is a massive 180mm frontal lens, producing a razor-sharp 1.7° beam that maintains intensity over extreme distances.
Light Source: Philips 420W LL (3,500-hour lifespan).
Luminous Profile: 7800K color temperature for a crisp, daylight-white output.
Precision Focus: High-speed motorized linear focus system.

Advanced Color & Beam Shaping
Break away from the limitations of standard beam fixtures. The HYDOR offers full creative control through:
CMY Color Mixing: Seamless transition between thousands of vibrant hues.
Linear CTO: Adjustable color temperature (3600K – 6600K) for perfect white-balance matching.
Color Wheel: 12 dichroic colors for rapid-fire snaps and split-color effects.
Static Gobos: 17 static gobos designed for high-contrast mid-air aerials.

Dynamic Effects & Versatility
Multi-Prism System: A creative selection of 6 prisms allows for complex beam geometries and wide-area coverage.
Wash Functionality: A 15° linear heavy frost filter instantly transforms the narrow beam into a soft-edged wash light.
Strobe & Dimming: Smooth mechanical dimming and high-speed shutter effects.

Tour-Grade Build & Connectivity
Housed in a rugged Magnesium-Aluminum alloy body, the HYDOR is built for the rigors of the road while maintaining a manageable weight of 26kg.
IP66 Rating: Fully protected against dust and powerful water jets; no rain protection domes required.
Wireless Control: Integrated Wireless DMX for clean, cable-free setups.
Power & Data: Features Seetronic PowerCon True1 In/Out for secure, weatherproof daisy-chaining.

Light source: Philips MSD 420W LL lamp / 7800 K
Lifespan 3500 Hours
CRI up to 77
180 mm lens diameter
1.7º beam angle

CMY + CTO wheel colour mixing system, plus 12 dichroic colours.
CTO range from 3600 to 6600 Kelvin
17 fixed gobo patterns
Linear heavy frost filters (15º beam angle)
6 rotating combinable (3 + 3) prisms
Electronic focus
Dimmer and strobe




DMX controllable, RDM compatible
21 DMX control channels

Power supply 100/240V AC, 50/60Hz.
Maximum power consumption: 600 Watt.
Seetronic Truepowercon connectors
3-pin XLR DMX connectors
Pan 540 & Tilt 270 degrees, 16-bit, with auto reposition system
IP66 protection against dust and water
Fixture size: 386 x 290 x 684 mm
Net weight: 26Kgs
Cartoon box: 775 x 415 x 475 mm, 30 Kgs
Flight case size (for 2 fixtures): 810 x 480 x 920 mm, 90 Kgs
