D Class Amplifier: 2ch and 4ch D class high-performance amplifier, led VU meter, temperature control fans, frequency response 20Hz - 34Kz, adjustable VPL.
Take a Look
IPA-120 L005750
Scroll on photo to zoom in or Click to enlarge

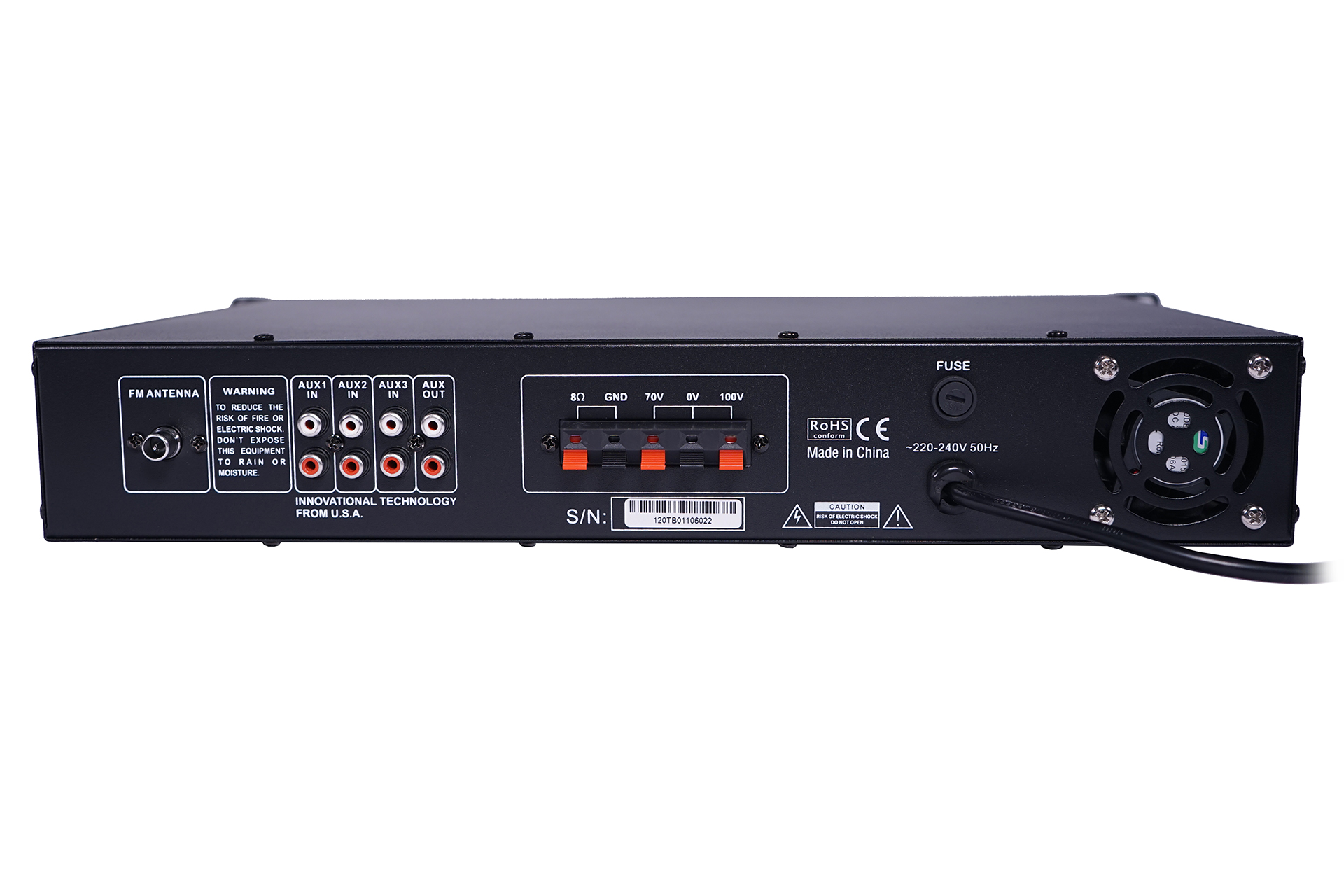

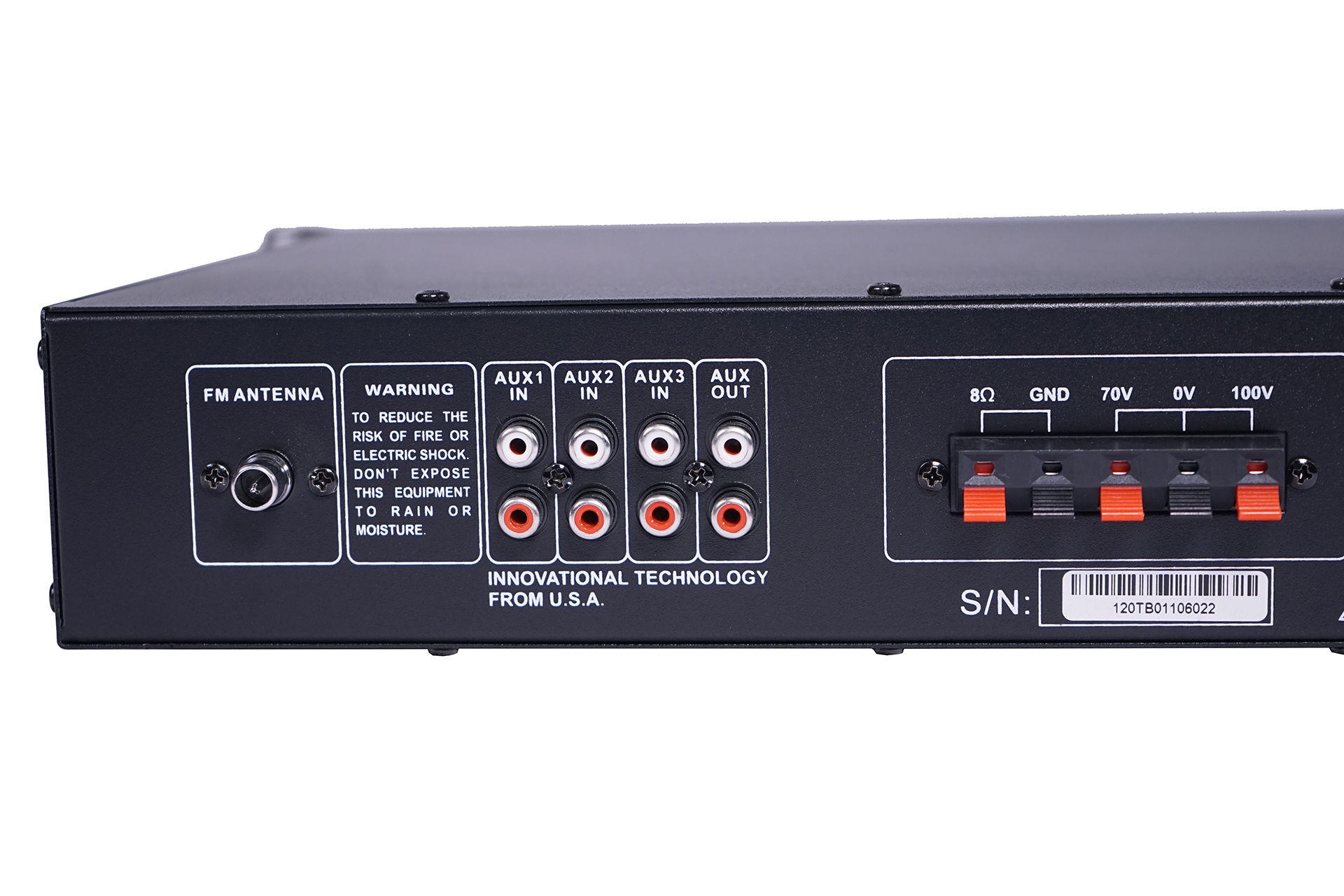

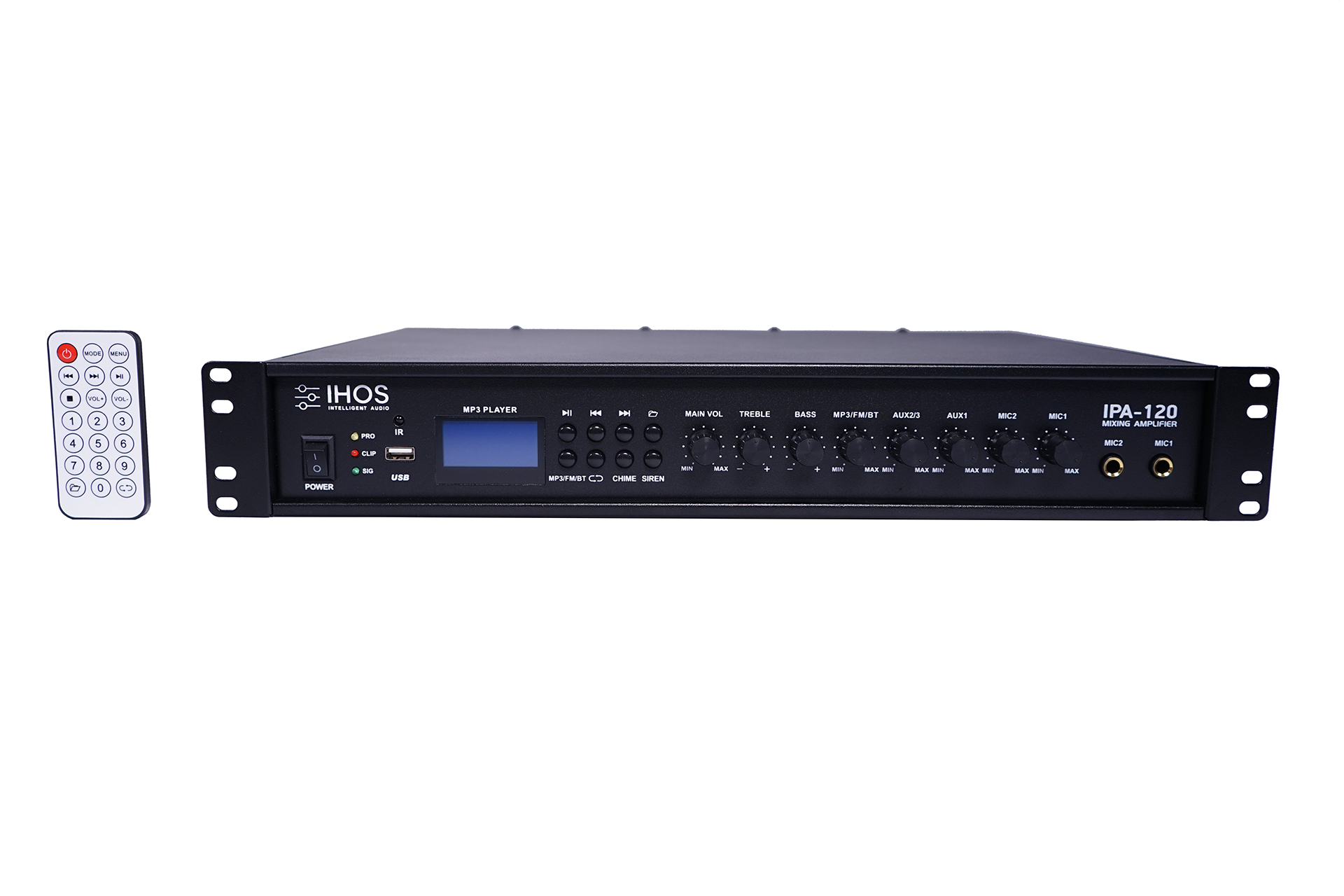

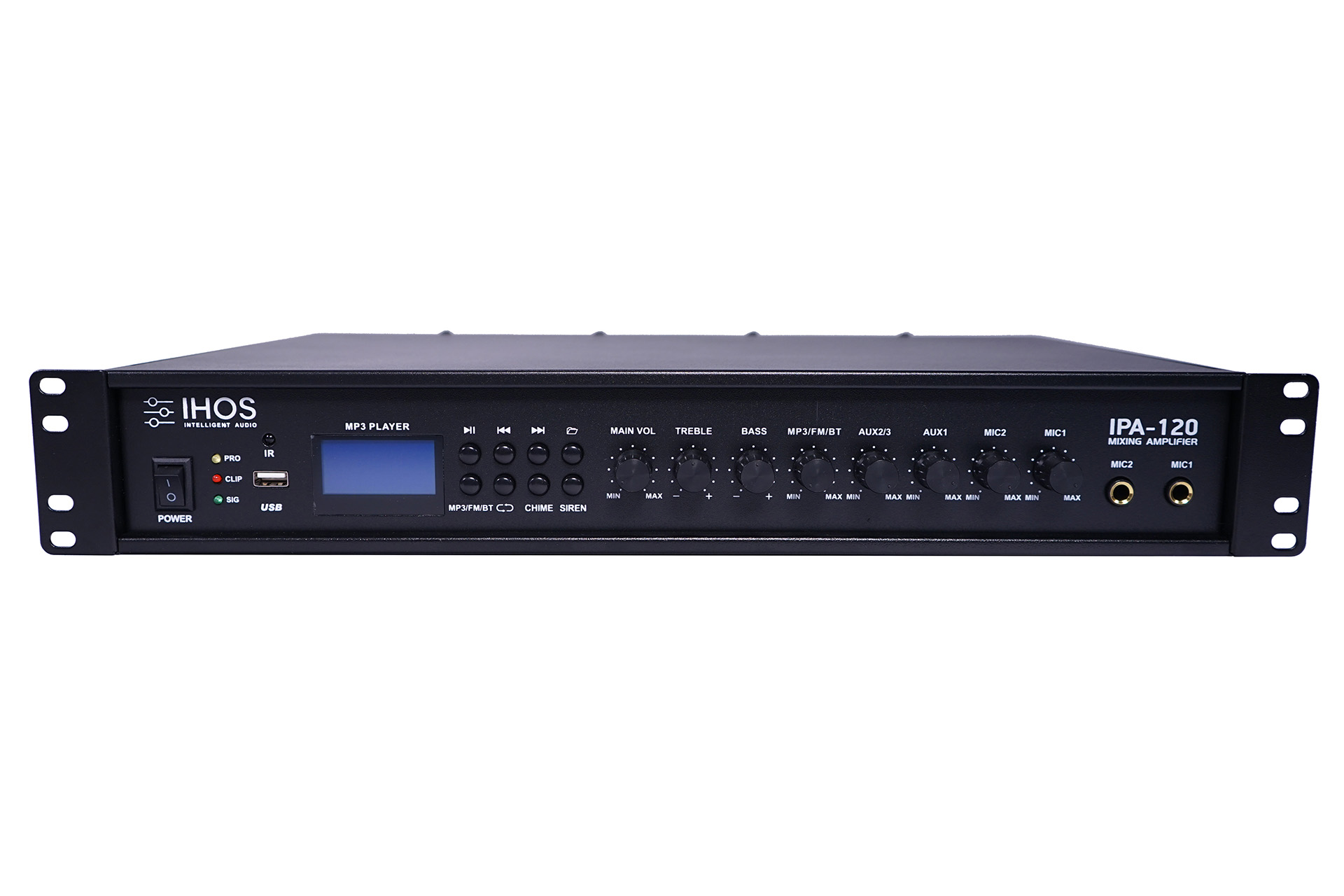

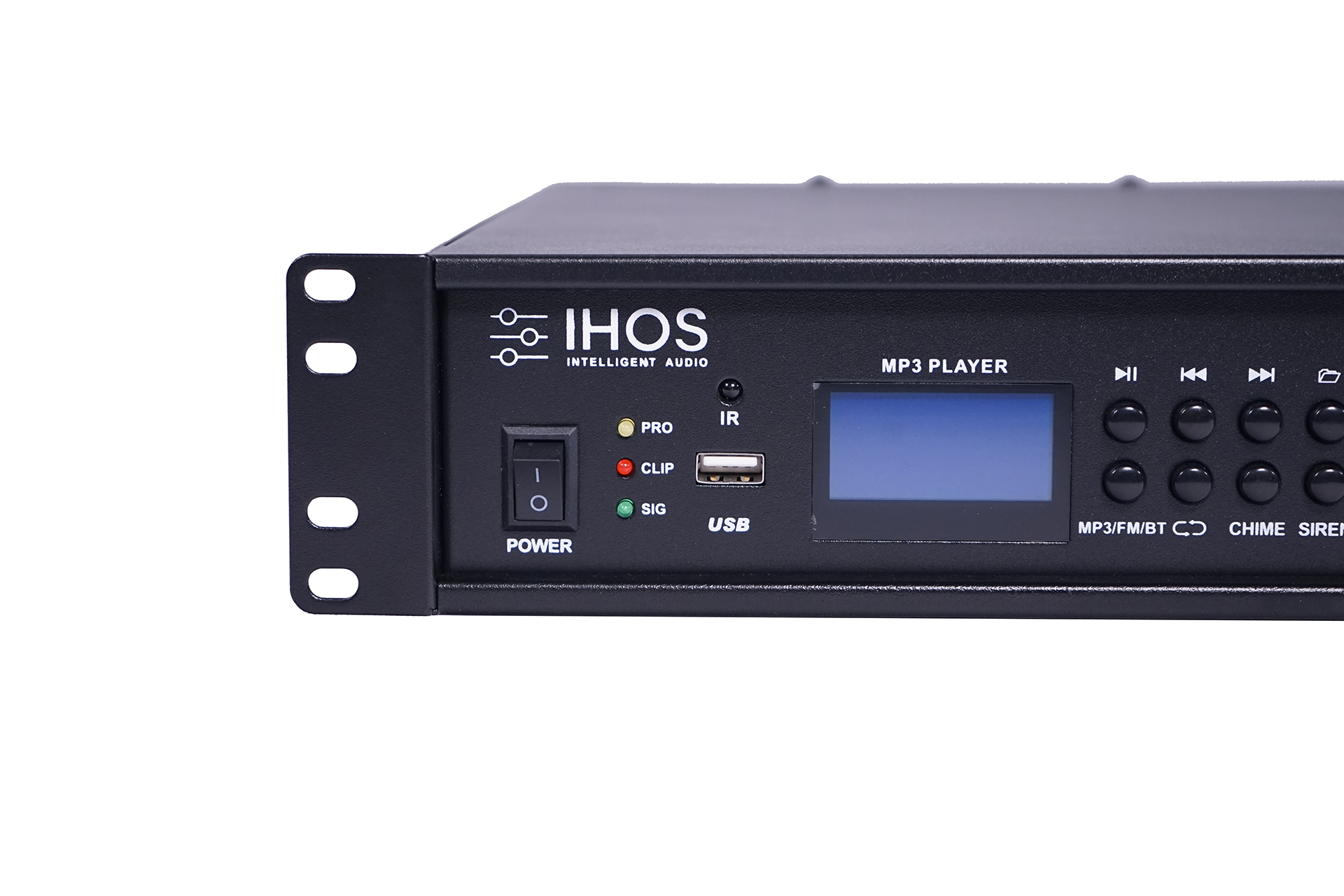

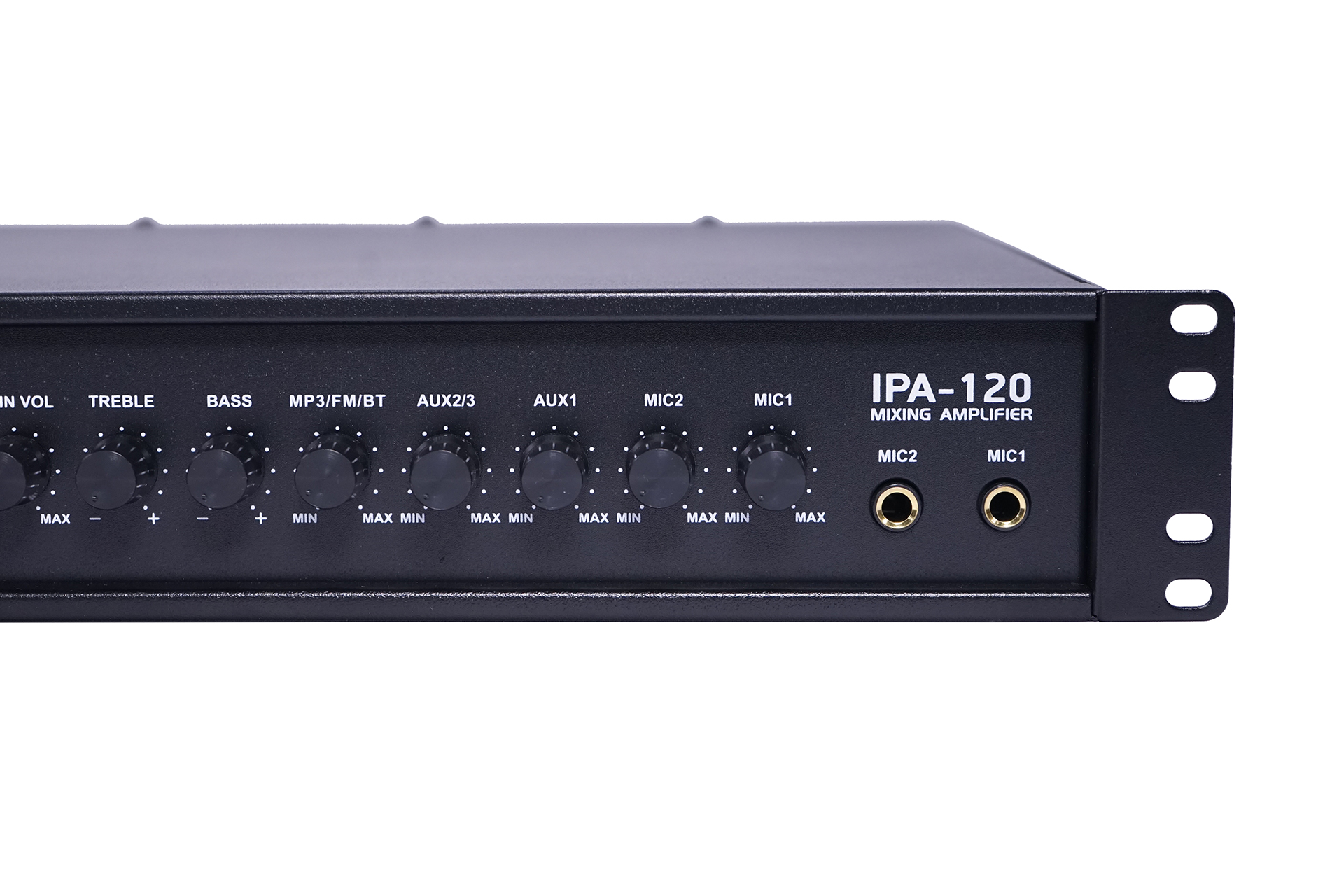

IPA-120 L005750
Public Address mixer amplifier 120w , 100V / 70V constant voltage output, 8 ohm constant resistance output, mp3, bluetooth, FM tuner ,USB interface,LCD screen, 3 line input, 2 mic input, 1 line output.Treble and Bass,IR control function
Price
Please login to see the price.
  • Technical Specifications

    Rated Power: 120 Watt.
    Mic input: -60dB, 6000, unbalanced, 6.3mm TS port.
    Aux input: -20dB, B310kO, unbalanced, Stereo RCA port.
    Aux output: 0dB, 6000, unbalanced, Stereo RCA port.
    Speaker output: High lmpendence: 100V, 70V; Low lmpendence: 8Ω.
    Protection: AC fuse, overheating, overvoltage, overcurrent, short, DC, and muting during power on protections.
    Effects: 5 EQ sound effector for MP3 player and FM tuner audio output.
    EQ for Master Output: Treble:± 12dB at 10kHz; Bass: ± 12dB at 100Hz.
    Frequency response: 20-20kHz (±3dB).
    S/N: Microphone input >66dB; AUX input>75dB.
    T.H.D.: <0.5% at 1 kHz, at 1 /3 rated power.
    Power Source: 220-240VAC, 50/60Hz.
    Power consumption: 110 Watt at rated power.
    Weight: 6 Kg.
    Temperature / Humidity operation condition: -10°c - +40°c, <95%.
    Dimensions: 482(W) x 70(H) x 310(0) mm.
    Shipping weight: 8 Kg.
    Shipping dimensions: 0.0299CBM, 58(W) x 43(H) x 12(0) cm.

Manual
