IPA-360 L005752
Scroll on photo to zoom in or Click to enlarge
IPA-360 L005752

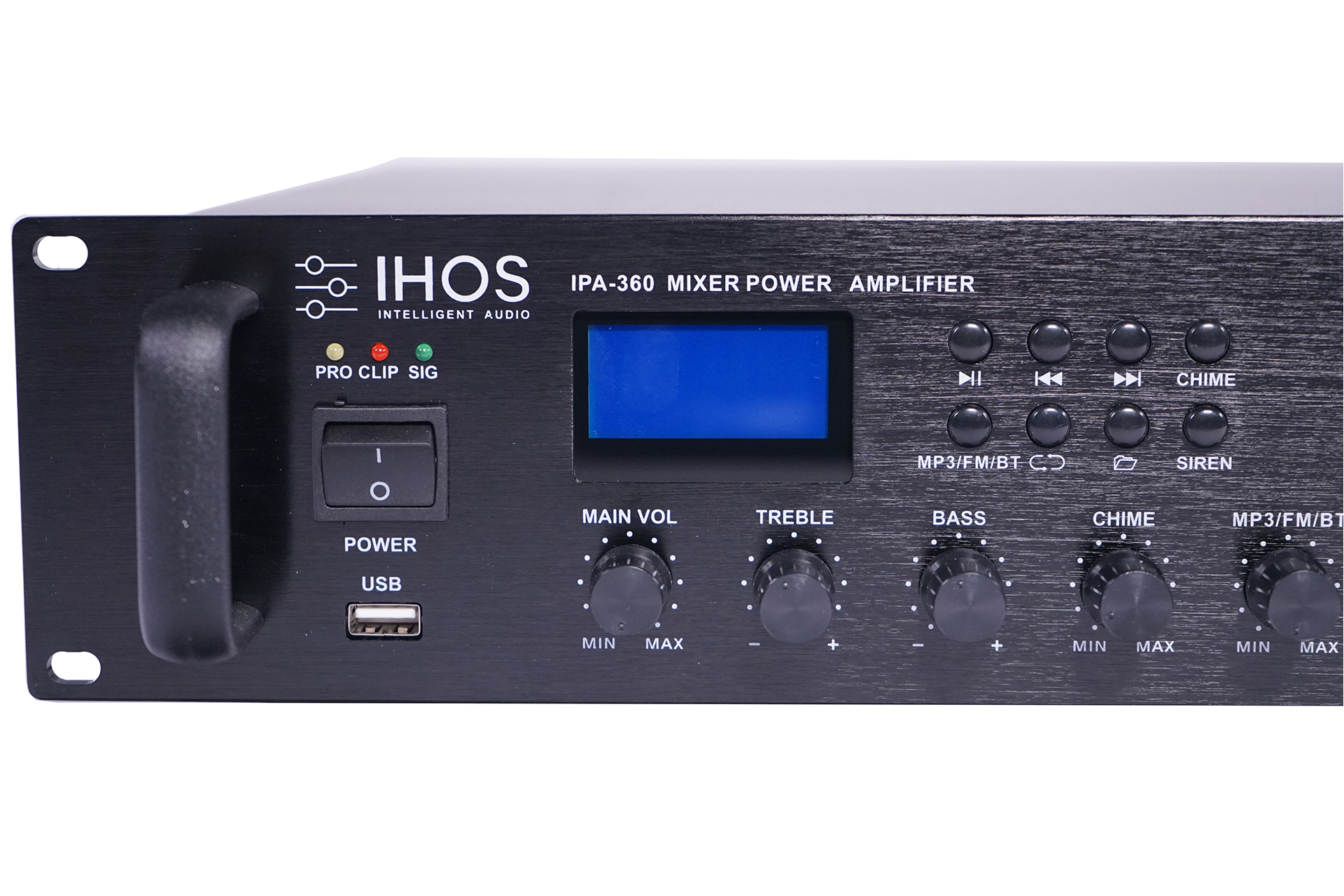

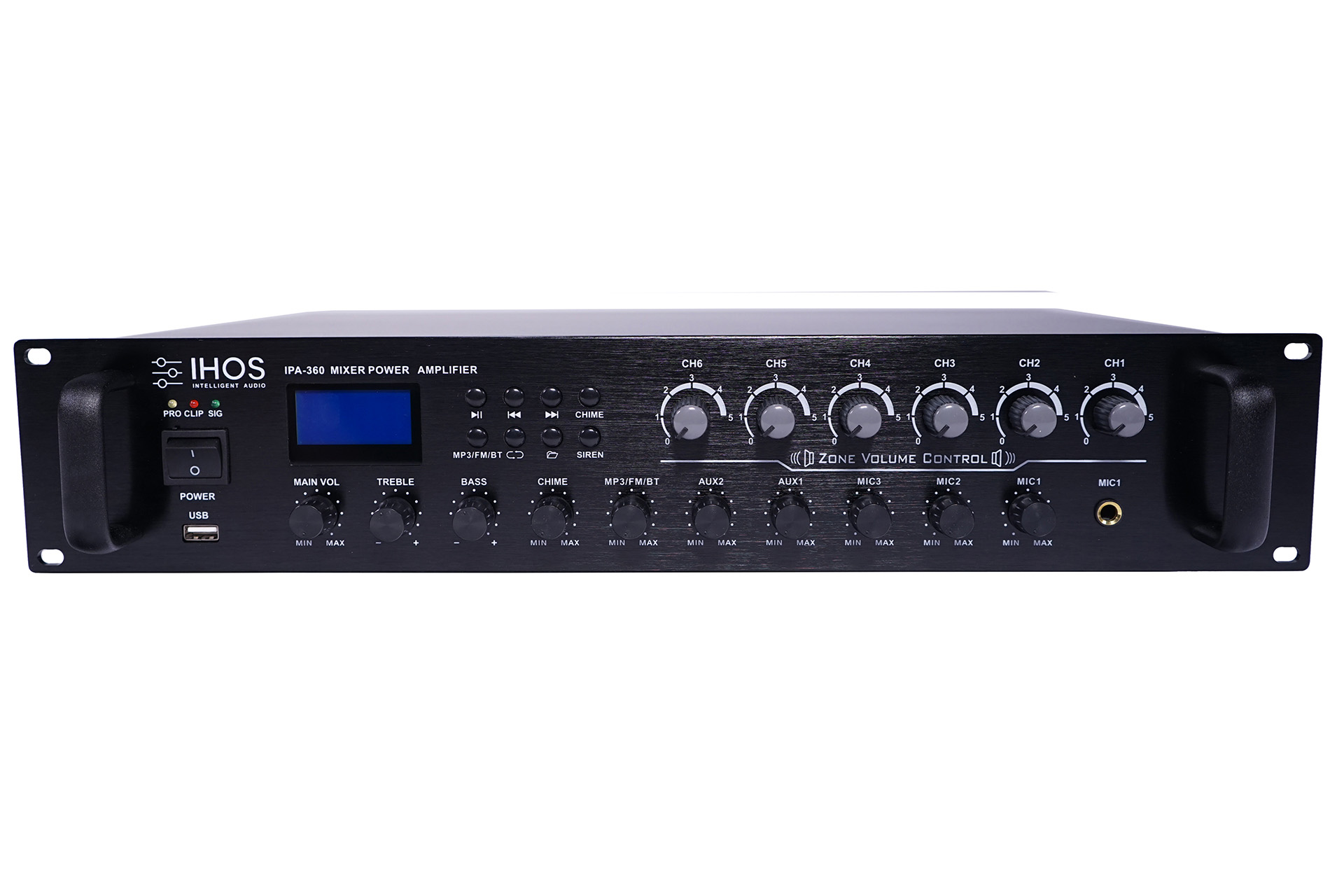

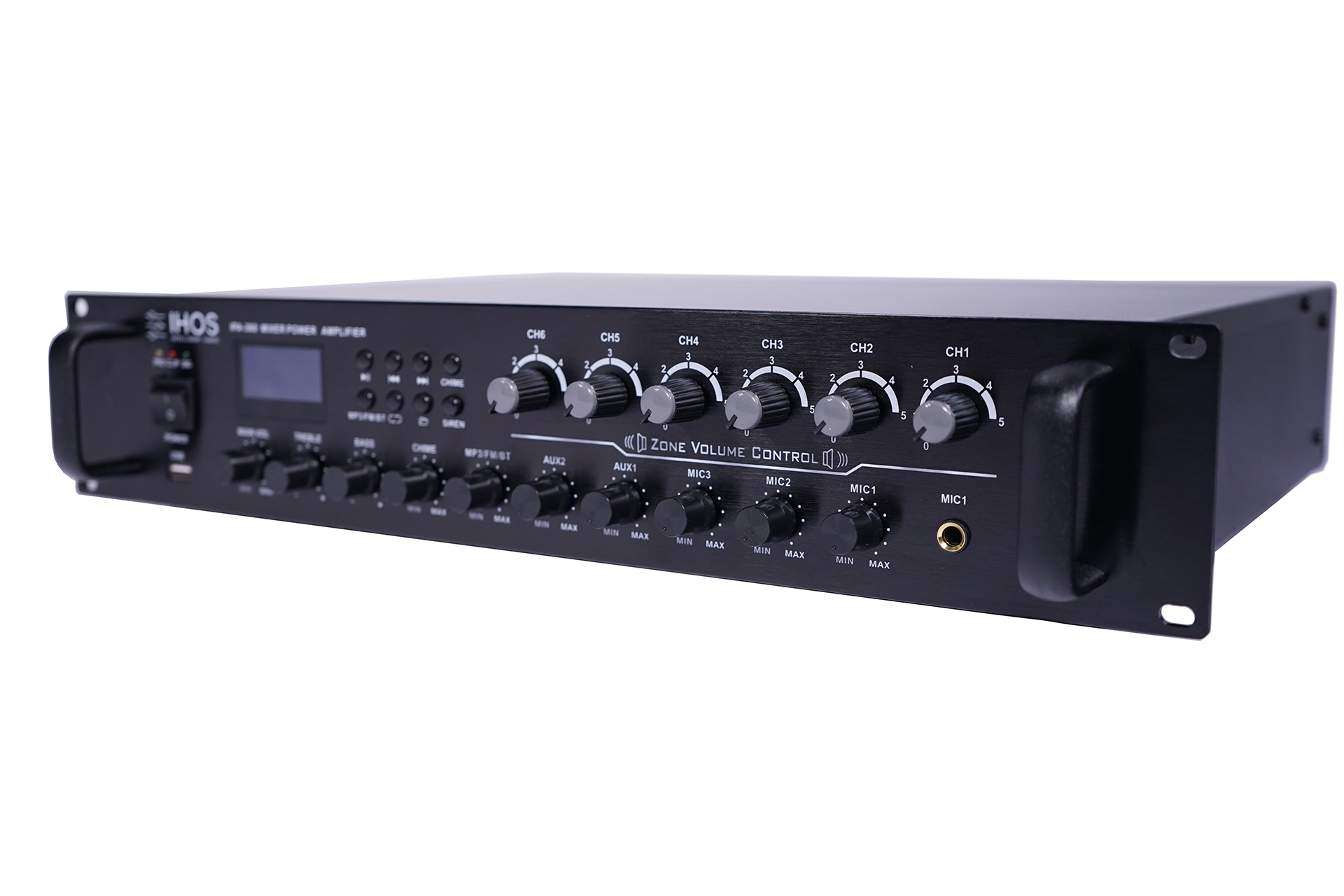

Public Address mixer amplifier 360w, 6 zones speakers with volume control, , 100V / 70V constant voltage output, 8 ohm constant resistance output, mp3, bluetooth, FM tuner ,USB interface,LCD screen, 2 line input, 3 mic input, 1 line output.Treble and Bass,
Price
Please login to see the price.
  • Features

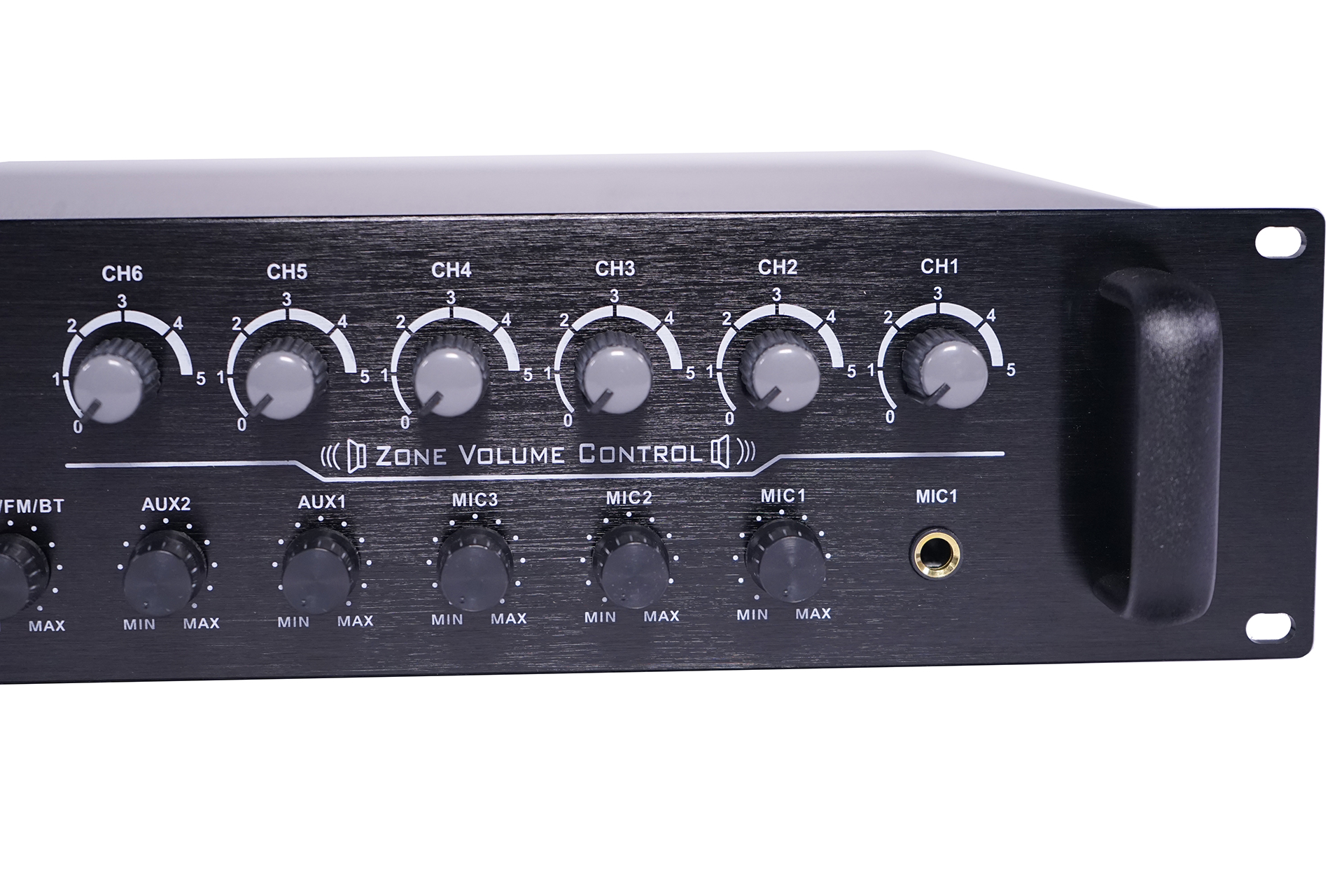

    6 zones speaker output with individual volume control.
    Built-in MP3 player, support Mp3, WMA and WAV format, USB flash disk input port.
    Built-in FM tuner.
    With Bluetooth playback function, can connect the mobile phone Bluetooth and play the music in the mobile phone.
    Built-in Chime and Siren.

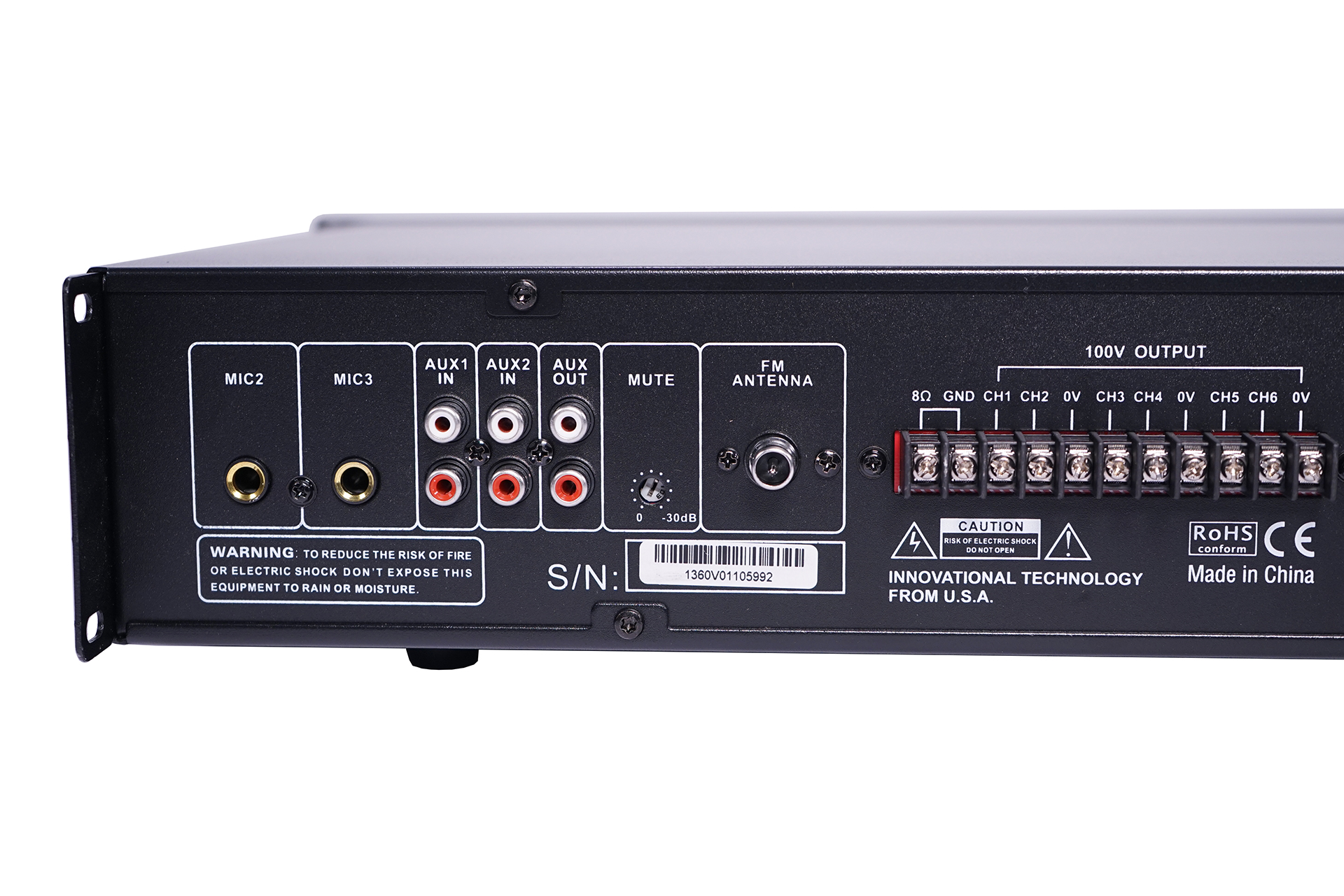

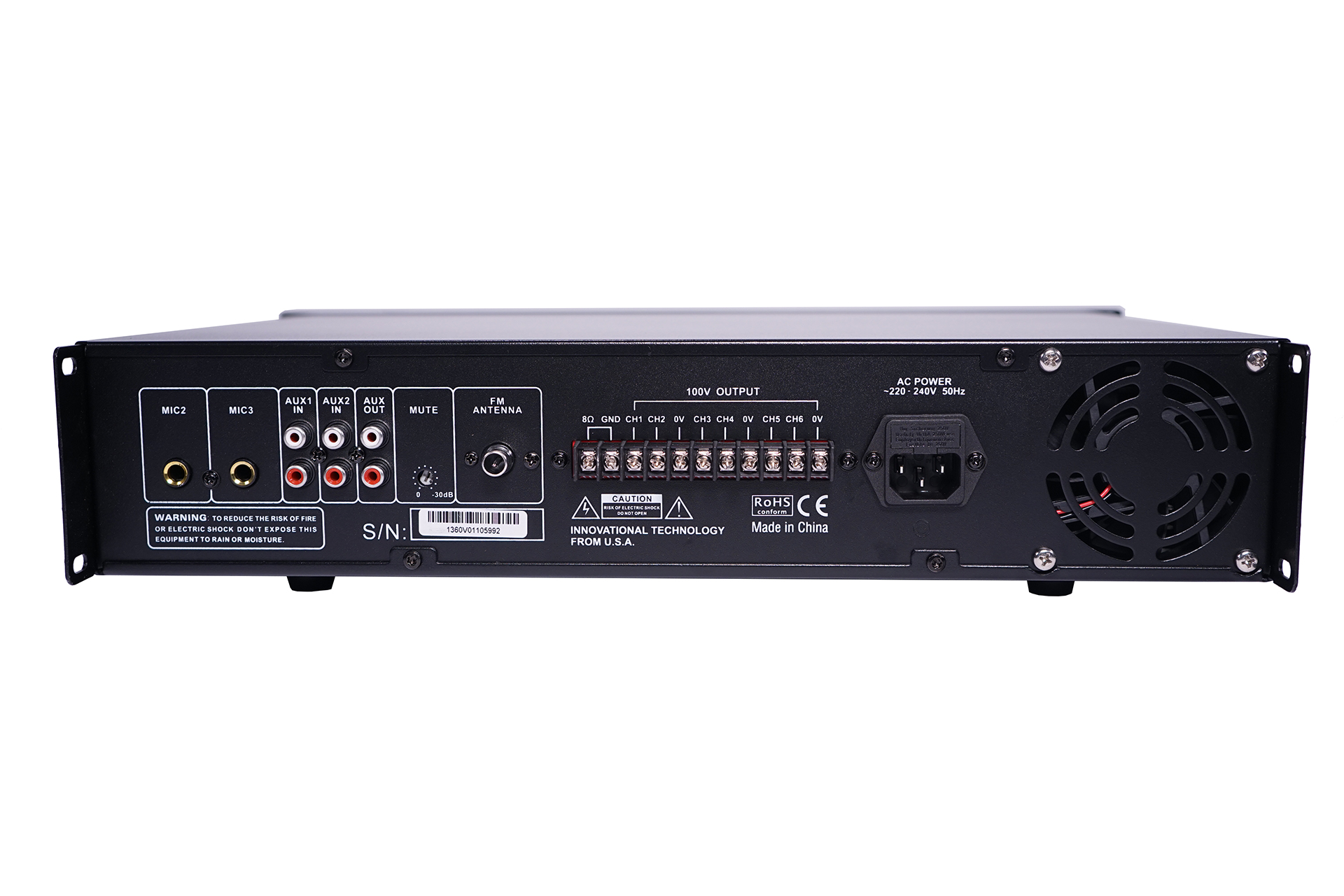

    2 Aux, 3 Mic input and 1 Aux output.
    Mic 1 input has priority (Mute other audio input).
    Power, Signal and Clip LED indicator.
    Volume control for each input and master output volume control.
    Treble and bass control.
    1 00V high impedance output and 8ohms low impedance output.
    128*64 LCD display for MP3 and FM tuner operation.
    4 repeat mode for MP3 player: random, repeat one, repeat all in a file and repeat all.
    LCD display can display name of music, playing time and remain time.
    With dynamic spectrum display, more dynamic design.
    Perfect power amplifier protection mechanism.

  • Technical Specifications

    Rated power: 360W
    Mic input: -60dB, 6000, unbalanced, 6.3mm TS port
    AUX input: -20dB, 31 0kO, unbalanced, Stereo RCA port
    Aux output: 0dB, 6000, unbalanced, Stereo RCA port
    Speaker output: High lmpendence: 1 00V, 70V; Low lmpendence: 80.
    Volume control for each zone: 6 zones speaker output with individual volume control. Note: the power capacity for each zone can reach the rated power of amplifier. But make sure that the total power of zone 1 ~6 can not exceed the rated power.
    Protection: AC fuse, overheating, overvoltage, overcurrent, short, DC,
    and muting during power on protections.
    EQ for Master output: Treble:± 12dB at 10kHz; Bass£ 9: 12dB at 100Hz
    Frequency response: 20~20kHz (±3dB).
    S/N: Microphone input >66dB; AUX input>75dB
    THD: <0.5% at 1 kHz£ at 1 /3 rated power.
    Power input: 220~240VAC, 50/60Hz.
    Power consumption: 350 Watt at rated power.
    Temperature / humidity operation conditions: -10°c ~ +40°c, <95%.
    Dimensions: 482 x 88 x 350 mm (W x H x D).
    Shipping weight: 14 Kg.
    Shipping dimensions: 0.0382CBM, 58(W) x 47(H) x 14(0) cm.
