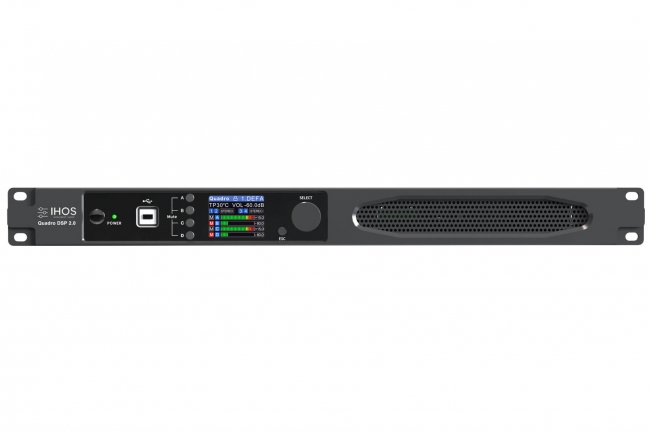

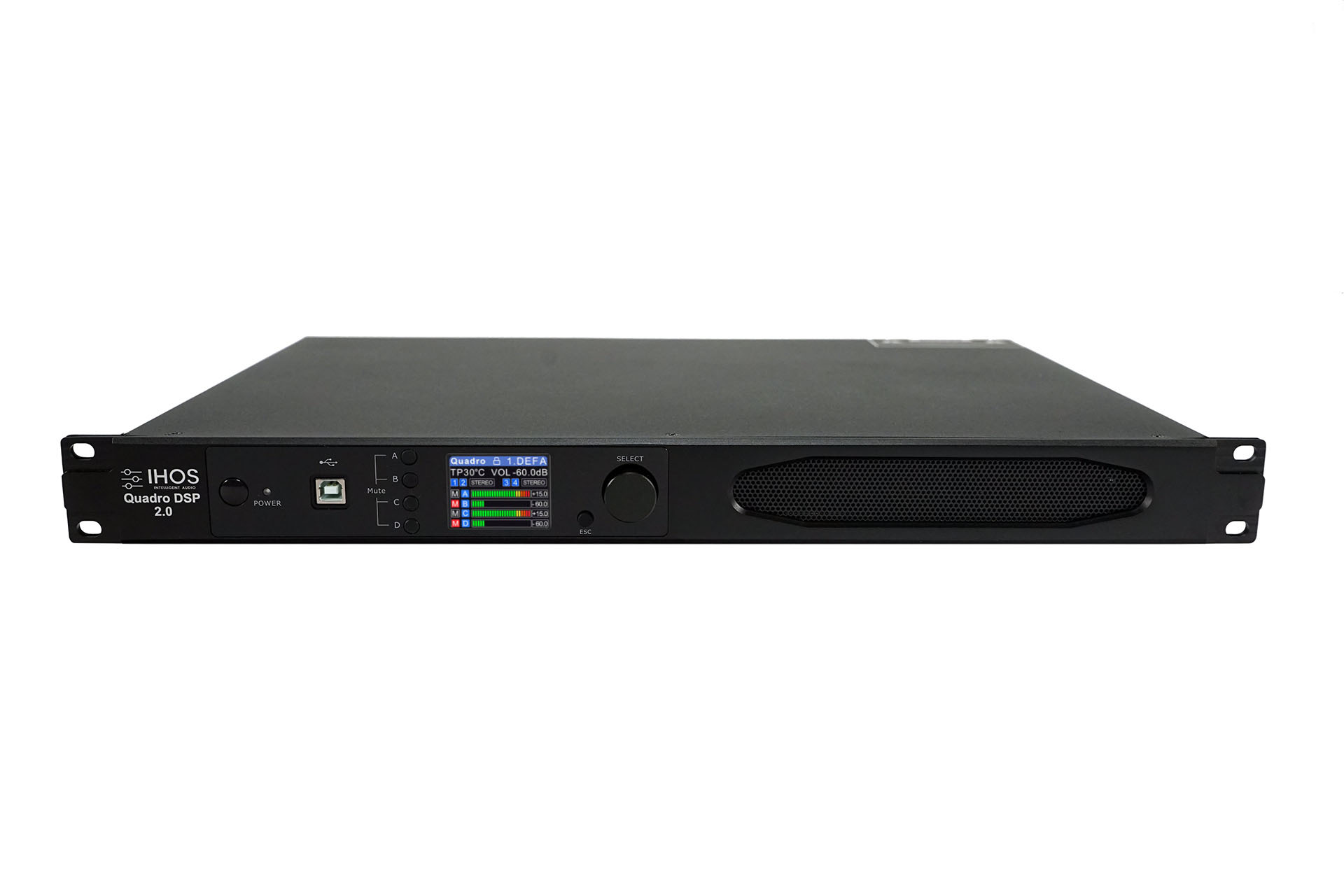

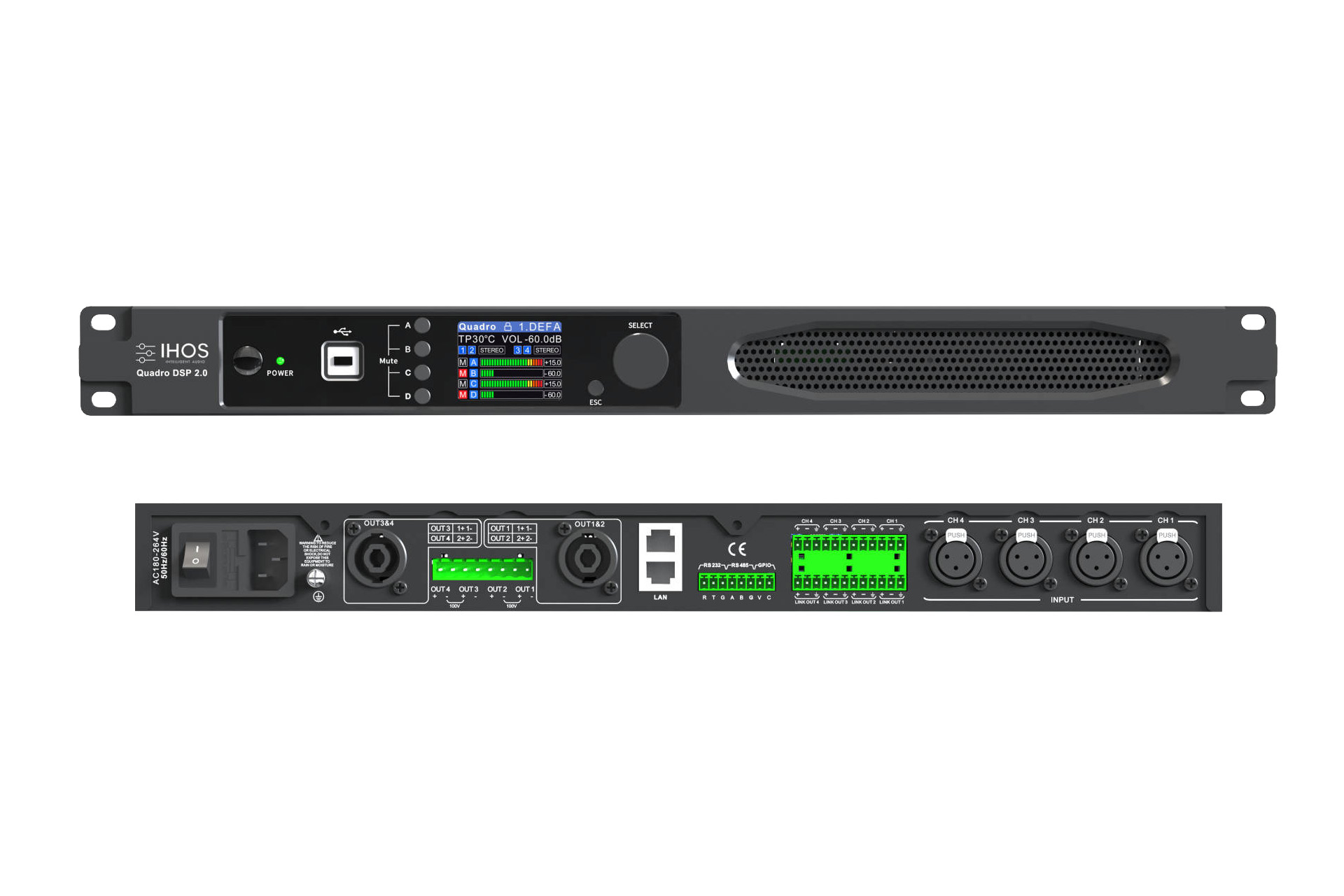

Quadro DSP 2.0, is a DSP digital amplifier of 4*500W@4Ù / 4*300W@8Ù ,Bridge 2*1000W@8Ù, support constant 70V/ 100V(1000W@10Ù). It can monitor the status of amplifier and adjust the function of DSP in real time and remotely. DSP functions of built-in: noise gate, matrix mixer, PEQ, crossover, delay, compressor etc.
It can be used in: Meeting Rooms, Medium/ Big conference rooms, Schools, Restaurants, Shopping malls.
Input: PEQ 15 PEQS
Output: PEQ 10 PEQS
Crossover: Butterworth, Bessel, Linkwitz 6~24
Output Delay: Input Delay:2*100ms / Output Delay:4*20ms
Output Compressor: Knee, Threshold, Attack, Ratio, Release
Output Limiter: Threshold-90dBu~21dBu, Release 1~2895ms
DSP Presets: 30 (one for factory preset)
Control port: TCP/IP, USB, RS485, RS232.
Network: 2*RJ45 TCP/IP, 1000base-T/ 100base-TX
Channels: 4
Power: 4*300W@8Ù 4*500W@4Ù
Bridge Power: 2*1000W@8Ù

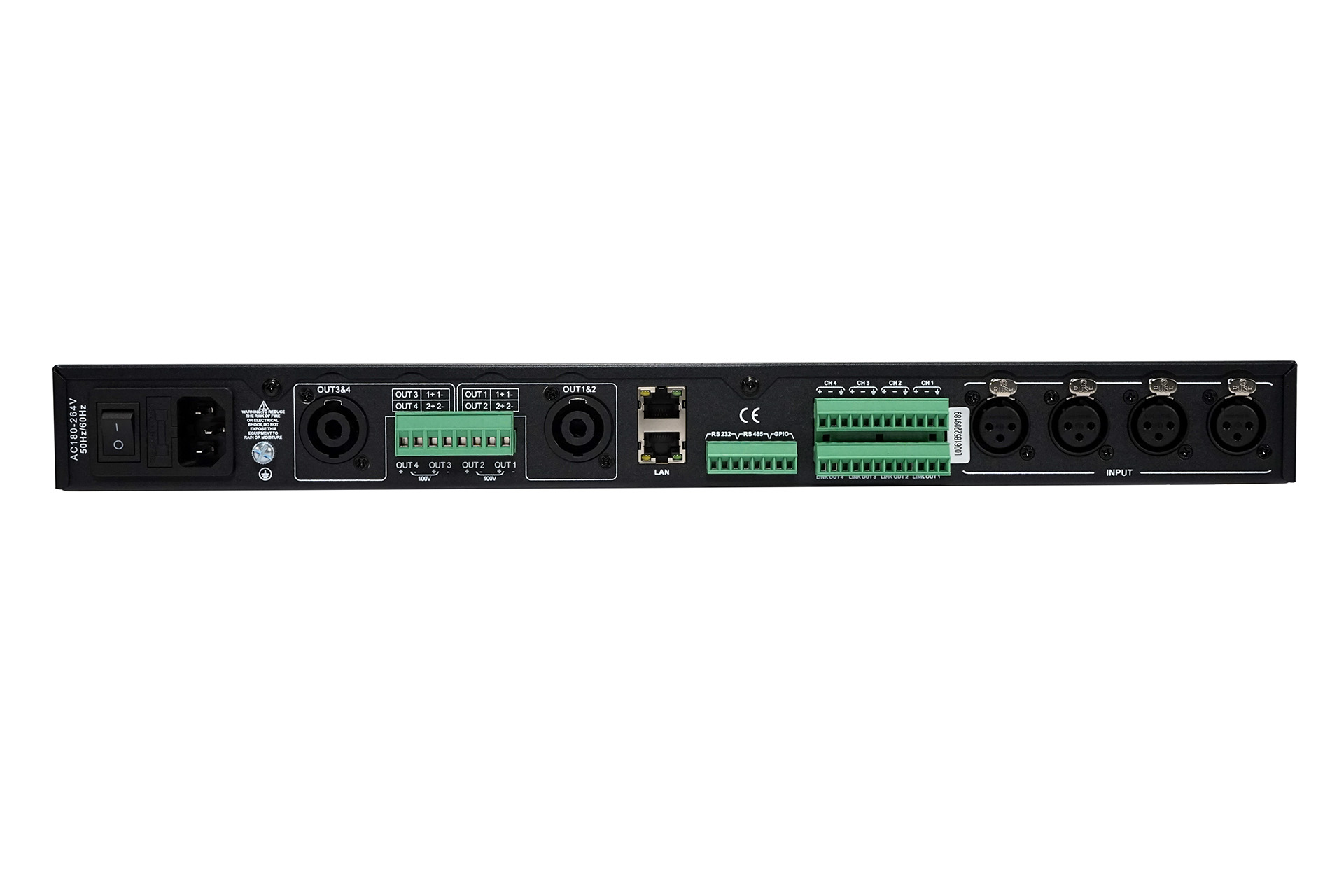

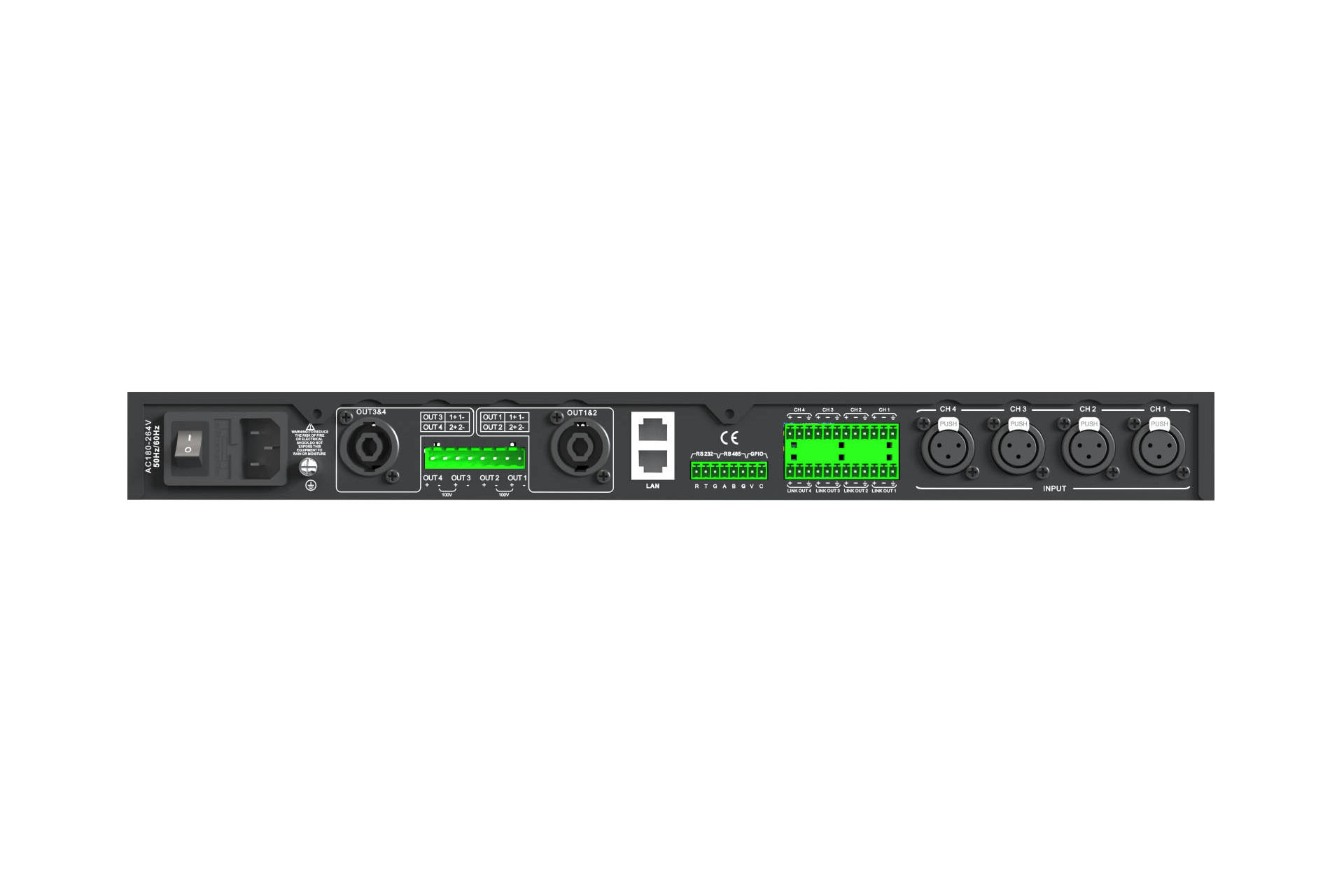

Input Interface: Balance 4*XLR;Unbalance 4*RCA
Output Interface: 4*Terminal
Cooling Mode: 2*fans intelligent control
Gain 6dBu :30dB (29.5 times) ;0dBu :36dB (31. 1 times)
Maximum Input Level 6dB :16dBu (4.9V)
SNR 6dBu :94dB ;0dBu :94dB
Frequency Response 20Hz ~ 20kHz (±0.5dB)@1W ,8Ù
THD+ N: <0. 1%@1W-full power
Sample Rate: 48K/24bit
Channel Isolation: <-70dB
Work Mode: Stereo, Bridge, Mono, free Matrix
Remote Control: Standby, Call, DSP functions
Amplifier Monitor: Temperature, Power, Current and Voltage
Constant Voltage and Resistance: 100V 、70V 、8Ù 、4Ù

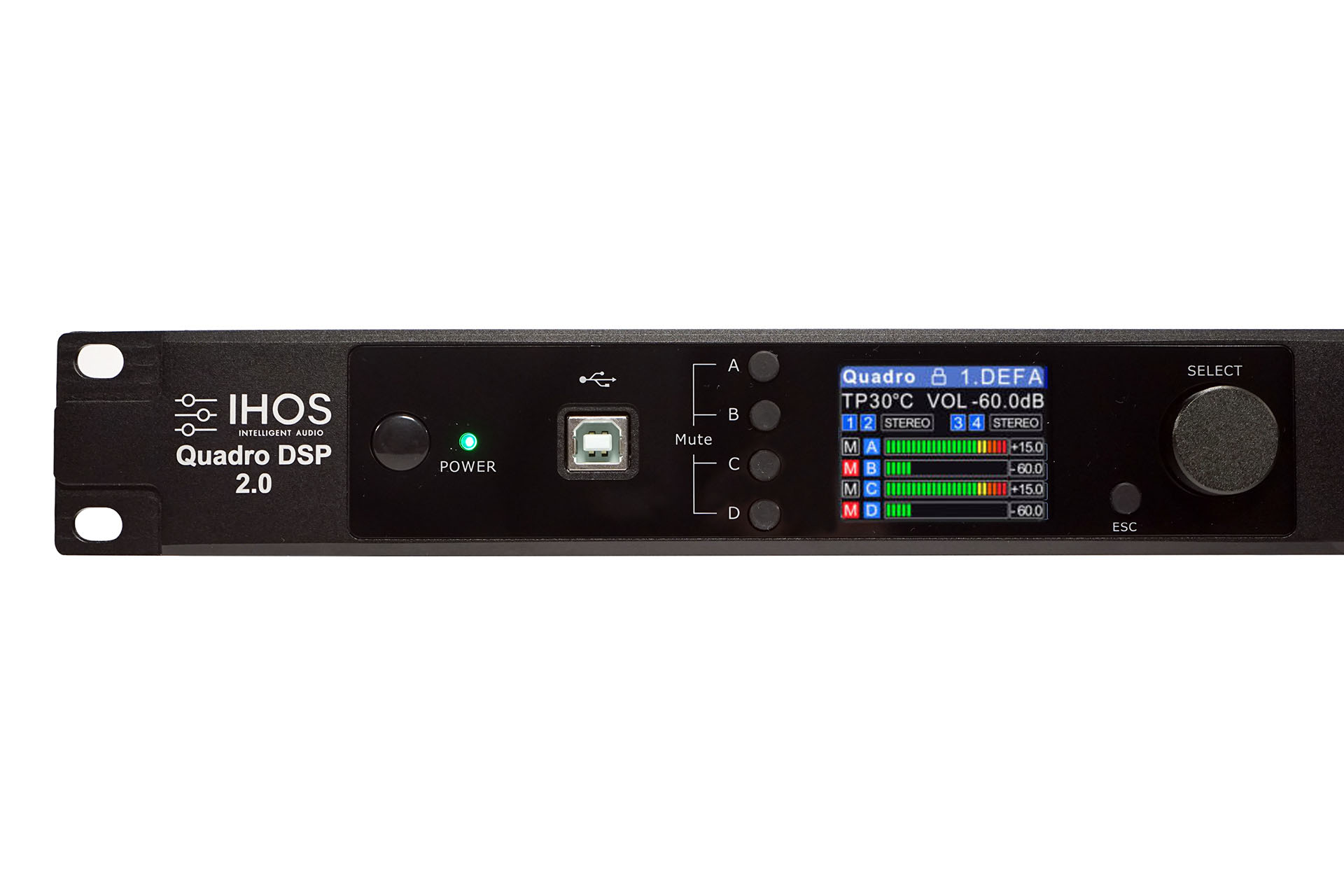

Display: 320x320pixel, IPS LCD
Protection Mode: DSP limiter、High temperature, DC, high frequency, short circuit, back EMF, peak current limiter、Back EMF、Surge current limiter, startup delay, power circuit breaker protection, power over voltage / under voltage protection.
PC Software: MConsole
Weight: 4Kgs.
Size: 483 x 300 x 445 mm.
Power Input: 110 - 264 Volt AC, 50/60 Hz.
