FOS Helix PRO L005316
Scroll on photo to zoom in or Click to enlarge

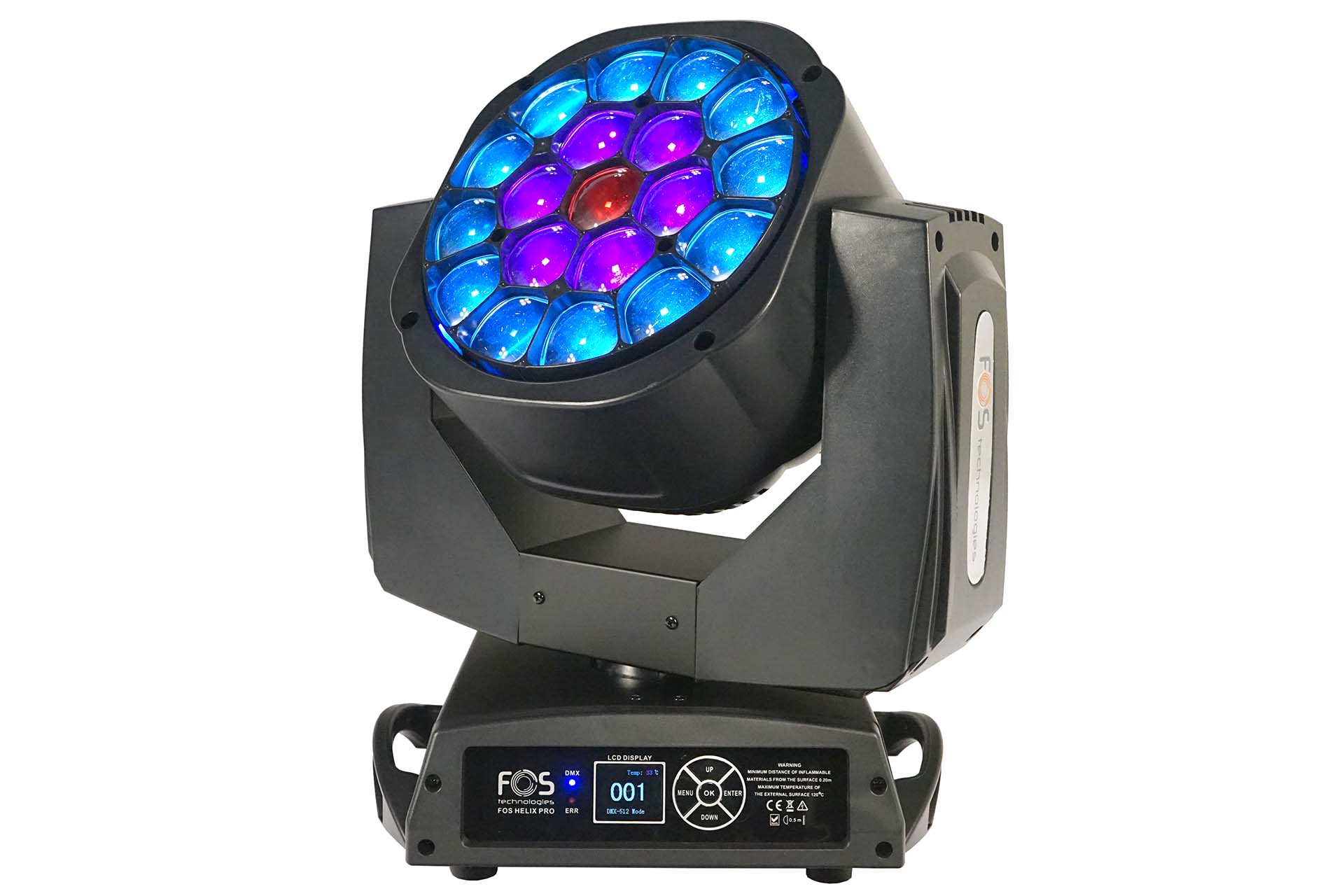

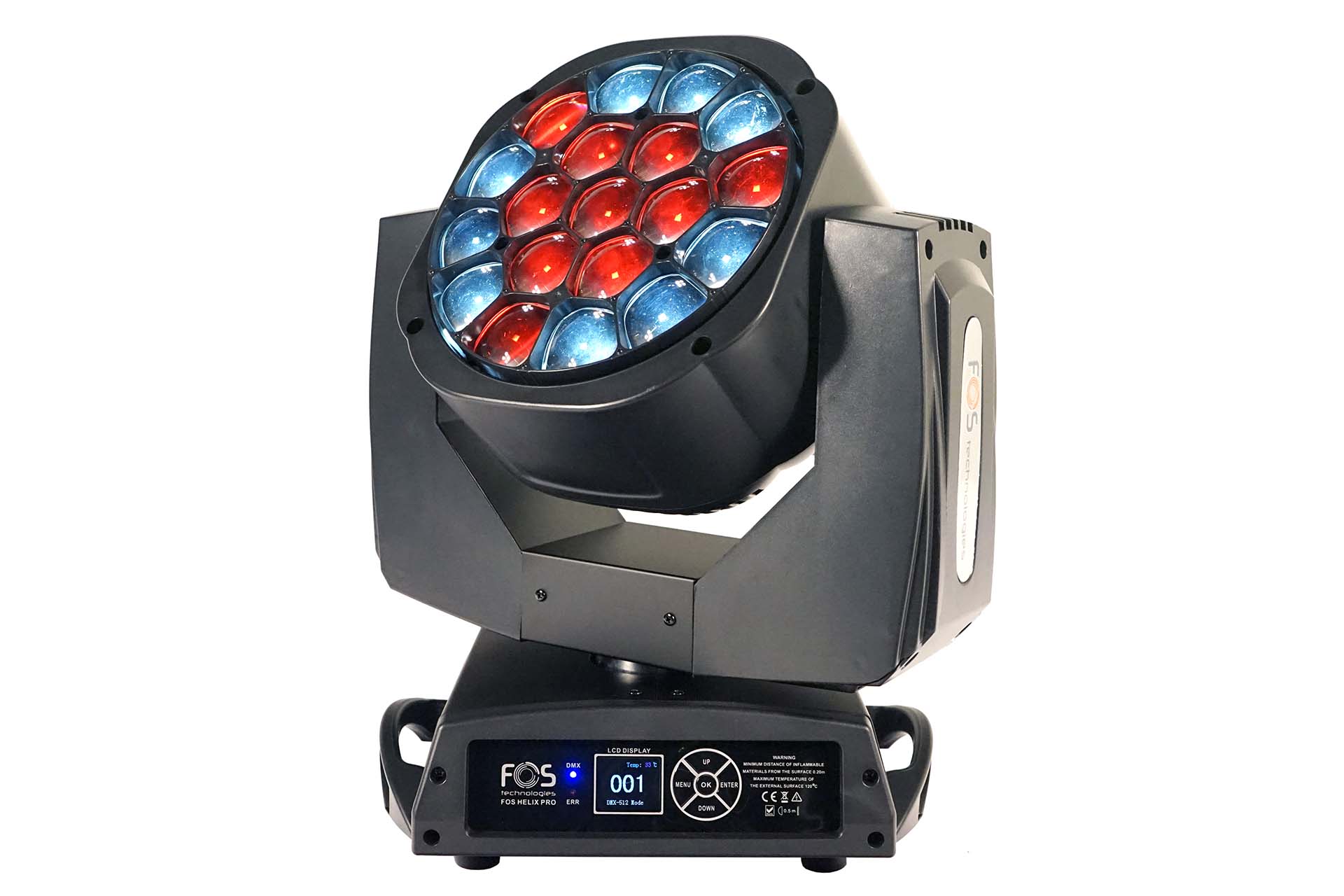

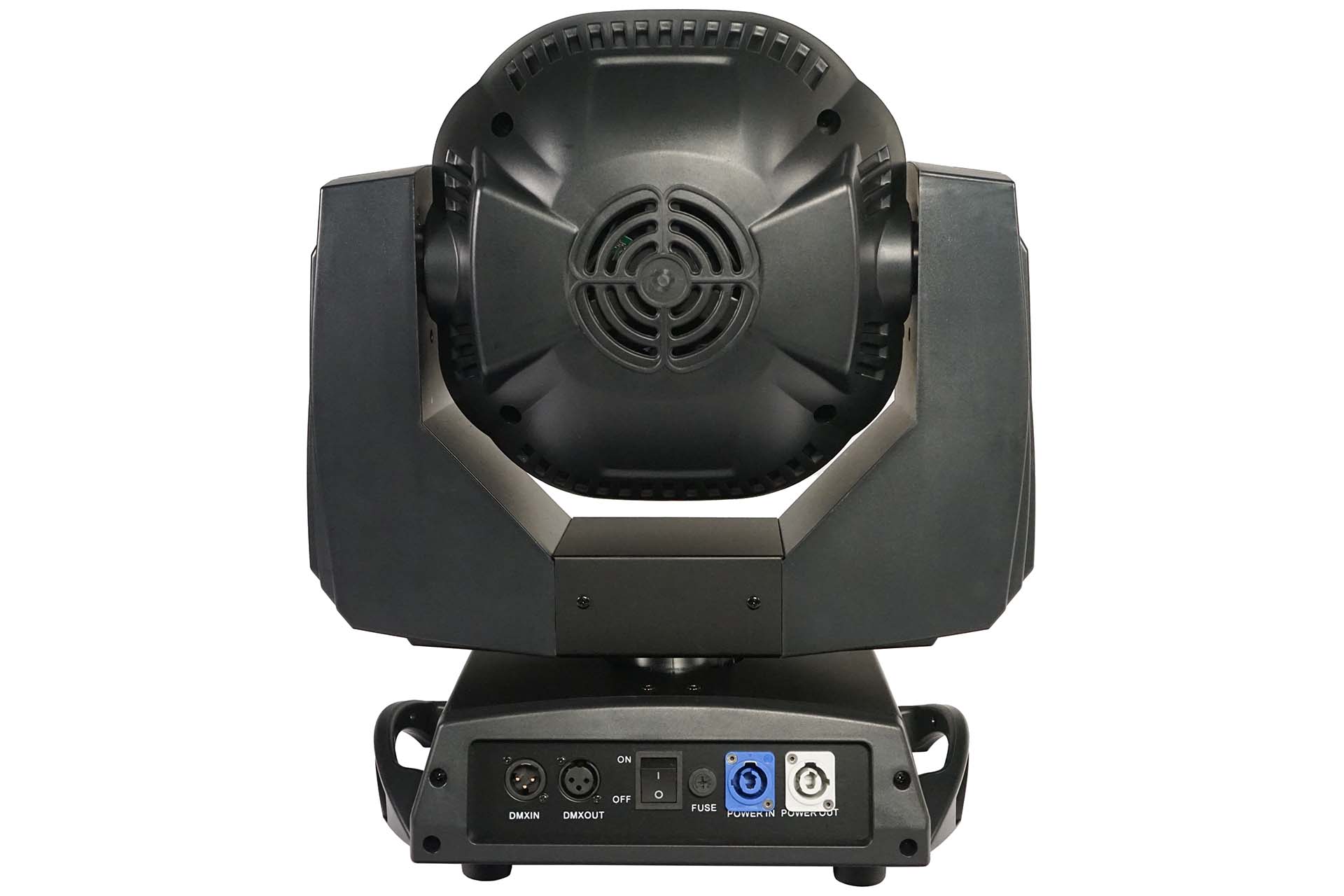

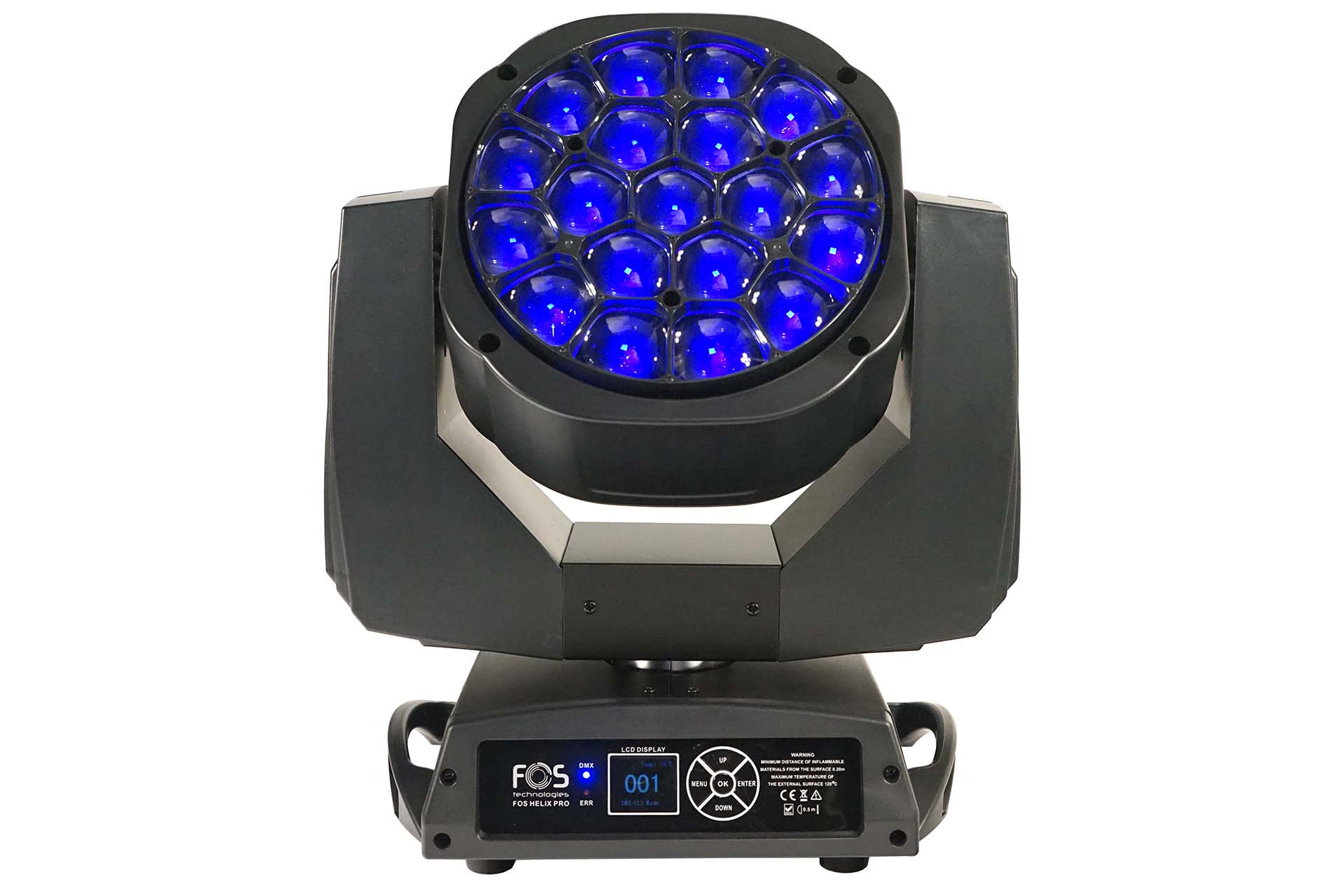

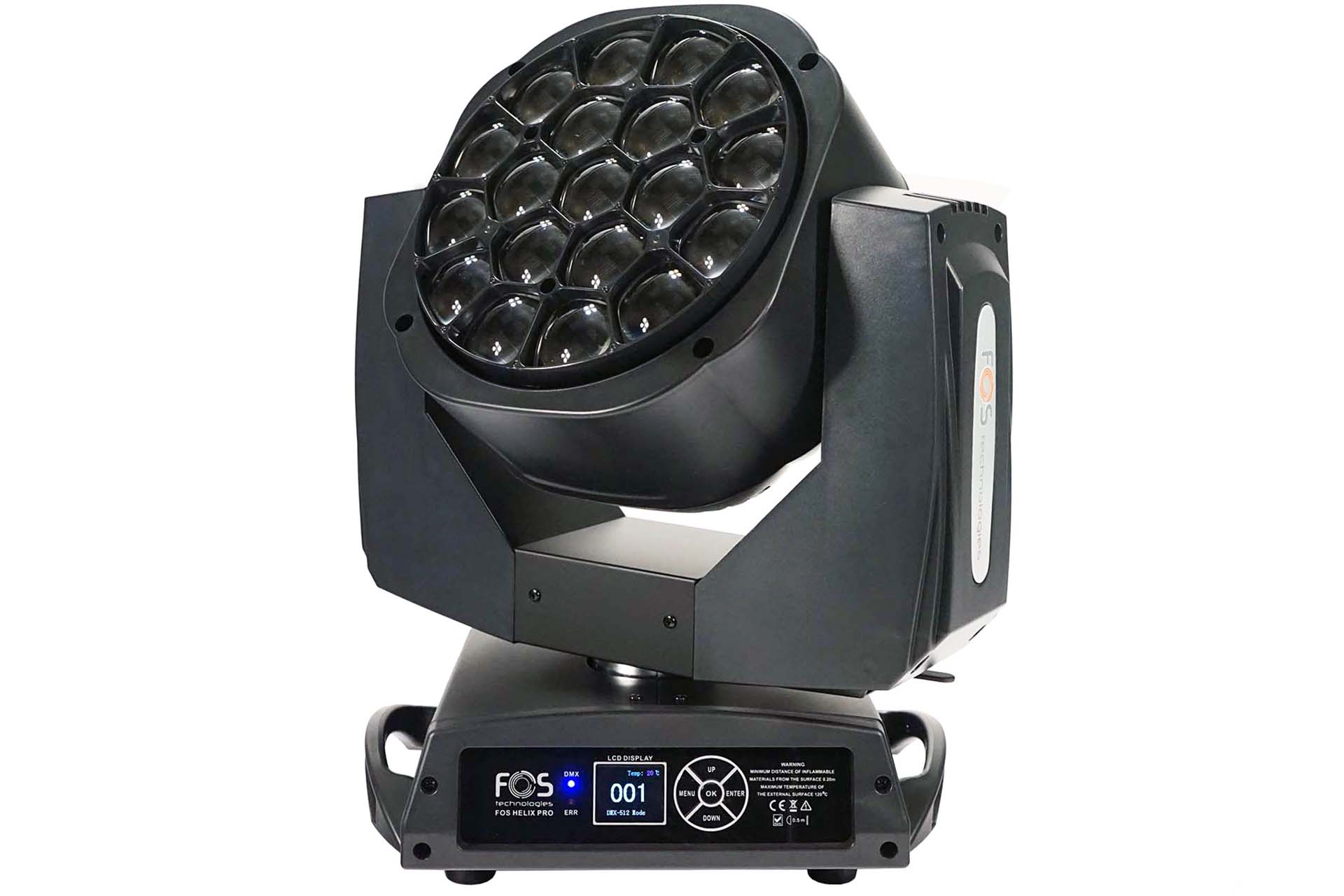

FOS Helix PRO L005316
Led Wash moving head with 19 Led 15 watt, zoom 4 - 60 degrees, Pixel Patterning Macros , Bi Directional Rotating Front Lens, RGBW Color mixing and independent pixel control. Kaleidoscopic effect with the rotation of the front lens. Strobe effects with adjustuble speed.
Price
Please login to see the price.
  • Light Source / Optics

    19x 15 Watt 4 in 1 LEDs.
    RGBW Color mixing and independent pixel control.
    Motorized zoom with range from 4 to 60 degrees.

  • Effects

    RGBW color mixing.
    Beam and Wash light projections
    Kaleidoscopic effect with the rotation of the front lens.
    Strobe effects with adjustuble speed.
    Pixel control in the extended DMX control modes.
    Pre-programmed macros and LED patterns.

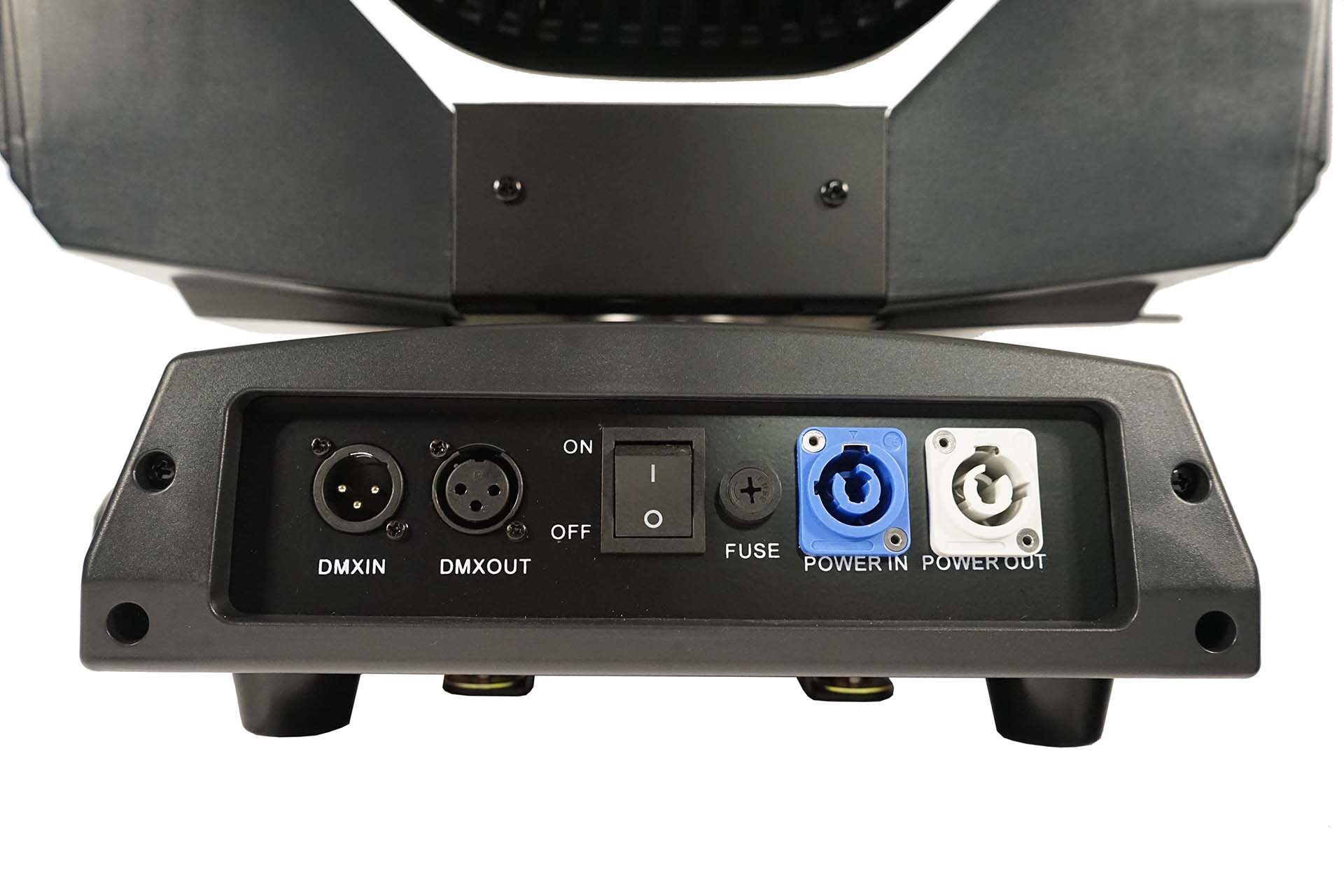

  • Control

    DMX512, Auto, Manual, Master Slave & Music control modes.
    Pan 540 & Tilt 270 degrees with 16bit movement resolution.

  • Dimensions / Installation Details

    Power Supply: 100 / 240 Volt AC, 50/60 Hz.
    Power Consumption: 450 Watt.
    Noise level at 1 meter: 45 dB.
    IP20 (for indoor use only).
    Dimensions: 415 x 275 x 425 mm
    Carton Package: 530 x 420 x 510 mm
    Net Weight: 14,95 Kg.
    Gross Weight: 18,1 Kg.

  • Photometric Data

    Measuring distance: 5 Meters


    Full On (RGBW) minimum zoom

    Illuminance (lx): 13830
    Flicker Frequency (Hz): 70
    Flicker(%): 15


    Full On (RGBW) maximum zoom

    Illuminance (lx): 638
    Flicker Frequency (Hz): 205
    Flicker(%): 3


    White minimum zoom

    Color Temperature (K): 6849
    Illuminance (lx): 6047
    CRI (Ra): 72
    TLCI (Qa): 49.1
    Flicker Frequency (Hz): 262
    Flicker(%): 17

    White maximum zoom

    Color Temperature (K): 7731
    Illuminance (lx): 271
    CRI (Ra): 73
    TLCI (Qa): 49.4
    Flicker Frequency (Hz): 115
    Flicker(%): 5

    For data of every color, see the full documentation on Documents tab.
