I MIX 6 L005645
Scroll on photo to zoom in or Click to enlarge

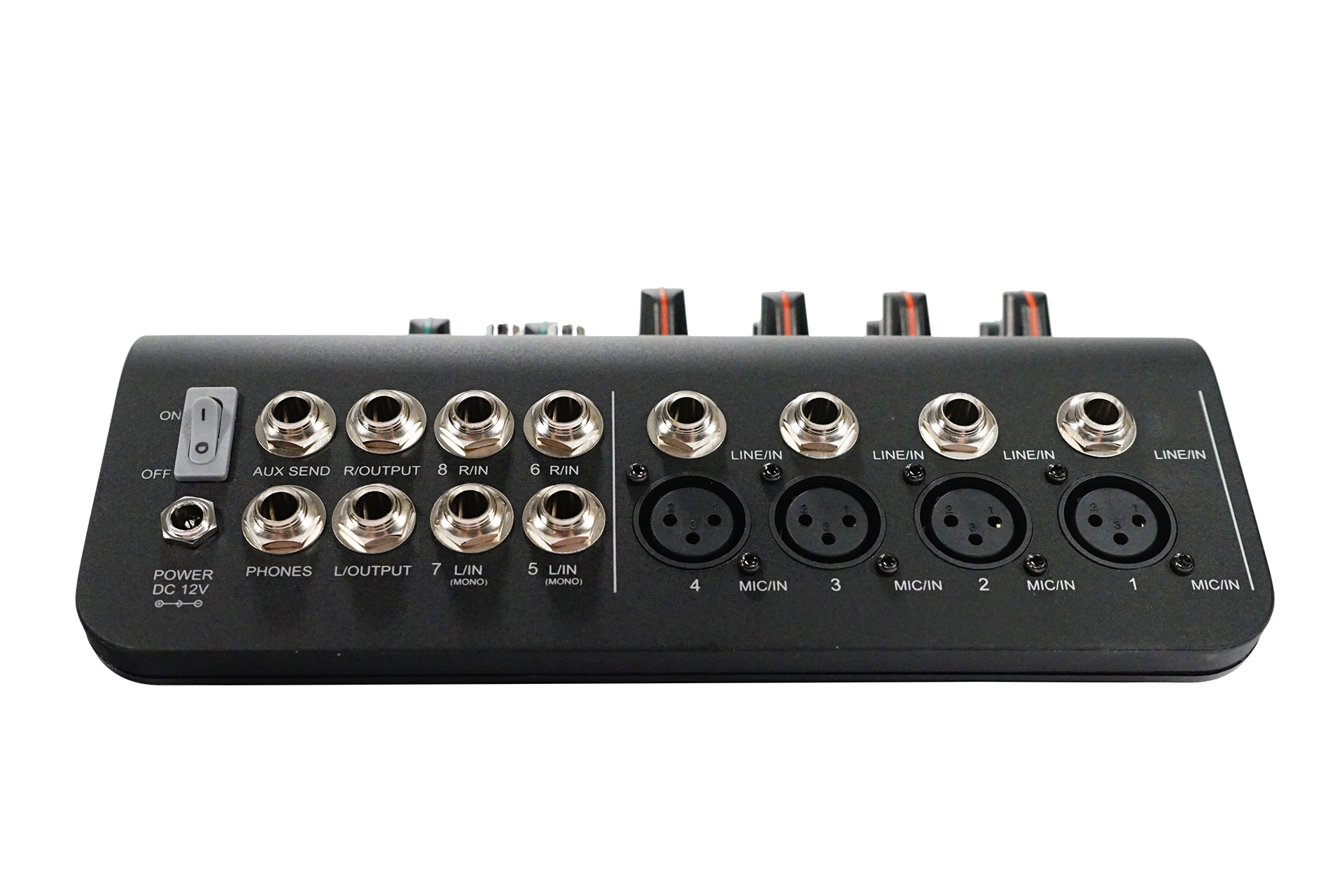

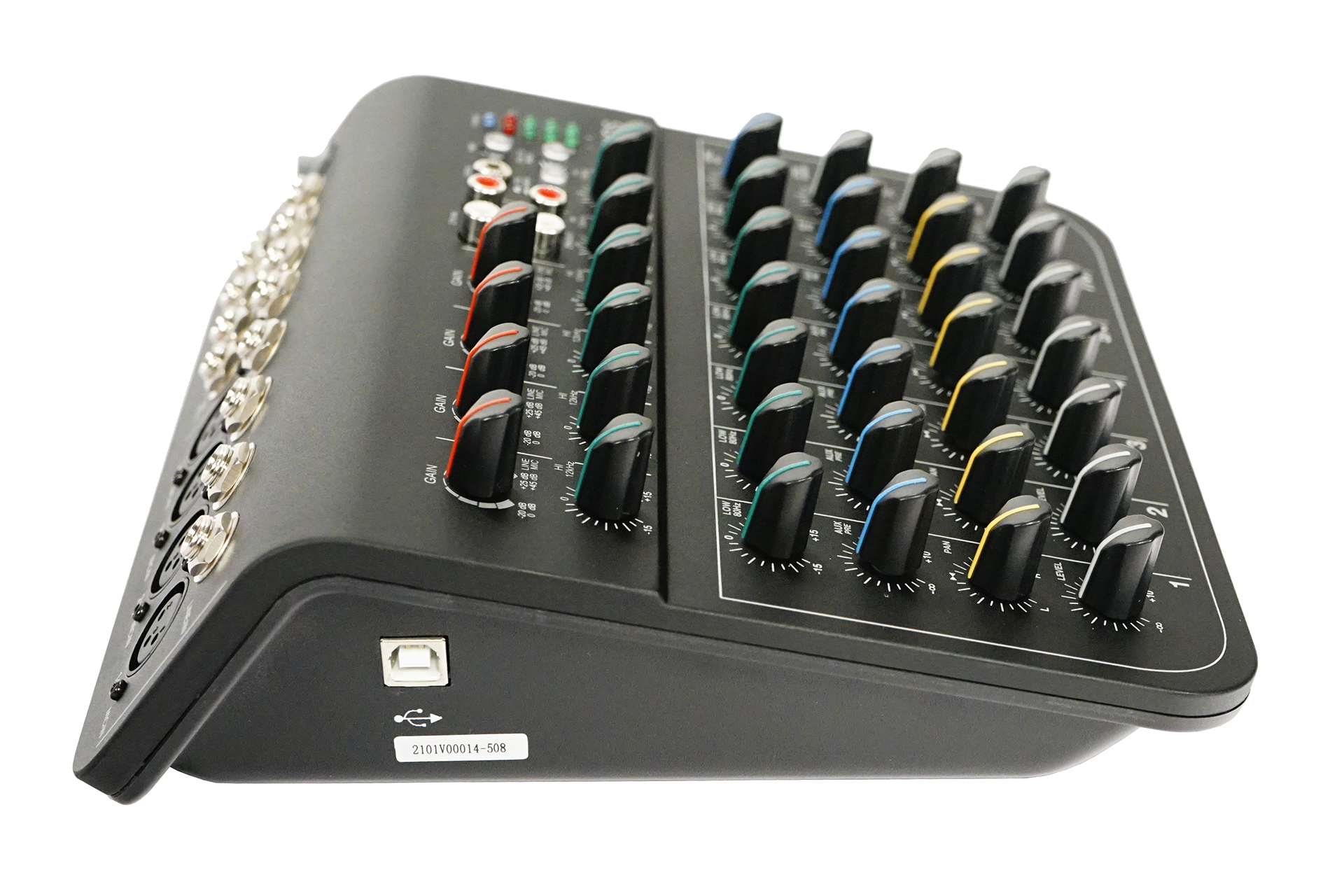

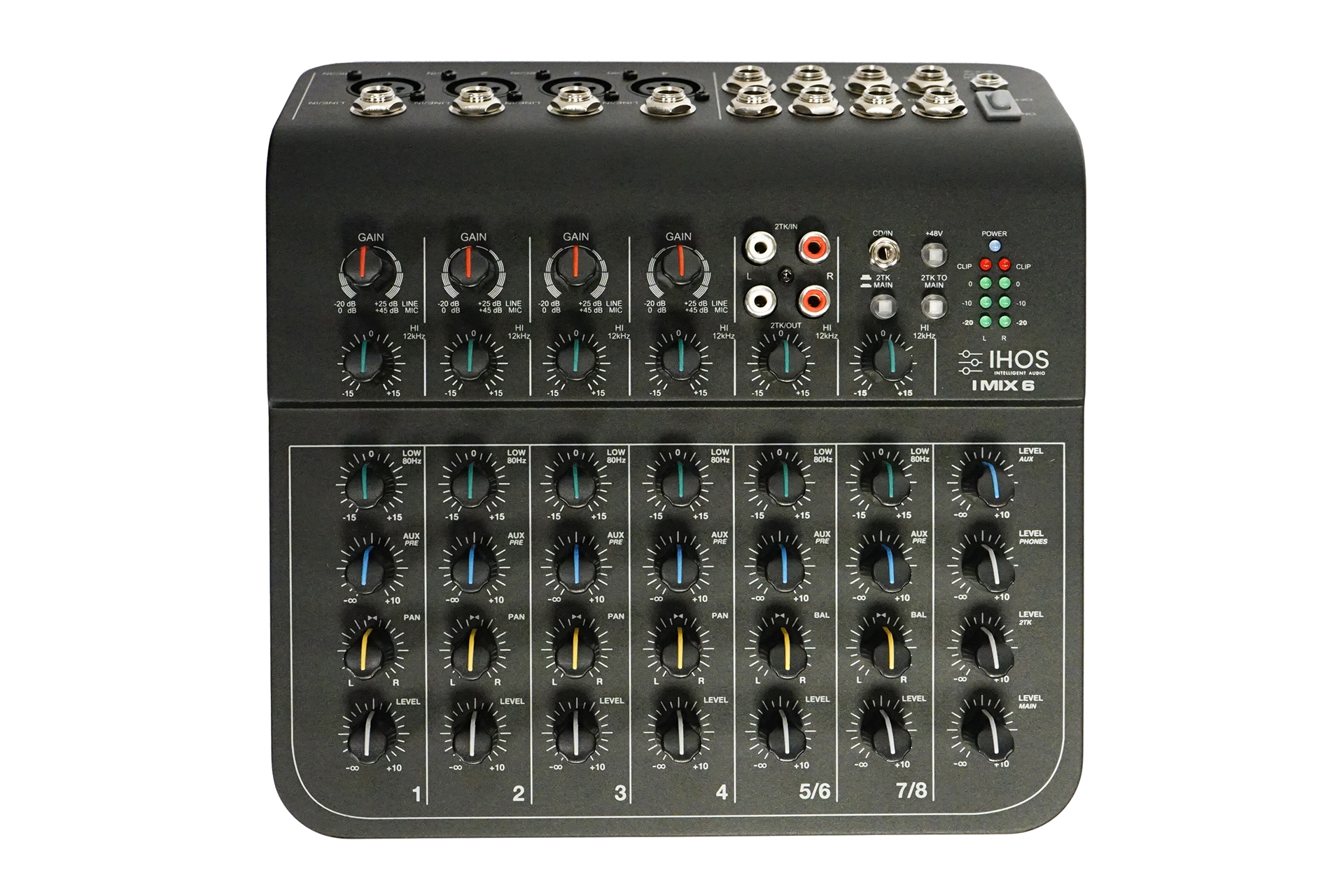

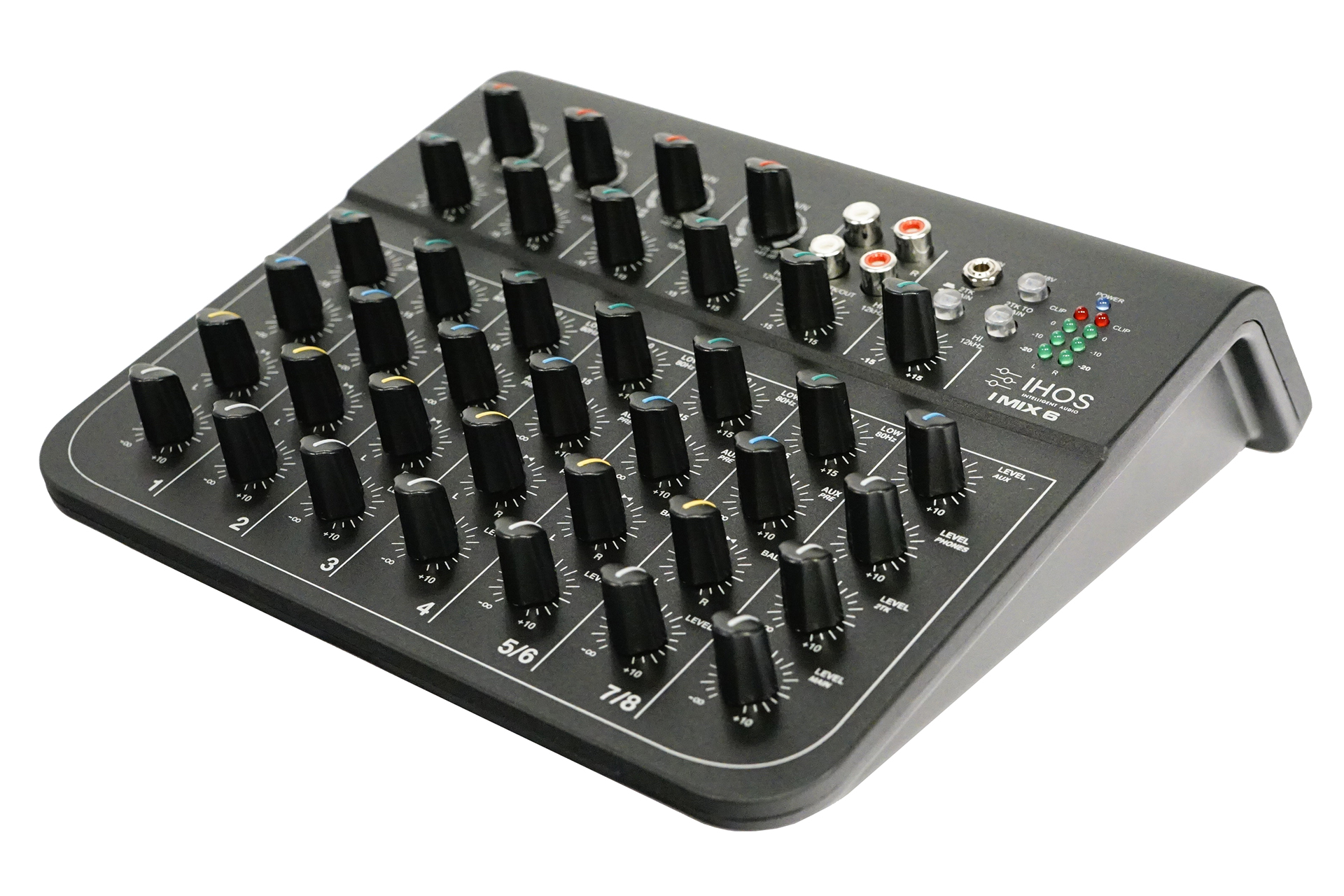

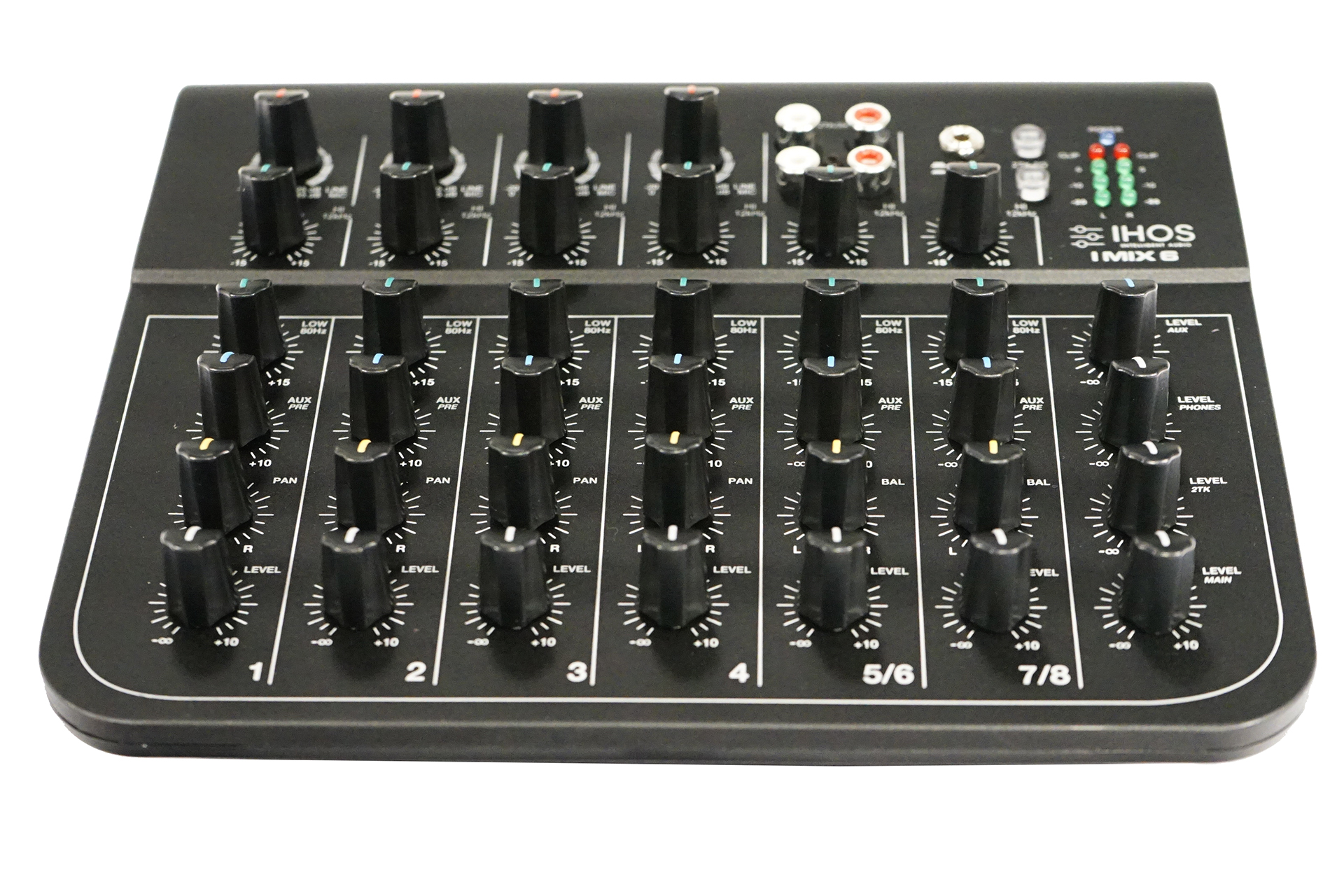

I MIX 6 L005645
Compact, portable mixing console, 4mono + 2 stereo input, 1bus, USB interface
Price
Please login to see the price.
  • Technical Specifications

    Inputs: 6.
    Mic Input channels: 2.
    Stereo Input channels: 2.
    Gain: MIN - MAX.
    Mic: +6dB - +50dB.
    Line: +10dB - -34dB.
    EIN: -100dB.

    Frequency response

    Mic Channel: 10Hz - 20kHz +1/-3.
    THD Mic Channel: ≤0.03%.
    Signal to noise ratio: 80dB.
    Output Levels: MAX +27(BAL)

    Channel EQ

    Hi: MAX +22(UNBAL).
    Mid: 12kHz.
    Lo: 2.5kHz.
    Lo Cut: 45Hz.
    MP3/USB/SD Audio, Playback.
    USB/SD Audio recording
    DSP Effects
    Power requirements: 100 / 240 Volt AC
    Dimensions (W x H x D): 227 x 70 x 359 mm.






Manual
