DP2004 L005738
Scroll on photo to zoom in or Click to enlarge

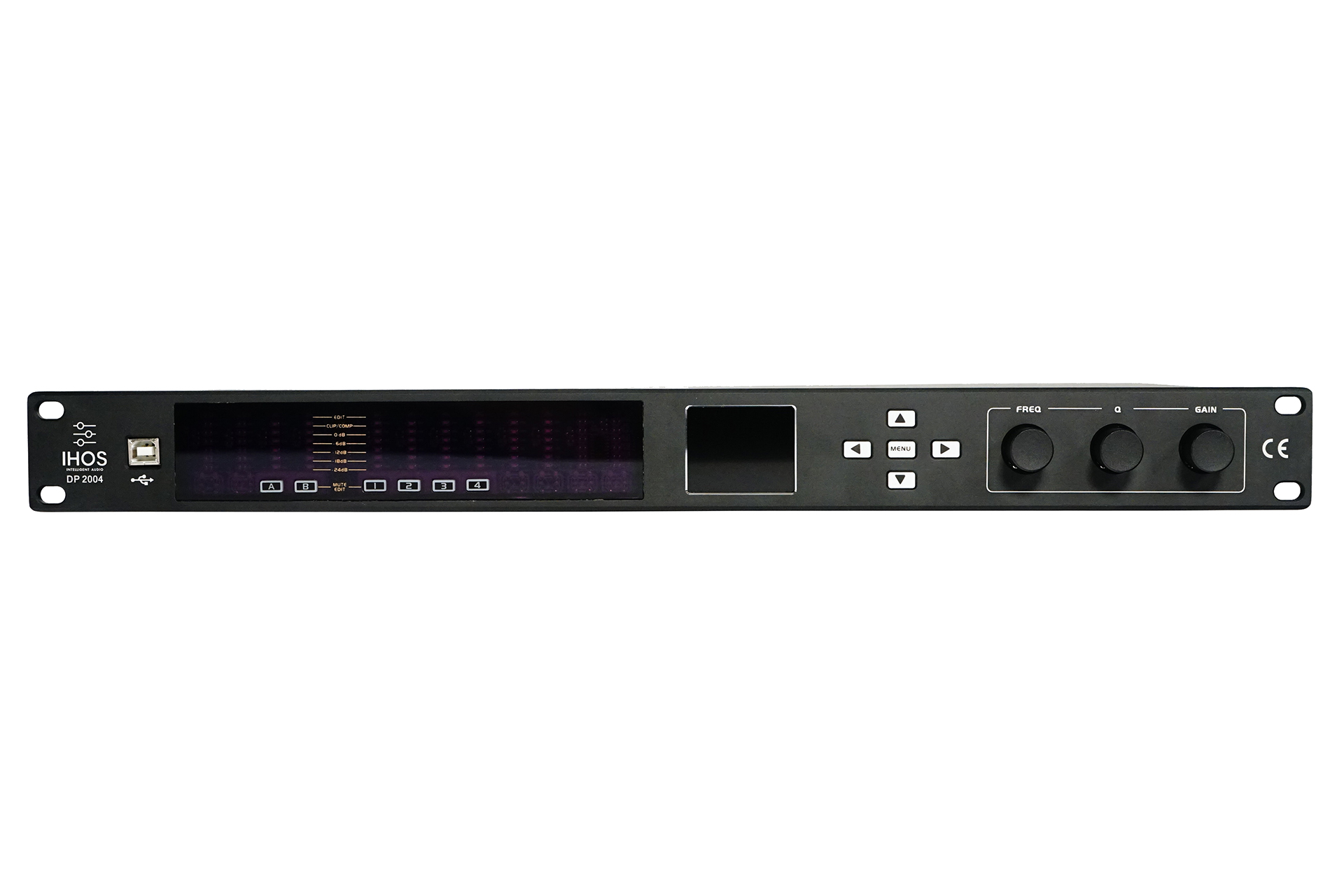

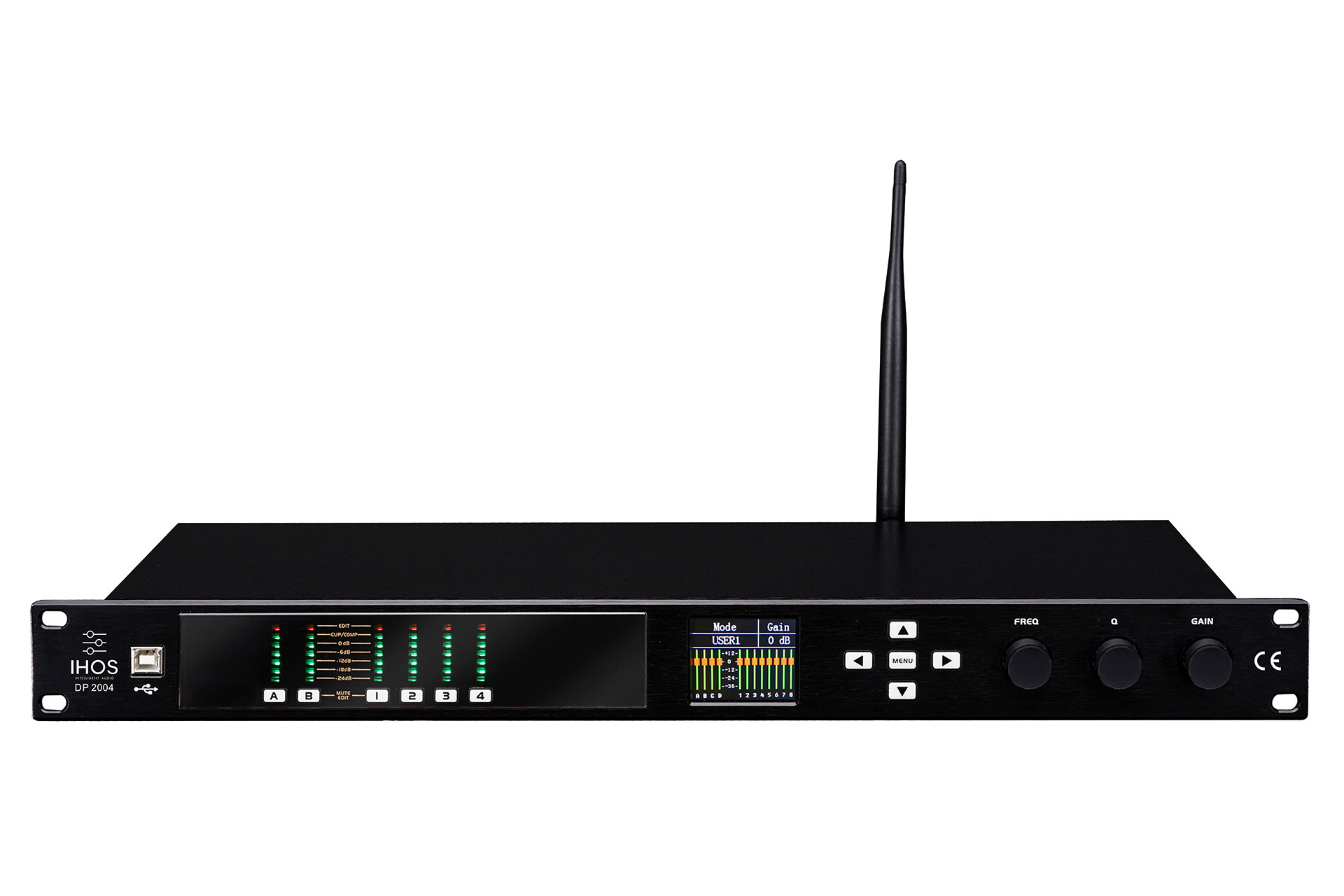

DP2004 L005738
Professional audio processor 2 input/ 4output, 96KHz sampling frequency, 32bit DSP, 24bit A/D and D/A converter, 8 bands PEQ, delay up to 1000ms, HPF and LPF filters, wifi access point, PC software and ipad apllication.
Price
Please login to see the price.
  • Features

    DP series, a professional audio processor.
    96 kH sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A converter.
    8 bands PEQ, Gain (+/- 20dB), delay up to 1000 ms, polarity and mute for each channel.
    Lo-shelf and Hi-shelf for output channels.
    HPF/LPF: 12dB, 18dB, 24dB or 48dB.
    Crossover type: Bessel, Butterworth, Linkwitz-Riley.
    Channel copy function for Input/Output channels.
    20 groups of users settings. Central control support.
    WiFi, USB, RS232 interfaces.
    Equipped with professional PC software.

  • Technical Specifications

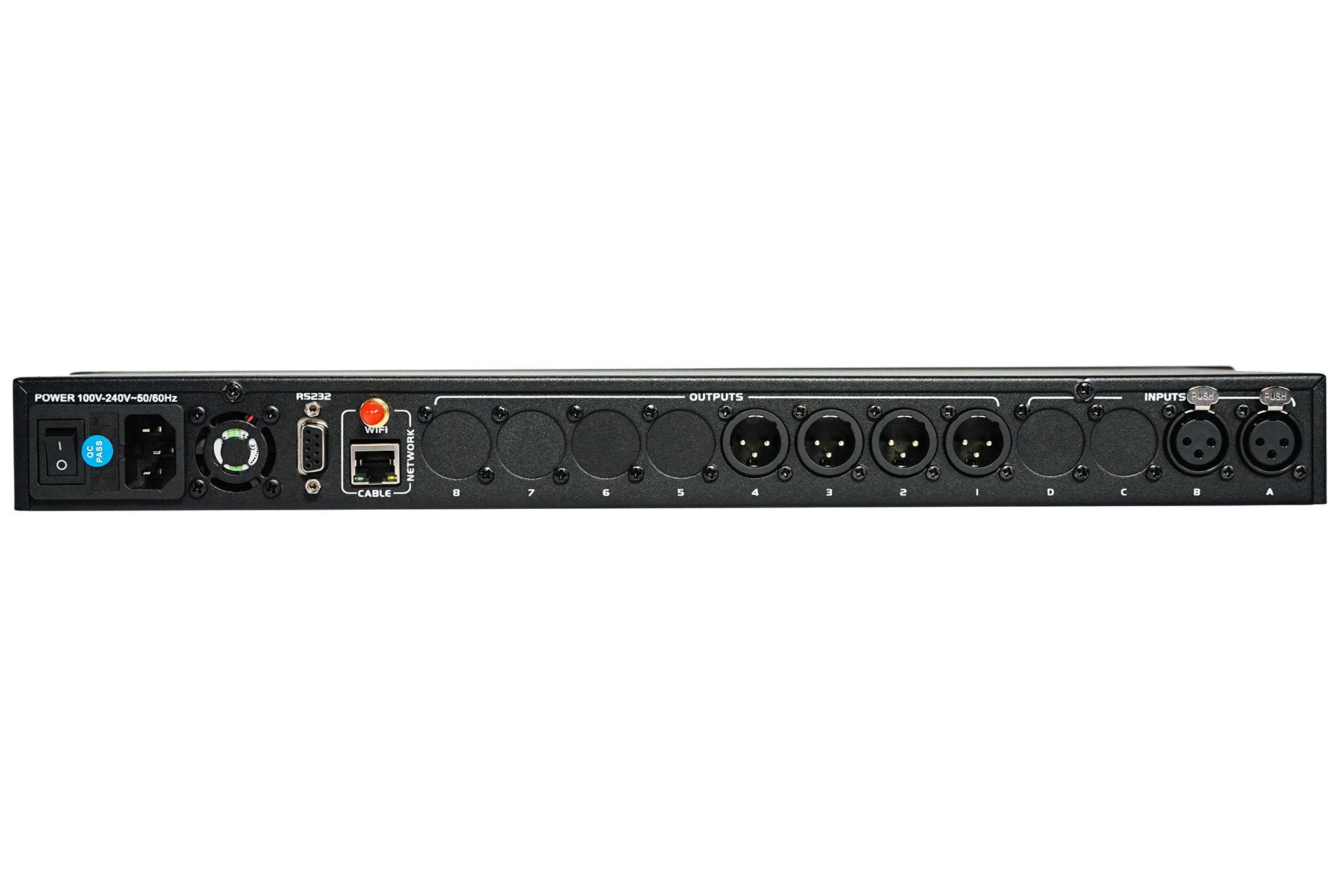

    2 Input / 4 Output channels.
    Input impedance: 20 kΩ.
    Output impedance: 100 Ω.
    1x USB port.
    CMRR: >70 dB (1 kHz).
    Impot range: ≤+18 dBu.
    Frequency: 20 Hz - 20 kHz (-0.5 dB).
    S/N: >110 dB.
    THD: <0,01 % Output= 0dBu / 1 kHz.
    Separation: >80 dB (1 kHz).

    Input channels:

    Mute
    Delay adjustment range: 0 - 1000 ms.
    Polarity - in phase (+) & reversed phase (-).
    PEQ: 8 bands PEQ, Freq: 20 Hz - 20 kHz, bandwidth 0,05 - 3 oct. Step: 0,05 oct, Gain +/- 20 dB, Step: 0,1 dB.

    Output channels:

    Mute
    Select: each output channel can be select different input channels, you can select any combination of input channels.
    Gain: adjustment range: 12dB, step: 0,1 dB.
    Delay adjustment range: 0 - 1000 ms.
    Polarity - in phase (+) & reversed phase (-).
    PEQ: Each output channel with 8 bands PEQ and 3 modes: PEQ/Lo-shelf/Hi-shelf.
    Frequency: LPF, HPF, mode: Linkwitz - Riley/Bessel/Butterworth, FREQ: 20 Hz - 20 kHz, Slop:12dB/oct, 18dB/oct, 48dB/oct.
    Limiter: Gate level: 20dB, step: 1dB, start time: 0,3 ms - 100 ms, <1 ms, Step: 0,1 ms>, 1ms, Step: 1 ms Release Time is the 4, 8, 16, 32 times of the start time.


    Processor: 96 kHz sampling frequency, 32-bit DSP chip processor, 24-bit A/D and D/A converter.
    Consumption: ≤25W.
    Power input: 110 / 240 Volt AC, 50/60 Hz.
    Gross Weight: 3,15 Kg.
    Package dimensions: 57 x 26 x 9 cm.
