Product description

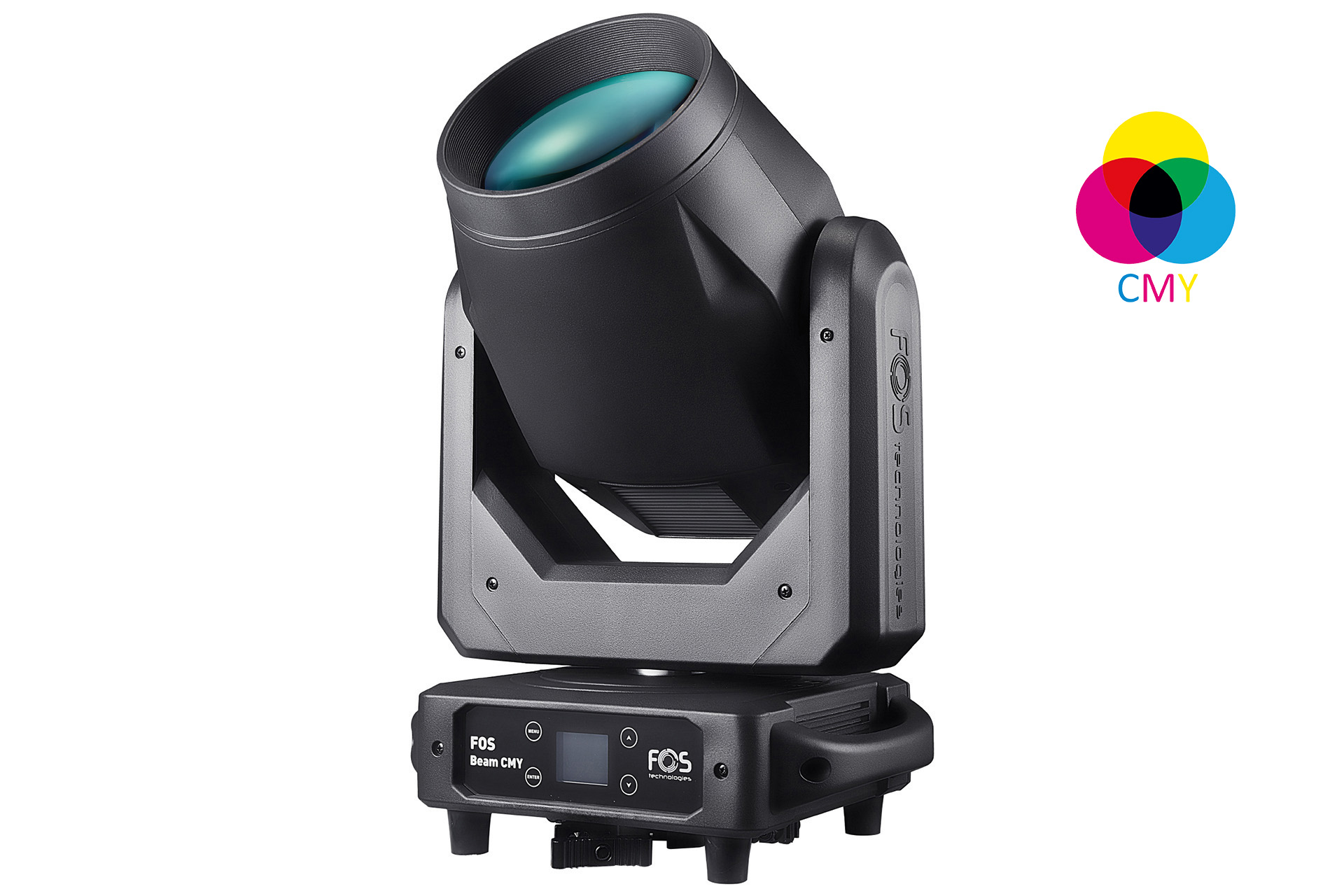

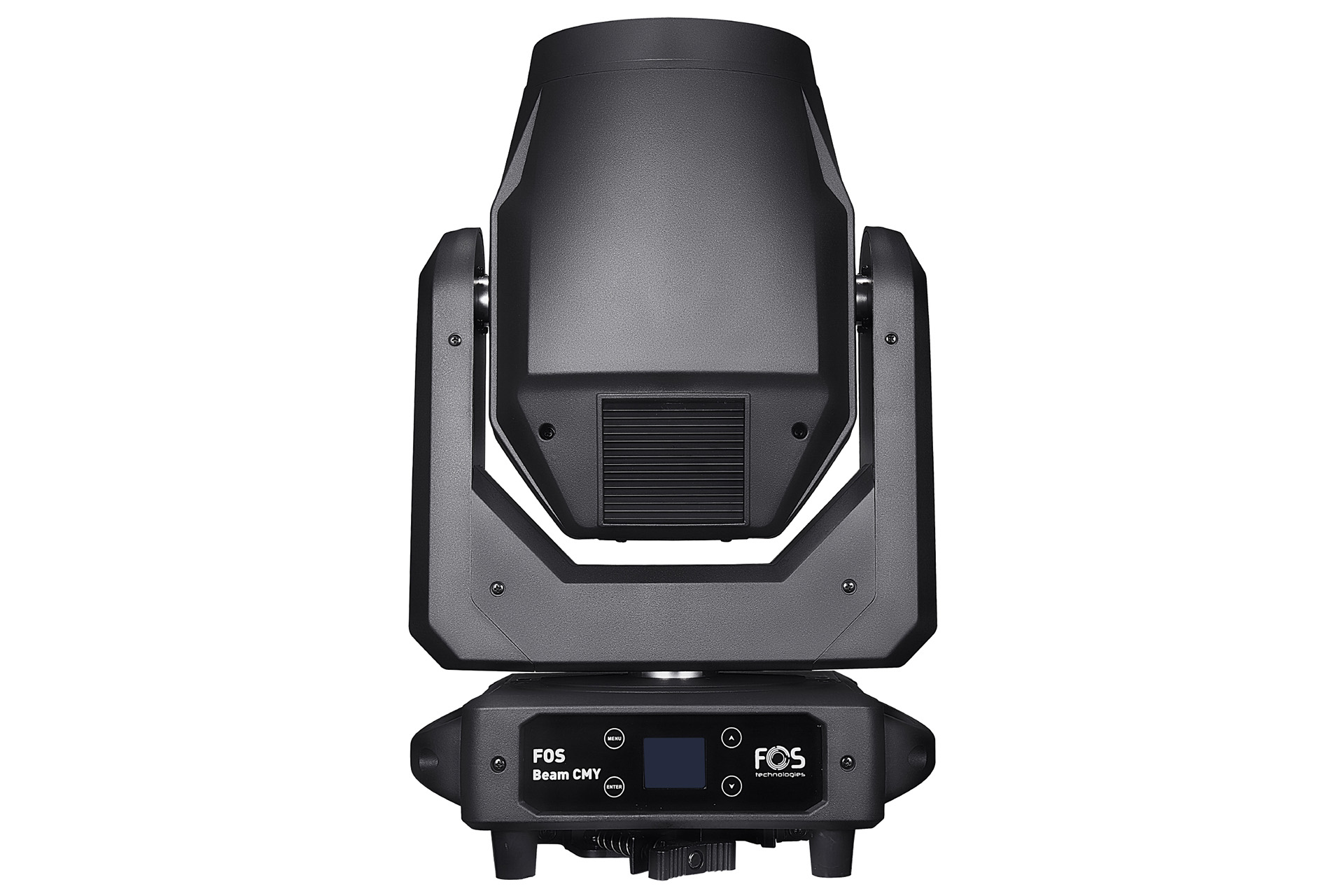

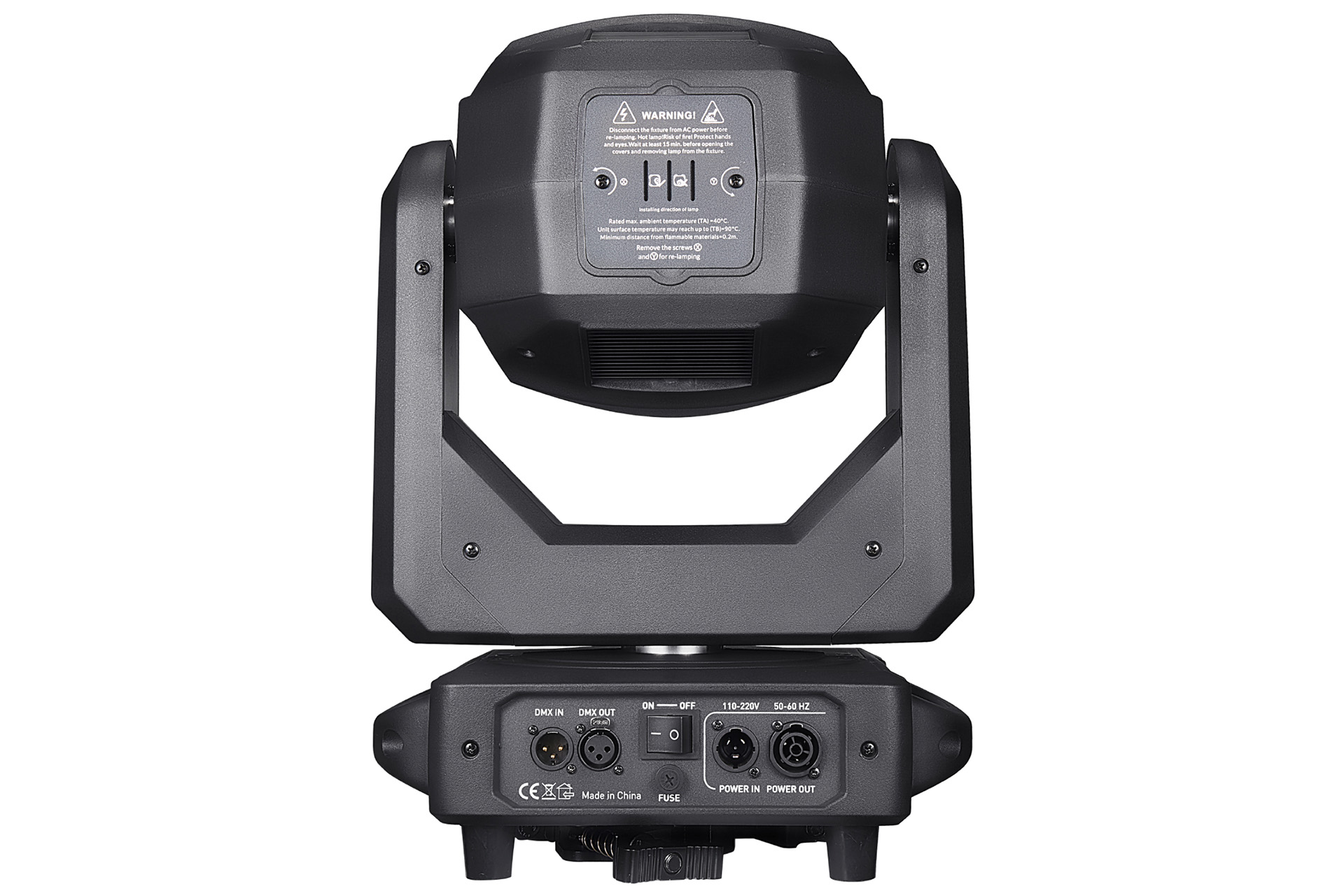

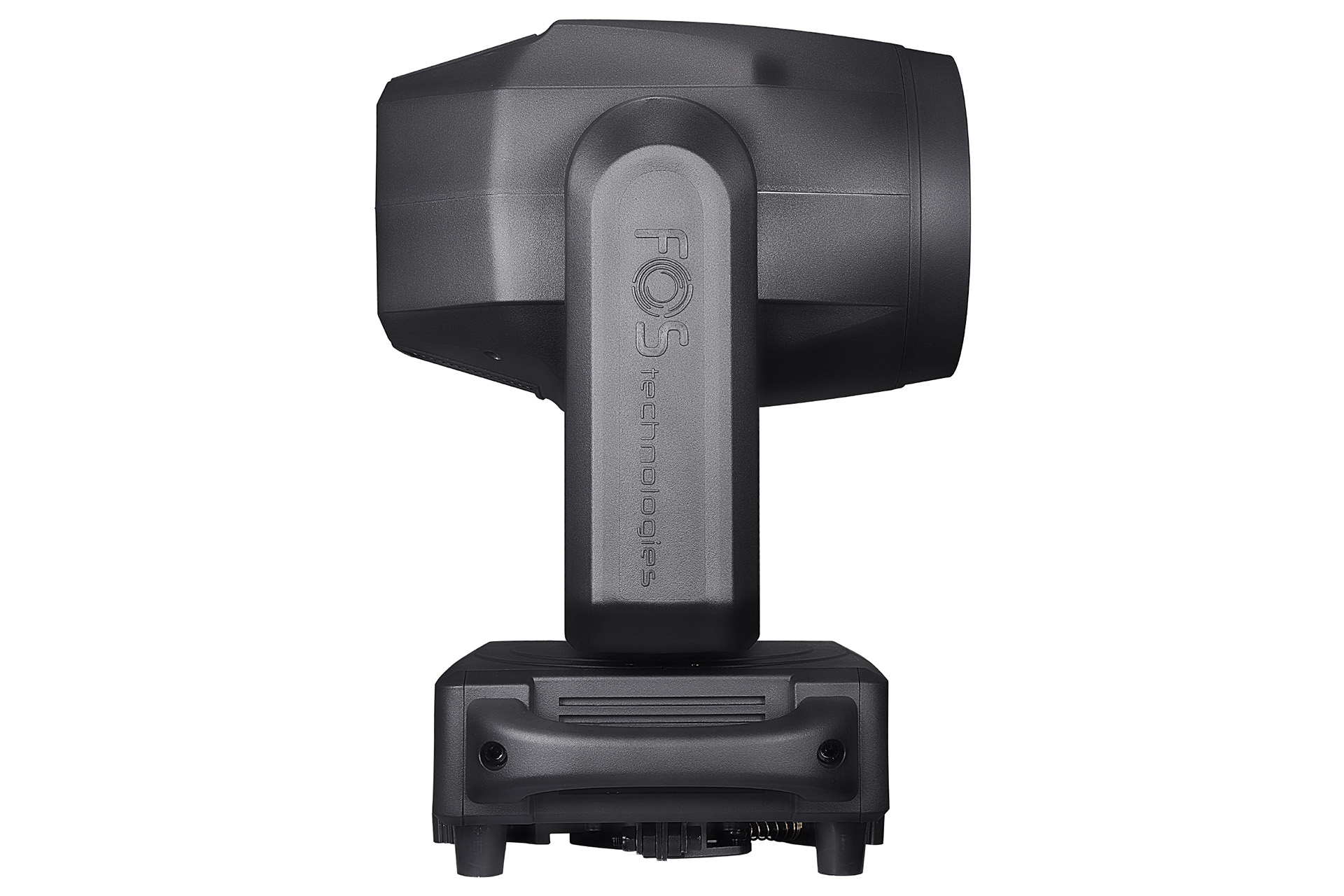

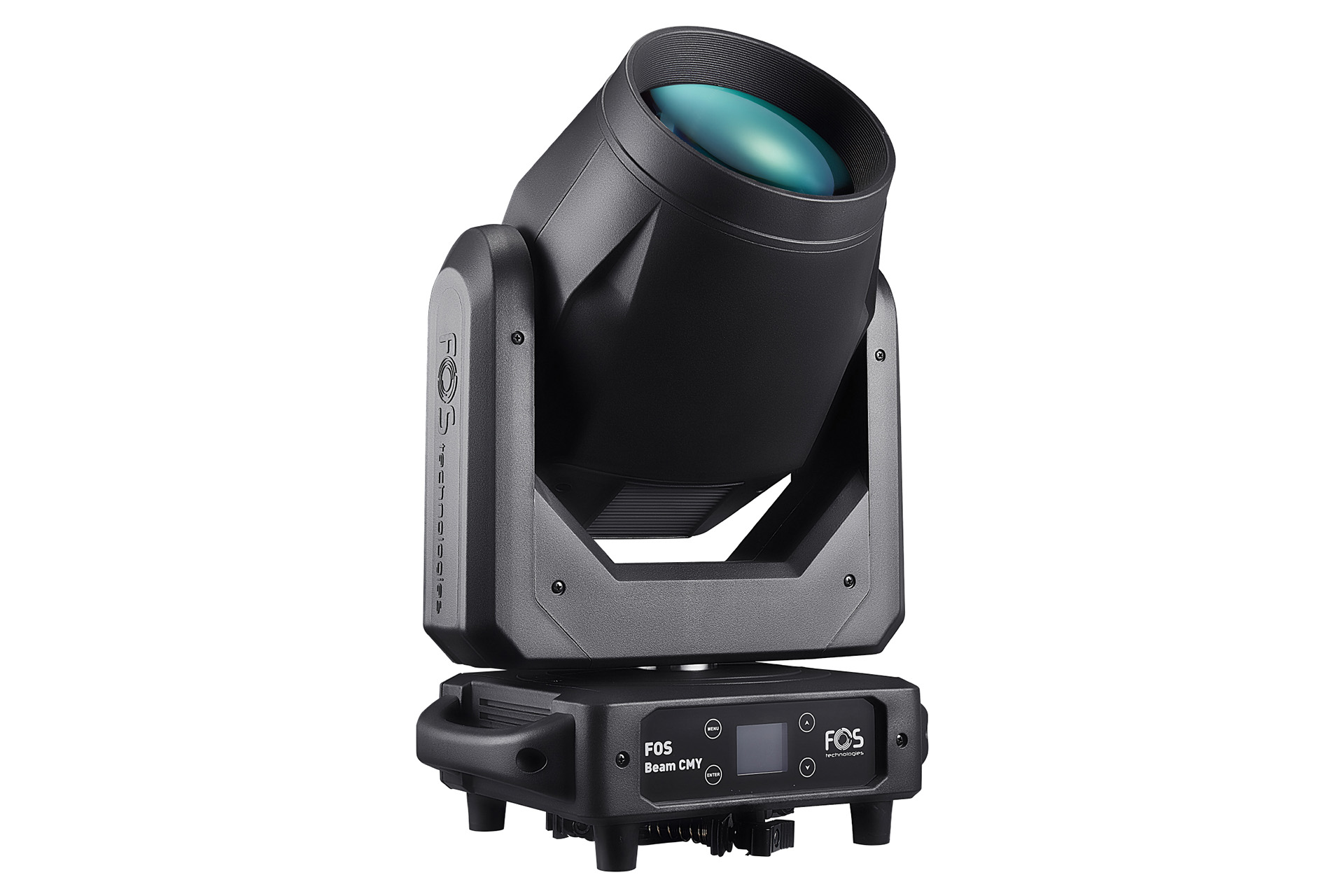

**Elevate Your Production with the FOS BEAM CMY**

Introducing the revolutionary FOS BEAM CMY, a powerful lighting solution designed to transform your show. Equipped with a high-performance PHILIPS MSD Silver 380W lamp, boasting an impressive lifespan of 4000 hours, this fixture offers unparalleled brightness and reliability.

The FOS BEAM CMY features advanced CMY color mixing technology, allowing for seamless transitions between colors. With 14 vibrant colors and a captivating rainbow effect, your lighting design will captivate any audience. Additionally, the fixture includes 17 static gobos, along with circular 16-facet and 24-facet overlay rotating prisms, providing a diverse range of visual effects.

Engineered for precision, the FOS BEAM CMY has a narrow 2-degree beam angle and a 160mm front lens, ensuring sharp and focused projections. The high-speed 3-phase pan and tilt motors enable swift and accurate movements, while the electronic focus and frost functions allow for versatile adjustments to suit any performance.

"Custom Rainbow Wheel: WW-CW-Amber-Red-Deep Blue"

This unique custom rainbow wheel features a vibrant blend of colors, including amber, red, and deep blue. Perfect for enhancing any project, this wheel is designed to captivate and inspire creativity.

With 20 and 24 DMX channels, an intuitive LCD menu, and foldable clamps for easy installation, the FOS BEAM CMY is designed for both ease of use and professional application. Weighing in at just 17.5 kg, it is both portable and powerful, making it an essential addition to any lighting rig.

Elevate your production to new heights with the FOS BEAM CMY—where innovation meets artistry.

Light Source / Optics

Light source: Philips MSD Silver 380W/2
Life span: 4000 hours.
2°, 160 mm front lens.
Motorised focus

Effects

CMY colour mixing system
Colour disk with 14 dichroic filters (colour correction filters included)
Rainbow effect and CMY random colour macros
Circular, rotating 16 & 24 facet prisms
Multicolor filter
Frost filter
17 fixed gobo patterns with gobo shake and scroll effects
Custom Rainbow Wheel: WW-CW-Amber-Red-Deep Blue

Control

DMX control with 20 or 24 channels
OLED display with touch buttons
Auto run, and master/slave functions
Manual control and live DMX indications on the display.
Calibration via the options menu
Lamp hours with clear function
16-bit Pan/Tilt movements

Technical Specifications

Input voltage: AC 100/240V, 50/60 Hz.
Power consumption: 600W
Pan: 540°, Tilt 270° (3-phase motors).
Weight: 17.5 kg
Fixture dimensions: 335 x 240 x 519 mm
