DILOS SUB L005820
Scroll on photo to zoom in or Click to enlarge
DILOS SUB L005820

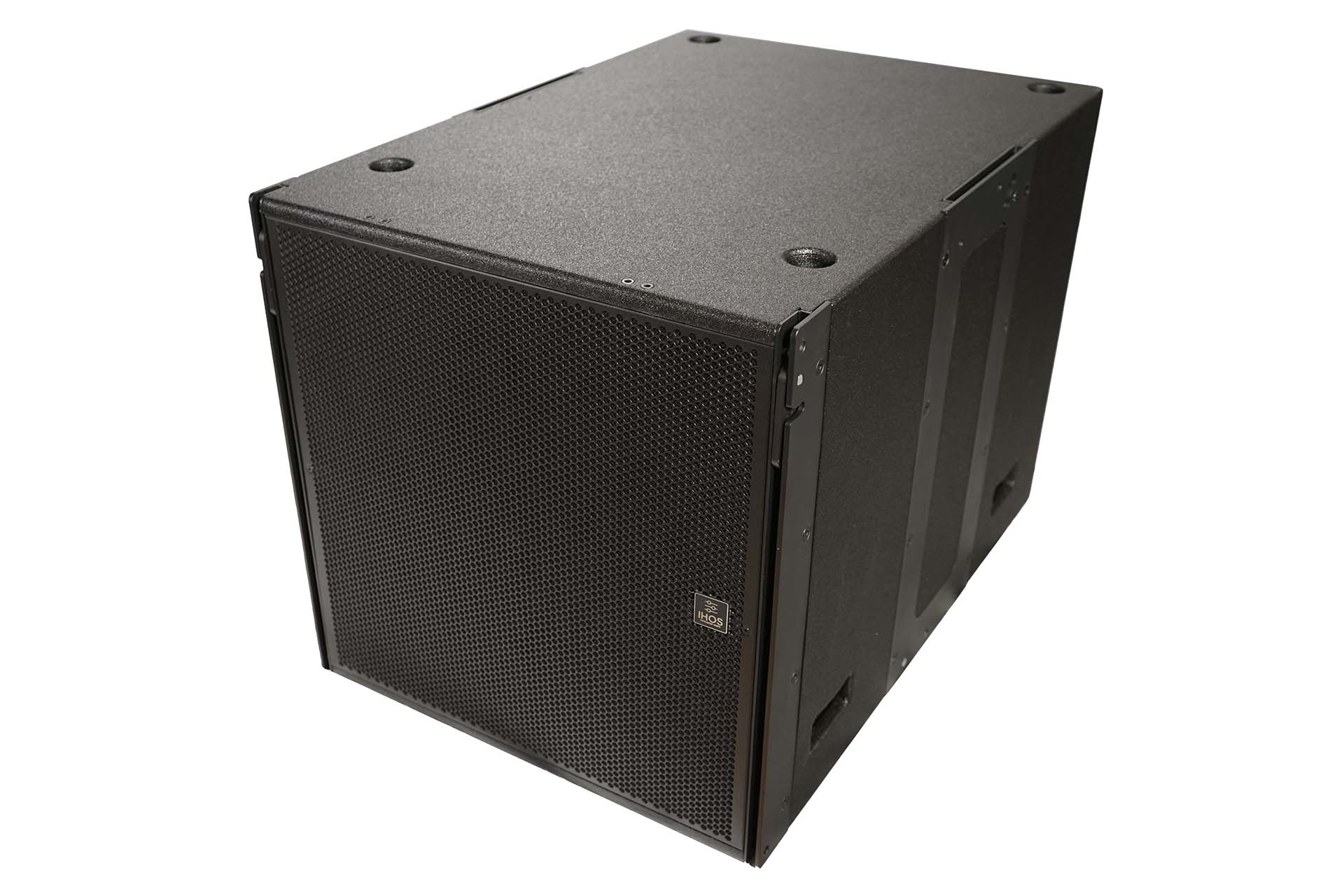

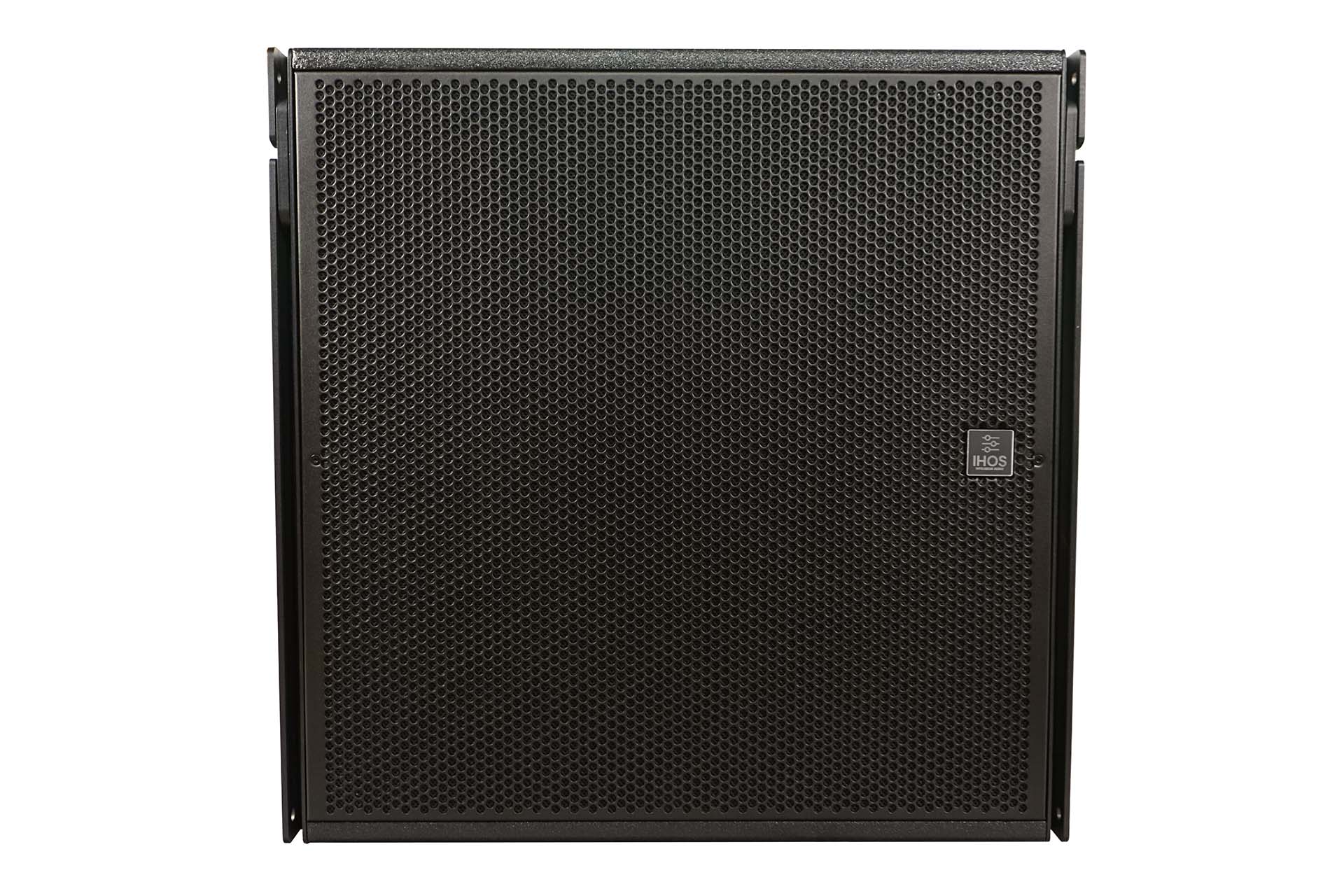

Professional active plywood bandpass subwoofer for Dilos line array, German Engineering Class D amplifier, 1000watt Rms, multiple DSP, Rs485 remote control,134 dB, frequency response 35-120 Hz Hz, 18"subwoofer,4" vc 125 Oz.
Price
Please login to see the price.
  • Technical Specifications

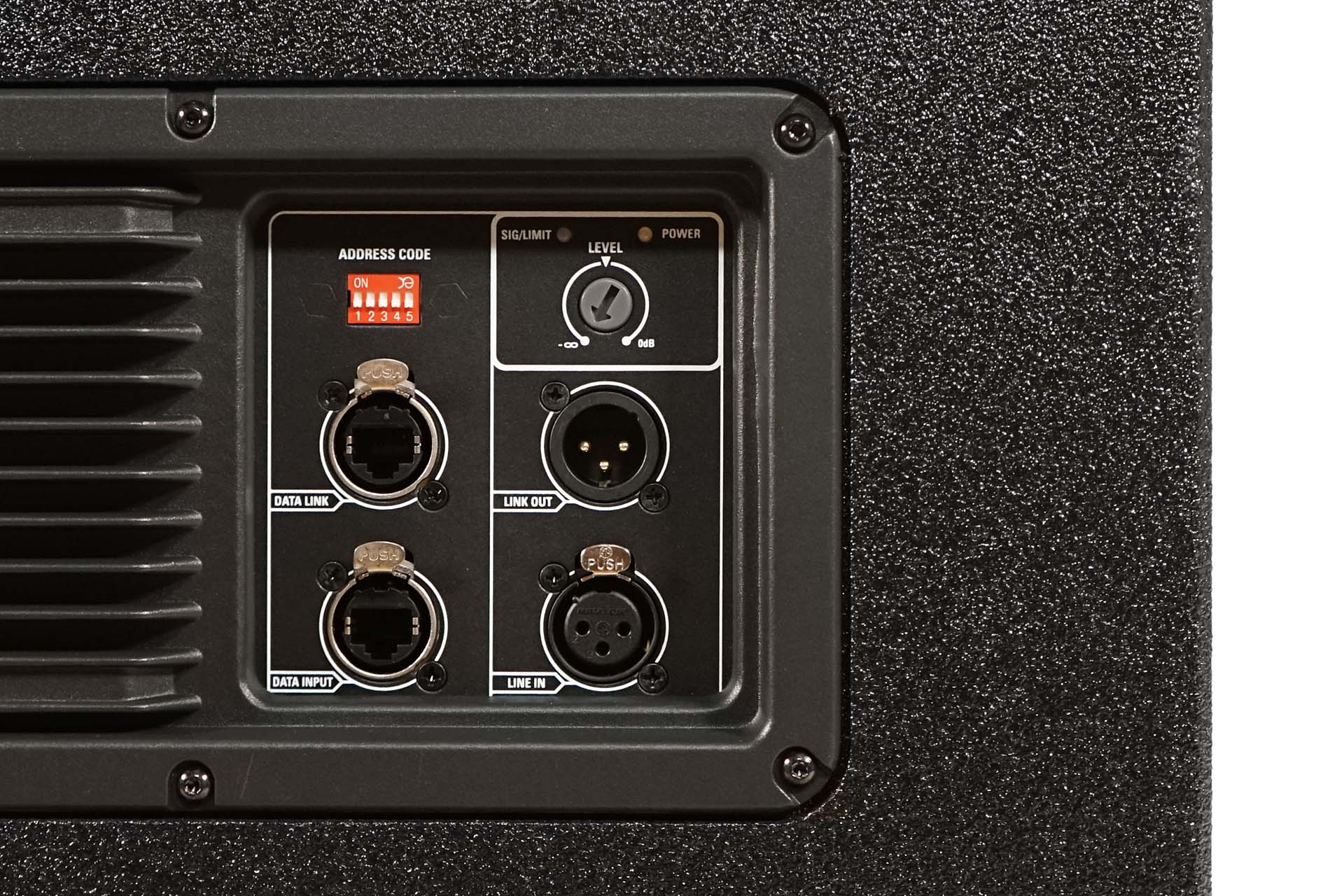

    Inputs: 1x XLR.
    Outputs: 1x XLR link or Xover.
    Volume Control.

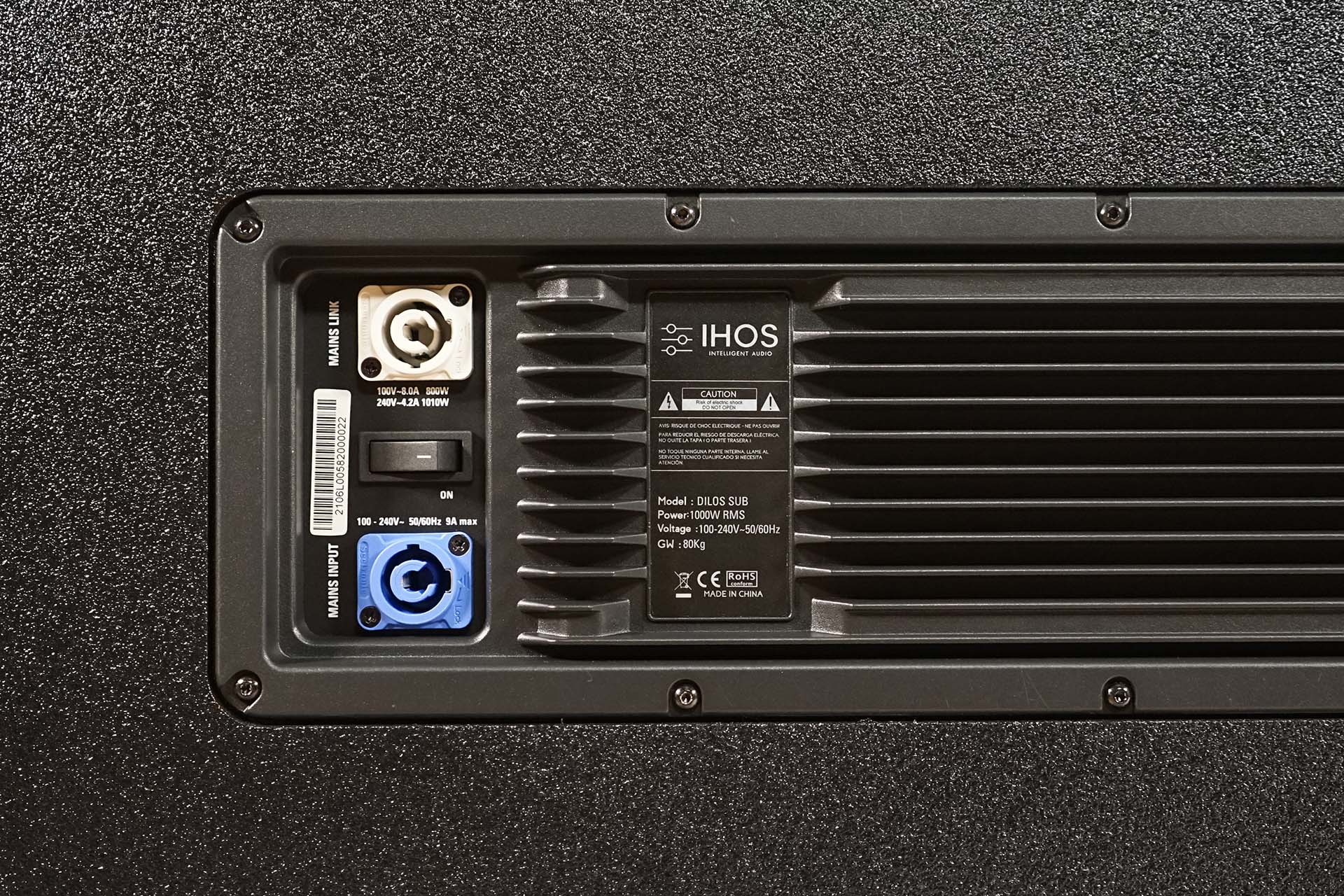

    Power input: 220 - 240 Volt AC, 50 Hz.
    German Engineering Class D amplifier + switching power design
    RS485 remote control.
    Multiple 32bit DSP (Digital Signal Processing).
    Active bandpass 18inch subwoofer.
    Frequency response: 35 - 120 Hz.
    Impedance: 8 Ohm.
    Max output SPL (1m): 134 dB / 1m.


    Plywood with black painted finish cabinet.
    1,5 mm steel mesh.
    Dimensions: 104.5 x 75.5 x 79 cm
    Weight: 85 Kg.


Manual
