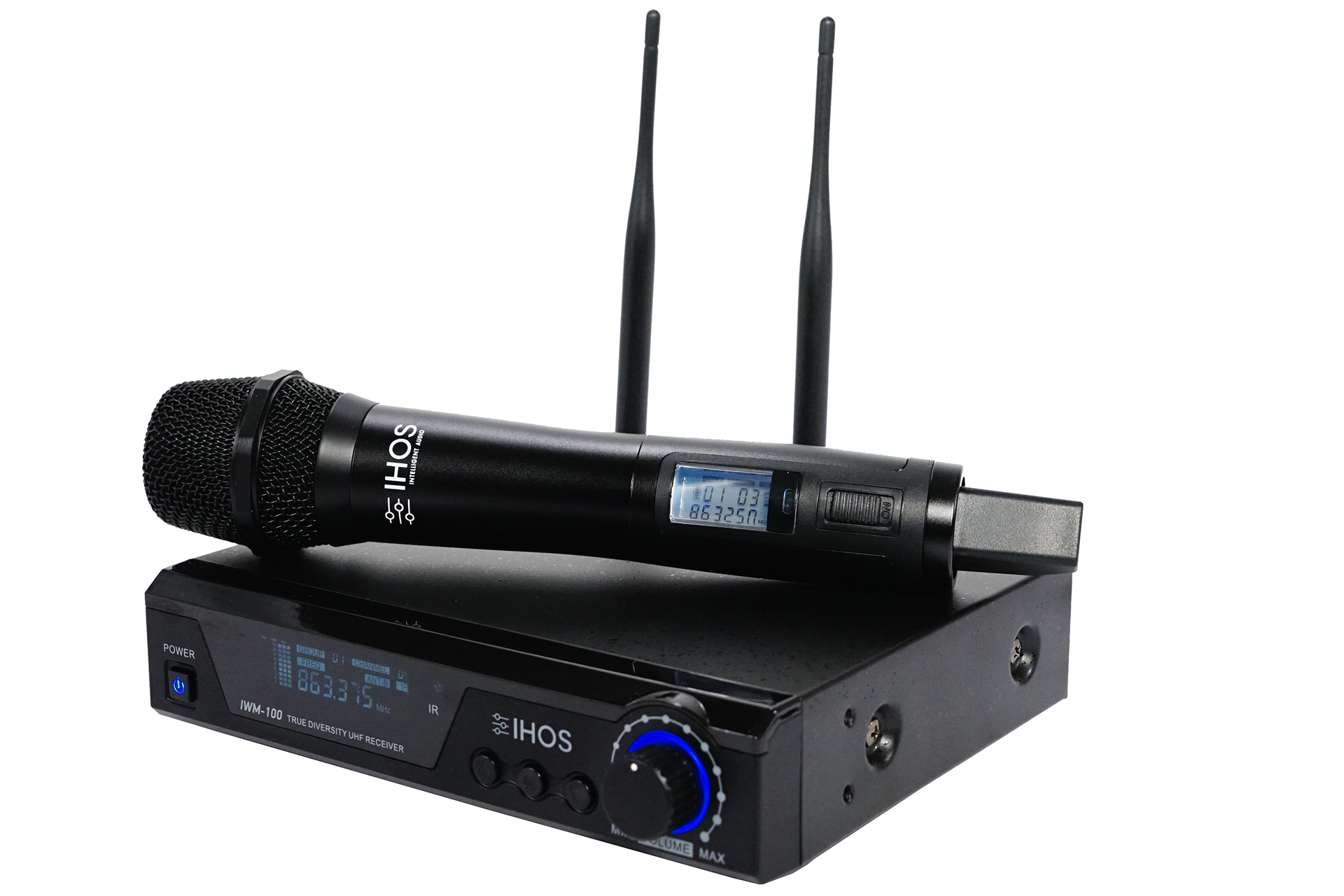

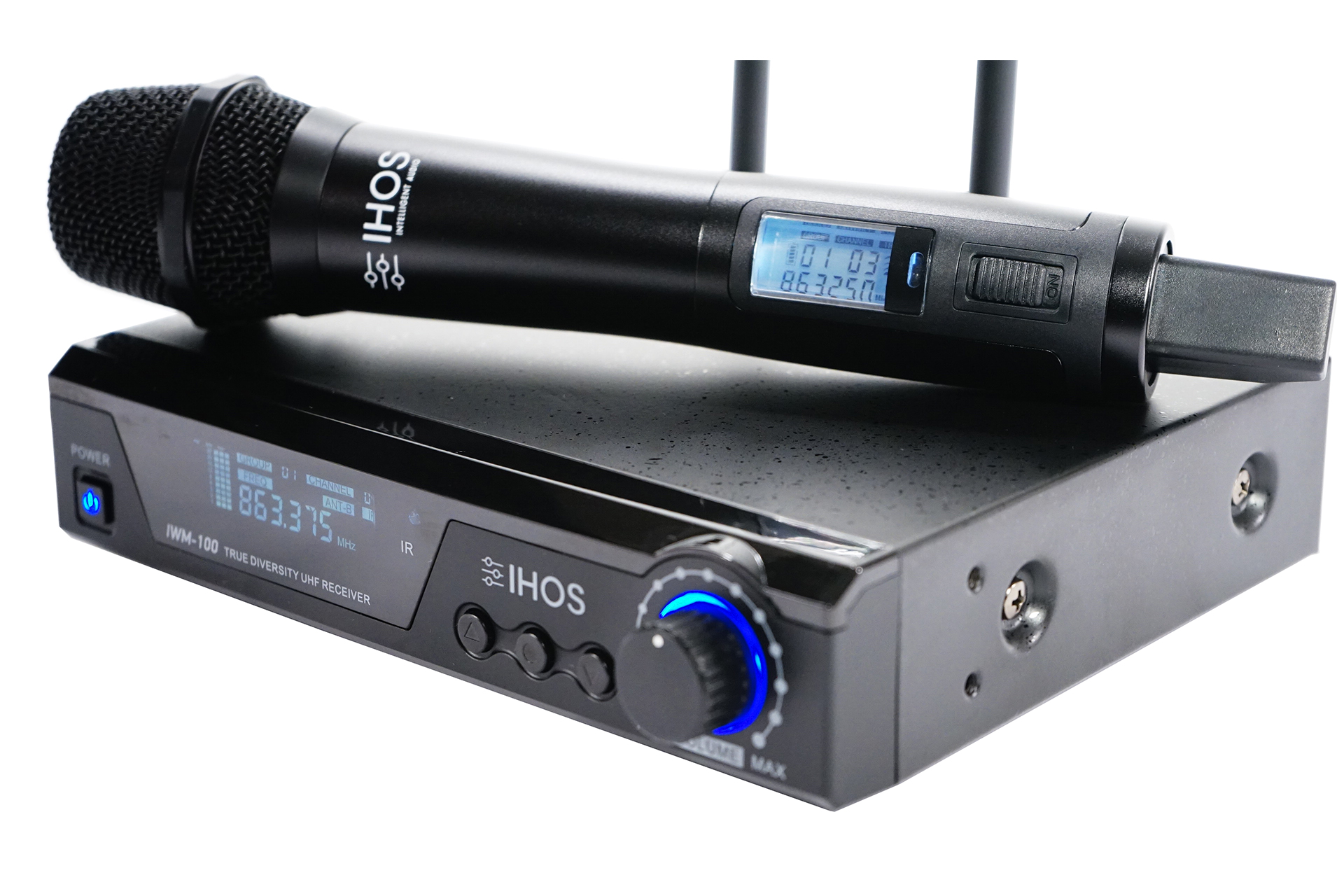

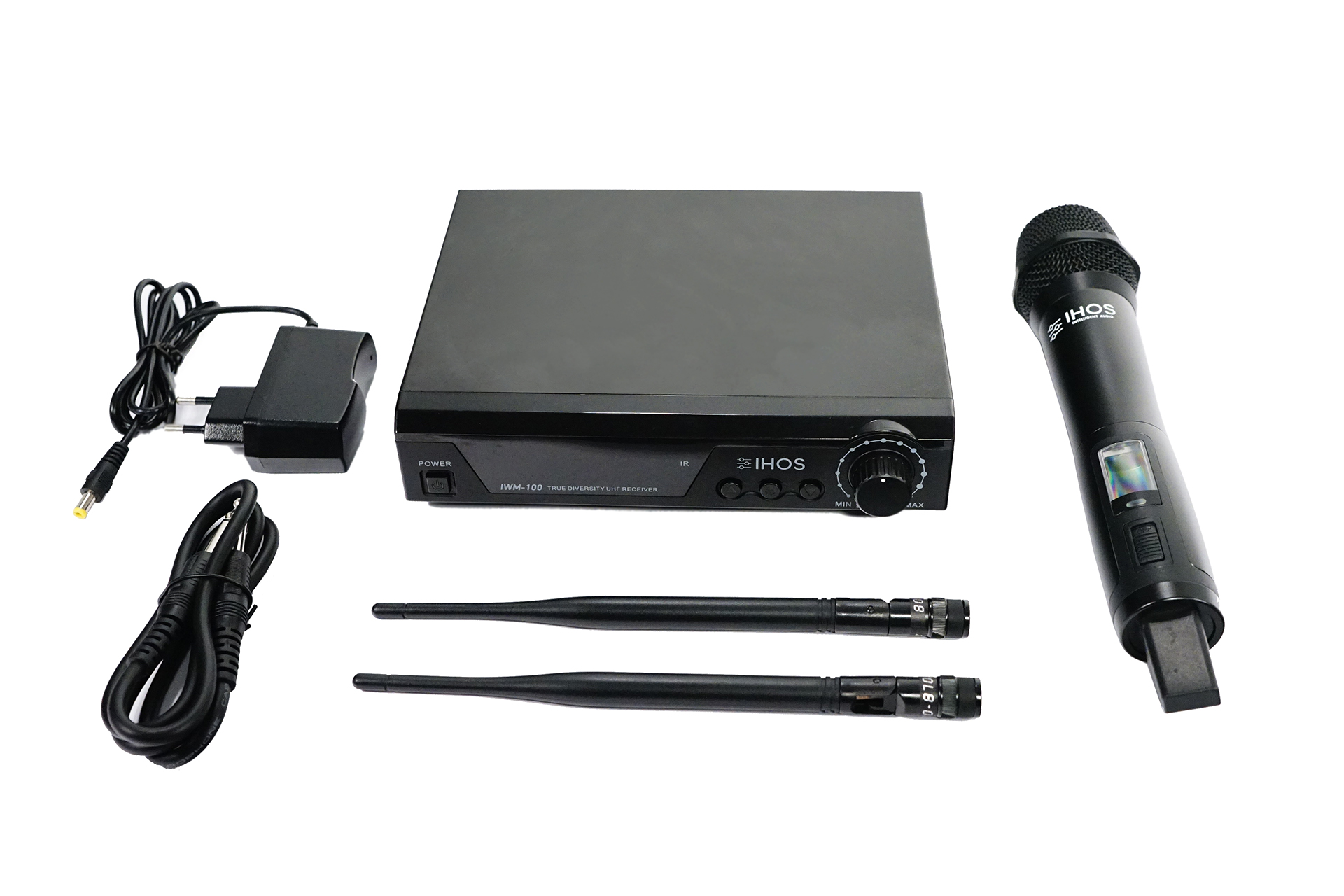

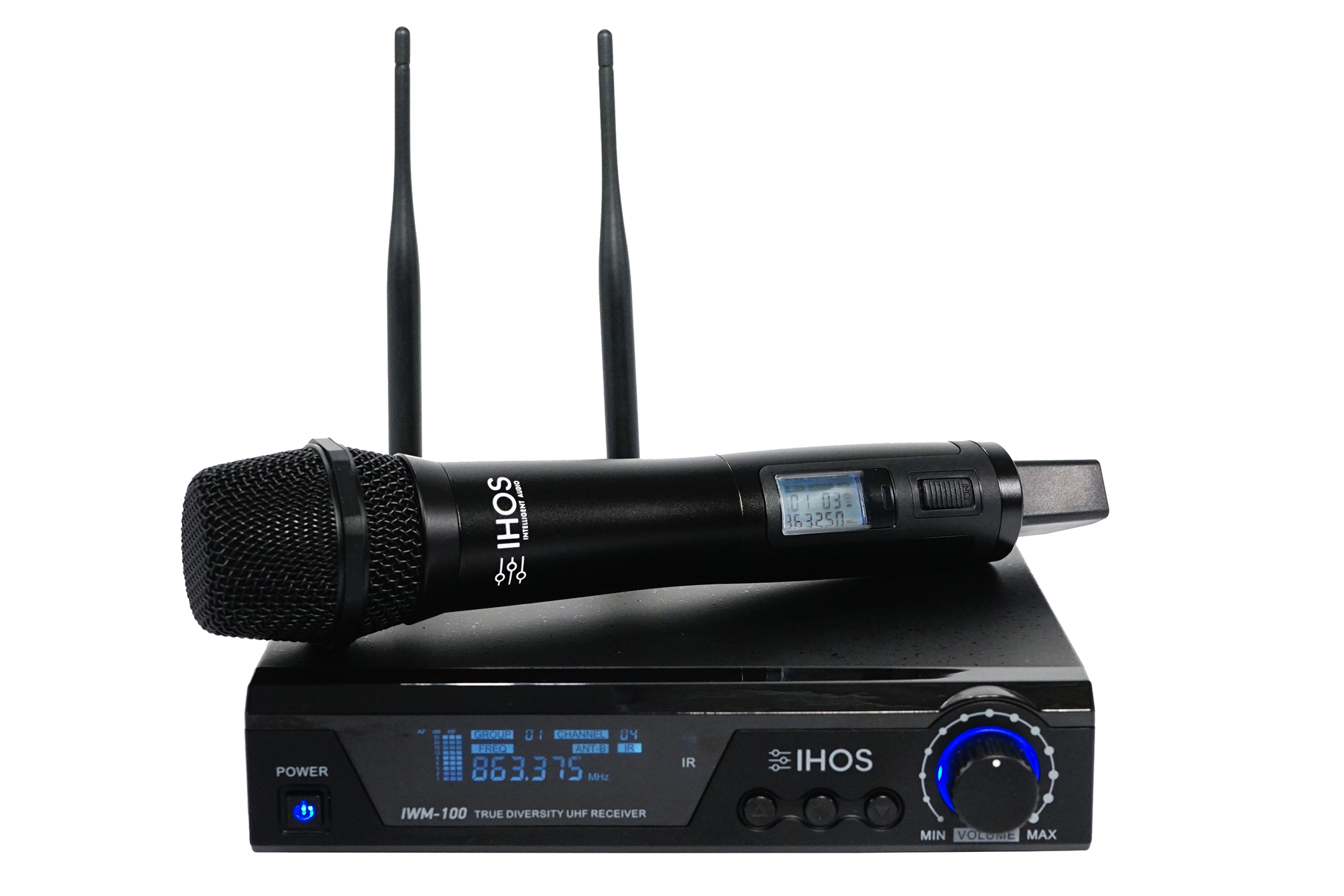

IWM-100

Product code:L005773
True Diversity UHF Wireless Microphone system, freq. range 863-865MHZ ,PLL Synthesized circuit pre-set, LCD status of frequency, IR sync, LCD display shows status of frequency, AF and RF signa, 150m oprating range, dynamic micr
TEXT_PRODUCT_DESCRIPTION
Features

UHF 863-865MHz frequency range.
True diversity for maximun range and dropout protection.
PLL Synthesized circuit.
IR sync downloading the frequency from receiver.

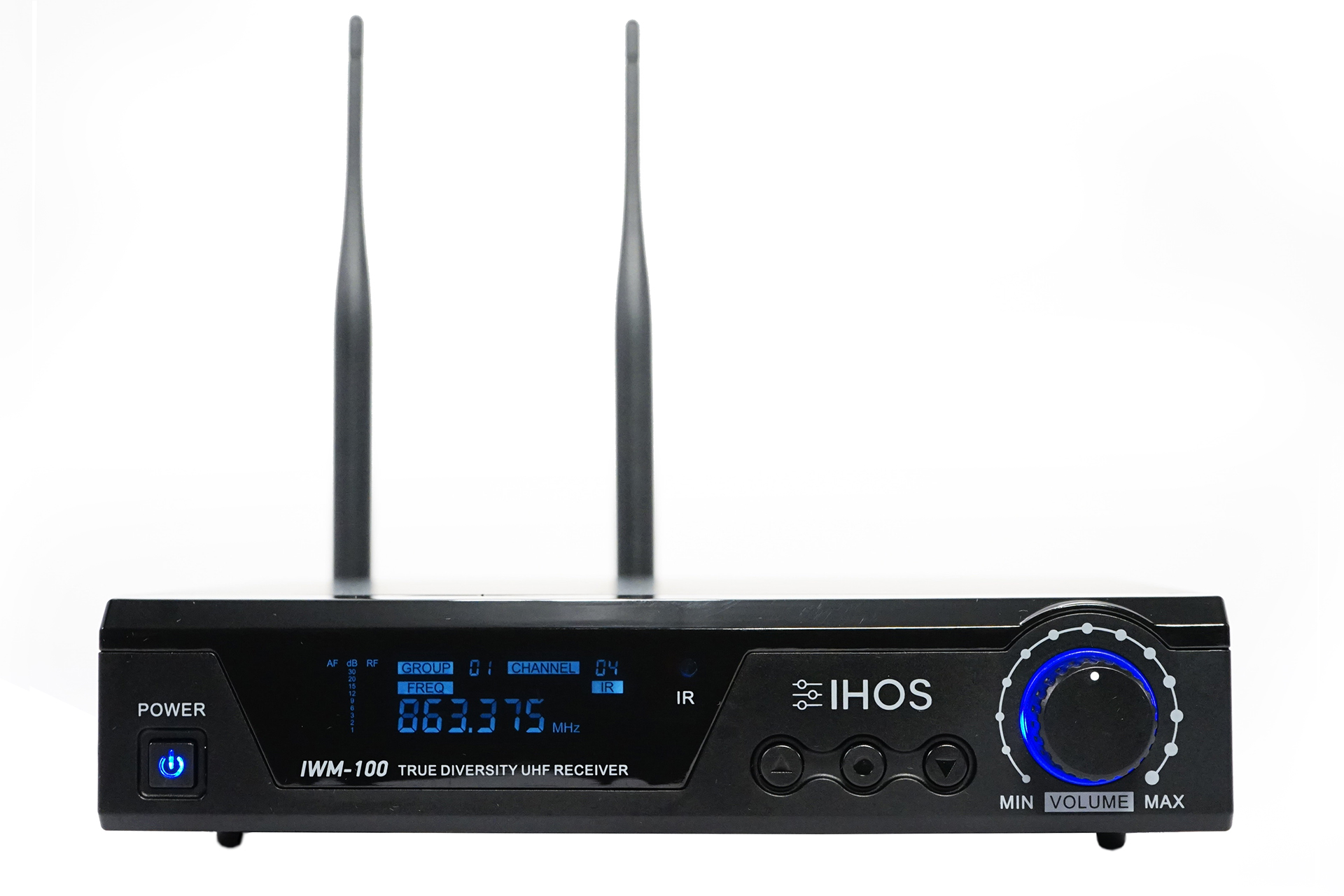

LCD display shows status of frequency, AF and RF signal etc.
EIA standard 1/2U rack-mountable metal chassis.
Up to 500 feet(150m) line-of-sight operating range.
Designed for professional stage and performance applications


Comprehensive Performance:

Frequency Range: 863-865 MHz.
Modulation Mode: FM.
Dynamic Range: >100dB.
Frequency Response: 60Hz-17KHz±3dB.
Total Harmonic Distortion: <0.5% at 1KHz.
Signal/Noise Ratio: ≥105dB.

Receiver:
Frequency Range: 863-865MHz.
Receive Sensitivity: -110dBm (sinad ≥30dB).
Signal/Noise Ratio: >105dB.
Power Supply: DC12V-18V / 500mA.
Dimensions:210*170*44mm.

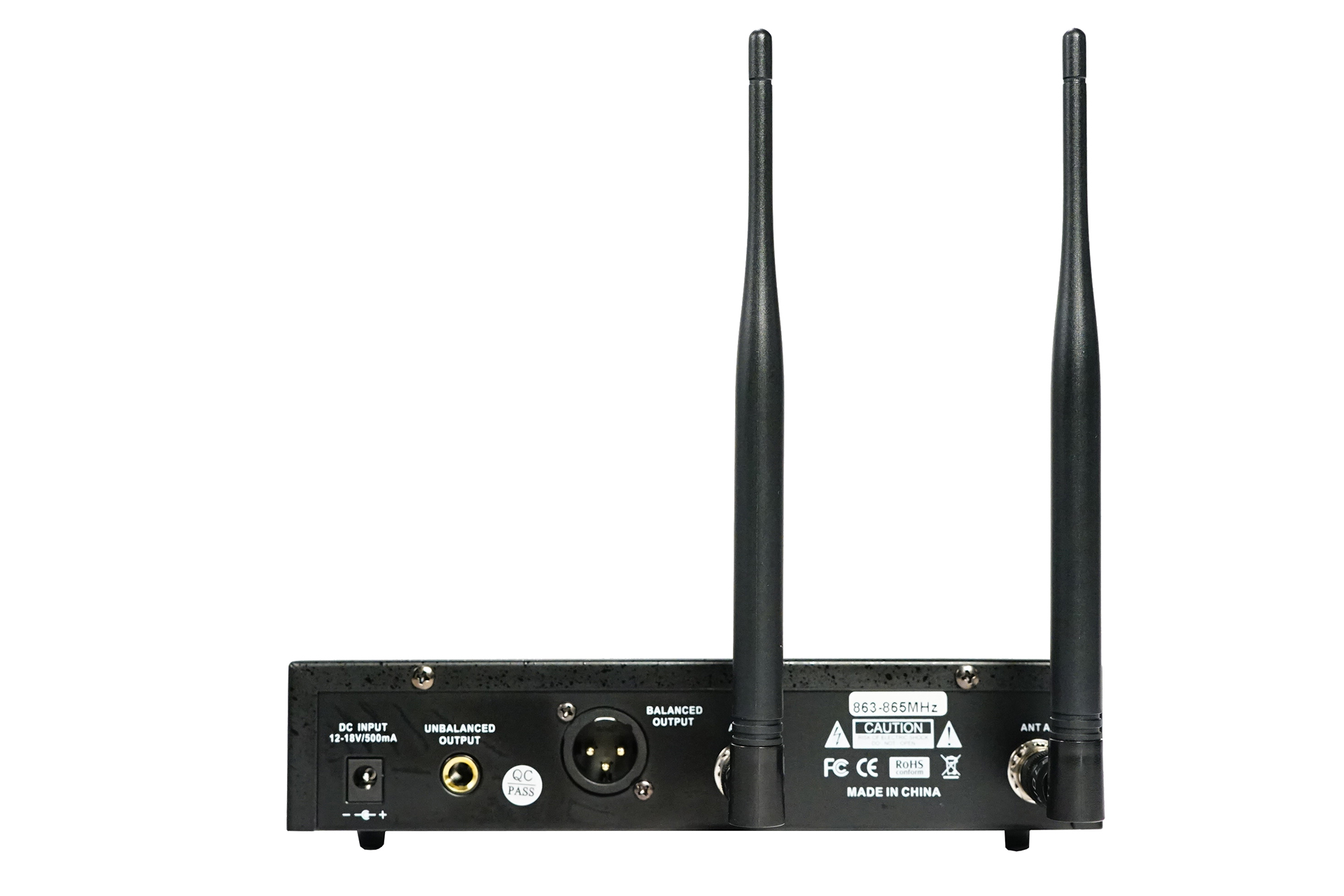

Audio Output: 1*XLR socket, 1*6.3mm jack socket.

Transmitter:
Frequency Range: 863-865MHz.
RF Power: 10mW.
Microphone Type: Dynamic.
Directivity: Cardioid.
Battery Voltage: 3V (2x1.5V AA Battery).
Power Consumption: 8 hours, battery-dependent.

Dimensions: 43 x 32 x 8 Cm.
Weight: 2,5 Kgs.
