D Class Amplifier: 2ch and 4ch D class high-performance amplifier, led VU meter, temperature control fans, frequency response 20Hz - 34Kz, adjustable VPL.
Take a Look
IOS 10A DSP L005669
Scroll on photo to zoom in or Click to enlarge

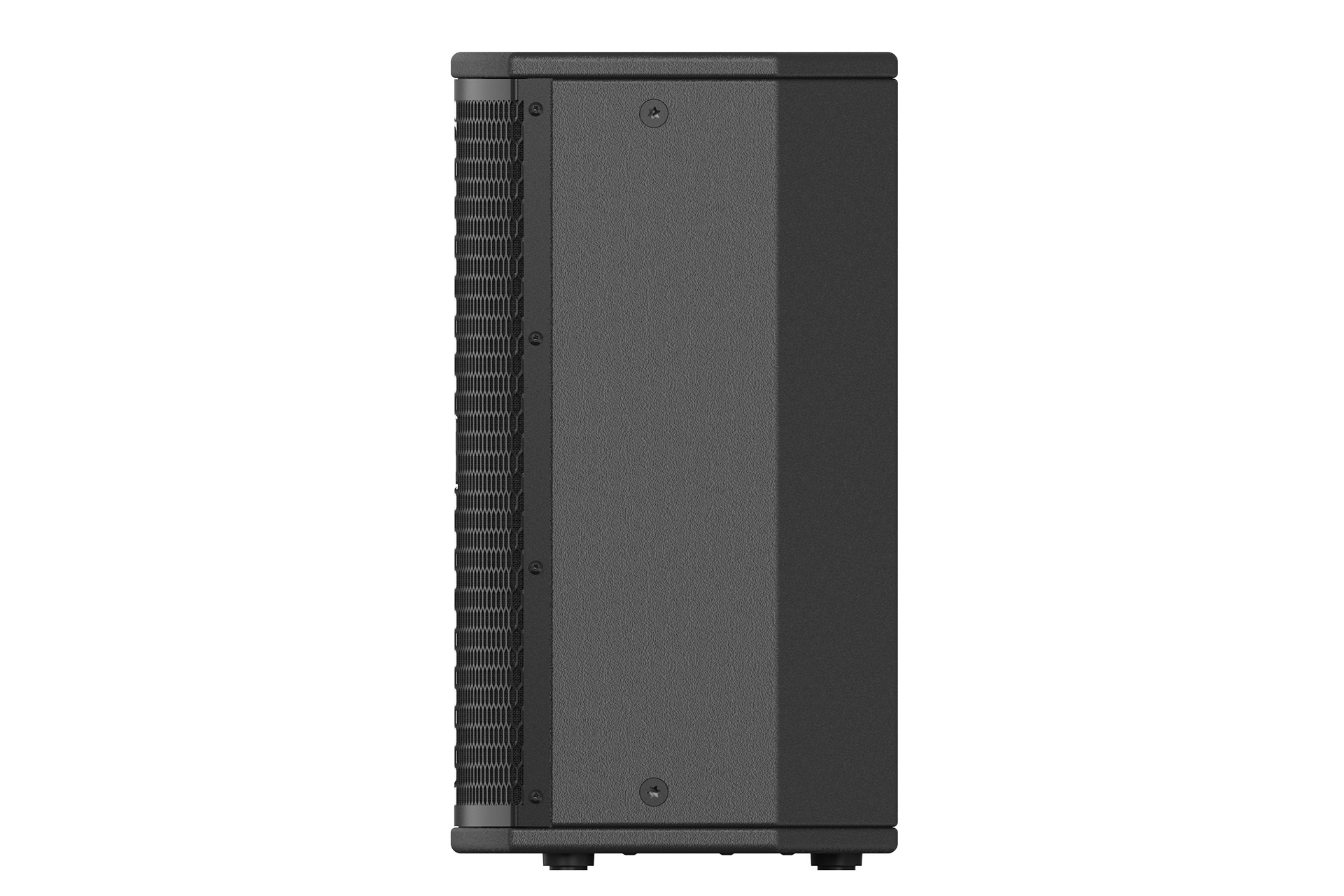

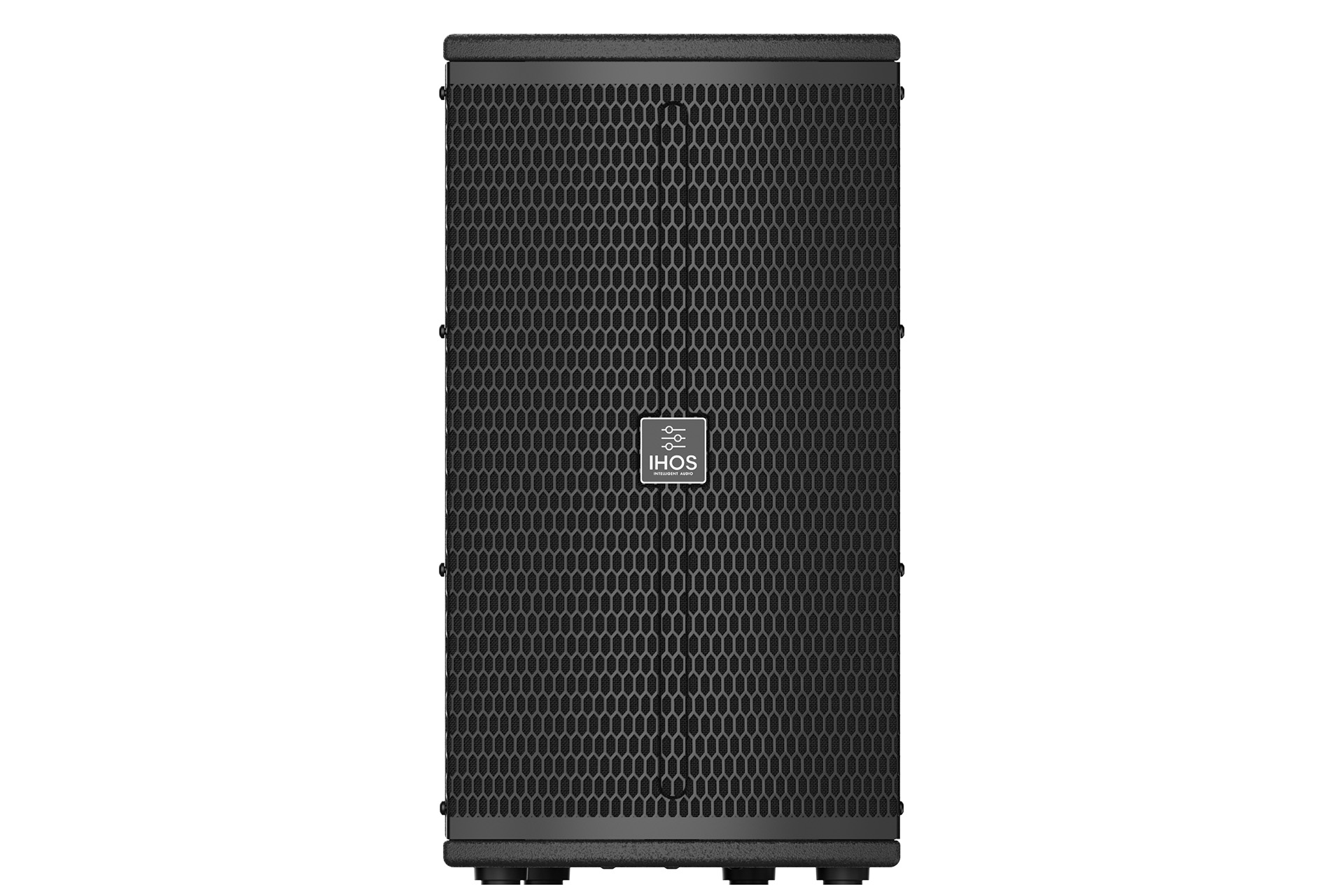

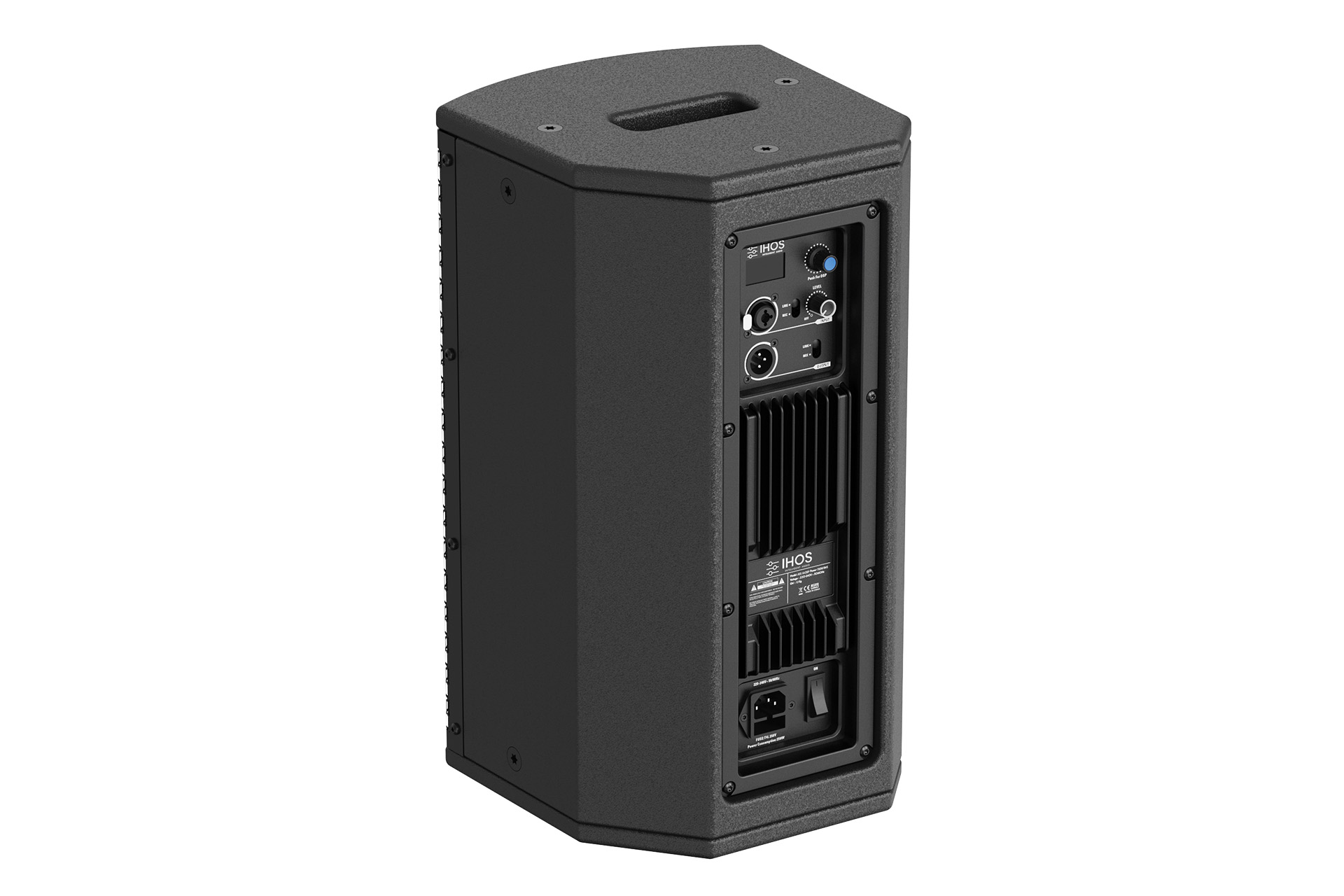

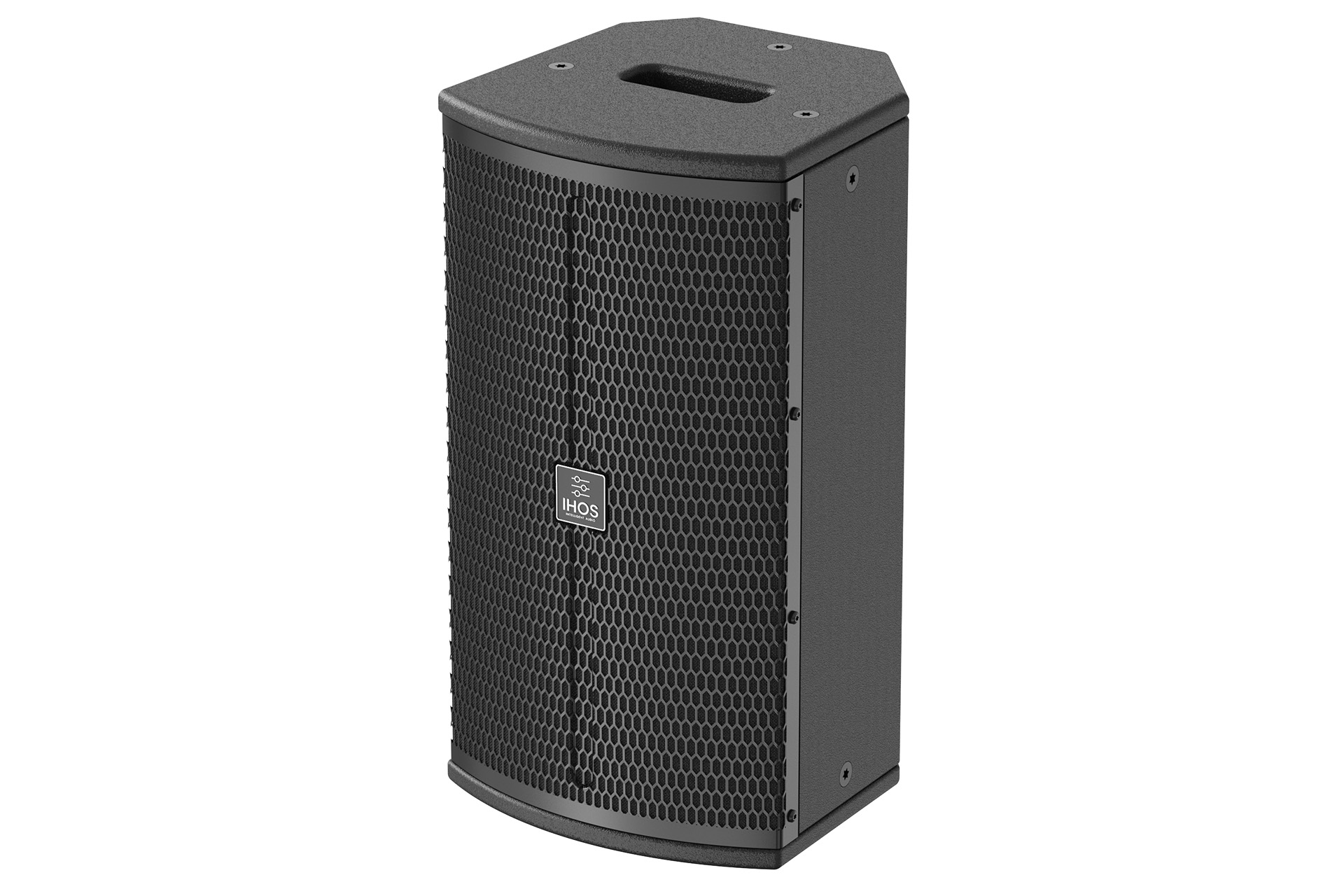

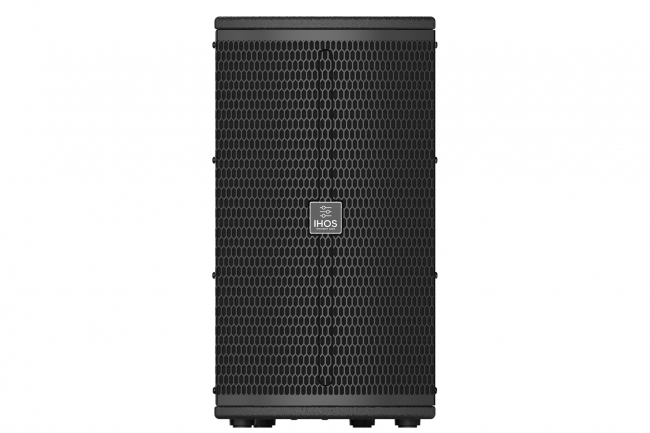

IOS 10A DSP L005669
Professional plywood active speaker 10 inch with LCD screen and multiple DSP, German Engineering class D amplifier, 350W (LF) + 350W (HF), 700w RMS, 1.35 HF drive, 10`` woofer 2``VC, flypoints, top handle and stage monitor feature.
Price
Please login to see the price.
  • Technical Specifications

    2 way, bi-amp active vented design.
    Power output: 700W.
    German Engineering Class D amplifier + switching power supply.
    Frequency Response: 60 - 20 kHz.
    Max. Output SPL: 126 dB.
    Impedance: 4 Ohm.
    Input SPL: -10 dBV.
    Inputs: 1x XLR/1/4"
    Outputs: 1x XLR.
    Woofer 10" x1.
    1,35" driver x1.
    Directivity: 90° H x 60° V.
    Crossover point: 1.9 kHz.
    Power input: 220 / 240 Volt AC, 50 / 60 Hz.
    LCD screen & multiple DSP.
    15 mm PLY cabinet.

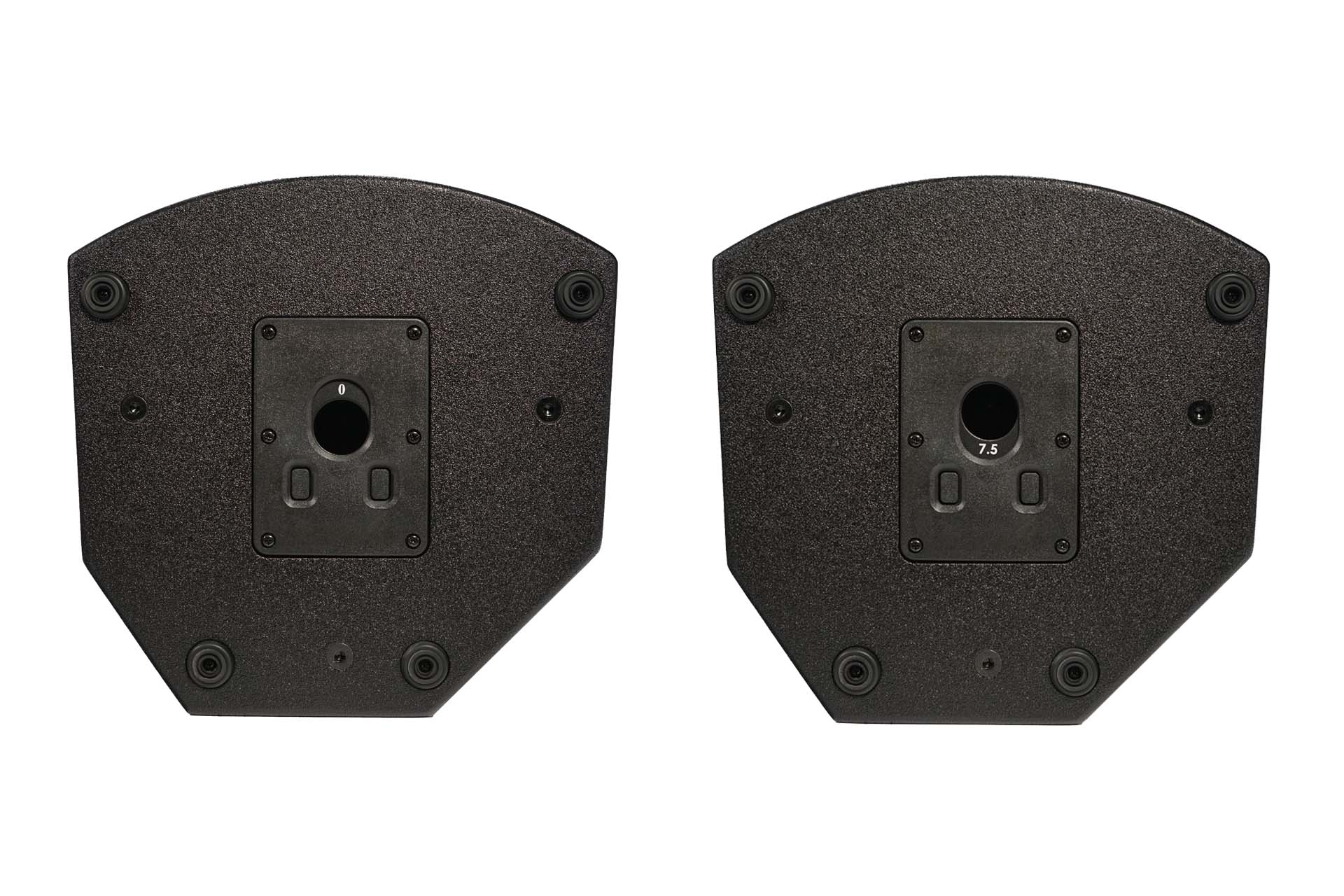

    Flypoints: M8
    Pole Socket: Φ35 mm.
    Dimensions: 56 x 31 x 32,5 cm.
    Gross Weight: 15.6 Kg.


  • Packing Details

    Dimensions: 41 x 41 x 64 cm
    Weight: 18 kg

Manual
