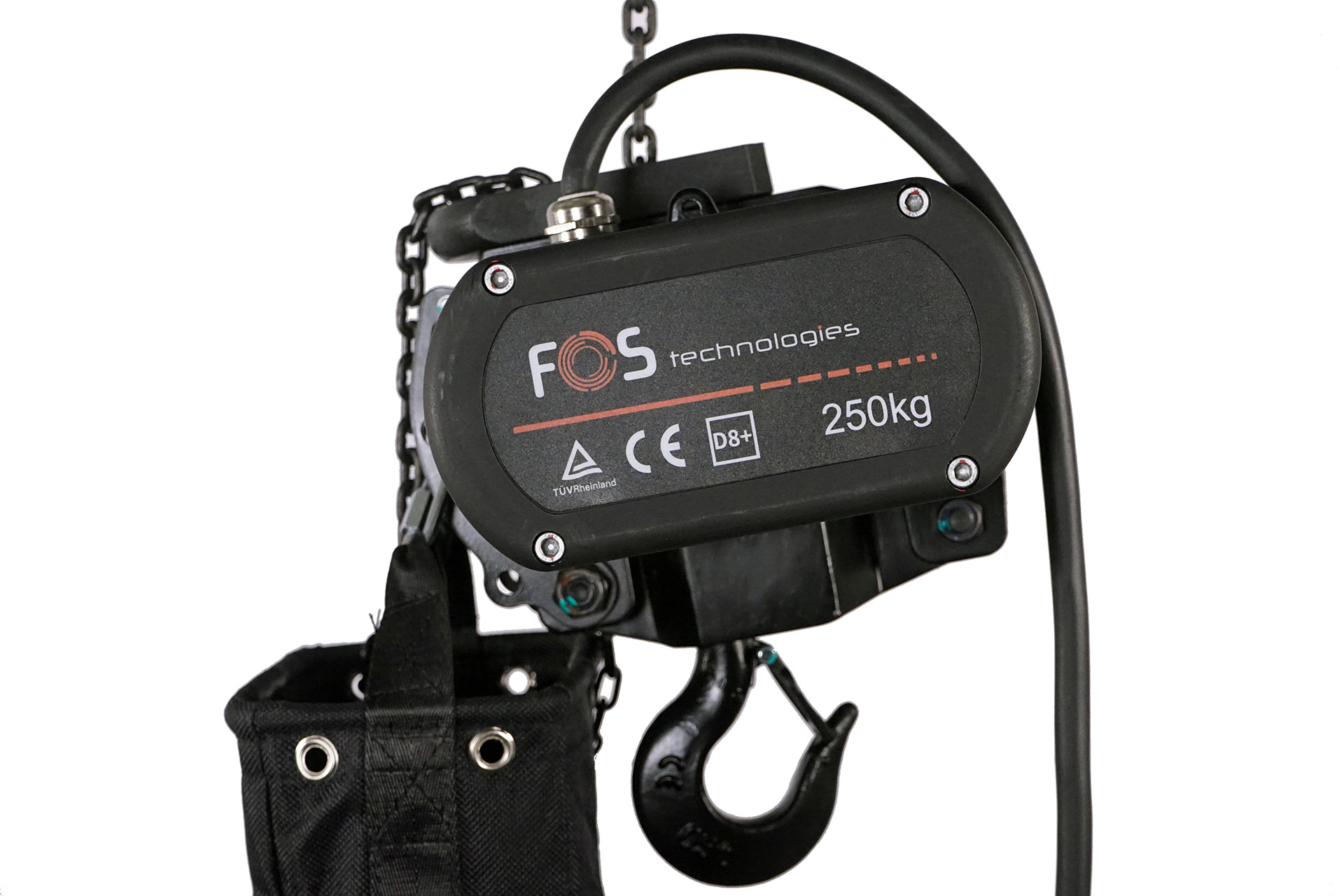

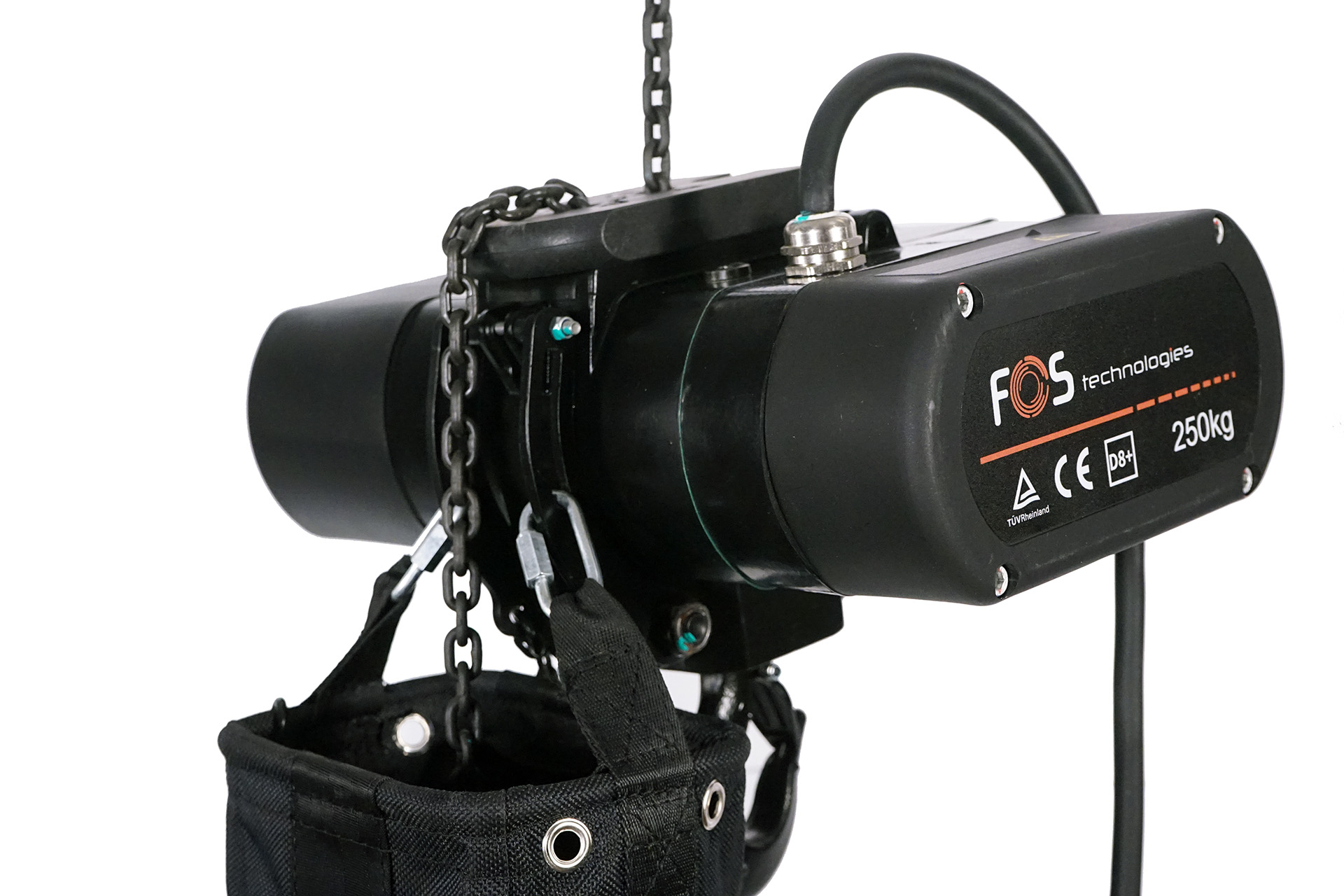

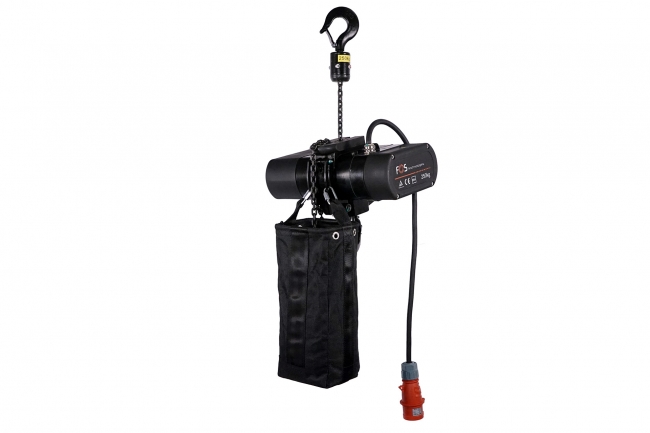

KYRA 250 D8+

Product code:L007677
Professional weatherproof electric 250kg chain hoist, D8+ G100 load Chain, compliant with EN818-7, 8 times safety factor, TUV certified, self-climbing, double brake, overload protection with safety clutch device, direct control, lifting speed 4m/min, chain length 20m, chain bag and hook, low operating noise less than 60 dB, 12 kg and 24kg included chain.
TEXT_PRODUCT_DESCRIPTION
Technical Specifications

250 Kg double brake chain hoist.
TUV SQP2:2018 D8+ Certified.
SWL acc. DGUV V54 (D8 Plus)
Lifting speed: 4 meters per minute.
Direct control: 380 - 415 V, 3ph, 50/60 Hz.
1m cable with CEE- 16/4
Clutch: patented friction clutch for overload protection.
Full load noise level < 60 dB.
2 DC Brakes
Load hook: 1-fall / turntable.
Suspension ring.
Climbing and stationary positions.
IP66 protection level against water and dust.
Weight without chain: 14,5
Motor power: 0,22 Kw.
Current consumption : 1 Amps
Mechanism class: FEM9.511: 1Bm/ 25% ED.
Black color (RAL 9005 matt).






Chain length: 20 meters
Chain according to EN818-7 (mm): 4*12
Chain net weight (Kg/M): ca. 0,35
Dynamic safety factor for chain: min. 5:1
Grade of chain: 100
Chain surface: Phosphating (black)
Chain guide: precise, with a 5-pocket chain wheel.
Chain falls: 1

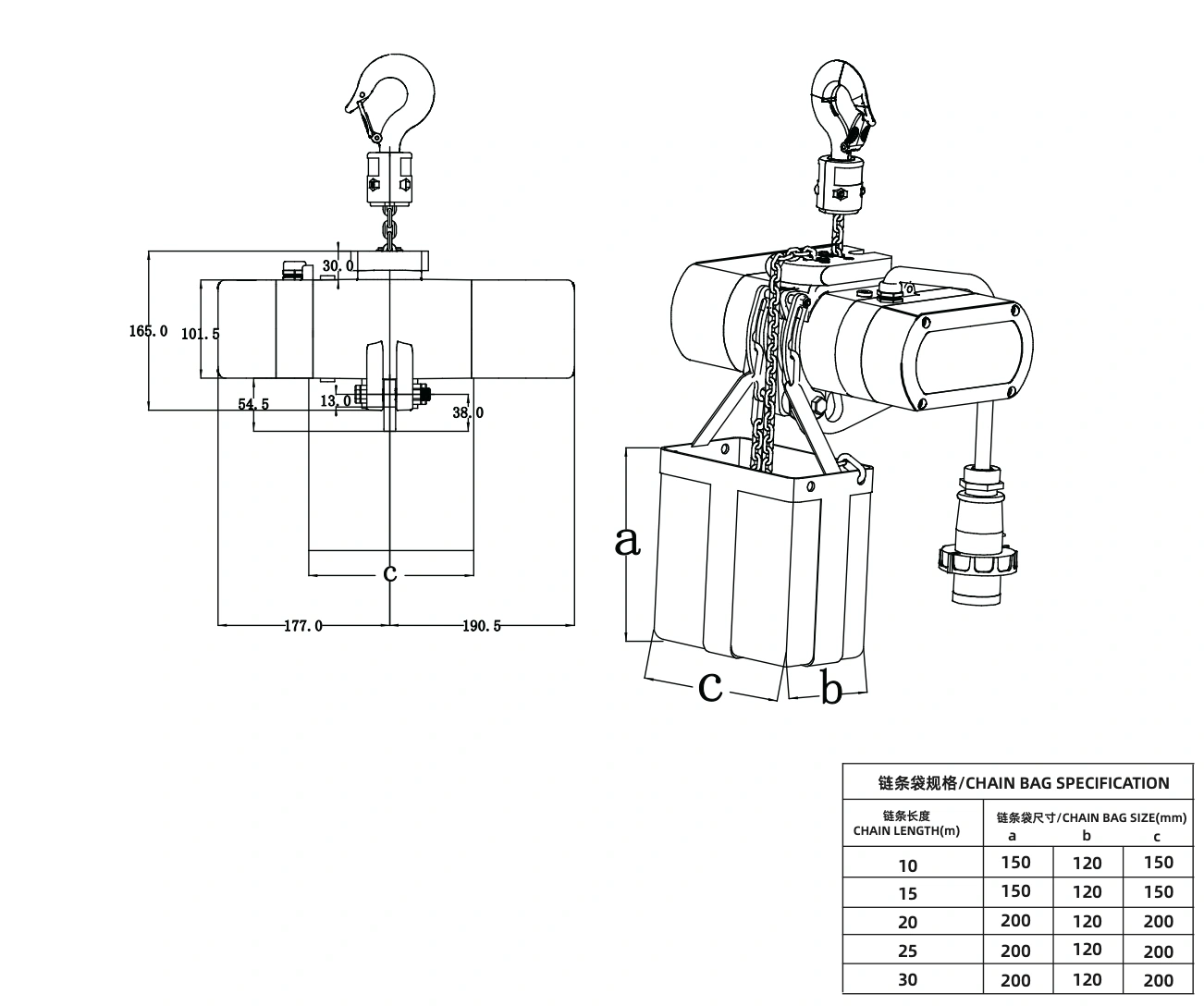

Chain bag: 1 textile chain back, detachable, < 30 meters.



35 x 37 x 47    23 Kgs
