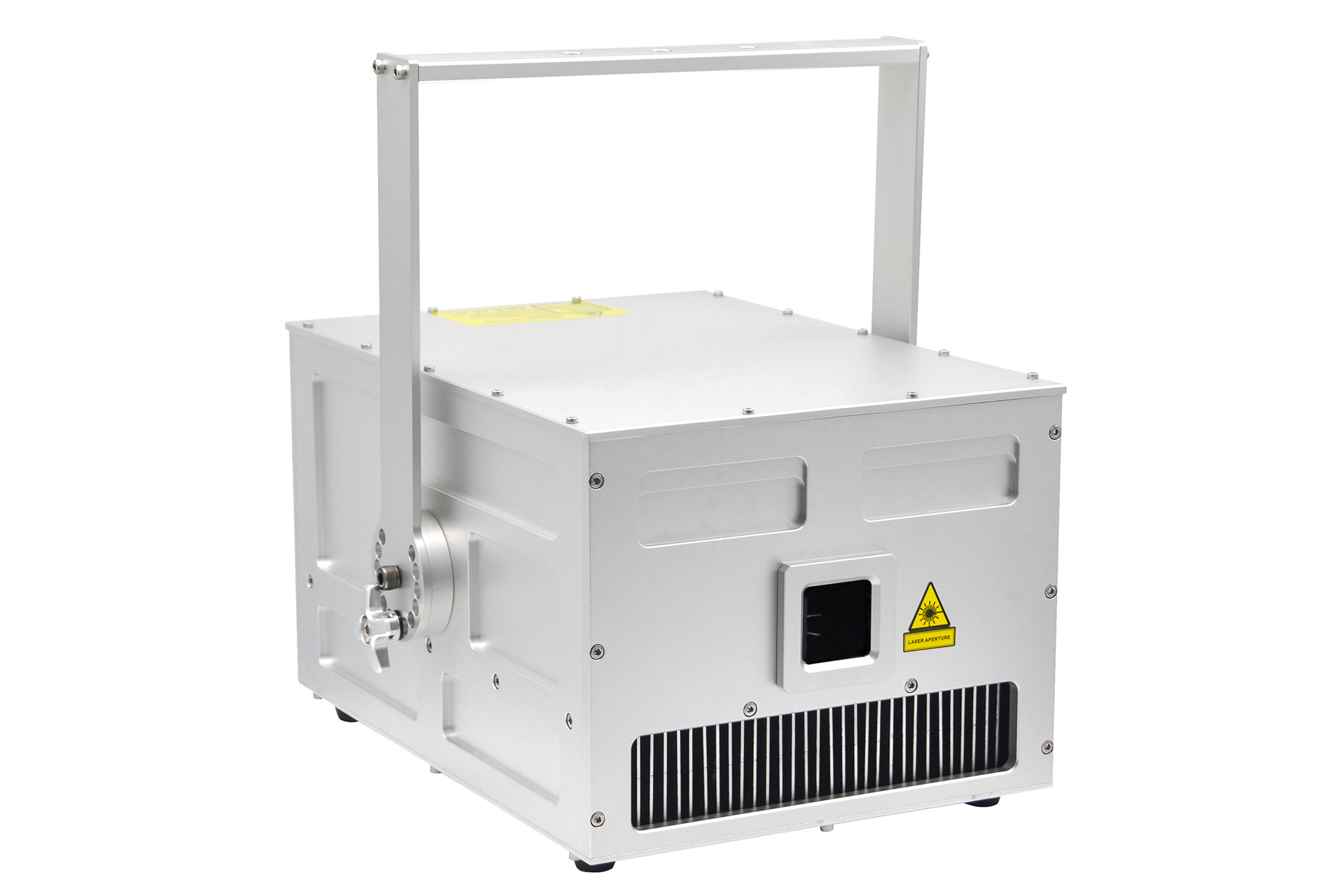

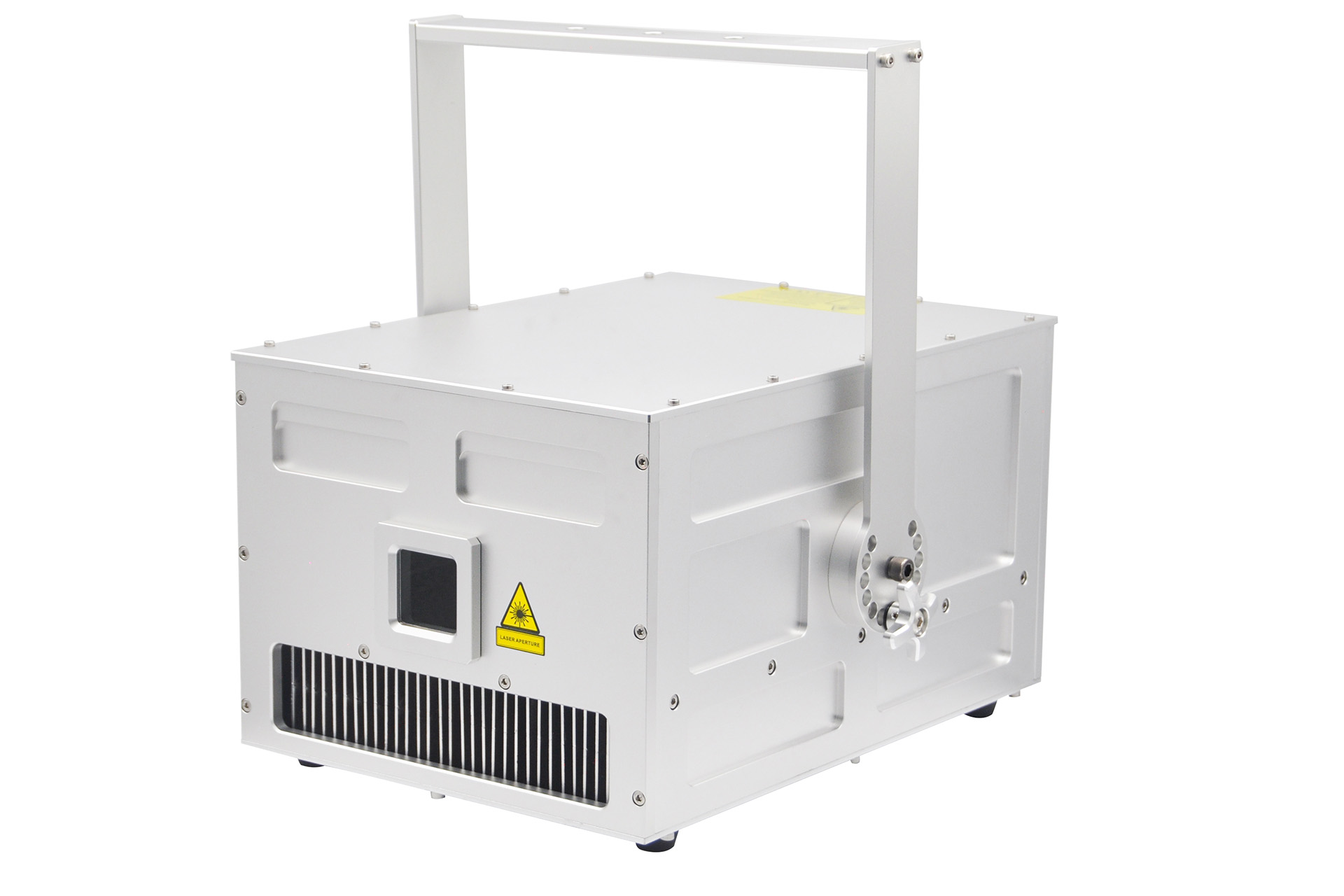

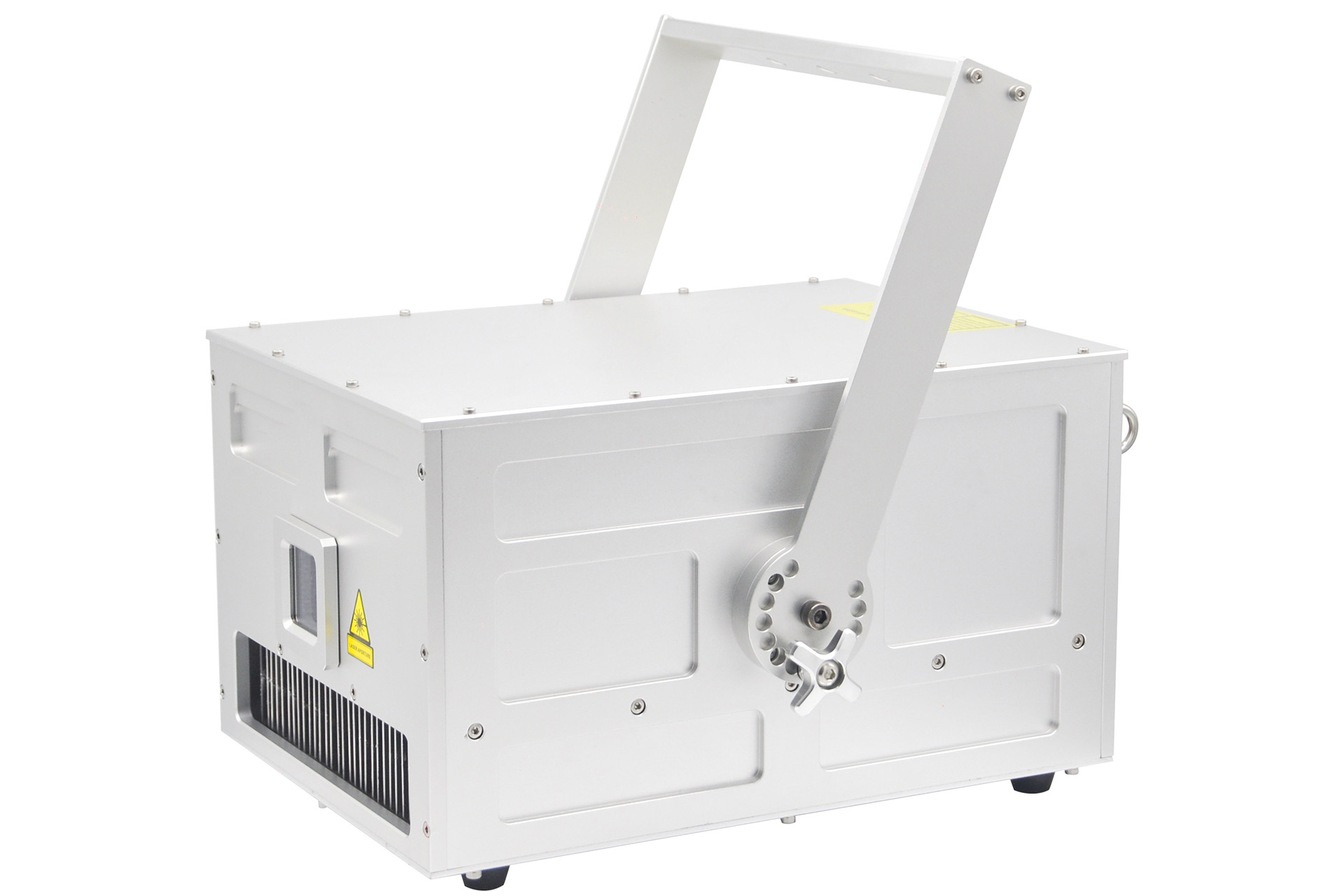

FOS 20W RGB IP65

Product code:L005421

Professional Class3B 20watt RGB laser, IP65 weatherproof protection, analog modulate, 10KHZ frequency, 5.5W red laser, wavelength 638nm, 5.5W green laser, wavelength 525nm, 9W blue laser, wavelength 450nm, Scanner: 40K High-speed optical scanner, ±30° big angle scanning, RGB Beam Diameter<5mm, Divergence<1.3mrad, working modes: DMX512 (14 CH/22CH), ILDA Mode (PC Control), Music Mode, Auto Mode, 3 pins XLR jack for DMX, RJ45 interface for ILDA control and interlock, show patterns and ready see.

Why choose FOS

2 years warranty

Description

Introducing the Professional Class 3B 20-Watt RGB Laser System, designed for exceptional performance and versatility in various applications. This laser system features IP65 weatherproof protection, ensuring reliable operation in outdoor environments.

Key specifications include:
- **Laser Output**:
- 5.5W Red Laser with a wavelength of 638nm
- 5.5W Green Laser with a wavelength of 525nm
- 9W Blue Laser with a wavelength of 450nm
- **Modulation and Frequency**: Analog modulation with a frequency of 10kHz
- **Scanning Technology**: Equipped with a high-speed 40K optical scanner, offering ±30° wide-angle scanning capabilities
- **Beam Characteristics**:
- Beam Diameter: Less than 5mm
- Divergence: Less than 1.3 mrad

The system supports multiple working modes, including:
- DMX512 (14-channel and 22-channel options)
- ILDA Mode (PC Control)
- Music Mode
- Auto Mode

Connectivity options include a 3-pin XLR jack for DMX control and an RJ45 interface for ILDA control and interlock functionality. The system comes preloaded with a variety of show patterns, ready for immediate use.

This advanced RGB laser system is ideal for professional lighting designers, event planners, and entertainment venues seeking to create stunning visual displays.
