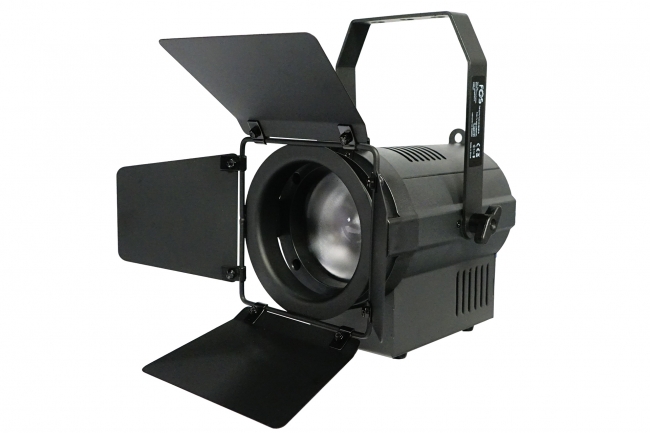

FOS TV MINI FRESNEL TW

Product code:L005617
Mini Fresnel tunable white 100 watt LED ( 50W warm white + 50W cool white), 2700K - 6500K tunable, CRI 95, 25° - 80° manual zoom, Smooth dimming, flicker free, Super compact, easy for set up, 4-leaf rotatable barndoor included.
TEXT_PRODUCT_DESCRIPTION
Light Source / Optics

100 Watt LED, (50 Watt CW and 50 Watt WW).
Beam angle from 25° to 80°, with manual zoom.
Flicker-free light source: the LEDs operation frequency can be adjusted via the options menu.
LED lifespan: 50.000 hours.


The white ballance can be adjusted via onboard knobs, or DMX channels.
Color temperature ranges from 2700 to 6500 Kelvin.
CRI 95, R9≥90, TLCI 98, CQS 96
Smooth dimmer from 0 to 100%, with selectable dimmer speeds.
Barndoors included.
DMX control with 1, 2, 3 & 5 channels.

Measuring distance: 1 meter

Warm White Maximum Zoom 80°

Color Temperature (K): 2840
Illuminance (lx): 1778
CRI (Ra): 94
TLCI (Qa): 97.8
Flicker Frequency (Hz): 90
Flicker(%): 11


Warm White Minimum Zoom 25°

Color Temperature (K): 2836
Illuminance (lx): 6046
CRI (Ra): 95
TLCI (Qa): 97.6
Flicker Frequency (Hz): 3
Flicker(%): 20


Cool White Maximum Zoom 80°

Color Temperature (K): 6440
Illuminance (lx): 2218
CRI (Ra): 98
TLCI (Qa): 98.3
Flicker Frequency (Hz): 90
Flicker(%): 12


Cool White Minimum Zoom 25°

Color Temperature (K): 6216
Illuminance (lx): 8258
CRI (Ra): 97
TLCI (Qa): 98.2
Flicker Frequency (Hz): 3
Flicker(%): 12


WW + CW Maximum Zoom 80°

Color Temperature (K): 4417
Illuminance (lx): 1801
CRI (Ra): 95
TLCI (Qa): 98.7
Flicker Frequency (Hz): 90
Flicker(%): 25


WW + CW Minimum Zoom 25°

Color Temperature (K): 4356
Illuminance (lx): 6683
CRI (Ra): 96
TLCI (Qa): 98.7
Flicker Frequency (Hz): 90
Flicker(%): 28



Power supply: 100 / 240 Volt AC, 50/60 Hz.
Typical power consumption: 230 V, 50 Hz: 1.2 A, 38 W, PF 0.96. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%..
IP20, use indoors only.
Dimensions: L 230 x W 156 x H 279 mm.
Net weight: 2.2 Kg.
Packing Details :  45x35x49 cm - 3kg
