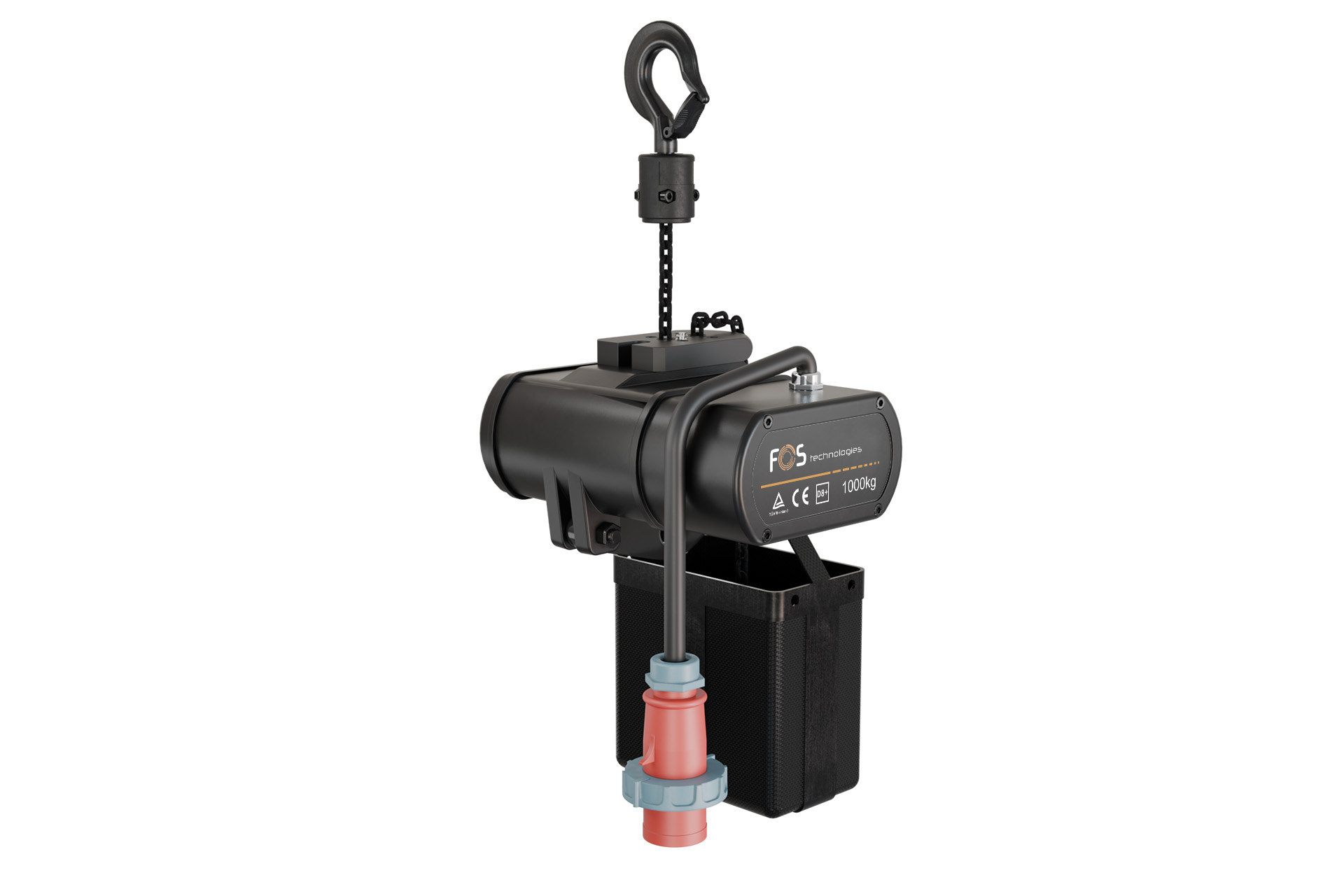

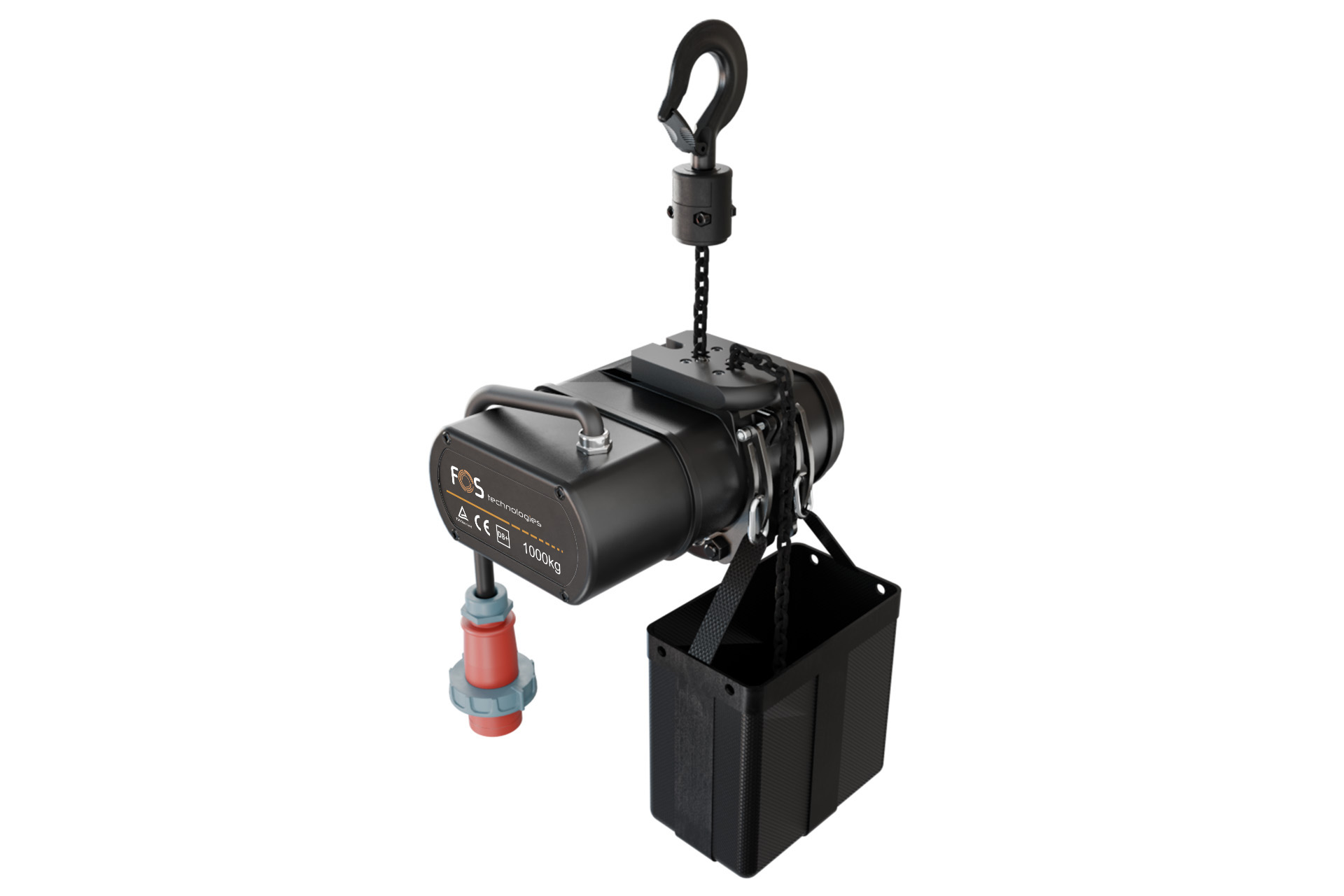

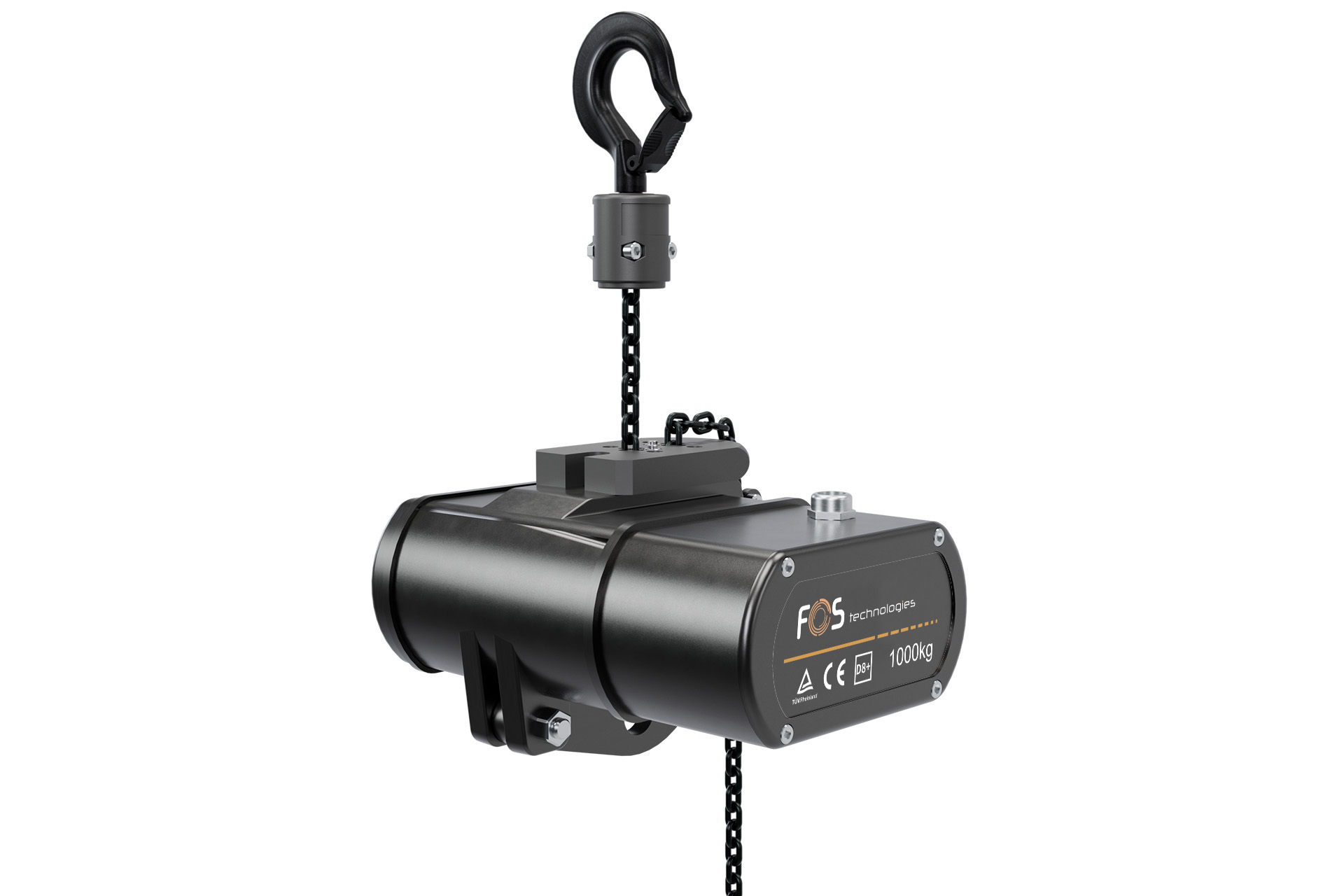

Introducing our professional-grade weatherproof electric chain hoist, designed to handle loads of up to 1000 kg with exceptional reliability and safety. This hoist features a D8+ G100 load chain that complies with EN818-7 standards, ensuring a robust performance with an impressive safety factor of eight times the rated load.
Key features include:
- TÜV Certified: Our hoist meets rigorous safety and quality standards.
- Self-Climbing Mechanism: Engineered for efficient vertical lifting.
- Double Brake System: Provides enhanced safety during operation.
-Overload Protection: Equipped with a safety clutch device to prevent excessive loads.
- Direct Control: Facilitates precise operation for various lifting tasks.
-Lifting Speed: Achieves a lifting speed of 4 meters per minute for efficient workflow.
- Chain Length: Comes with a 24-meter chain, suitable for a wide range of applications.
-Included Accessories: Includes a chain bag and hook for convenient storage and use.
- Low Operating Noise: Operates at a noise level of less than 60 dB, ensuring a quieter work environment.
- Weight: The hoist itself weighs 28 kg, with an additional 66 kg for the included chain.
This electric chain hoist is the ideal solution for professionals seeking a powerful, safe, and efficient lifting tool for demanding environments.
1000 Kg double brake chain hoist.
TUV SQP2:2018 D8+ Certified.
SWL acc. DGUV V54 (D8 Plus)
Lifting speed: 4 meters per minute.
Direct control: 380 - 415 V, 3ph, 50/60 Hz.
1m cable with CEE- 16/4
Clutch: patented friction clutch for overload protection.
Full load noise level < 60 dB.

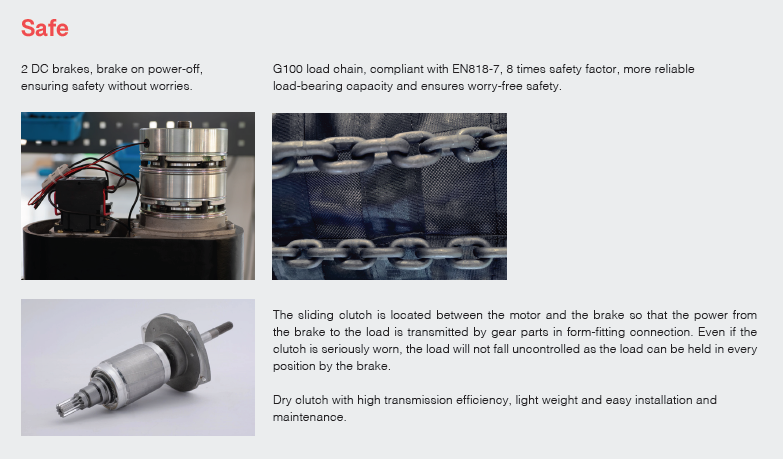

2 DC Brakes
Load hook: 1-fall / turntable.
Suspension ring.
Climbing and stationary positions.
IP66 protection level against water and dust.
Weight without chain: 14,5
Motor power: 0,22 Kw.
Current consumption : 1 Amps
Mechanism class: FEM9.511: 1Bm/ 25% ED.
Black color (RAL 9005 matt).
Chain length: 24 meters
Chain according to EN818-7 (mm): 4*12
Chain net weight (Kg/M): ca. 0,35
Dynamic safety factor for chain: min. 5:1
Grade of chain: 100
Chain surface: Phosphating (black)
Chain guide: precise, with a 5-pocket chain wheel.
Chain falls: 1
Chain bag: 1 textile chain back, detachable, < 30 meters.
Dimensions: 44 x 49 x 53 Cm.
Weight: 67 Kgs.
