IWM-H L005776

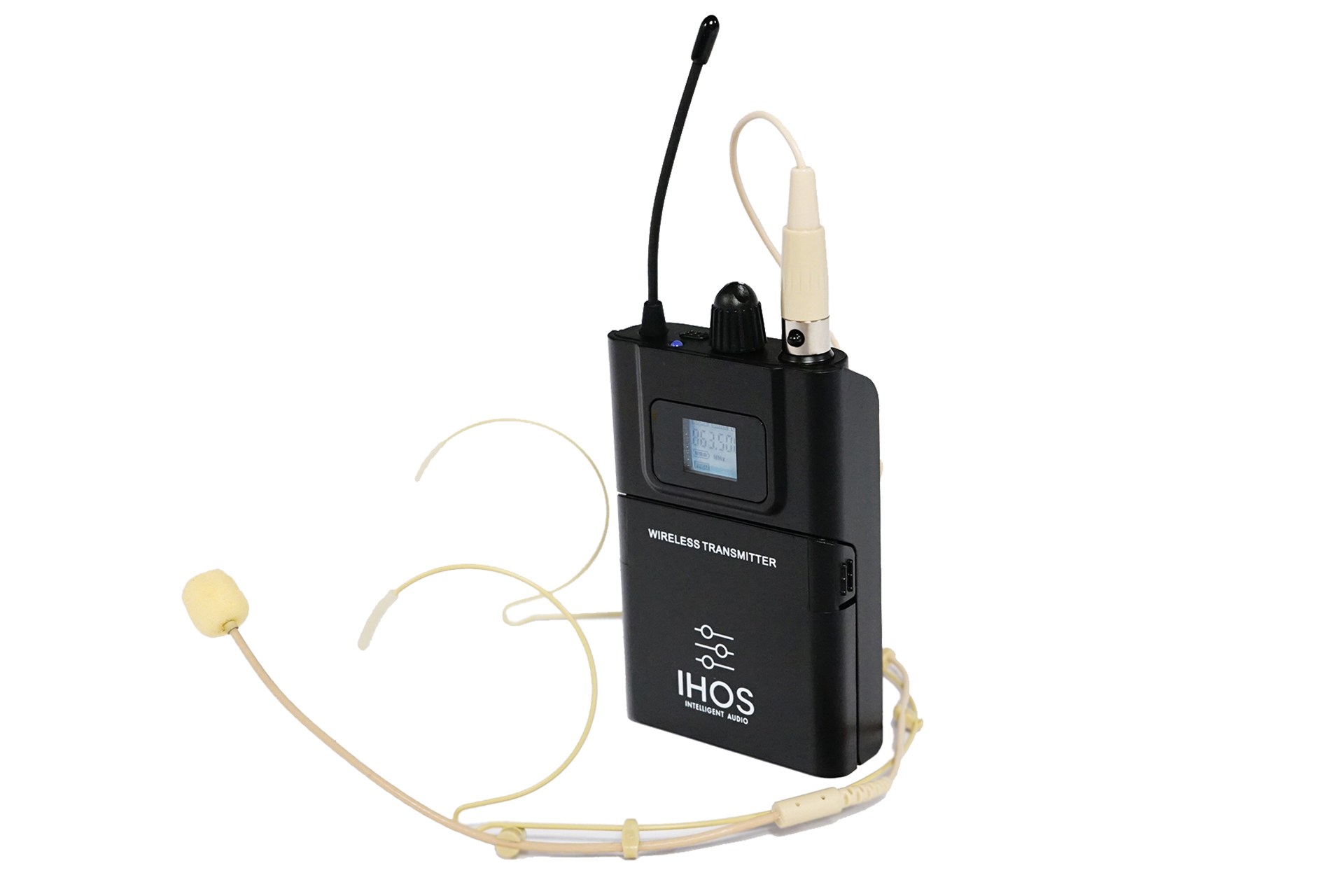

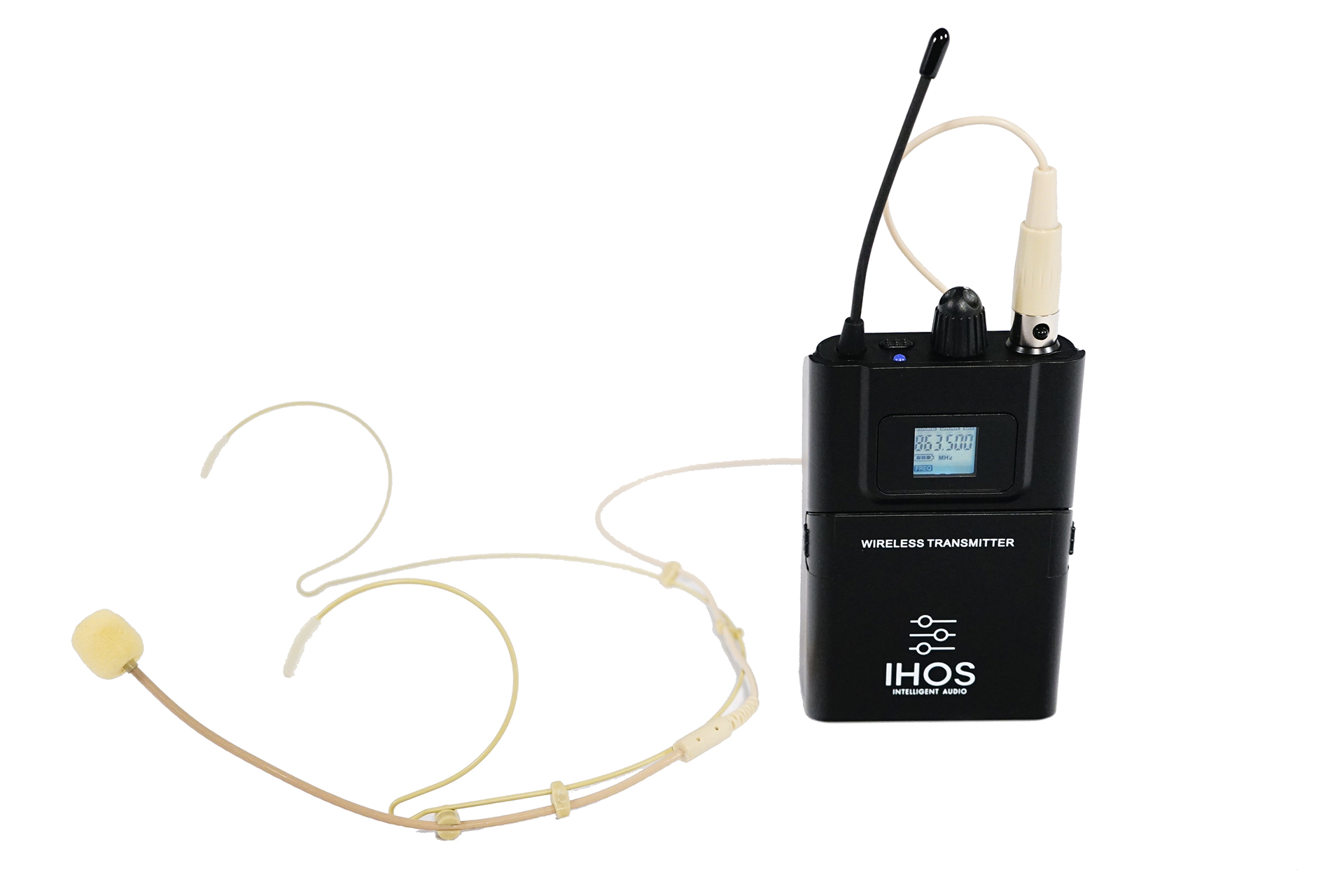

Beltpack transmitter for the IWM systems with Uni-Directional Headset Microphone, freq.range 863-865MHZ, RF power 10mW, LCD display ,IR synch.
Price
Please login to see the price.
  • Technical Specifications

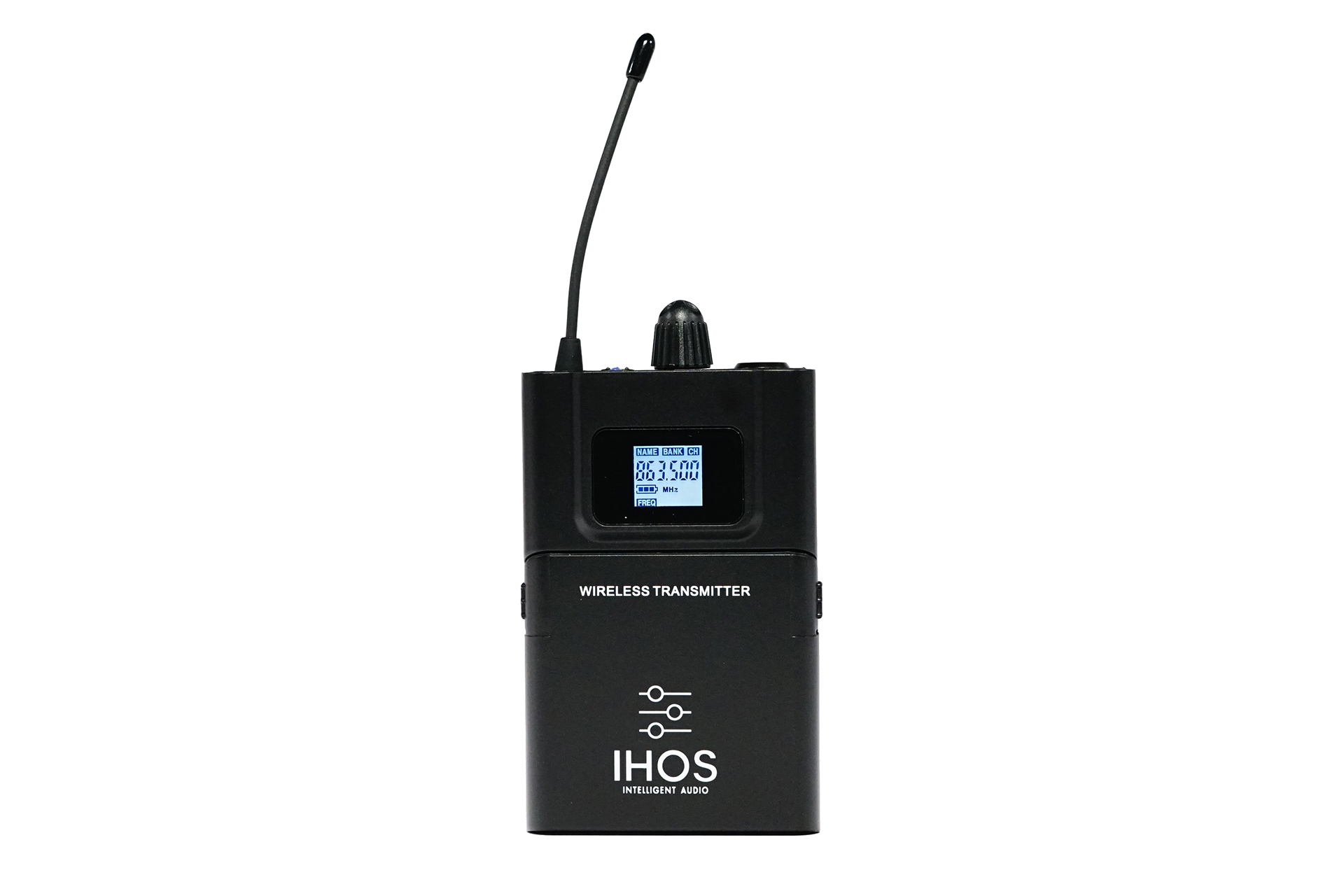

    Transmitter

    Frequency Range: 863-865MHz
    Transmission Method: FM, Mono
    Transmitter Power: 5/10/30/100mW
    Frequency Response: 50Hz-17KHz
    Total Harmonic Distortion: <0.5% at 1KHz
    Deviation: 45KHz
    Input impedance: 32ohms
    Power Supply: DC12V-18V / 500mA

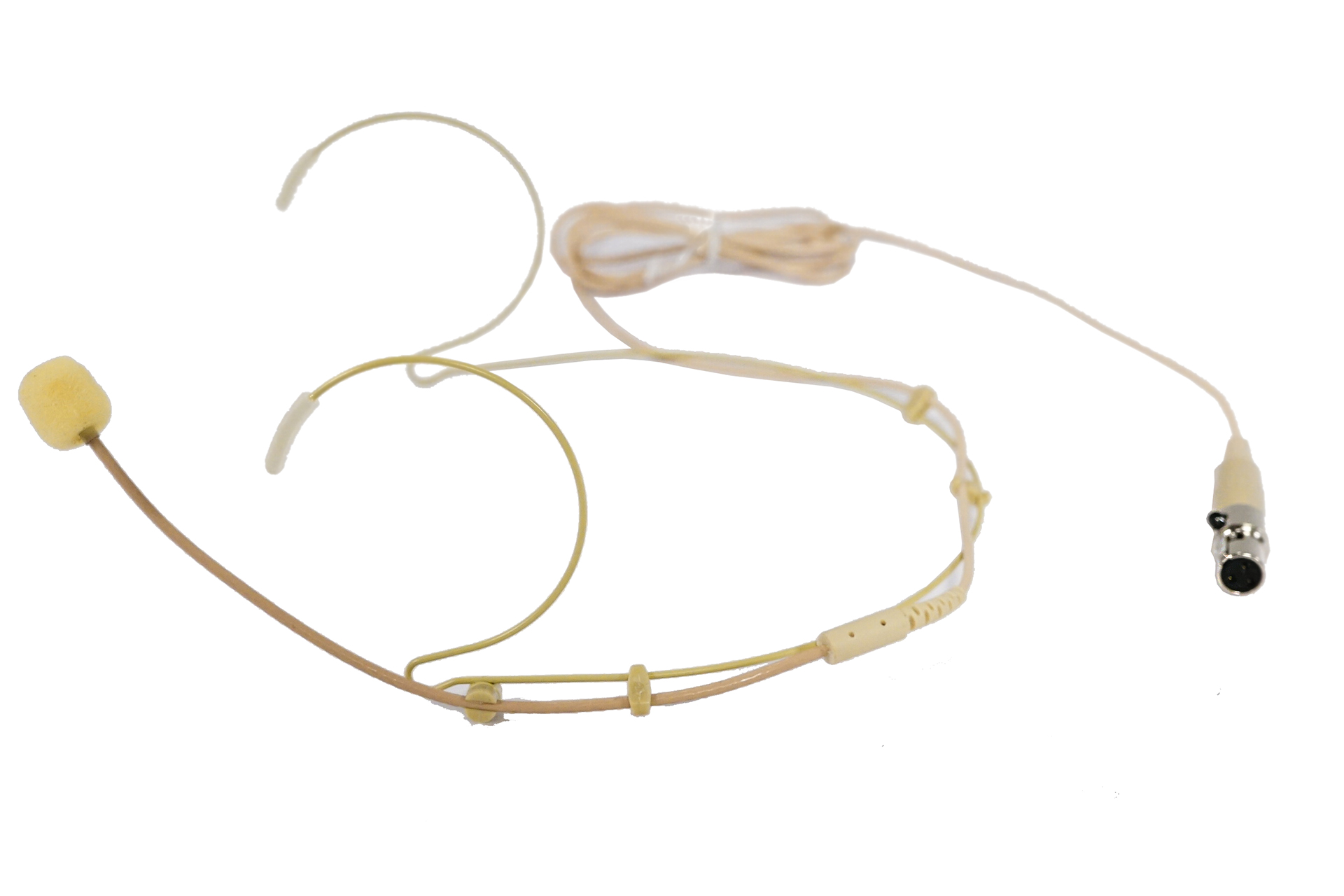

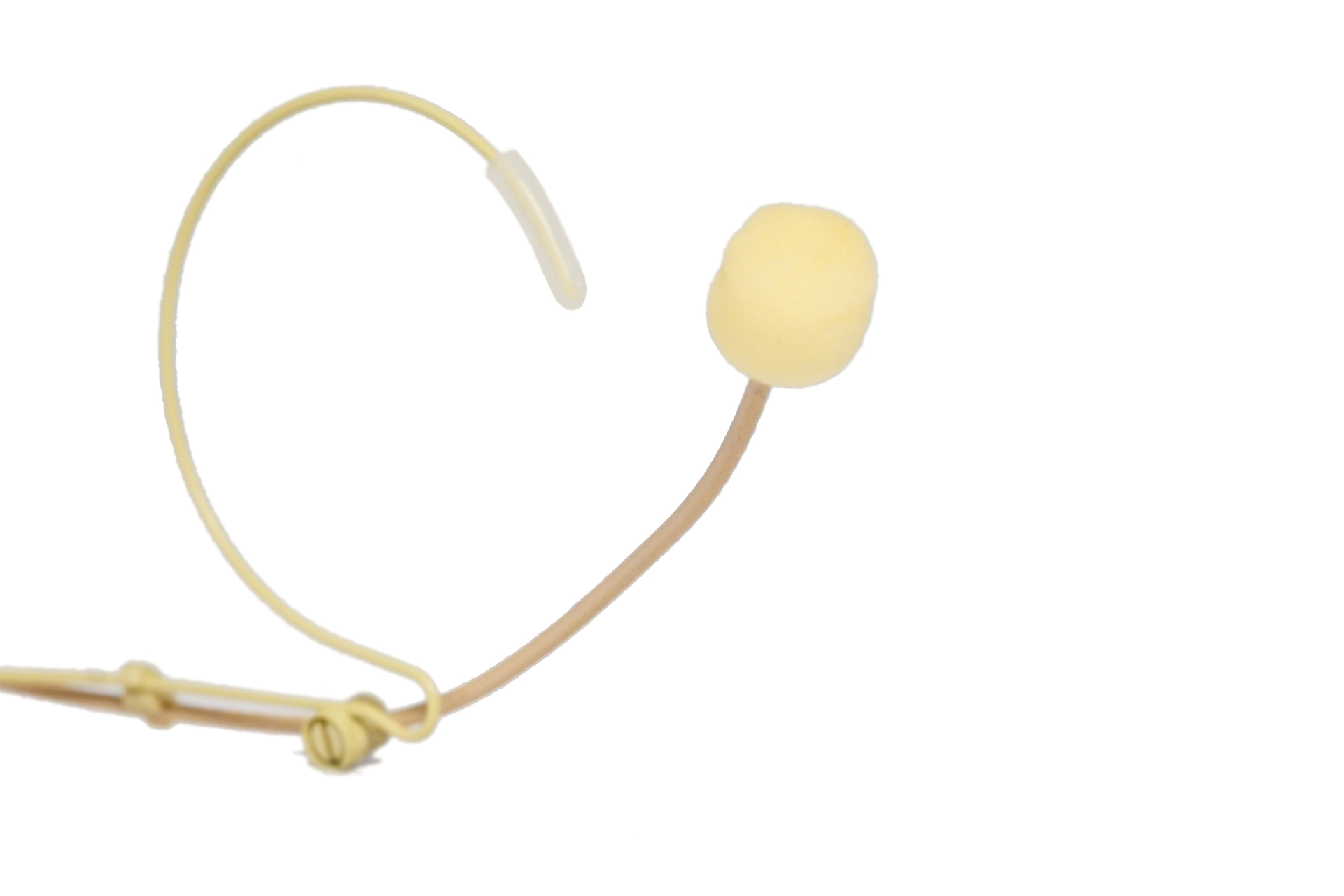

    Headset microphone

    Polar Pattern:Uni-Directional
    Frequency Response:20Hz-20KHz
    Output Impedance:680Ω
    Max SPL: 100dB(T.H.D ≦1% at 1kHz )
    Sensitivity:-47dB 1V/Pa @ 1KHz
    Signal/Noise Ratio: 63dB
    Cable Length:1M
