D Class Amplifier: 2ch and 4ch D class high-performance amplifier, led VU meter, temperature control fans, frequency response 20Hz - 34Kz, adjustable VPL.
Take a Look
Scroll on photo to zoom in or Click to enlarge

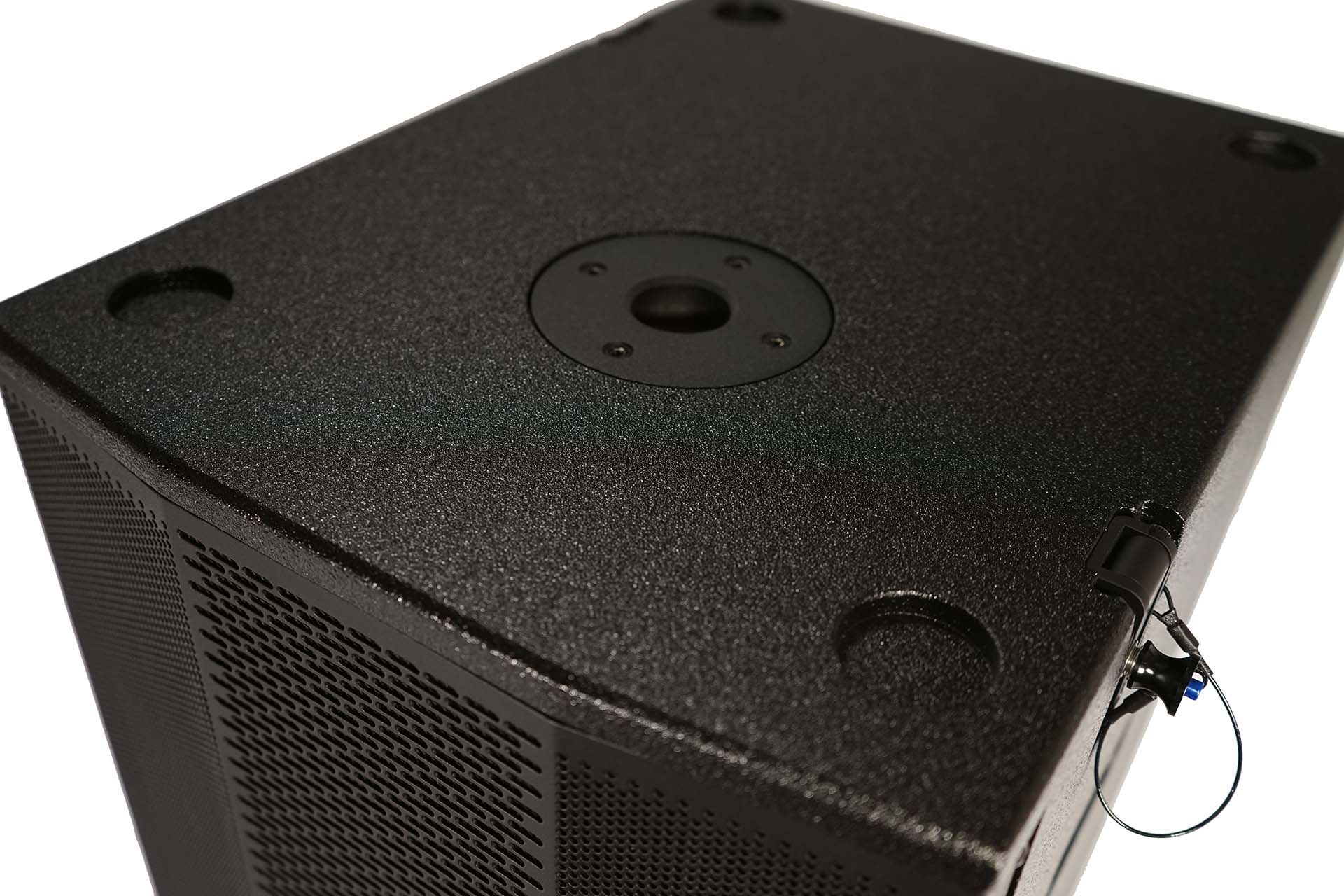

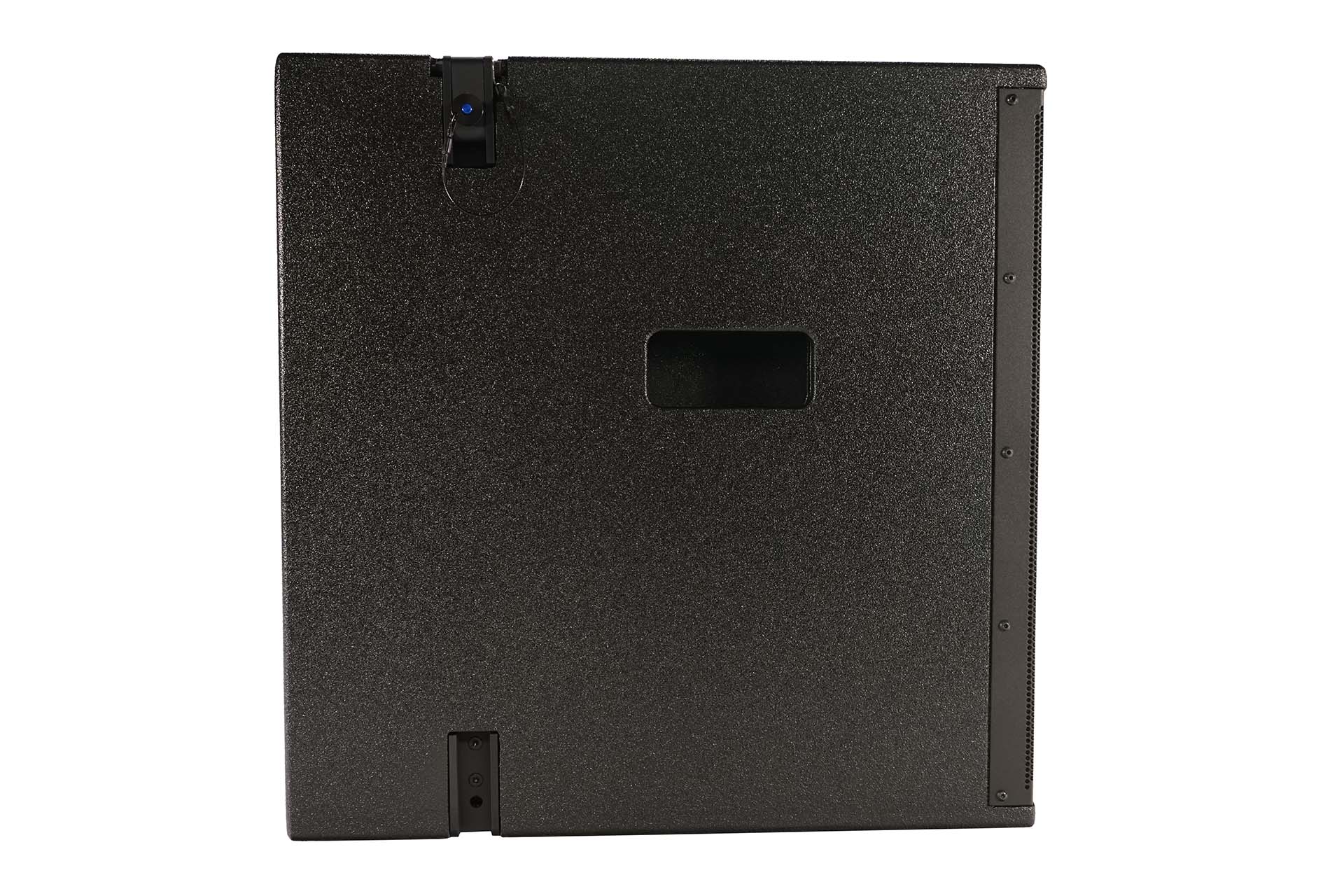

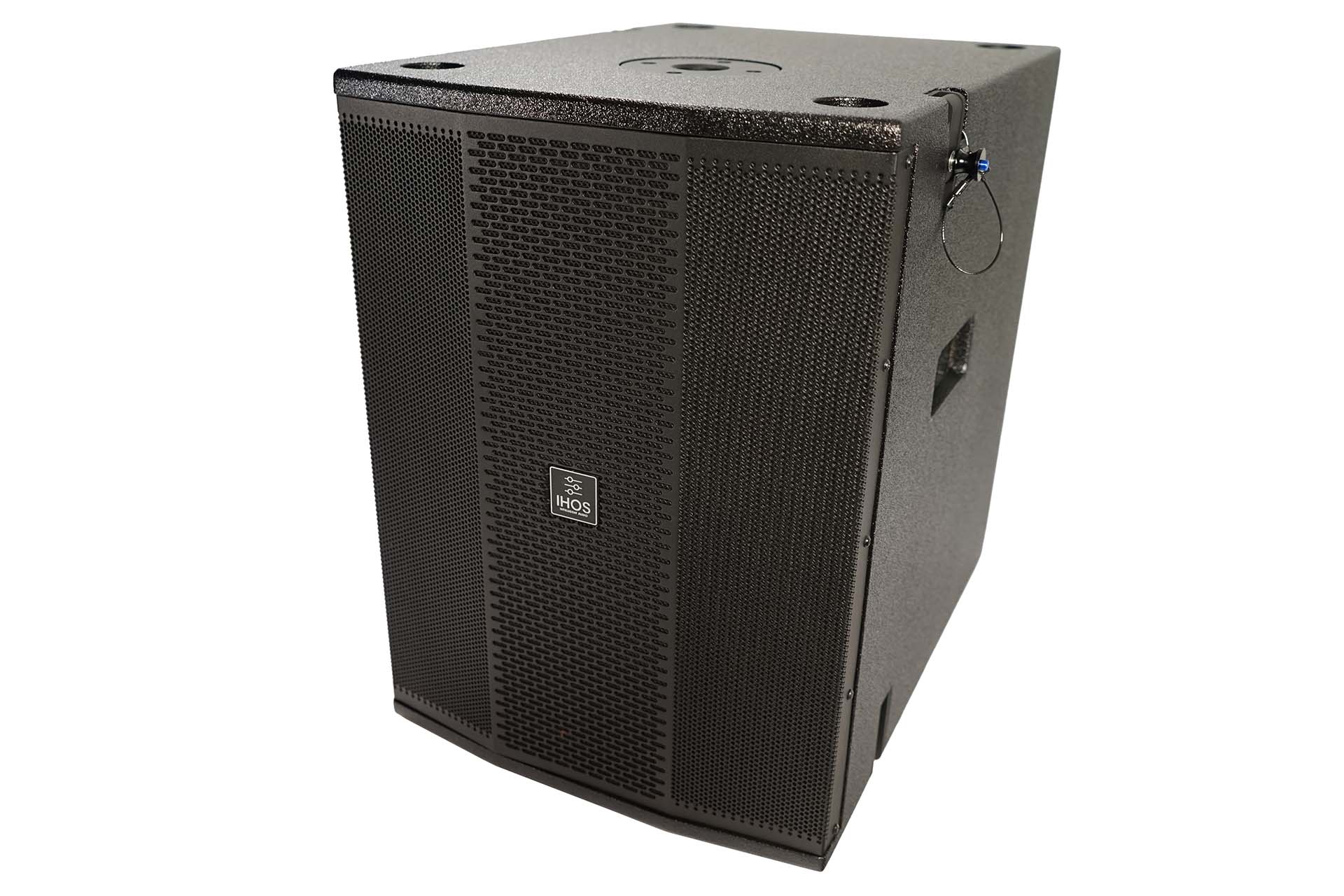

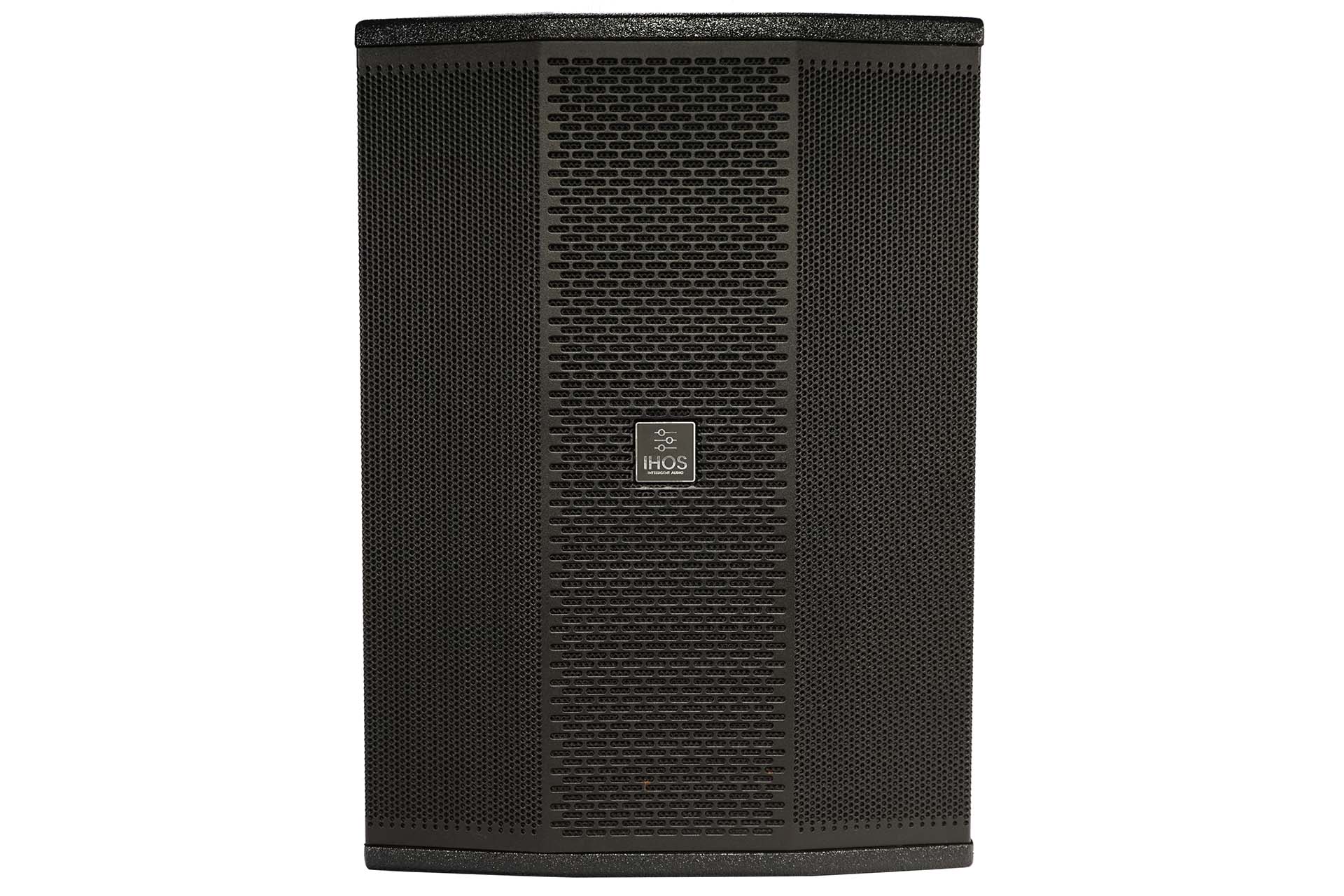

Plywood professional active band pass subwoofer 12 inch , German engineering D class amplifier,700w RMS, 124 dB Spl, 1XLR input ,1 XLR output , lcd screen and multiple DSP ,X over design for satellite, Frequency response 40-120HZ.
Please login to see the price.
  • Technical Specifications
    Inputs: 1x XLR.
    Outputs: 1x XLR link or Xover.
    Power output: 700 Watt RMS.
    Volume Control.
    Power input: 220 - 240 Volt AC, 50 / 60 Hz.
    German Engineering Class D amplifier + switching power design.
    LED power / signal / clip indicator.
    Xover design for satellite (90 Hz or 120 Hz).
    Phase switchable (0/180).
    LCD with multiple DSP (Digital Signal Processing).
    Active bandpass subwoofer.
    Frequency response: 40 - 120 Hz.
    Impedance: 8 Ohm.
    Max output SPL (1m): 124 dB / 1m
    Driver: 12" Subwoofer, 3" vc 84 Oz.

    Plywood with black painted finish cabinet.
    1,2 mm steel mesh.
    M20 screw pole.
    Dimensions: 63 x 49 x 63,5 cm
    Packing Dimensions: 65 x 51 x 65,5 cm
    Weight: 32 Kg.
