FOS Designer 2048

Product code:L006090
2048 channels (4096 ArtNET channels) Lighting Console, high-resolution 15 inches capacitive LCD touch screen, Art-Net, 15 playback faders and 15 playback keys, 4 backlit optical encoders, WiFi antenna provides WiFi signal for connecting App, backlit which can be set to 3 different colors, USB 2.0 interface allows you to backup shows, 15Kg.
TEXT_PRODUCT_DESCRIPTION
Product Introduction

Professional DMX lighting console, suitable for permanent installations in stages, live concerts, festivals, tours!

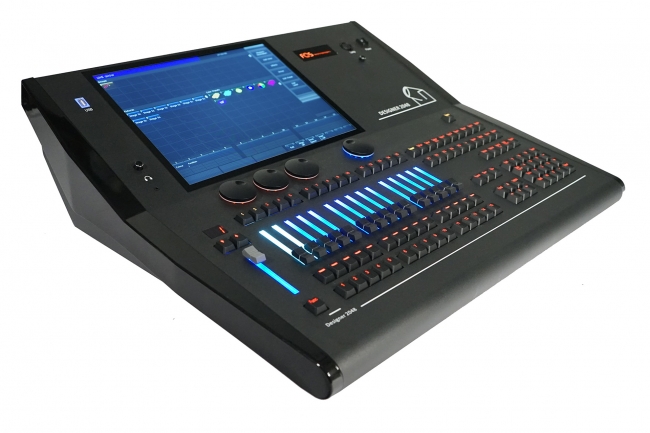

15-inch LCD touch screen.
4 Universes (2048 channels), via physical XLR connectors,.
8 Universes (4096 channels) via ArtNET.
RDM Compatible.

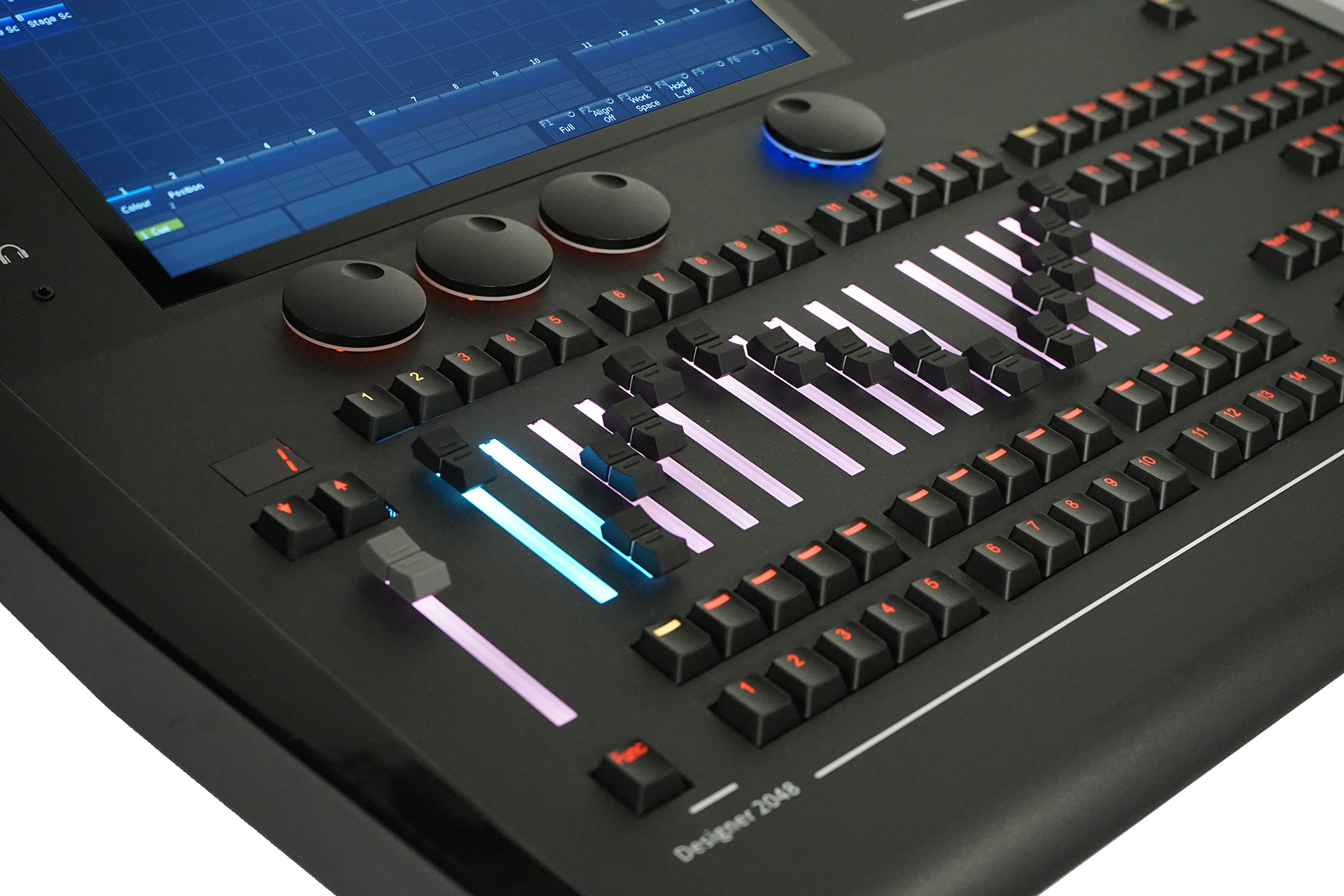

Offers 15 playback faders, which can control up to 1200 cues / cue lists.
Faders can be lit with custom colors while are active, inactive, and no used.
15 playbacks can run simultaneously.
lock function for playback fader.
Grand master fader.
Fixture attributes buttons and control wheels.
Group, Fixture, Preset windows.
Screen’s workspace windows can be customized, saved and switched quickly.
Function & Numeric keys, with colored backlight (Green, Red, Orange).
Macro & Fan modes for fixtures.
Legend manager for renaming / drawing groups, presets, fixtures, playbacks, etc.
Console LED light, included

2048 DMX channels, provided in 4x optically isolated XLR outputs.
4096 DMX channels (8 Universes) via ArtNet (available from Firmware 3.2.7 and higher).
Audio output with 3,5 mm audio jack and optical interface.
Midi interfaces: in, out, thru.
Switching power supply: 100/240 Volt AC, 50/60 Hz.
Wireless antenna, for connecting with applications on mobile, or tablet devices.
XLR plug for the included LED console light, with dimmer potentiometer.
USB 2.0 connection, for backing up your shows.
Power Consumption: 85 Watt.
Internal battery.
Touch screen with safety glass.

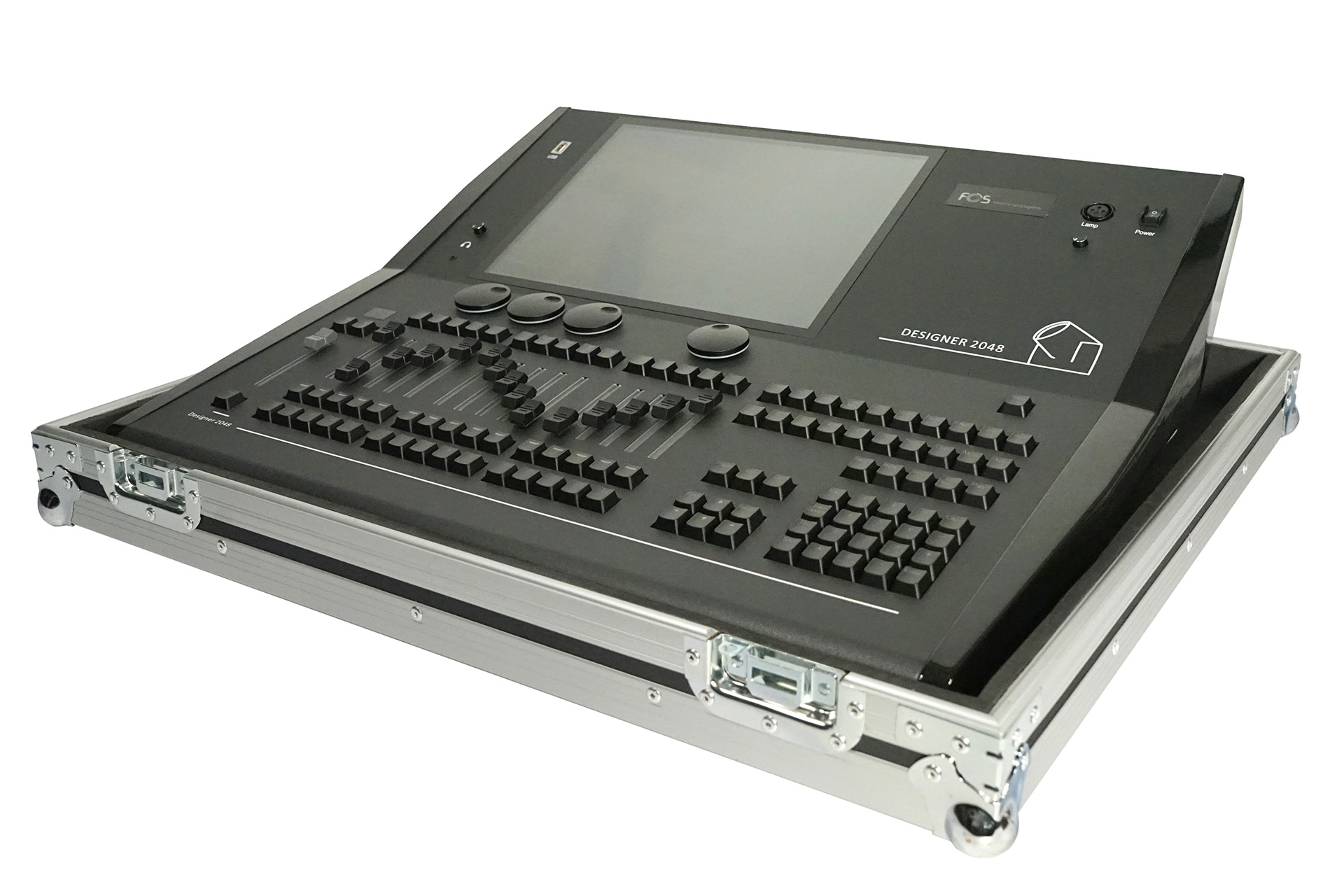

Provided with flight case.
Size: 665 x 580 x 205 mm.
Net Weight: 15 Kgs.


Download the Android Remote App

Download the latest fixture library. Latest update 17/3/2025
