TILOS L SUB L005682
Scroll on photo to zoom in or Click to enlarge

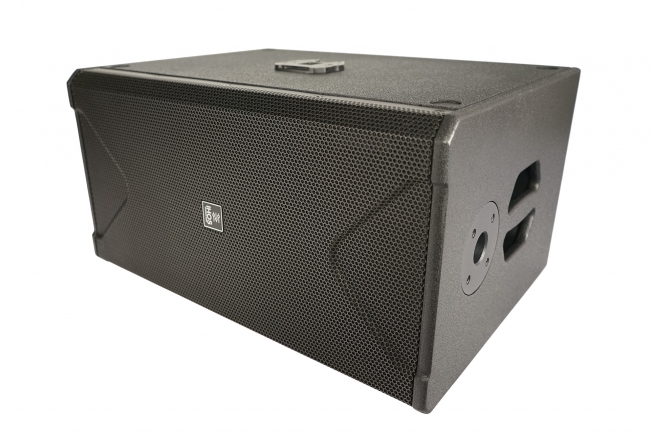

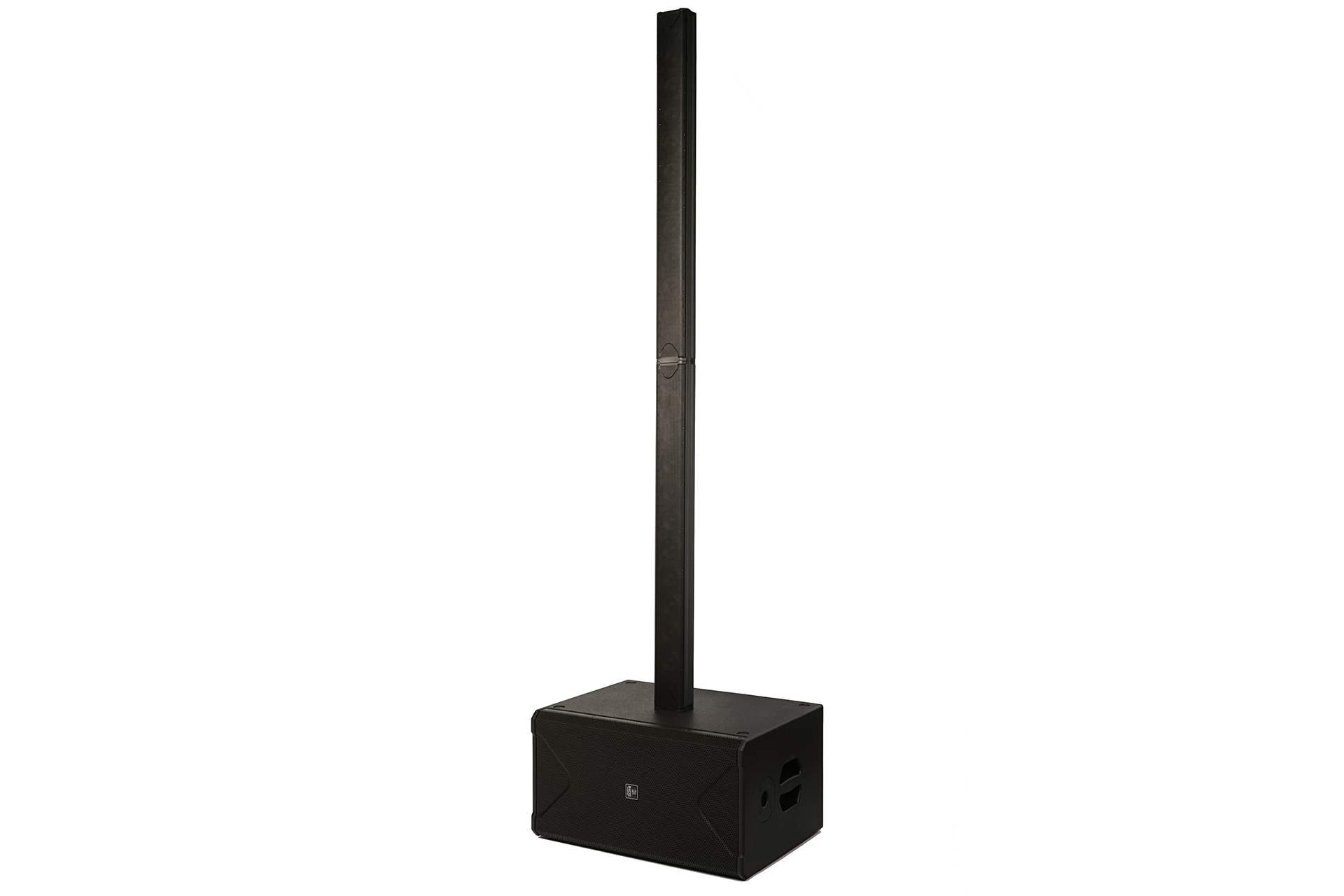

TILOS L SUB L005682
Professional plywood active vented subwoofer 2 X10 inch for the Tilos Column system, 500w Rms, 121 dB Spl, German Engineering D class amplifier, multiple DSP ,XLR input, sat mode select, Frequency response 50-200 Hz.
Price
Please login to see the price.
  • Technical Specifications

    Active vented subwoofer.
    Inputs: XLR/TRS combo jack.
    Output: XLR balanced line, XLR LINK, SAT Out.
    250 Watt RMS (subwoofer) & 250 Watt RMS (satelite).
    Subwoofer volume control, +4 / -10 dB sensitivity switch.
    Power Input: 115 / 230 Volt AC, 50 / 60 Hz switchable.
    German Engineering Class D amplifier + switching power supply.
    Sat Mode selection.
    Power / clip indicator.
    DSP effect processor.
    Excellent compressor.
    Frequency response: 50 - 200 Hz.
    Max. output SPL: 118 dB.
    Driver: 10" subwoofer, 2,5" VC 45 oZ.
    PLY cabinet with black painted finish.
    1,2 mm steel mesh.
    Packing Dimensions: 61,5 x 45,5 x 76 cm.
    Gross Weight: 27,5 Kg.

Manual
