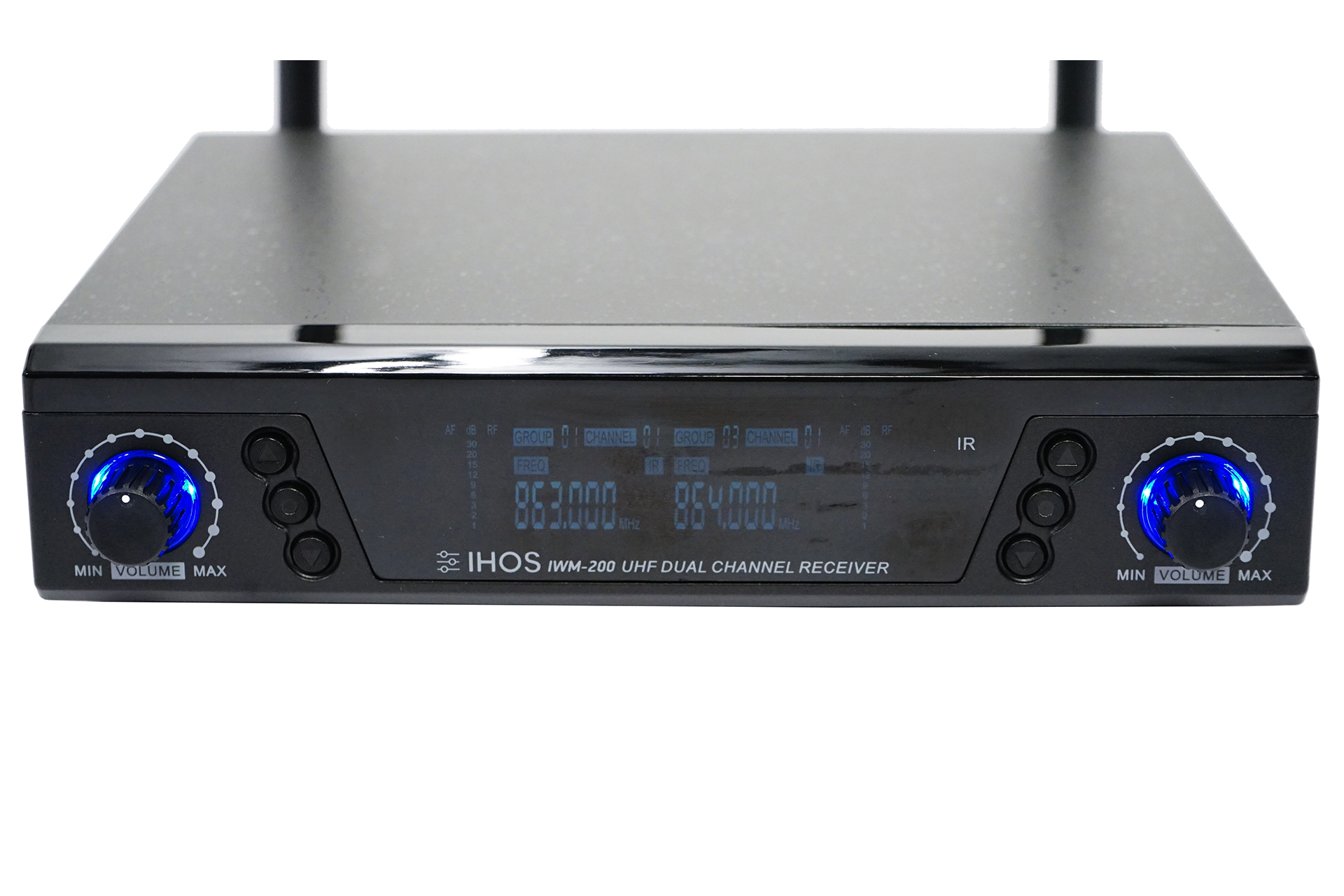

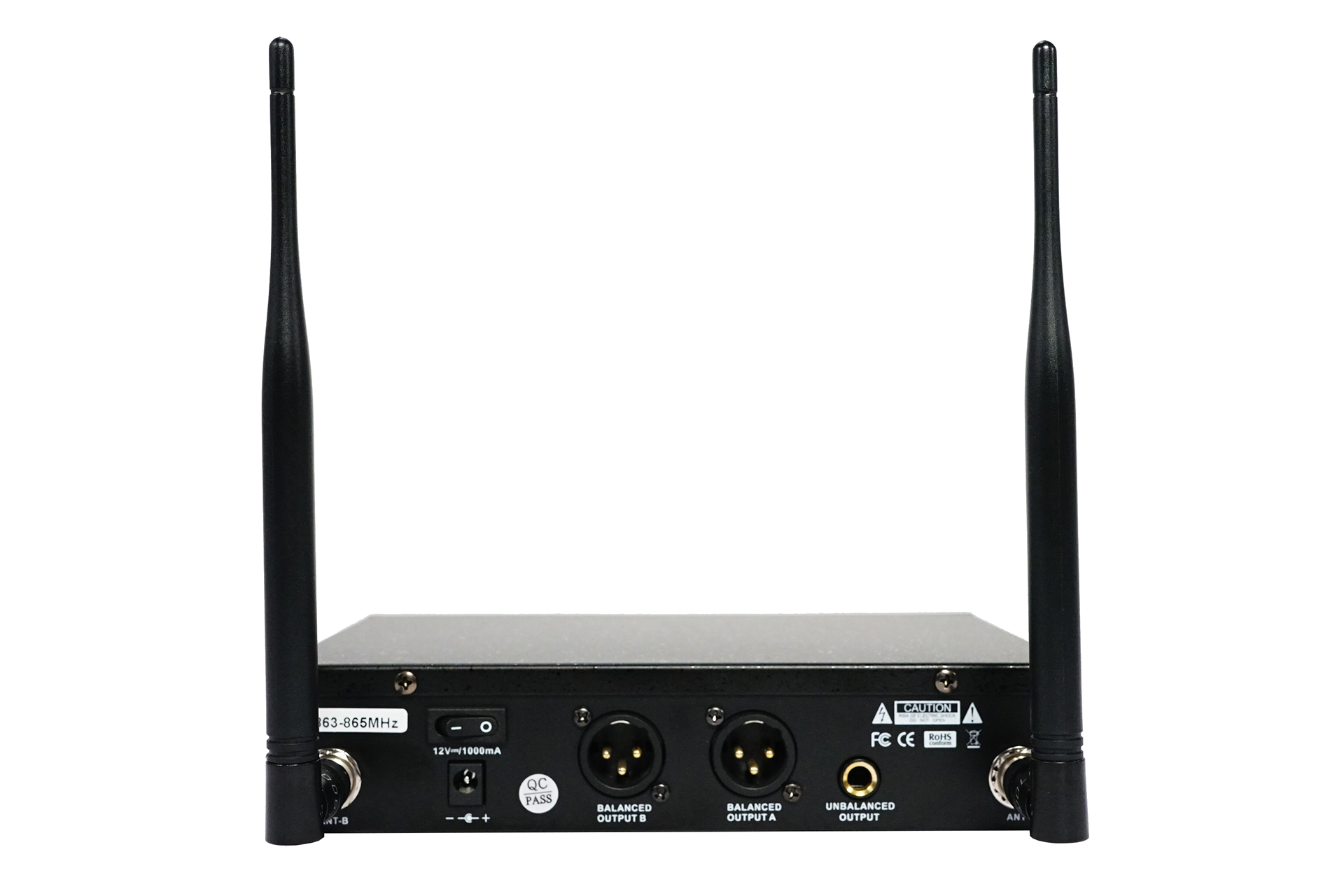

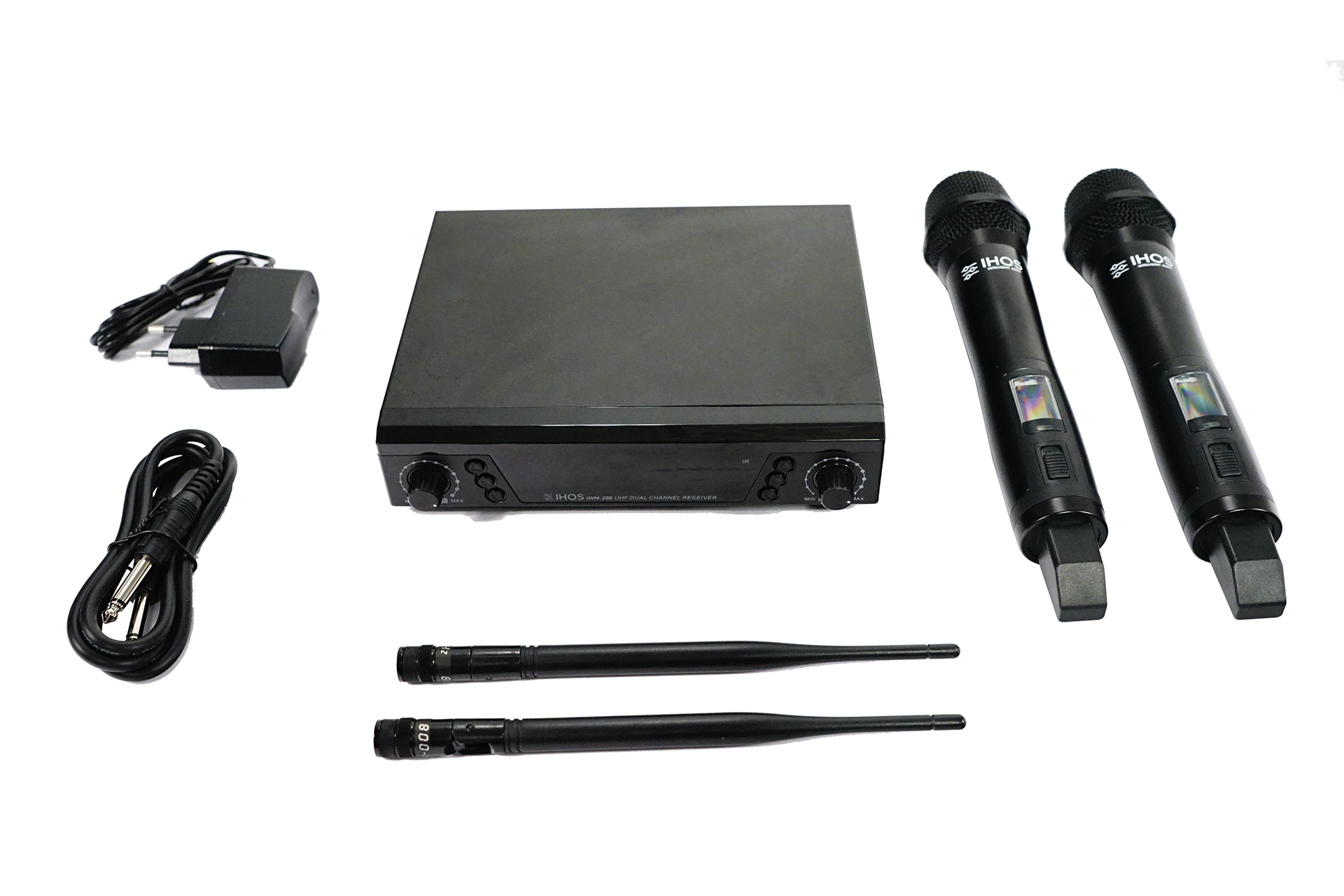

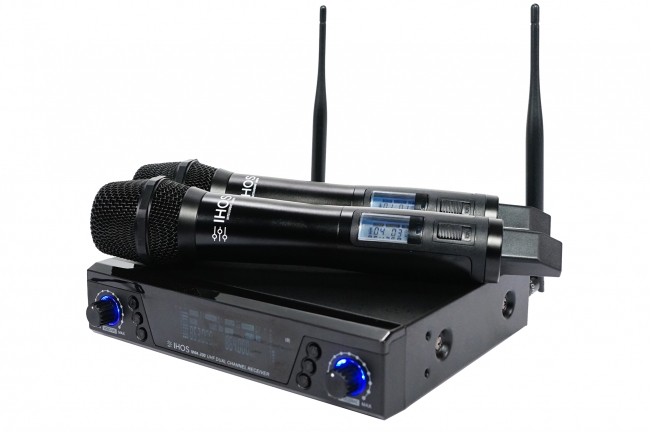

IWM-200

Product code:L005774
Double True Diversity UHF Wireless Microphone system, freq. range 863-865MHZ ,PLL Synthesized circuit, LCD status of frequency, IR sync, LCD display shows status of frequency, AF and RF signa, 150m oprating range, dynam
TEXT_PRODUCT_DESCRIPTION
Features

UHF 863-865MHz frequency range.
PLL Synthesized circuit.
Digital Pliot tone-key control, high anti-interference capability.
IR sync downloading the frequency from receiver.
Optional function of Auto-scan the available clear frequency.
LCD status of frequency, AF and RF signal etc.
EIA standard 1U rack-mountable metal chassis.
Up to 60 meters line-of-sight range.
Ideal for professional stage, clubs and music entertainment etc.


Comprehensive Performance
Carrier Frequency: UHF863-865MHz.
Frequency Stabilization: <±30ppm.
Dynamic Range: >95dB.
Total Harmonic Distortion:<0.5%.
Frequency Response: 40Hz-15KHz±3dB.
Audio Output Level: Unbalance 400mV.

Receiver

Power Supply: DC12-18V.
Consume Power: 1 WATT.
Signal/Noise Ratio: >105dB.
Image &Spurious Rejection: >80dB.
Border upon Channel Rejection: >80dB.
Receiving Sensitivity: 5dBuV.
De-Emphasis: 50uS Transmitter.
Transmitter Power: 10~30mW.
Modulation Type: FM.
Deviation: 30KHz.
Spurious Emission: >60dB.
Battery Voltage: 3V (2x1.5V AA Battery).
Continuous Using: 8 hours.
