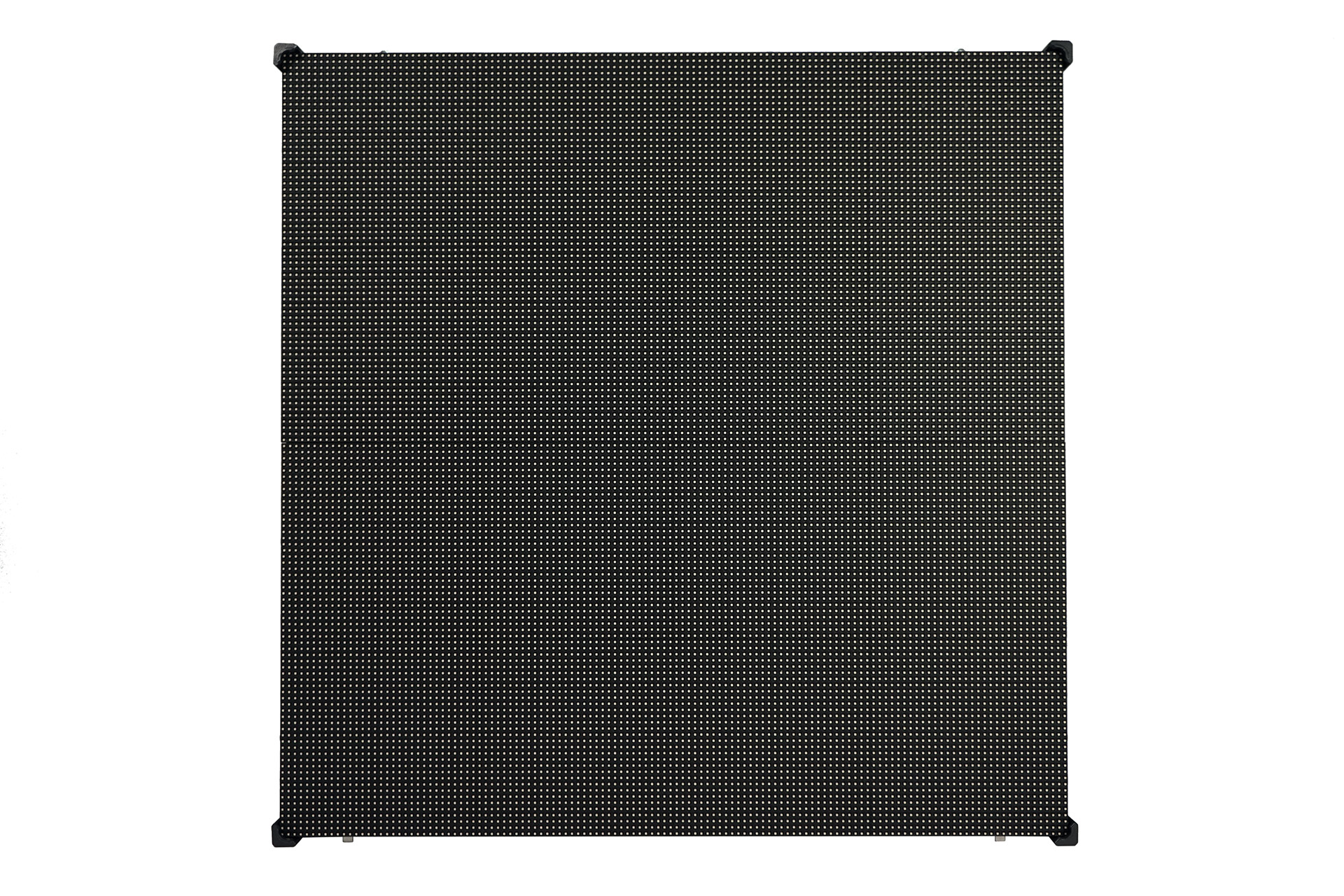

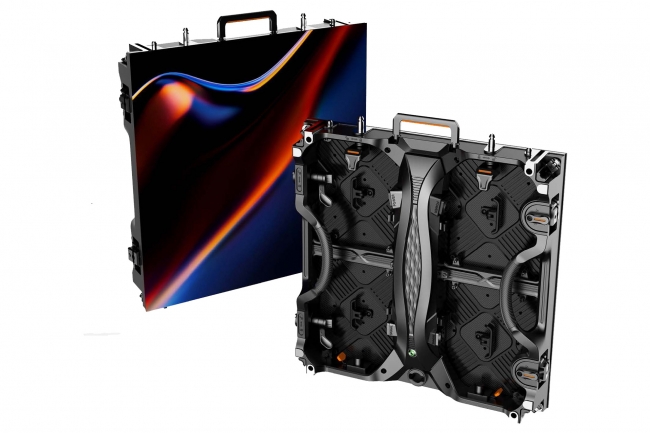

ICON 2.6

Product code:L006144
Bespoke 2.6mm led screen panel 50x50 cm, high contrast ratio, curve function, easy installation, high precision, fast maintenance, SMD 1515 RGB led, super light 8kg, die casting aluminum housing, easy installation and maintenance, A8S Novastar input card, brightness 800cd/m, refresh freq. 3000Hz, IP30.
TEXT_PRODUCT_DESCRIPTION

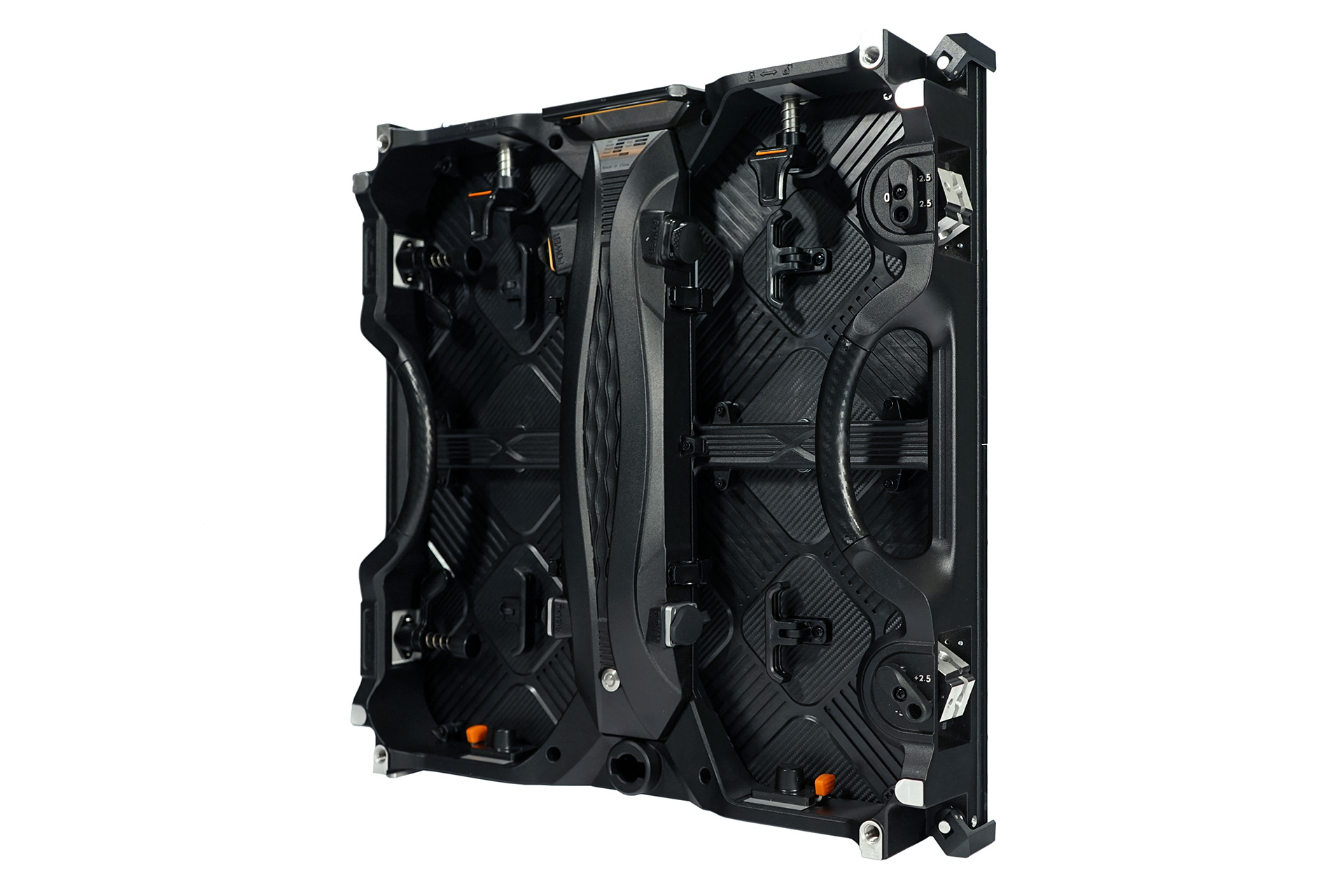

Modular Feature

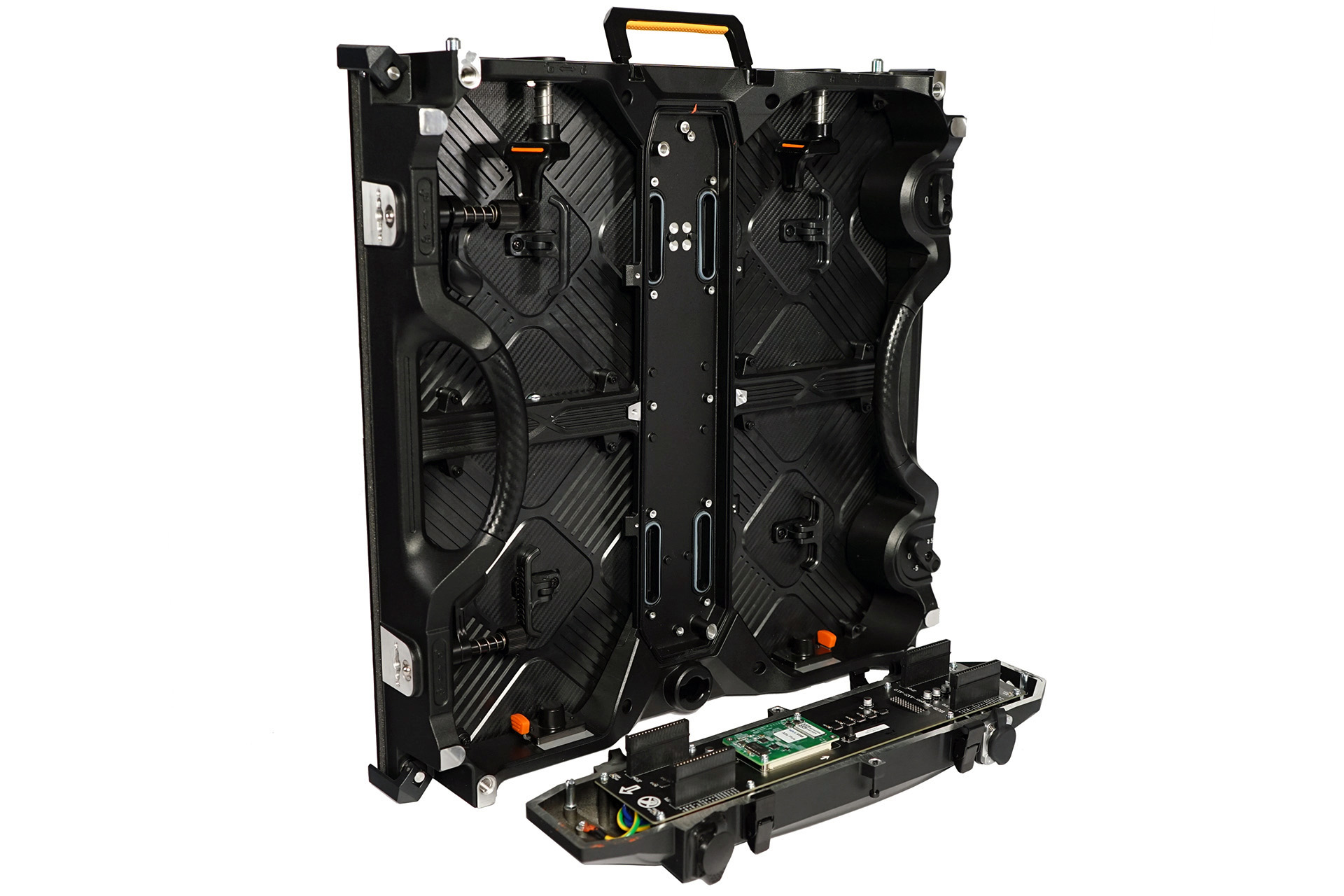

Modular Feature - Three in one: The power supply and systems cards are integrated in one unit for quick replacement, and we also take a whole power supply box as a spare part unit for easy and fast maintenance.


Universal Module - Not needed to distinguish left/right modules or up and down module , our module is universal , can fit anywhere.


Curved Function - Icon Led Panels can installed at several curved angles , 5 angles available . -5°, -2.5°, 0°, +5°, +2.5°





Endge foltable protection and high heel design for protection edges and bottoms.


Fast lock for quick insatllation - fast fast lock for left & right lock for up & down

Quick insatllation - lightweight panels and special handles for installation from one person.





Ultra black module design


Same hanging beam can used  for hanging and floor installation






Pixel Pitch:2,6
Receiving Card: A8S Novastar
LED type: SMD 1515.
Module size: 250 x 250 mm.
Module resolution: 96 x 96.
Density (dots/m2): 147.456
Cabinet size: 500 x 500 x 83.
Die casting cabinet material.
Weight: 8 KGs.
Supports removable modules and hanging.
Maximum power consumption: 450W/m2.
Average power consumption: 150 W.m2.
Grayscale: 16bit.
Color Temperature: 3000/10000 K.
Driving method: 1/32.
Refresh frequency: > 3000 Hz.
Brightness: 800cd/m or nits
Brightness control: 256 grade.
IP30





All our led screens can be shipped only packed in flight cases and the ordered quantity needed to be multiple of eight.
