D Class Amplifier: 2ch and 4ch D class high-performance amplifier, led VU meter, temperature control fans, frequency response 20Hz - 34Kz, adjustable VPL.
Take a Look

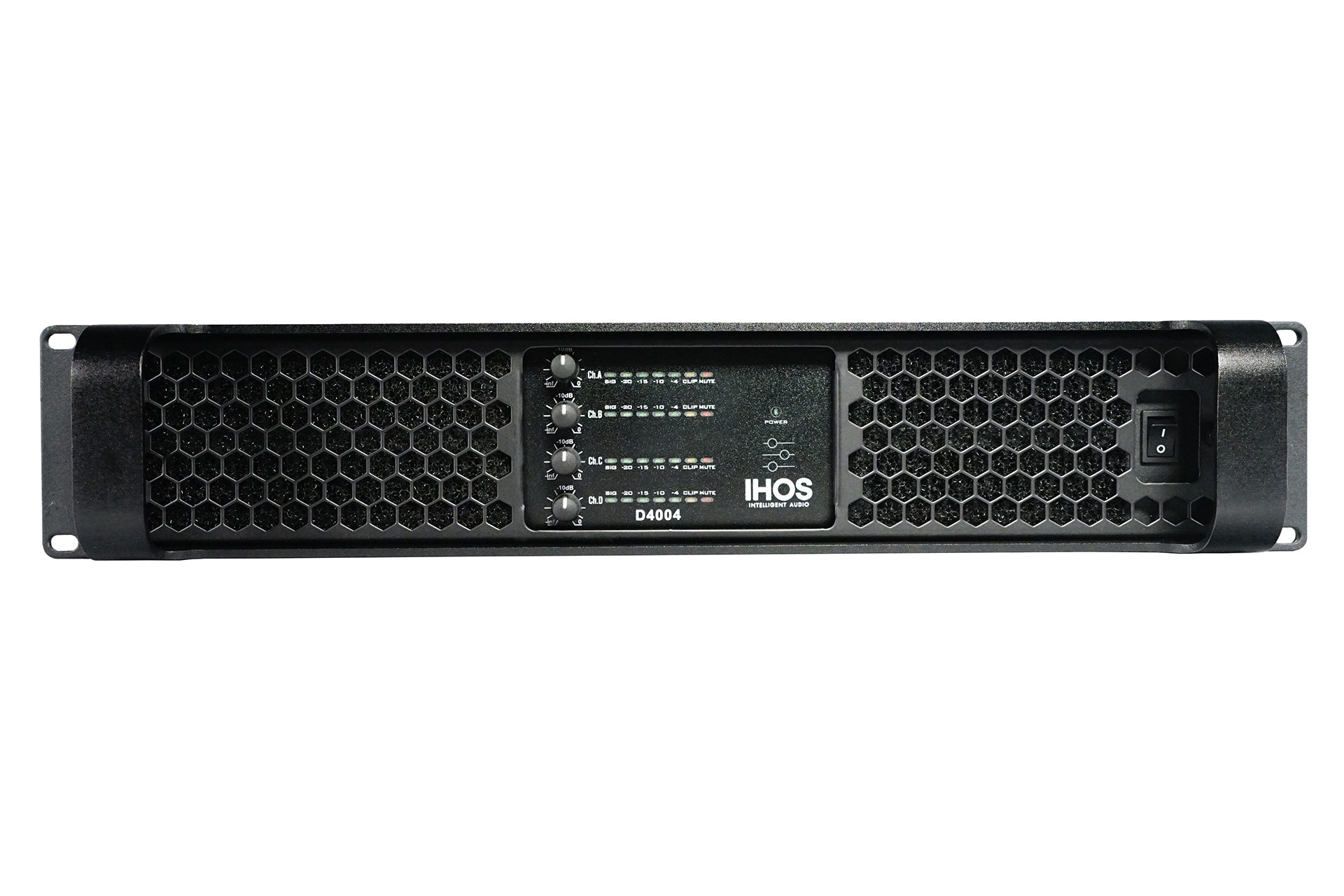

D4004 L005747
Scroll on photo to zoom in or Click to enlarge
D4004 L005747
D class high performance 4 channels amplifier, 4 x900 w/8ohms , 4 x1800w/4 ohms, XLR input, speakon output, led VU meter, temperature control fans, frequency responce 20Hz - 34Kz,adjustable VPL, 10kg.
Please login to see the price.
  • Technical Specifications
    8 ohms Stereo Power: 4x 900W.
    4 ohms Stereo Power: 4x 1800W.
    Input connetor XLR: female.
    Input impedance: 20k ohms balanced.
    Input Sensitivity: 0.77V 1.44V.
    Input CMRR: >80dB.
    Output: connector Speakon.
    Hum&Noise: >112dB.
    Damping Factor: >1000 @ 8 ohms.
    THD: <0.1% (20Hz-20kHz 1W).
    Frequency Response: 20Hz-34KHz,(+0/-0.3dB, 1W/8ohms).
    Level control: front level meter, from negative infinity to 0dB.
    Cooling: variable speed fans, front to rear airflow.
    Power Requirements: AC voltage 180-240V 50-60Hz.
    Amplifier dimensions: 88mm x 490mm x 415mm.
    Packing dimensions: 150mm x 600mm x 520mm.
    Net weight(kg): 12.7
    Gross weight(kg): 15.9
