D Class Amplifier: 2ch and 4ch D class high-performance amplifier, led VU meter, temperature control fans, frequency response 20Hz - 34Kz, adjustable VPL.
Take a Look
D2004 L005791
Scroll on photo to zoom in or Click to enlarge
D2004 L005791

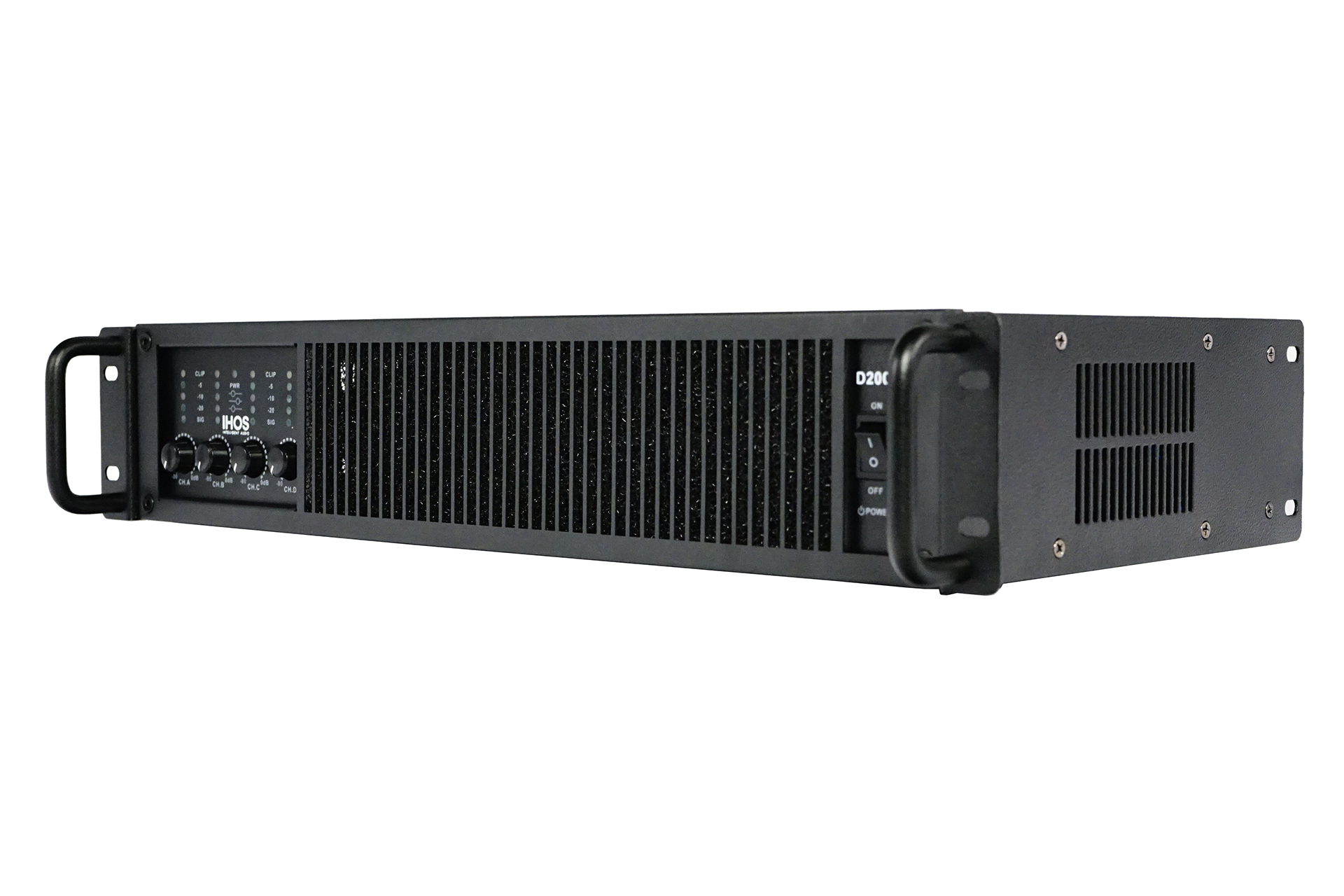

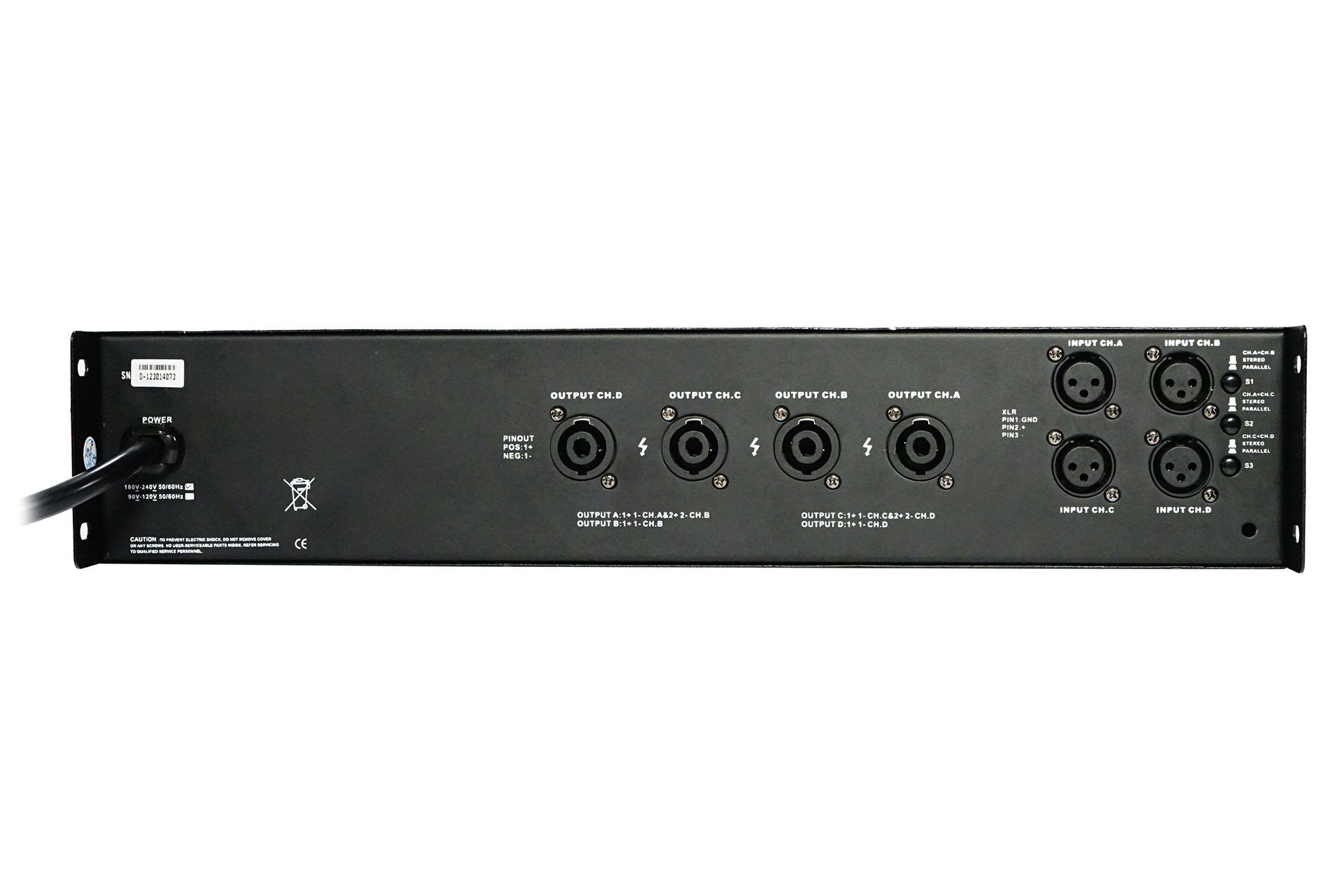

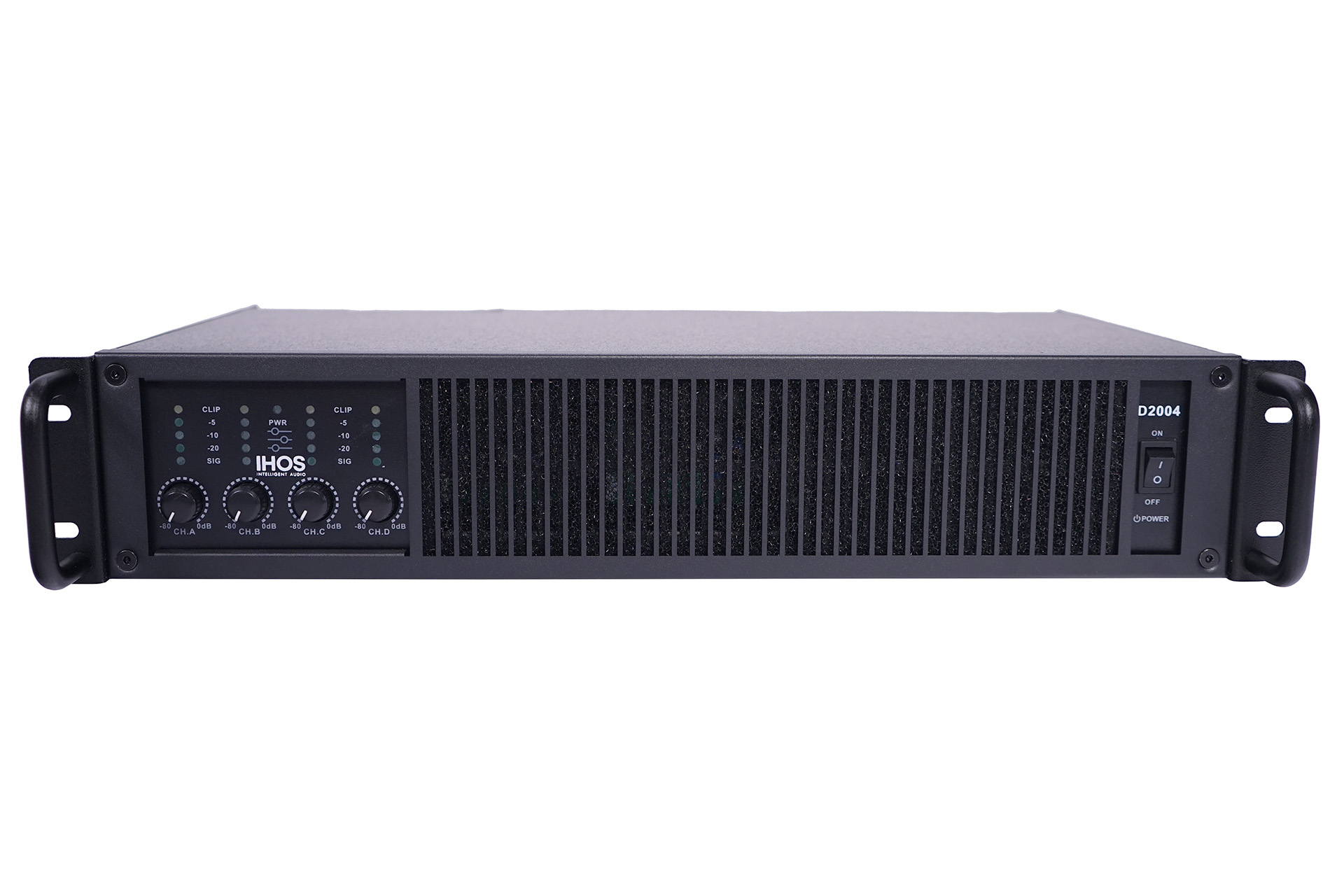

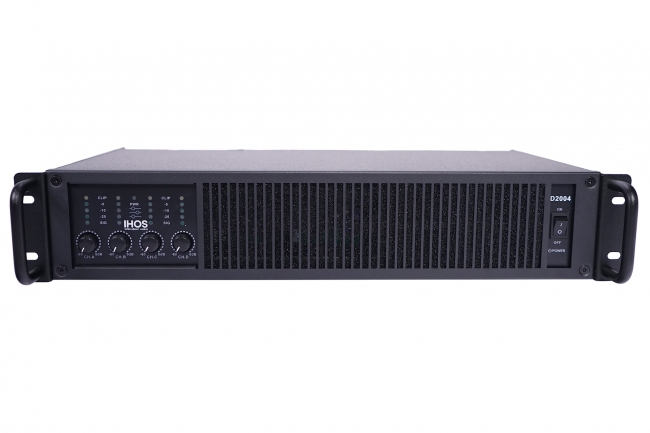

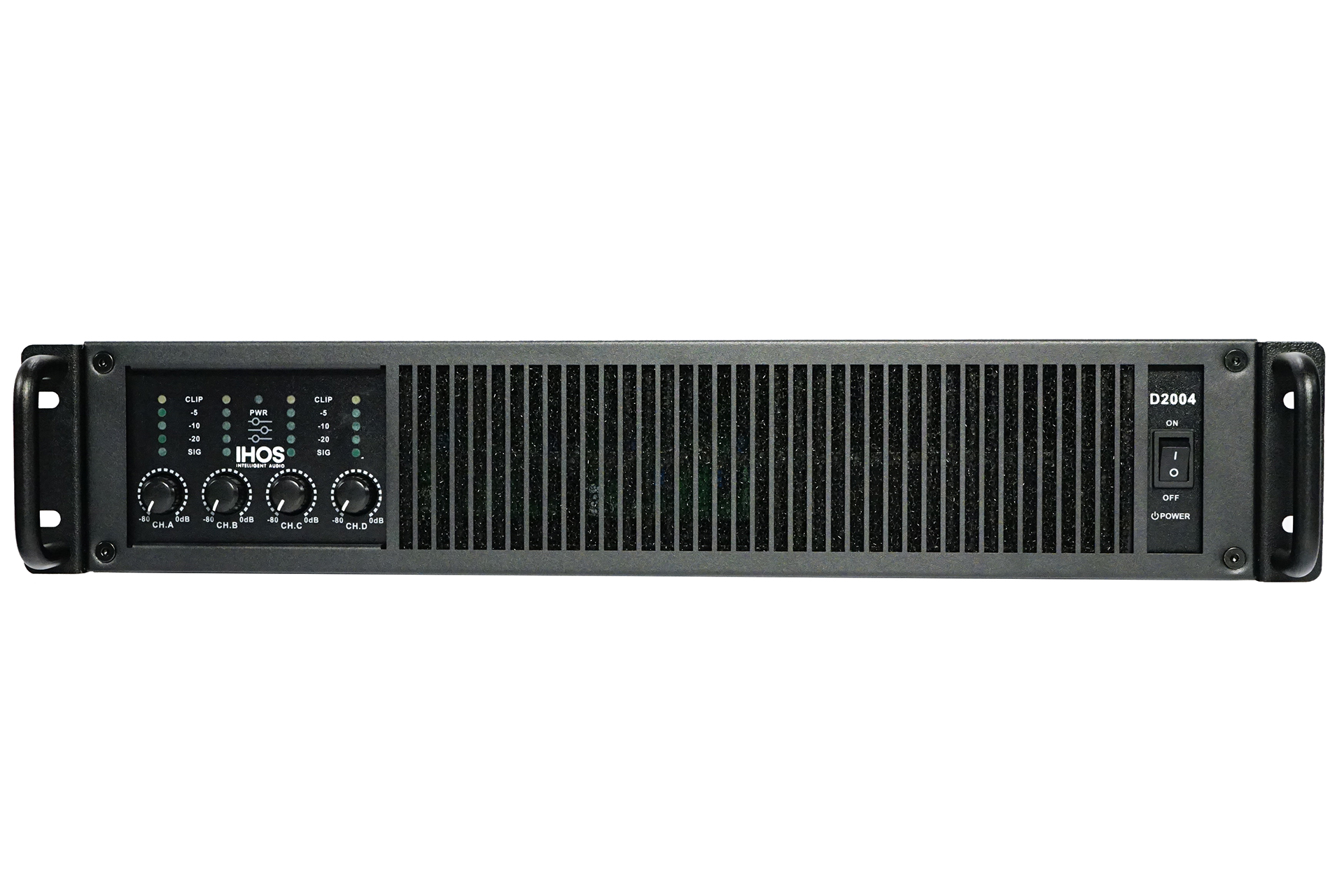

D class high performance 4 channels amplifier, 4 x400 w/8ohms , 4 x 640w/4 ohms, XLR input, speakon output, led VU meter, temperature control fans, frequency responce 20Hz - 34Kz,6kg.
Please login to see the price.
  • Technical Specifications
    8 ohms Stereo Power: 4x 400 W.
    4 ohms Stereo Power: 4x 640 W.
    Input connetor: XLR female.
    Input impedance: 20k ohms balanced.
    Input Sensitivity: 0.77V.
    Input CMRR: >80dB.
    Output connector: Speakon.
    Hum&Noise: >112dB.
    Damping Factor: >1000 @ 8 ohms.
    THD: <0.1% (20Hz-20kHz 1W).
    Frequency Response: 20Hz - 34KHz, (+0/-0.3dB, 1W/8ohms).

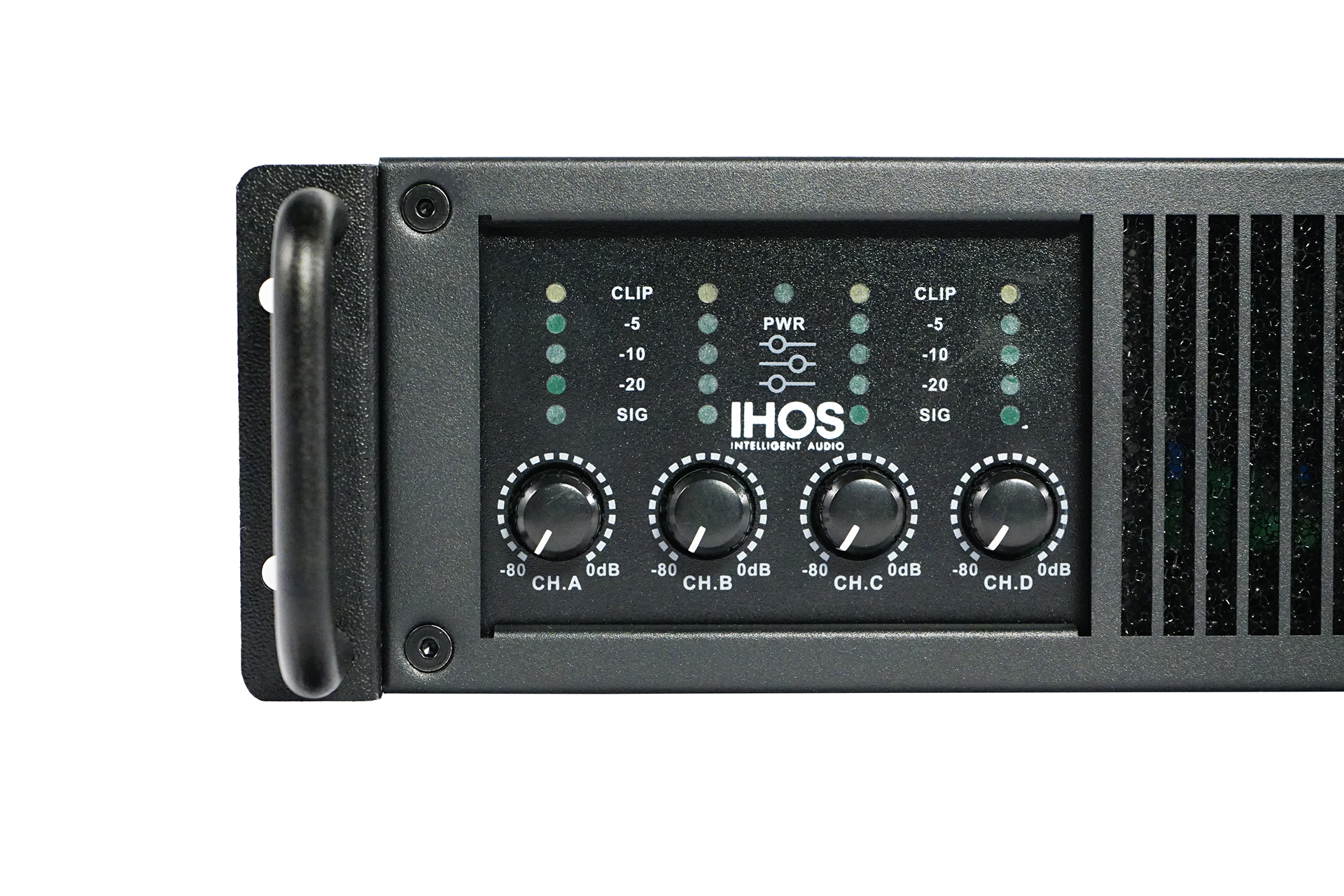

    Level control: front level meter, from negative infinity to 0dB.
    Cooling variable speed fans, front to rear airflow.
    Power Requirements: AC voltage 180 / 240V, 50 / 60Hz
    Amplifier dimensions: 88mm X 488mm X 438mm.
    Packing dimensions 150mm X 600mm X 550mm.
    Net weight(kg): 5,7
    Gross weight(kg): 6,6.
