IWM-PRO

Product code:L007243

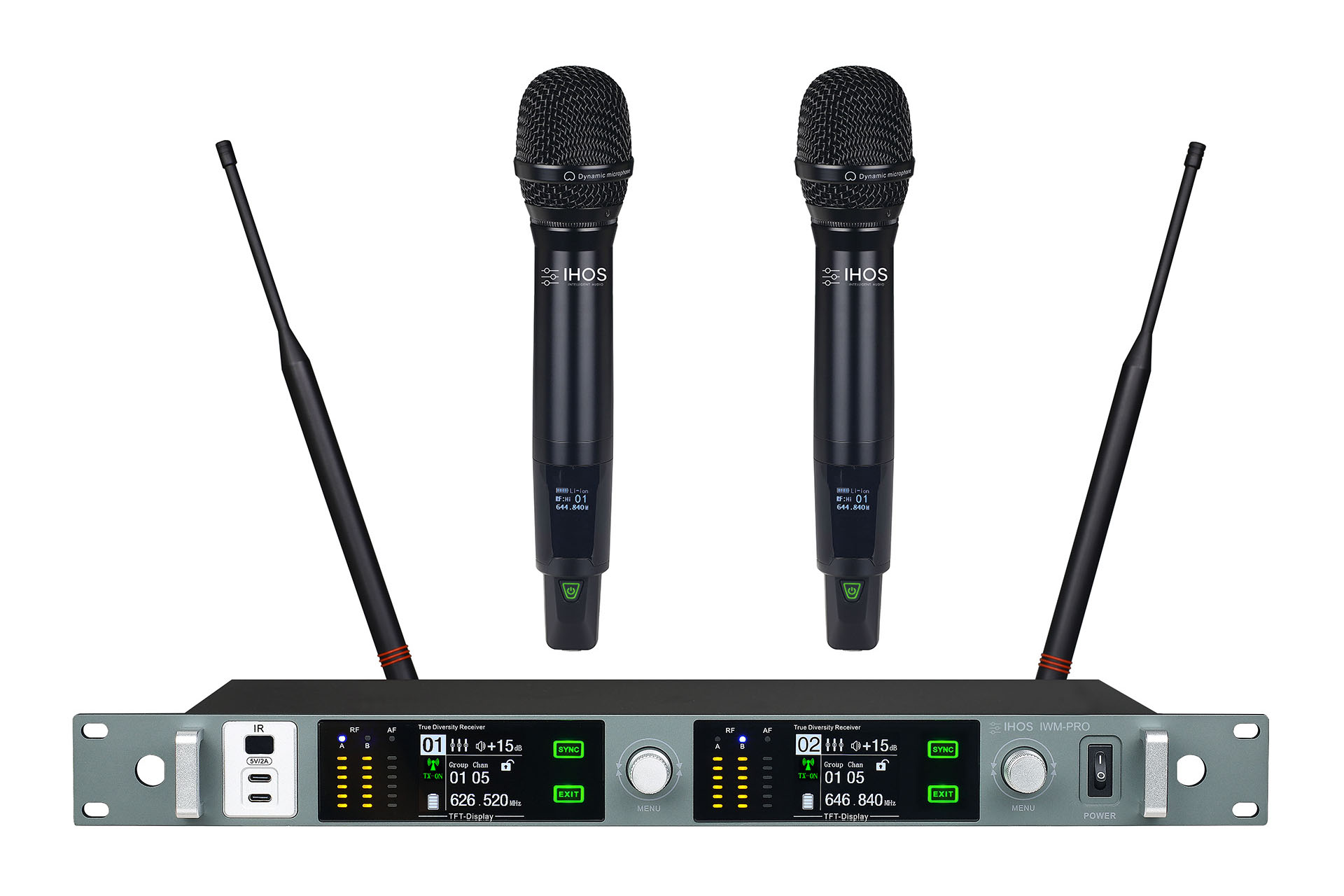

UHF True Diversity Wireless Microphone, UHF 610-690MHz frequency range, 60MHz bandwidth, supports the simultaneous use of 40pcs transmitters, Up to 300m line-of-sight operating range, LL Synthesized circuit, and pre-set 6000 selectable frequencies, Supports the antenna signal bridge function between receivers, 2 hand-held mic transmitters included Designed for professional stage performance and long-distance scenes.
TEXT_PRODUCT_DESCRIPTION
Product description / Characteristics

  • IWM PRO and IWM PRO Double use the latest high-fidelity technology of UHF wireless transmission to ensure superb clear original sound.
  • True diversity reception can ensure no blind point or dropout during long-range transmission, the maximum receiving range is up to 300m with a stable signal.

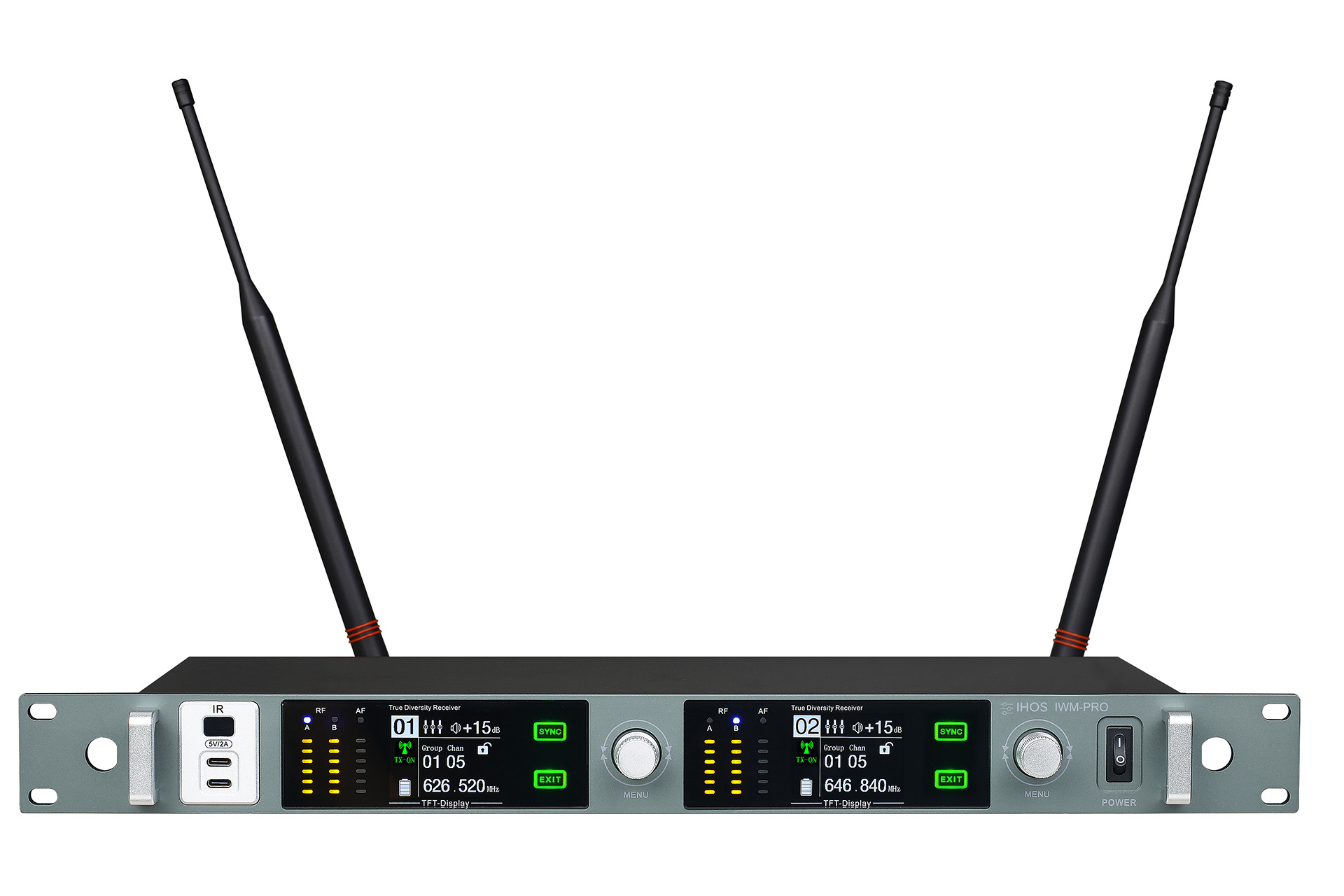

  • The receiver is equipped with a TFT display and has multiple equalization mode adjustments to meet different demands of use to make a better sound quality.
  • The receiver has 32 groups of channels, pre-set 6000 selectable frequencies.
  • Simple to operate, with features of quick spectrum scan and channel setup to avoid interference from other wireless devices in the same location.

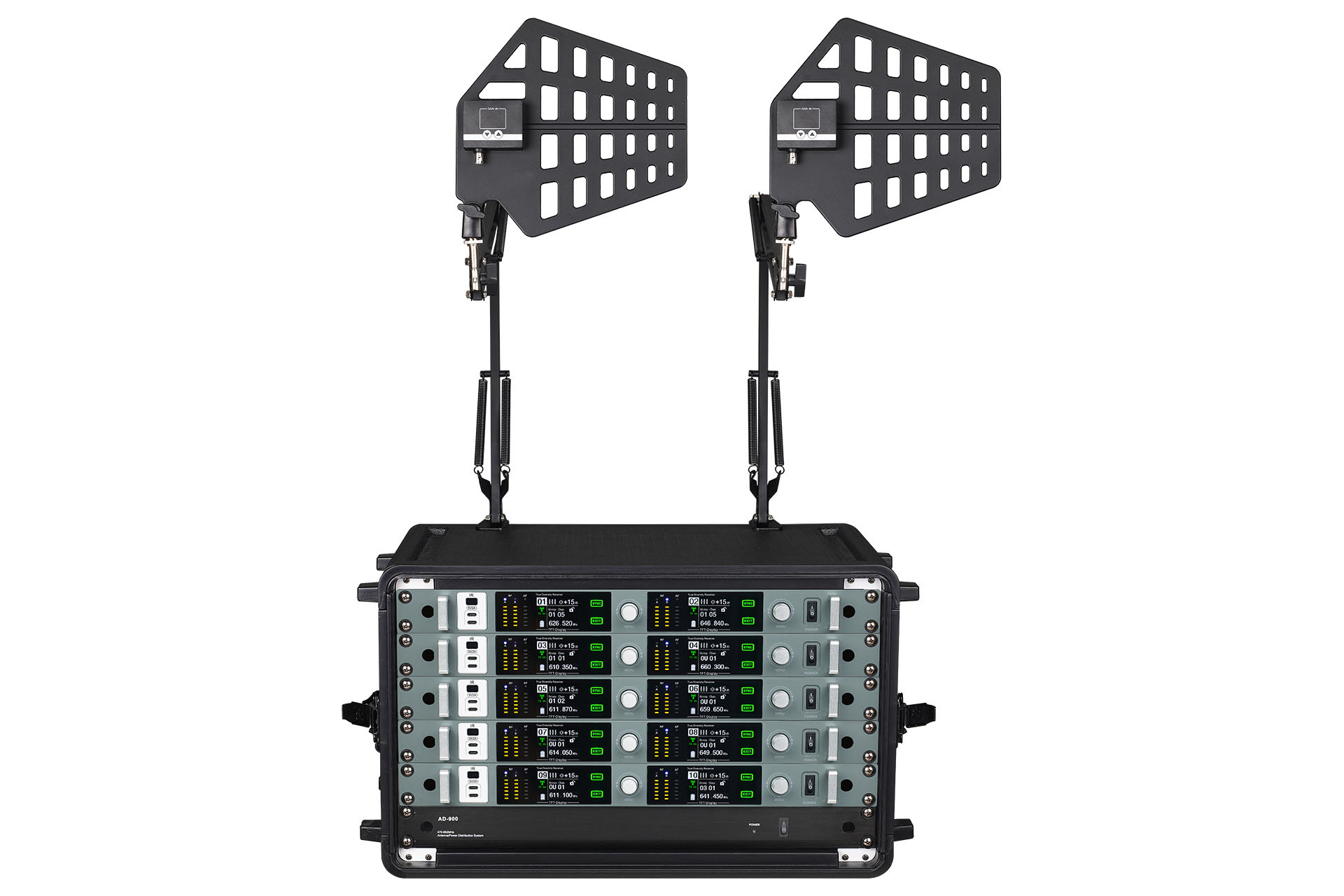

  • Supports the simultaneous use of 20 sets, antenna bridge feature may connect multiple receivers, transmitters may use ID identification feature to quickly find corresponding receivers.
  • English menu switches on the receiver
  • The receiver has a lock feature to avoid accident changes in setup
  • IWM PRO and IWM PRO Double is a wireless mic system with characteristics of high-quality sound, reliable and stable signal, multifunctional and easy-of-use, designed for a complex stage environment and a location that requires a very long distance transmission, they may meet your high demand of sound quality.

  • Receiver
  • 2x Antennas
  • 2x Quater inch audio cables

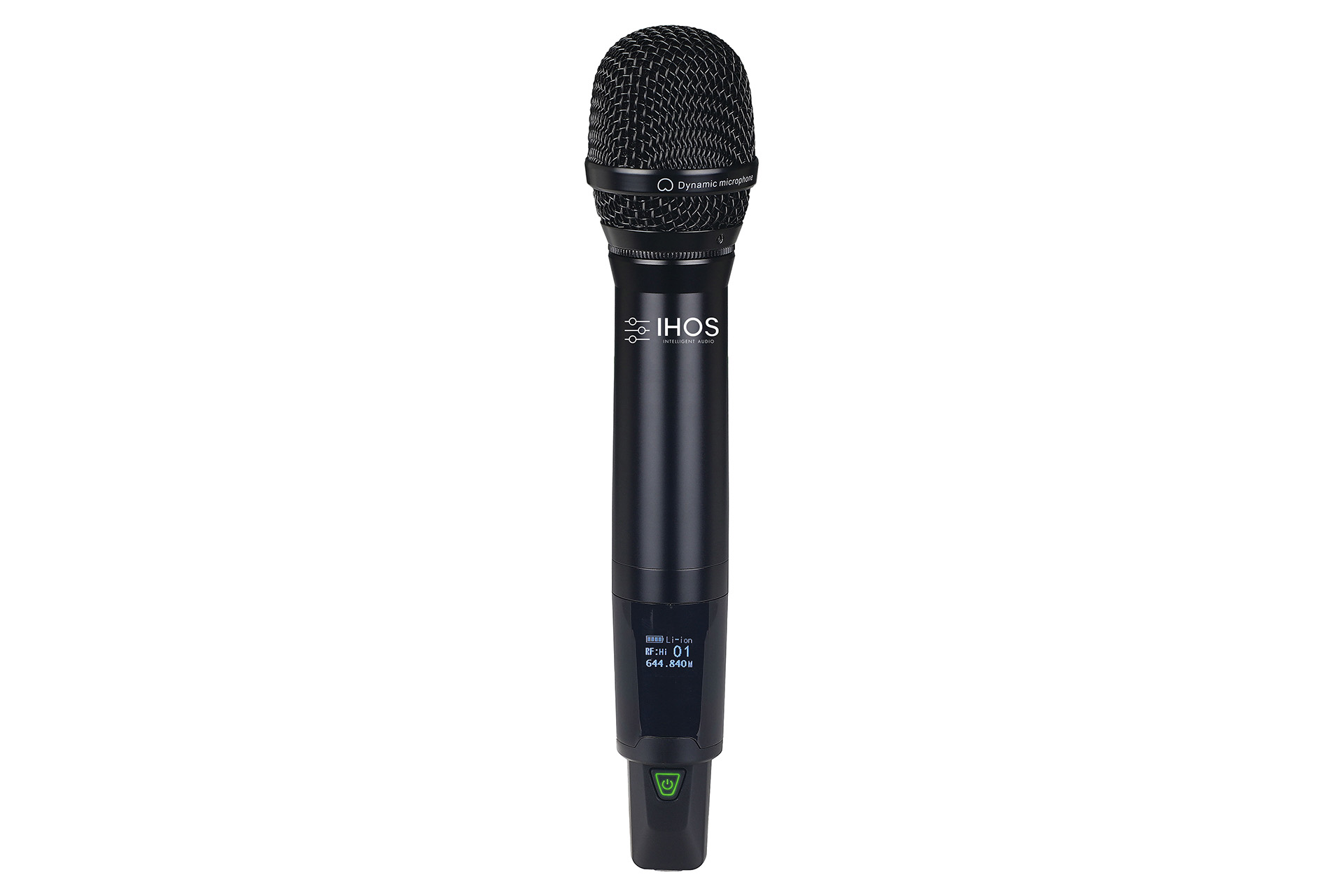

  • 2x Rechargeable batteries for handled mic
  • 2x Charging cables
  • Power adapter

Frequency range: 610 - 698 MHz.
Frequency bandwidth: 42M / 60M.
Maximum number of channels: 6000
Receiving Sensitivity: -105 dBm/S/N=12dB.
Frequency Stability: +-10PPM.

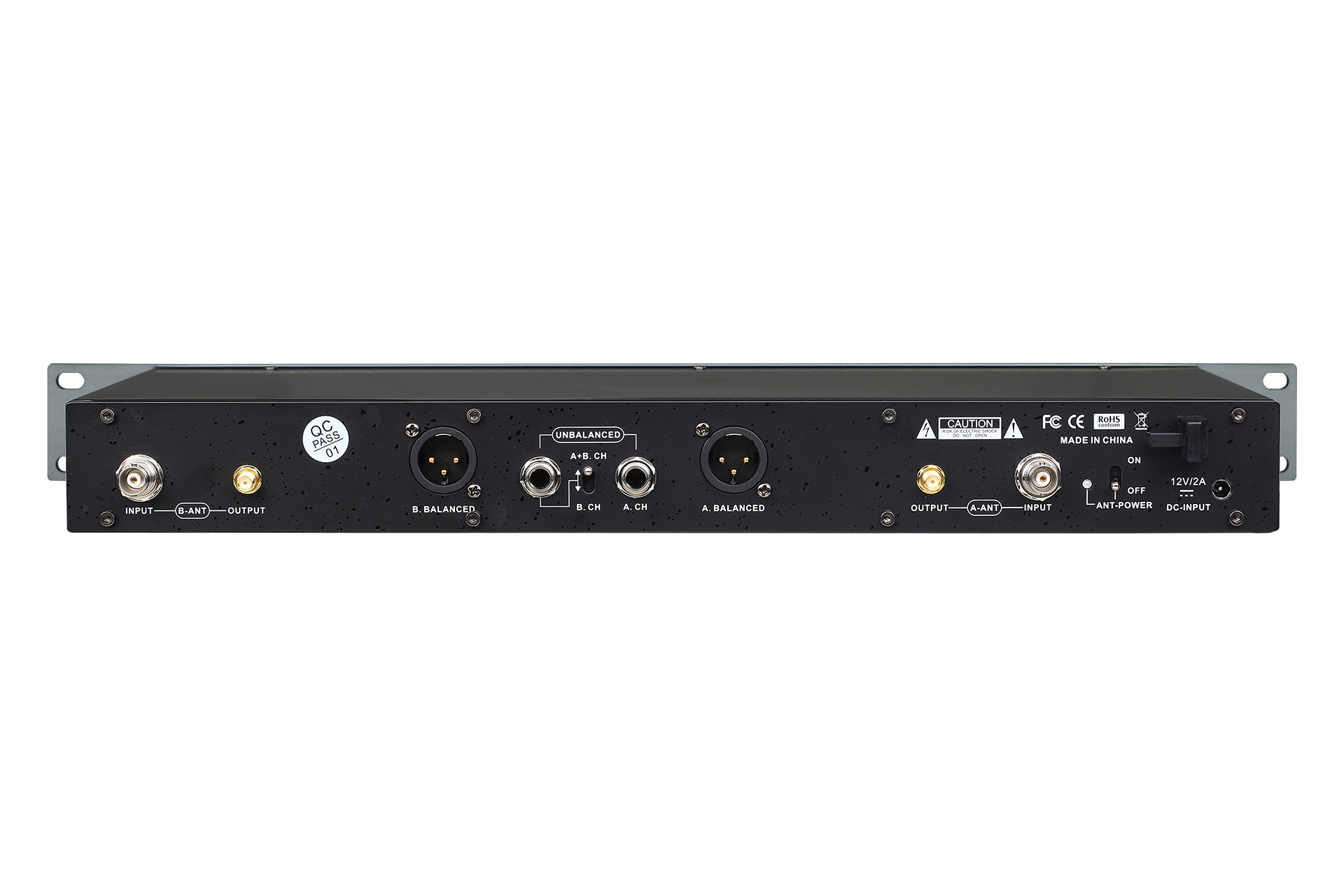

Antenna Input: 2x BNC/50Ù.
Antenna Output: 2x SMA/50Ù.
Image rejection: >100dB.
3rd Order IMD Suppression: >75dB
Block Suppression: >75dB
Adjacent Channel Rejection: >110dB (+-200kHz)
Signal To Noise Ratio: ≥110 dB.
Power Supply: 1500 mA.



Frequency range: 610 - 698 MHz.
Frequency bandwidth: 88M.
RF Power: 10/30 mW.
Max Frequency Deviation: 65 kHz.
Power Requirements: 1x 145000 Lithium Battery, or 1x 1,5V AA Battery.
Battery life: Lithium battery: 9/10 hours high power level, 13/14 hours low power level.

Frequency range: 610 - 698 MHz.
Frequency Bandwidth: 88 MM.
RF Power: 10/30 mW.
Max Frequency Deviation: 65 KHz.
Power Requirements: Built-in lithium battery.
Battery life 8/10 hours.
