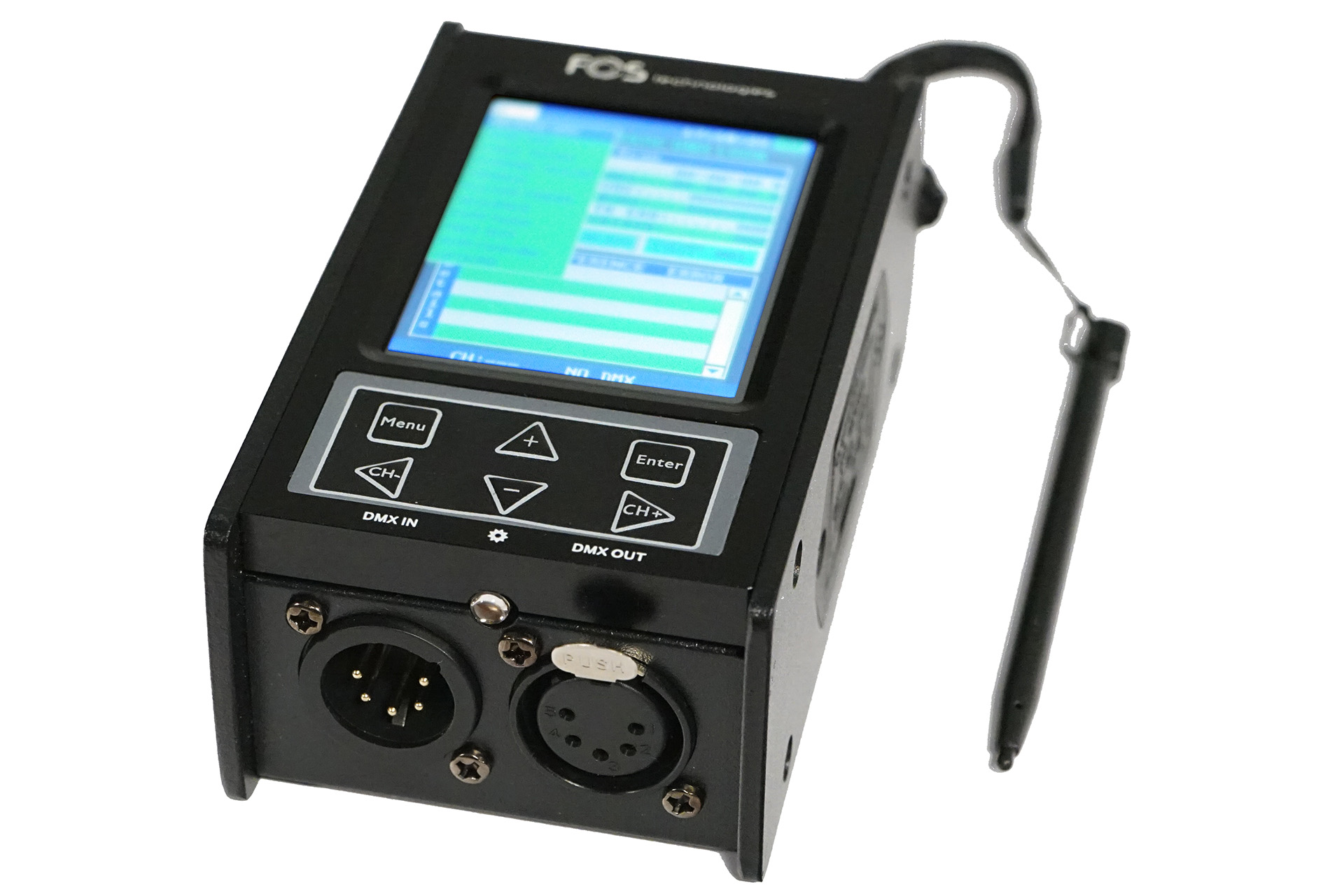

FOS RDM Tester

Product code:L006085
The ultimate tester, 3/5-Pin DMX cable testing,RDM controller and tester, DMX signal ?flicker finder, Programmable sequence recording/playback, Send/receive DMX, ArtNet testing and send/receive via ArtNet, 8GB MicroSD card storage.
TEXT_PRODUCT_DESCRIPTION
Main Features

3/5 Pin DMX cable tester.
Midi testing.
RDM controller.
Channel tracer.
Timing analyzer.
DMX signal flicker finder.
LED PWM rate meter.
Programmable sequence recording / playback.
Send/Receive DMX.
ArtNET testing, send/receive via ArtNET.
8GB MicroSD card storage.
sACN support.

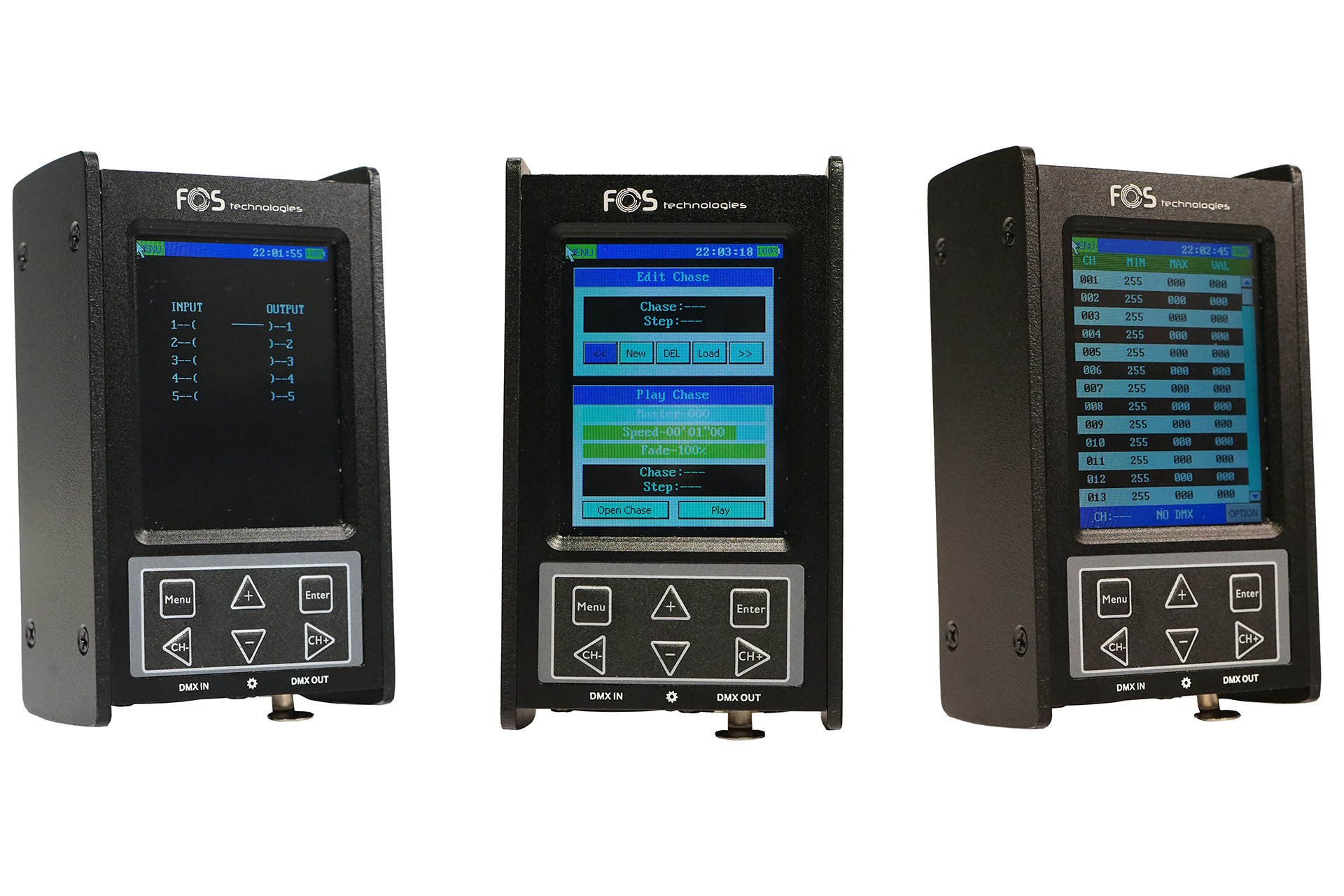

Full Colour LCD display, with 240 x 320 resolution.
microSD card slot.

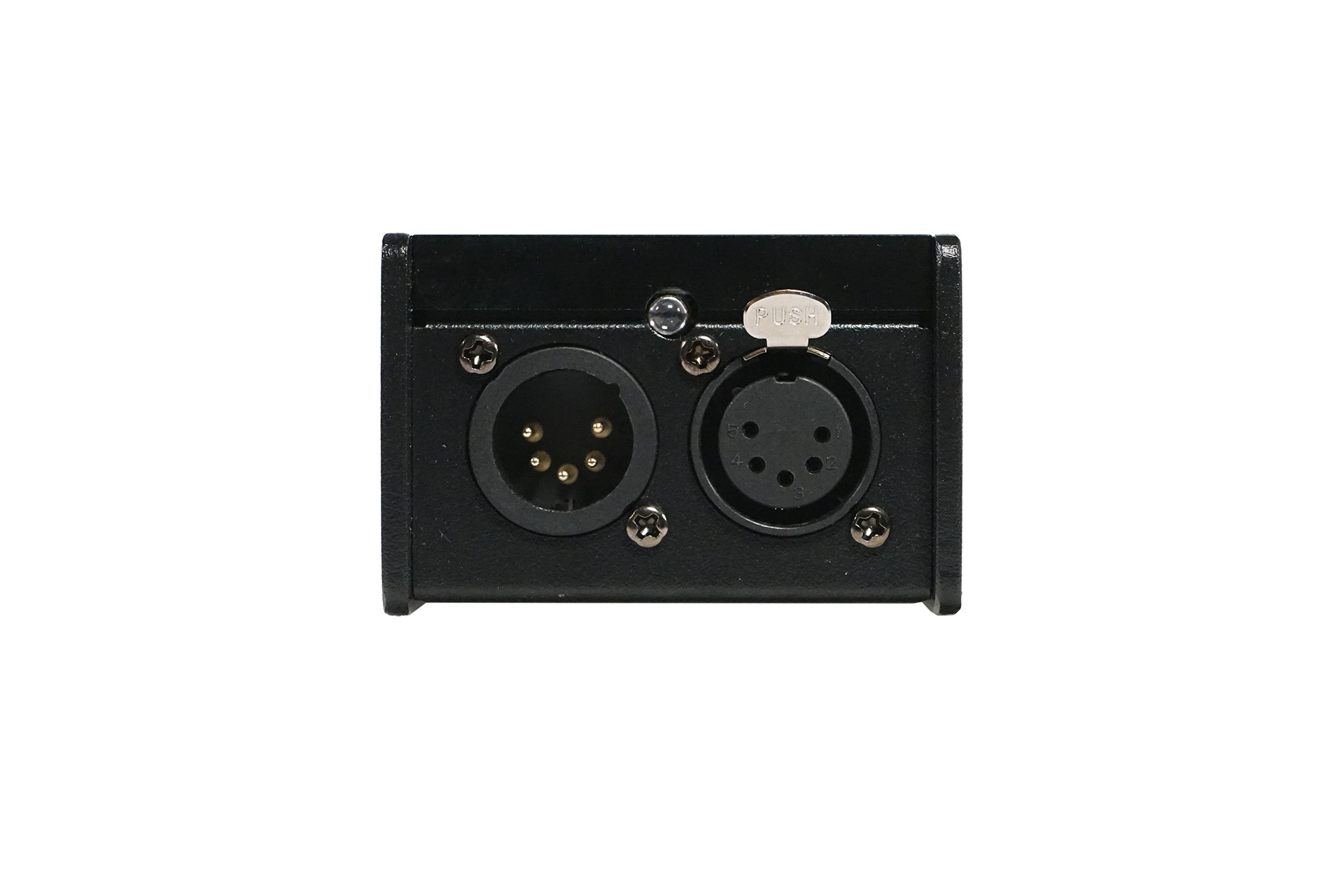

DMX in and out ports, with 3 & 5 pin XLR.
electrical standard of DMX ports: ANSI 1.11 / ANSI E1.120.

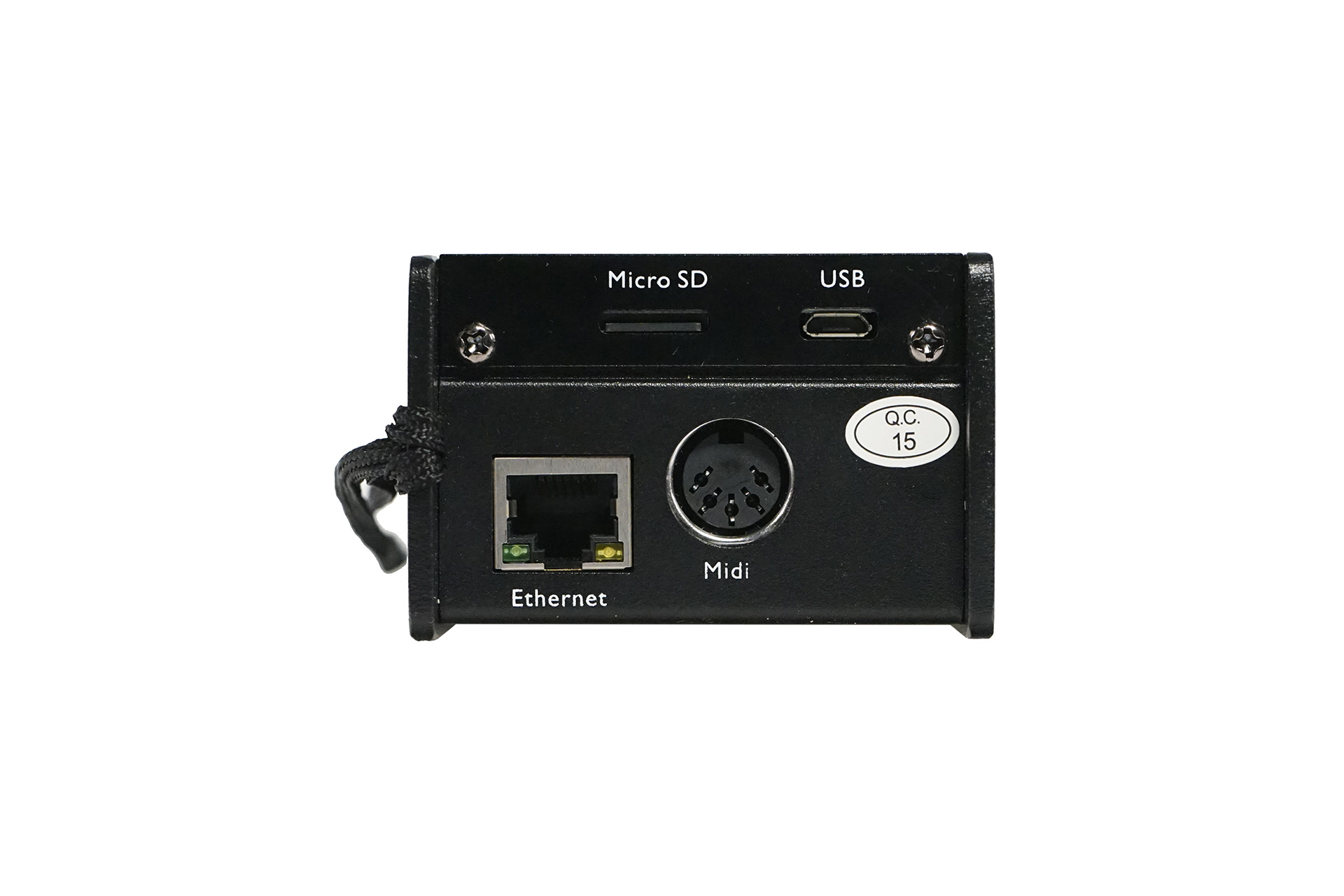

RJ45 port, for TCP/IP, ArtNET, DHCP & Static IP assignment.
Micro USB Port.
Battery: 9V (not included).
USB power consumption: 300mA max.
Cable tester for open circuit, short circuit, wrong wiring.
Operating temperature: 0 to 45 degrees Celcius.
Dimensions: 66,5 x 111 x 44,5 mm.
Weight: 342,3 gr.
