DILOS L005819
Scroll on photo to zoom in or Click to enlarge
DILOS L005819

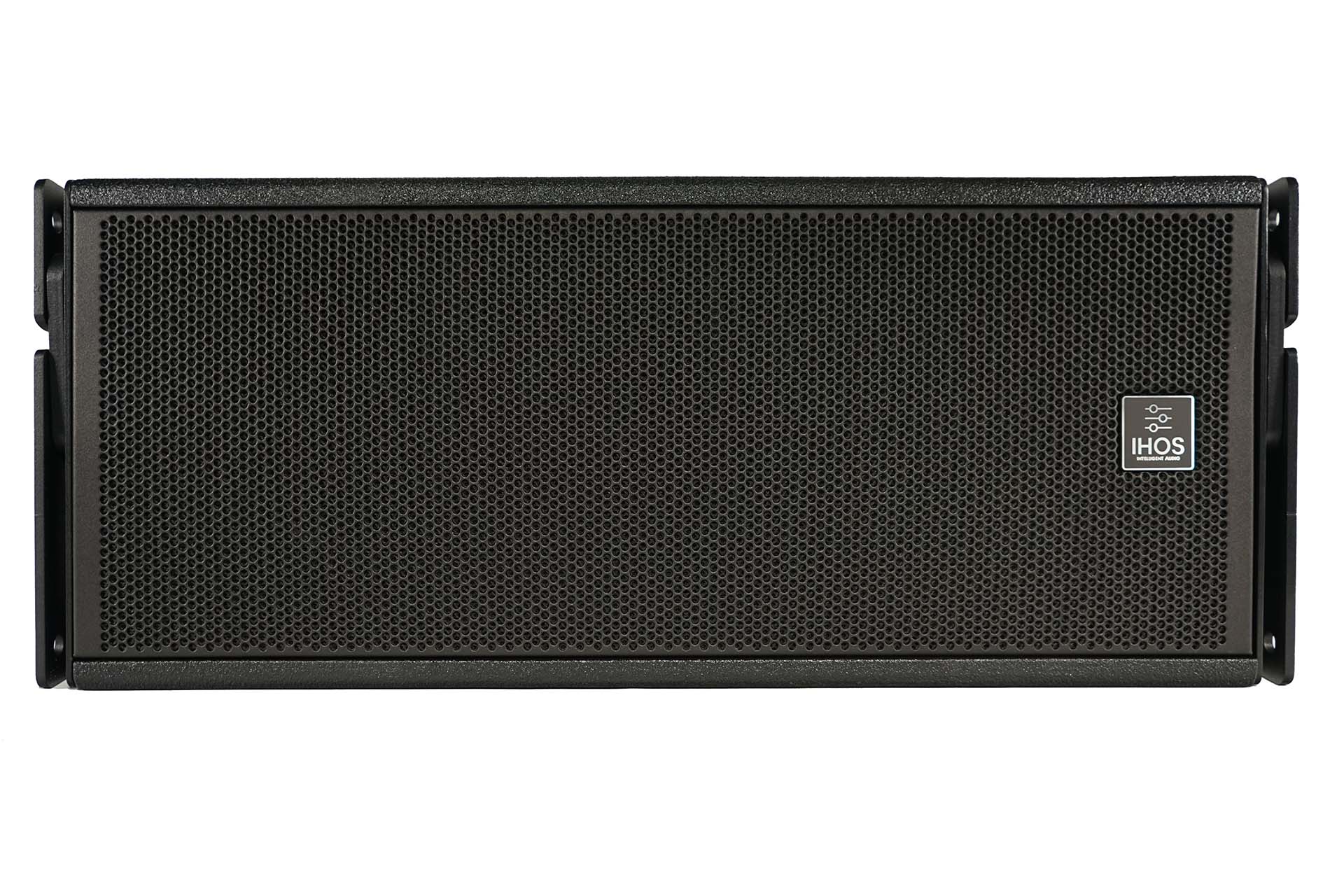

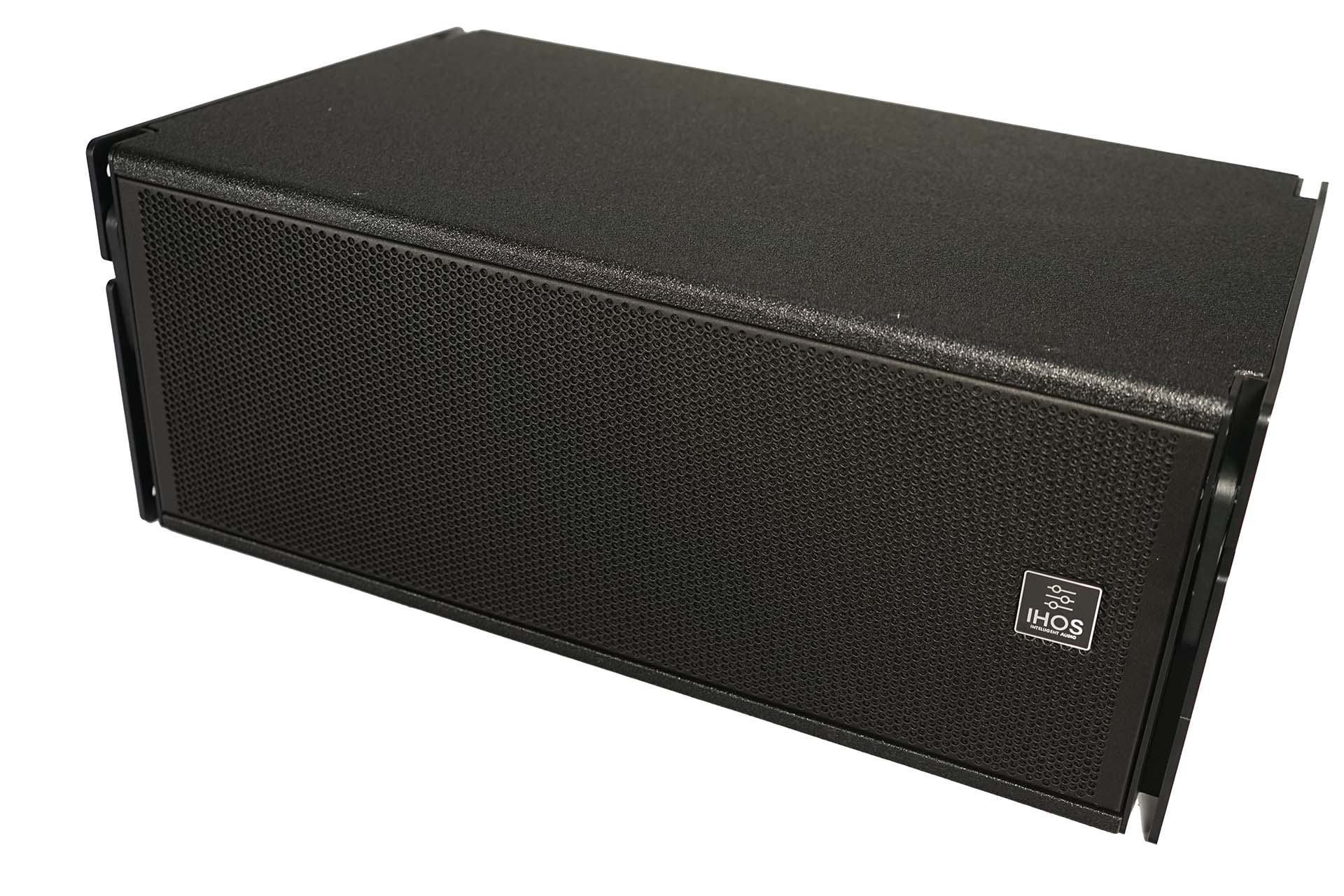

Professional active plywood 3 way line array speaker, German Engineering Class D amplifier , 1400watt Rms, multiple DSP, Rs485 remote control, FIR filter design, flat phase curve, 130 dB, frequency response 60-20k Hz, 1*8" woofer, 1*8" midrange, 2*1" CD,
Price
Please login to see the price.
  • Technical Specifications

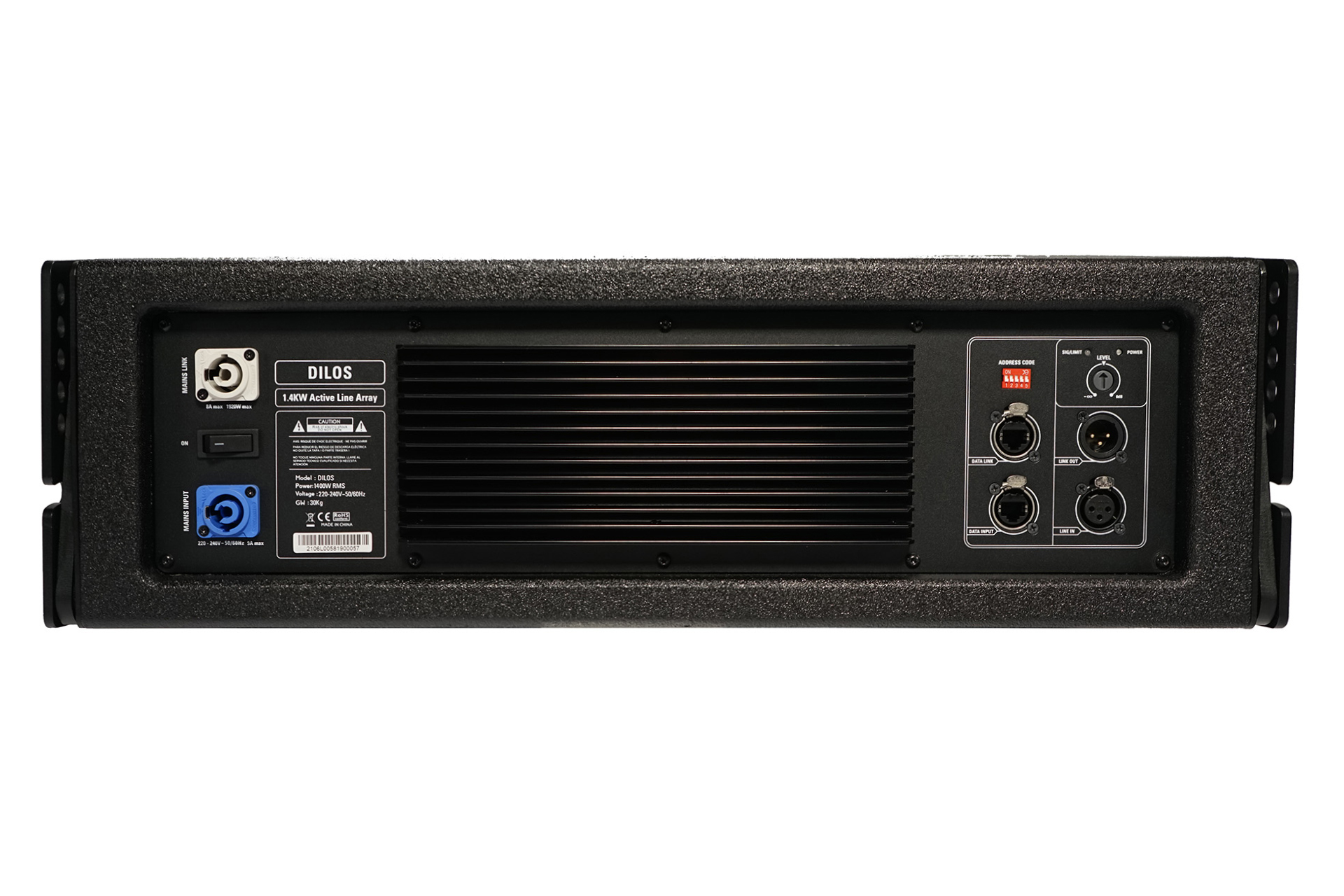

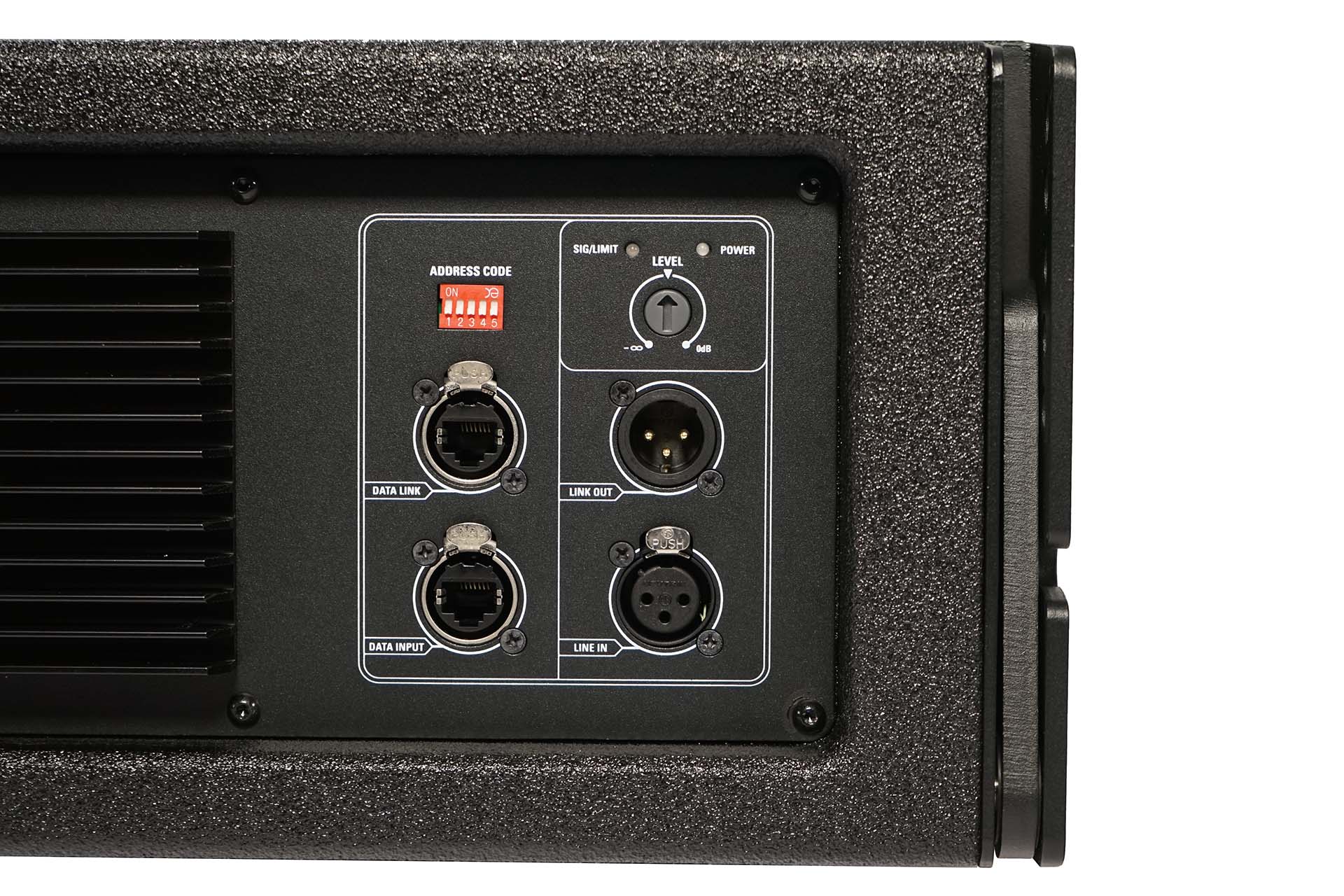

    Inputs: 1x XLR.
    Output: 1x XLR.
    Power output: 1400 Watt RMS.
    Volume Control.
    Power Input: 220 / 240 Volt AC, 50 Hz.
    German Engineering Class D amplifier + switching power supply.
    RS485 remote control
    Mutiple 32bit DSP (Digital Signal Processing)
    FIR filter, flat phase curve.
    3 way active line array design.
    Frequency response: 60 - 20k Hz.
    Impedance: 4 Ohm.
    Max Output spl (1m): 130 dB.

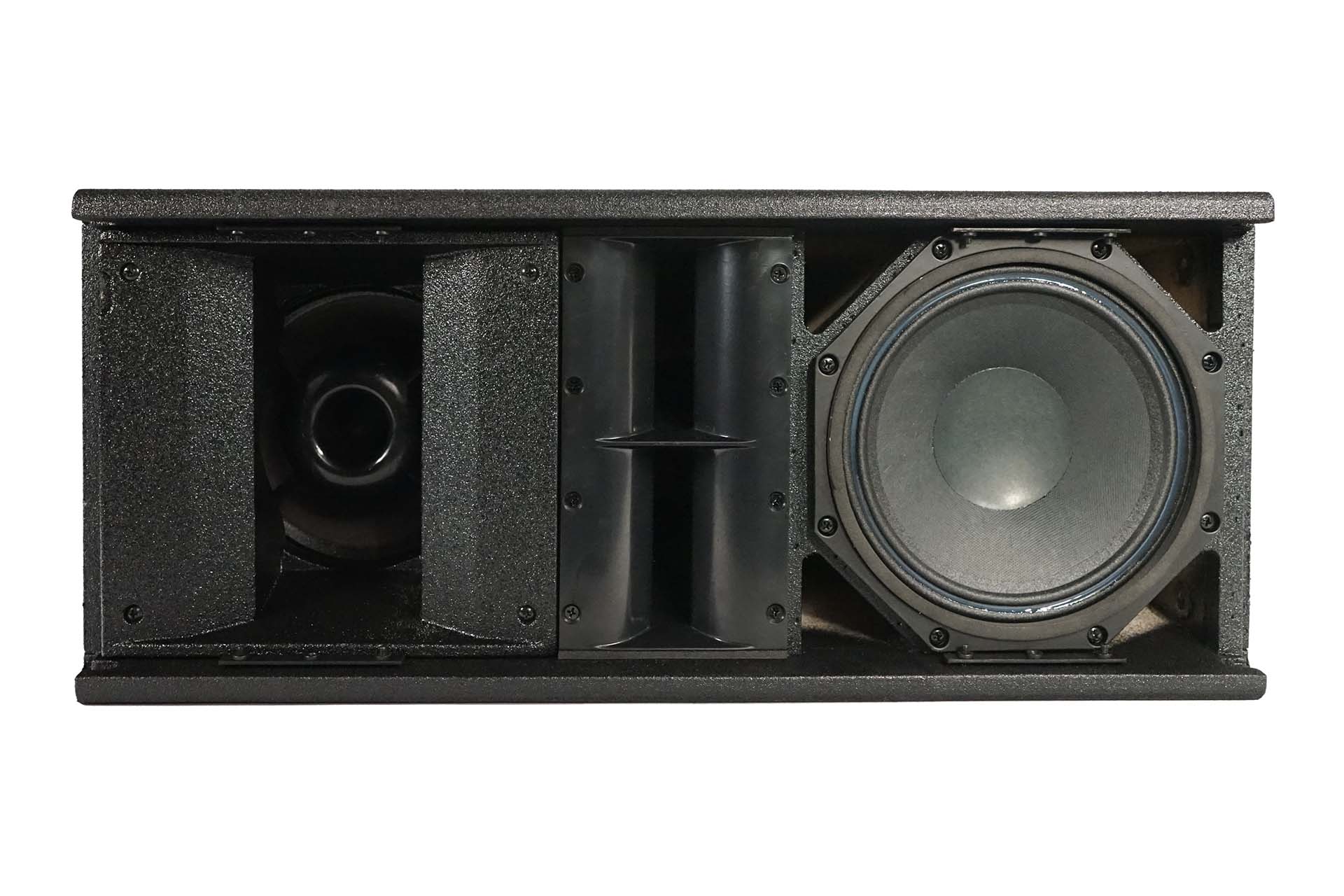

    1*8" woofer, 2" vc 57 oz.
    1*8" midrange, 2" vc 49 oz.
    2*1" CD.
    Directivity: 90° (H) x 10° (V)


    Plywood with black painted finish cabinet
    1,2 mm steel mesh cover.
    Dimensions: 51,5 x 36,5 x 73,5 cm
    Weight: 33 Kg.

Manual
