D Class Amplifier: 2ch and 4ch D class high-performance amplifier, led VU meter, temperature control fans, frequency response 20Hz - 34Kz, adjustable VPL.
Take a Look
IOS 12A DSP L005670
Scroll on photo to zoom in or Click to enlarge

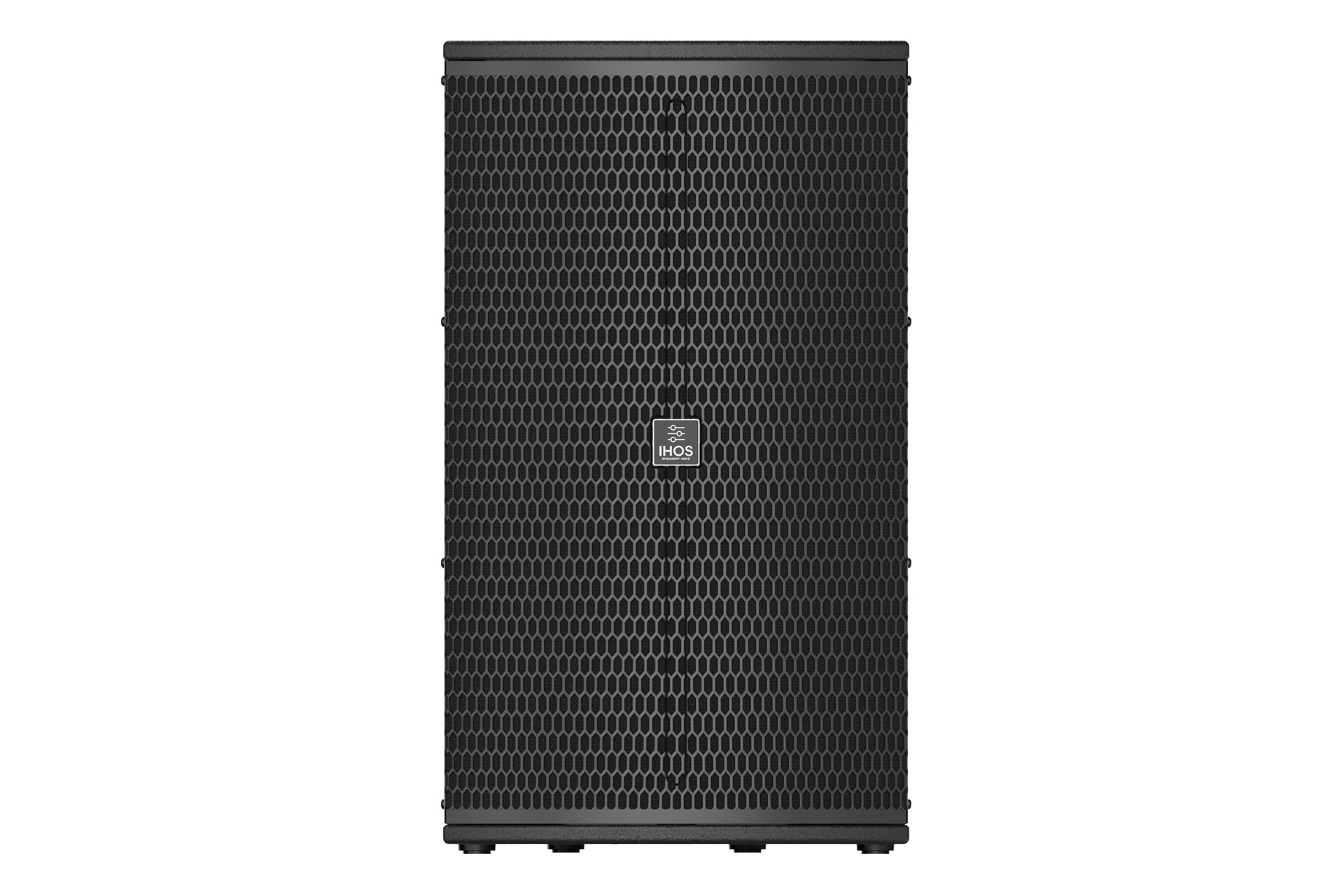

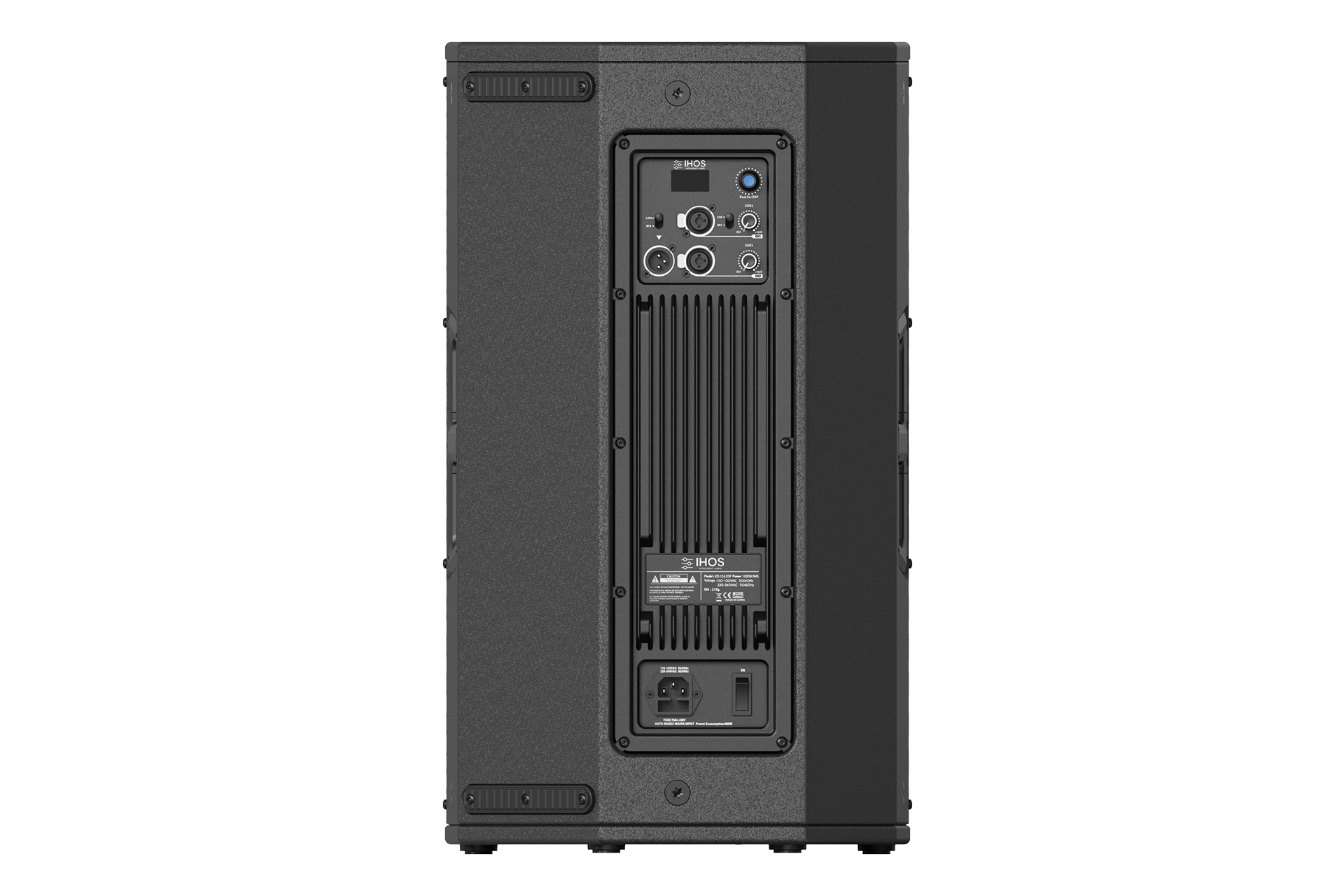

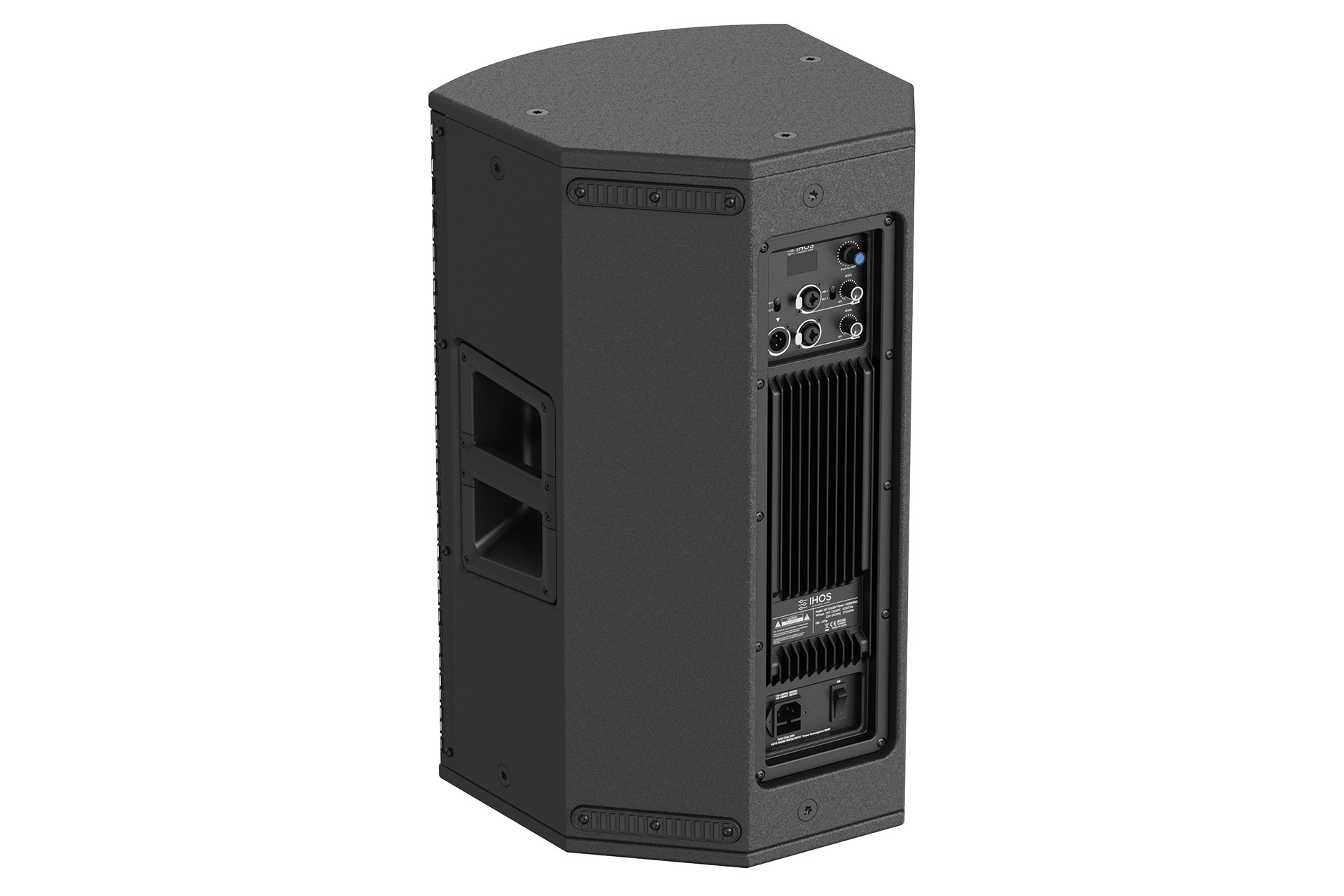

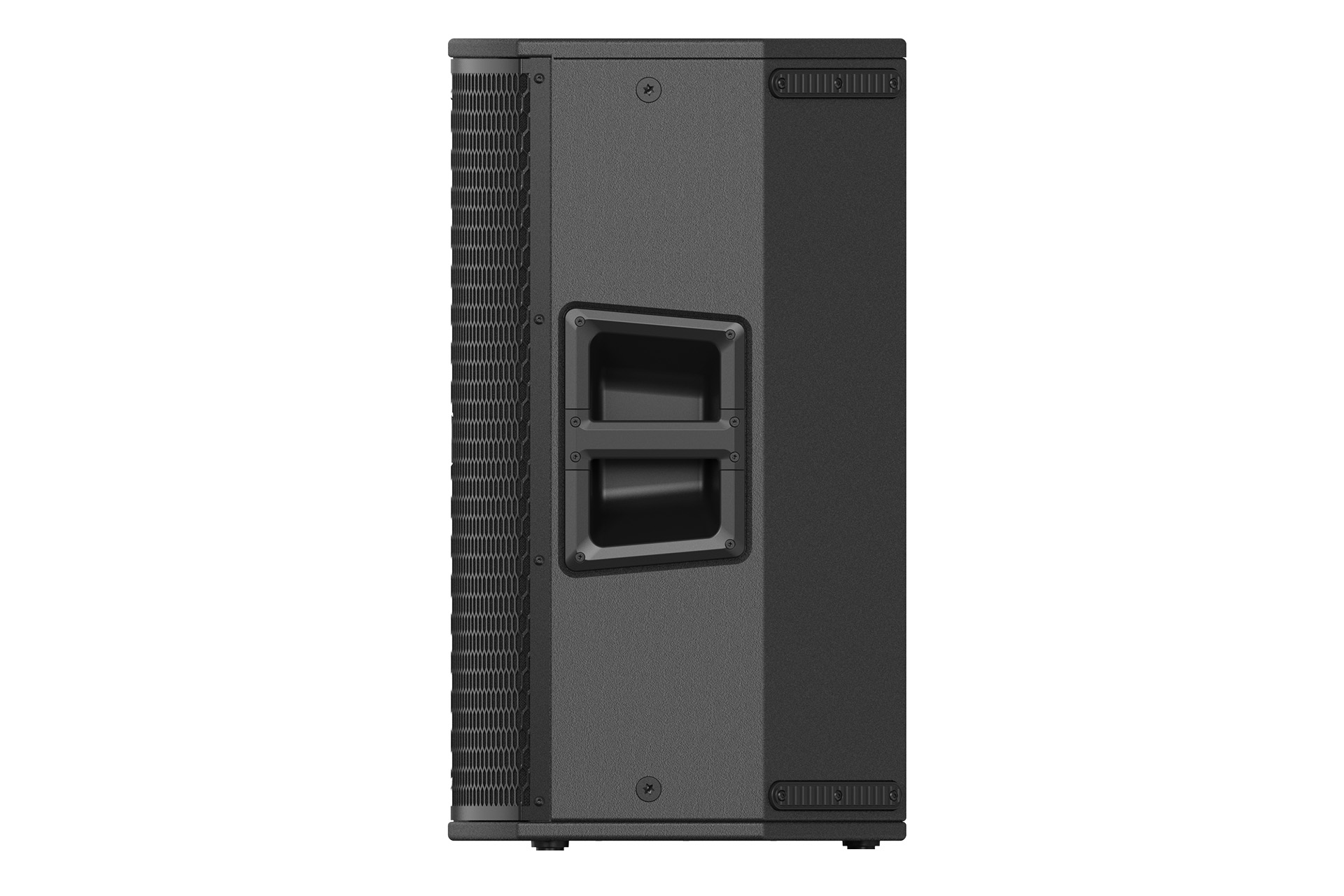

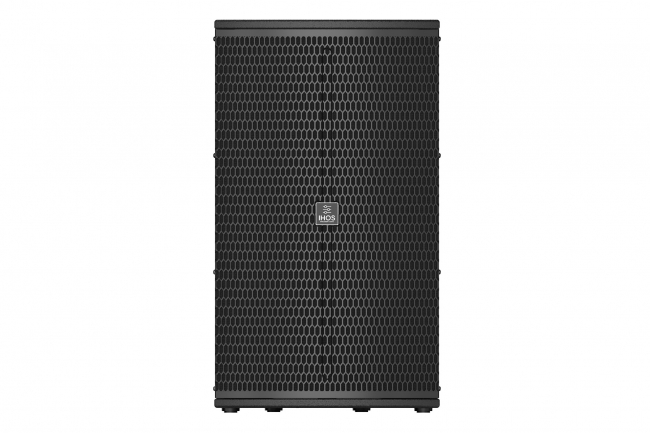

IOS 12A DSP L005670
Professional plywood active speaker 12 inch with LCD screen and multiple DSP, German Engineering class D amplifier, 500W (LF) + 500W (HF), 1000w RMS, 1.35?? HF drive, 12`` woofer 2,5``VC, flypoints, top handle and stage monitor feature.
Price
Please login to see the price.
  • Technical Specifications

    2 way, bi-amp active vented design.
    Power output: 1000W.
    German Engineering Class D amplifier + switching power supply.
    Frequency Response: 50 - 20 kHz.
    Max. Output SPL: 128 dB.
    Impedance: 4 Ohm.
    Input SPL: -10 dBV.
    Inputs: 1x XLR/1/4", 1x XLR
    Outputs: 1x XLR.
    Woofer 12" x1.
    1,35" driver x1.
    Directivity: 90° H x 60° V.
    Crossover point: 1.9 kHz.
    Power input: 220 / 240 Volt AC, 50 / 60 Hz.
    LCD screen & multiple DSP.
    15 mm PLY cabinet.

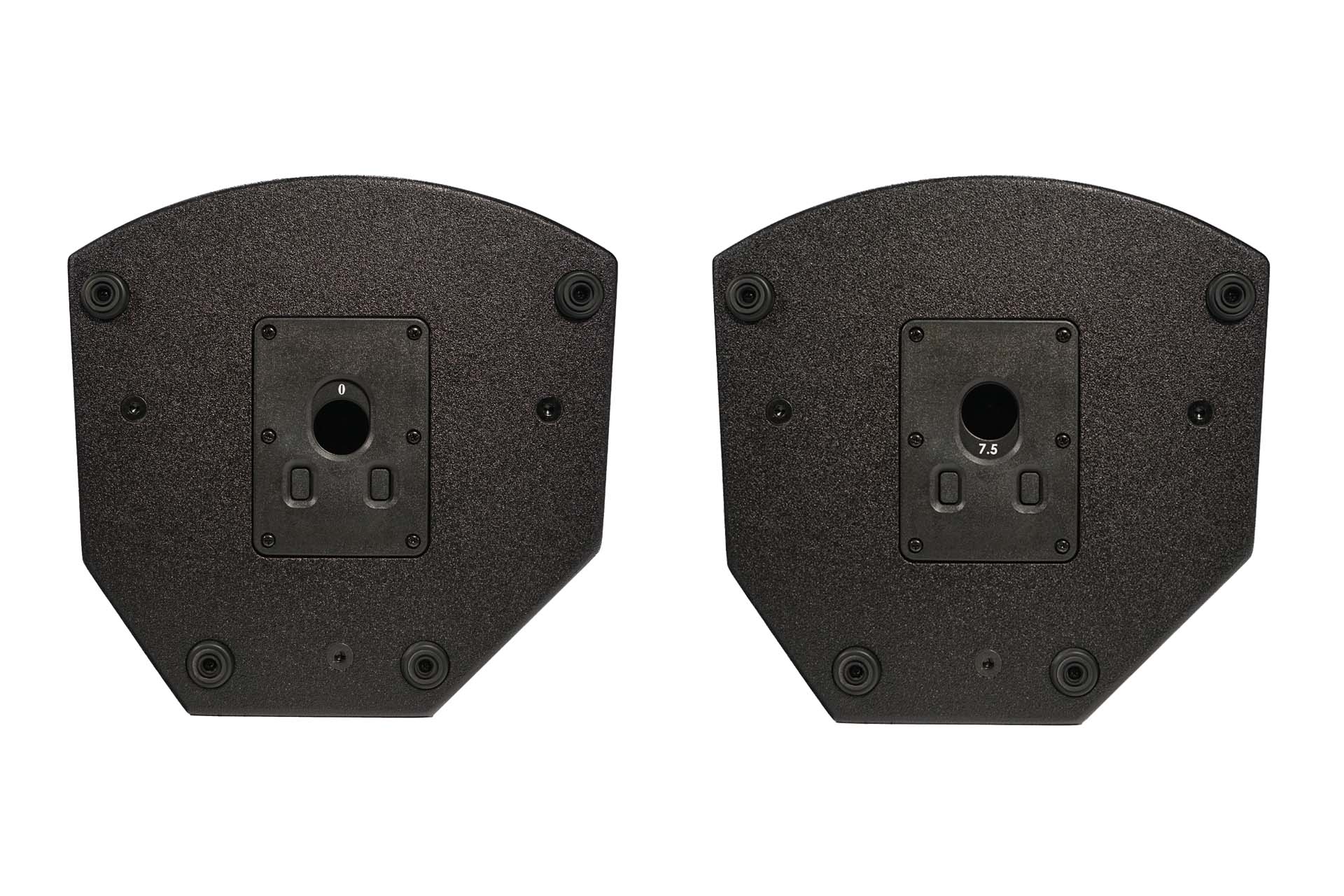

    Flypoints: M10
    Pole Socket: Φ35 mm.
    Dimensions: 63 x 36 x 35,4 cm.
    Gross Weight: 21 Kg.

  • Packing Details

    Dimensions: 46 x 46 x 73 cm
    Weight: 24 kg

Manual
