IEM-100 L005790
Scroll on photo to zoom in or Click to enlarge
IEM-100 L005790

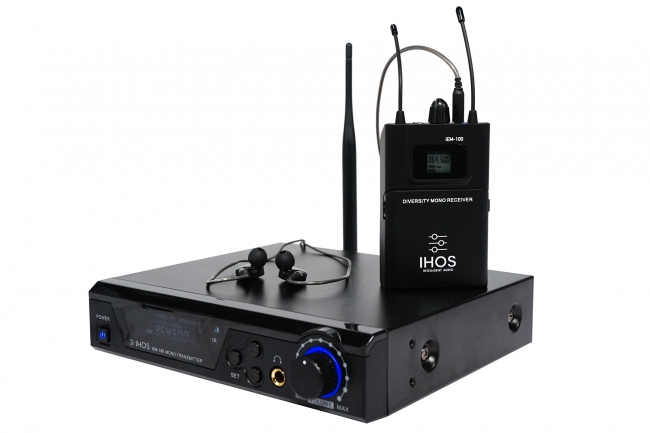

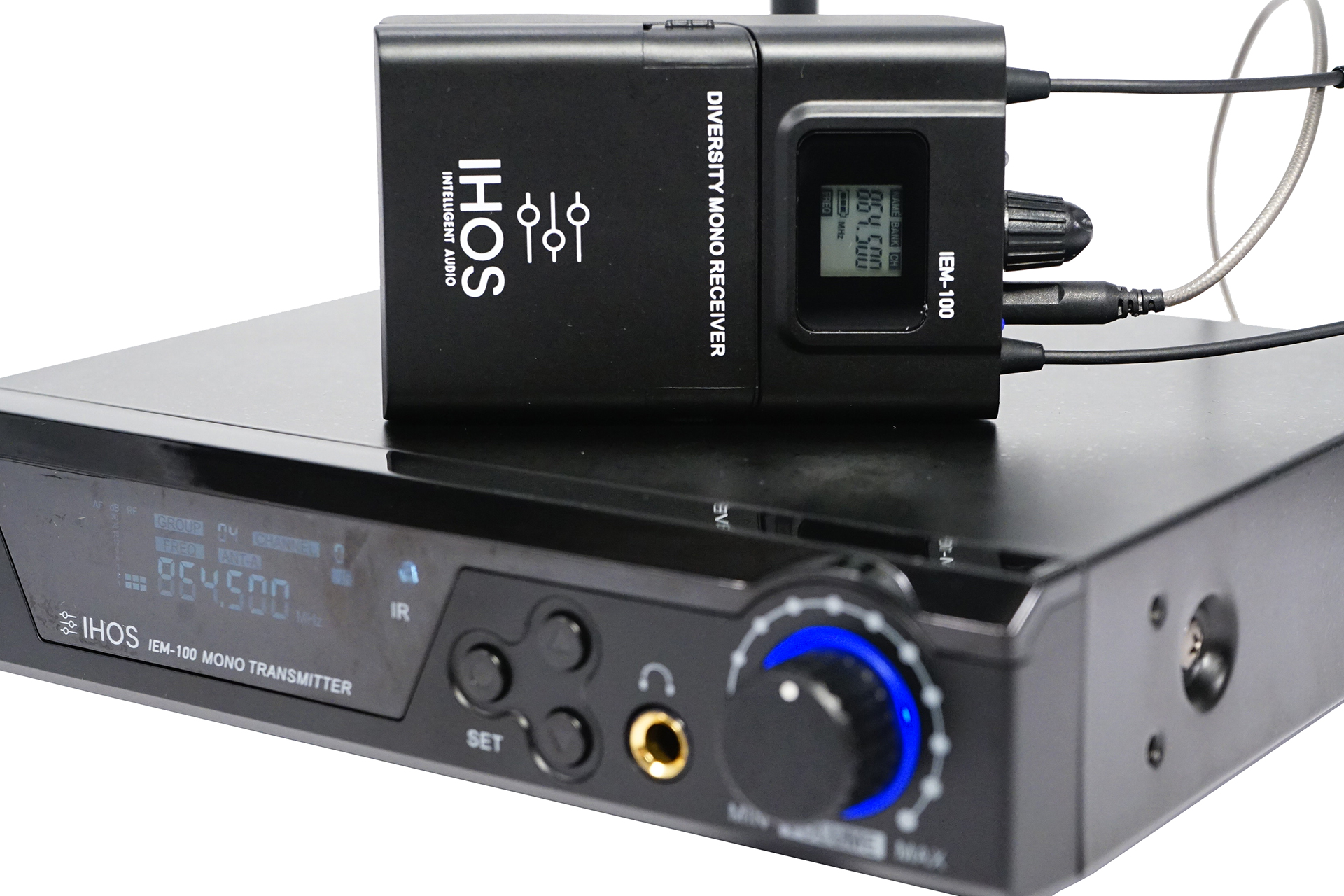

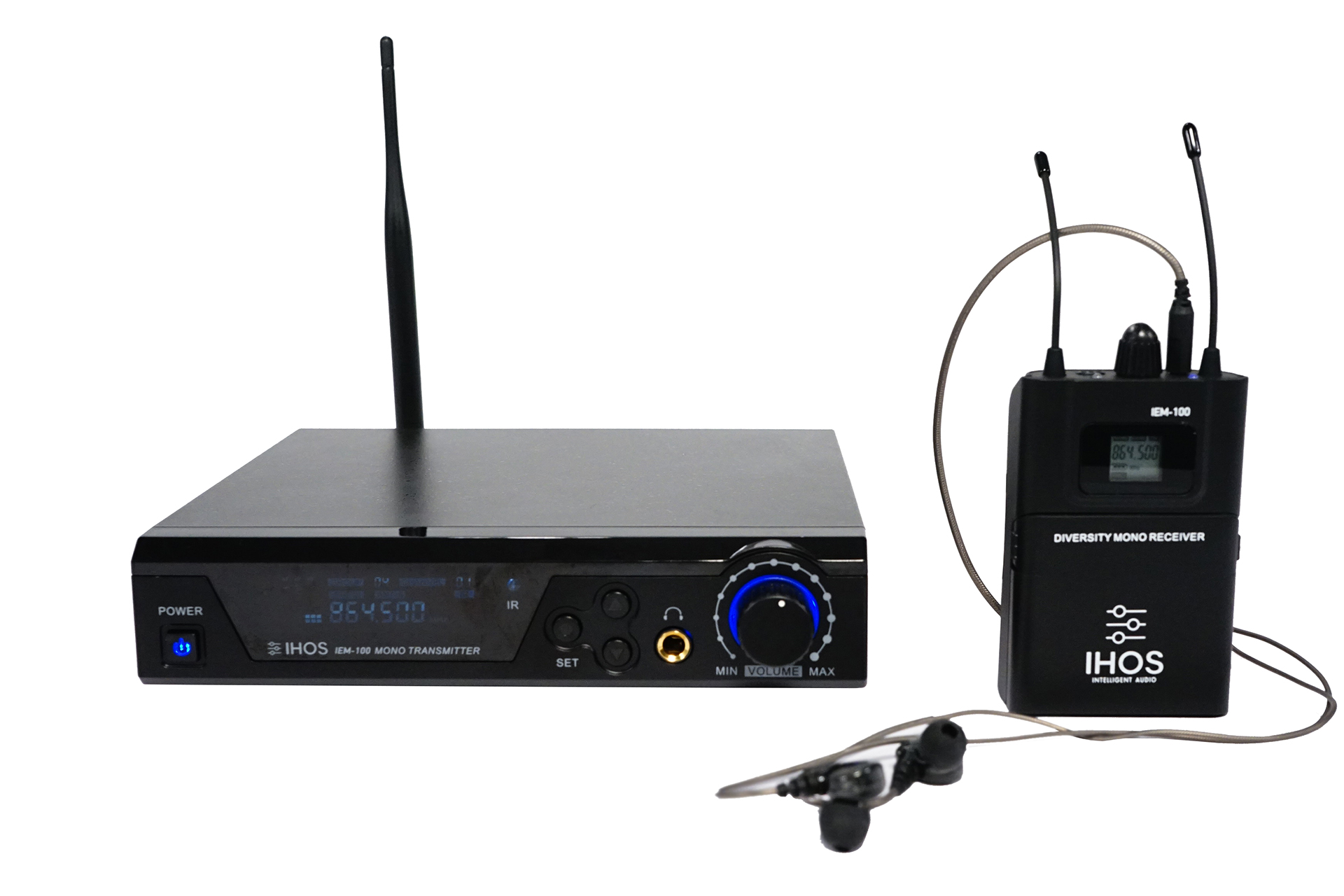

Wireless in ear monitor system, freq. range UHF 863-865MHZ, IR sync downloading the frequency from receiver, LCD display shows the RF level, AF level, channel and frequency, 200m line-of-sight operating range.
Price
Please login to see the price.
  • Features

    UHF 863-865MHz frequency range
    Mono Outputs, four levels RF output selectable
    True diversity for maximum range and dropout protection
    PLL Synthesized circuit
    Pre-set 100(10*10) selectable frequencies
    IR sync downloading the frequency from receiver
    LCD display shows the RF level, AF level, channel and frequency.
    EIA standard 1/2U rack-mountable metal chassis
    Up to 200m line-of-sight operating range
    Designed for professional stage performance applications.

  • Technical Specifications

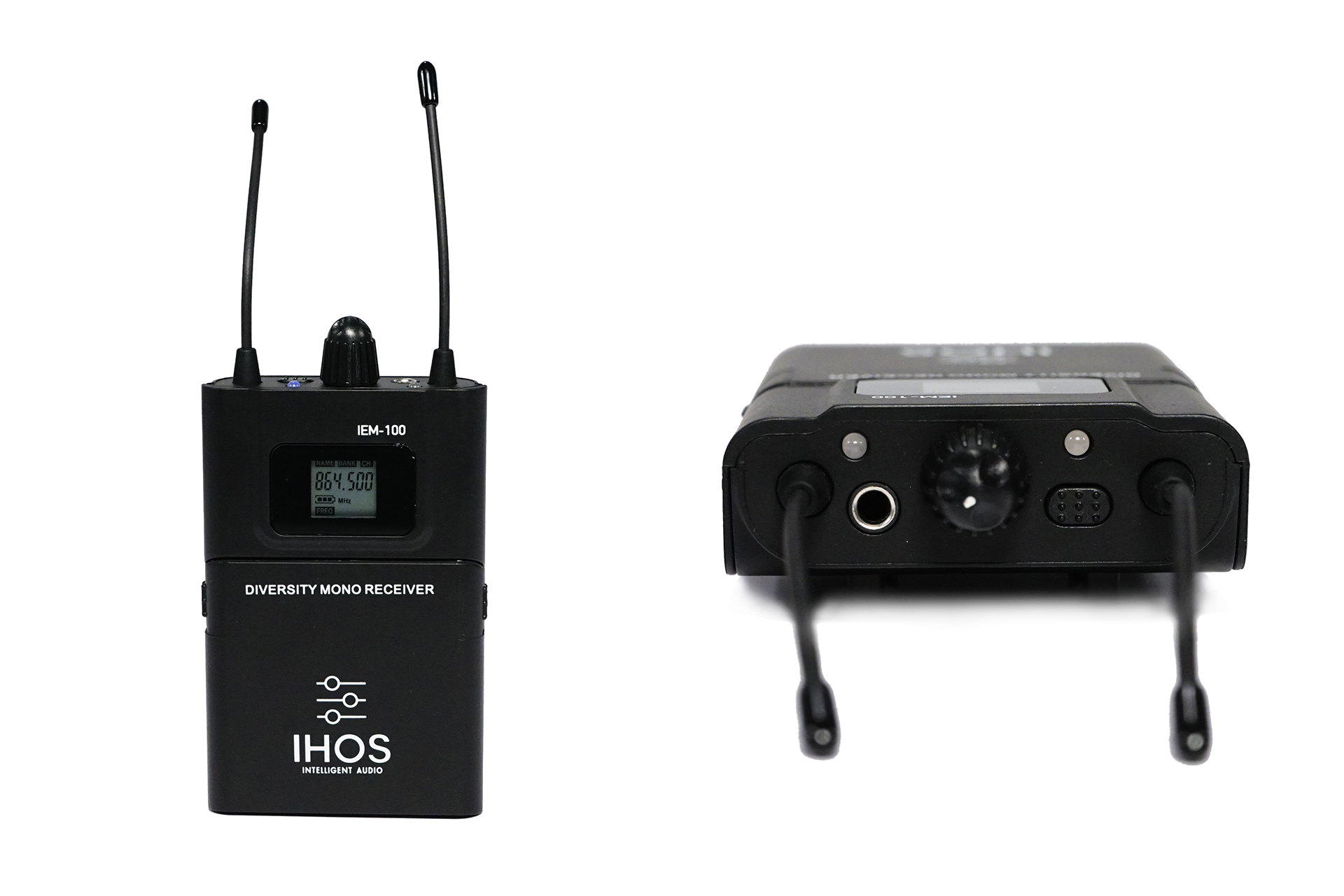

    Receiver(Belt-pack)

    Frequency Range: 863-865 MHz.
    Transmission Method: FM, Mono.
    Frequency Response: 60Hz-17KHz.
    Total Harmonic Distortion: <0.7% at 1KHz.
    Signal/Noise Ratio: ≥105dB.
    Earphone output: 3.5mm/ 16ohms 105mW.
    Receiving Sensitivity: 10dBuV(80dB S/N).
    Battery Voltage: 3V (2x1.5V AA Battery).
    Power Consumption: 8 hours, battery-dependent.

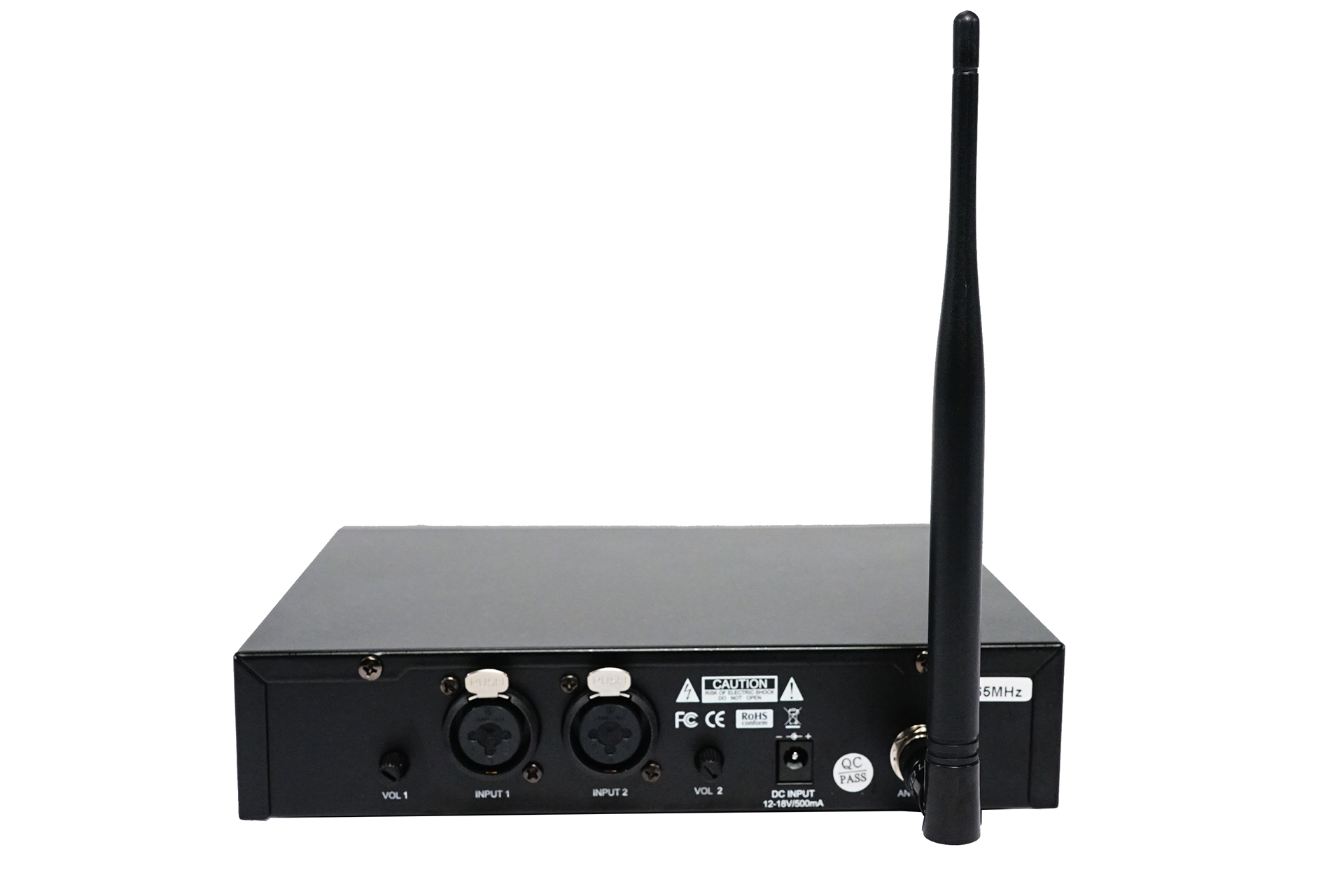

    Transmitter

    Frequency Range: 863-865 MHz.
    Transmission Method: FM, Mono.
    Transmitter Power: 5/10/30/100mW.
    Frequency Response: 50Hz-17KHz.
    Total Harmonic Distortion: <0.5% at 1KHz.
    Deviation: 45KHz.
    Input impedance: 32ohms.
    Power Supply: DC12V-18V / 500mA .
