FORTIUS Stand alone L005009
Scroll on photo to zoom in or Click to enlarge

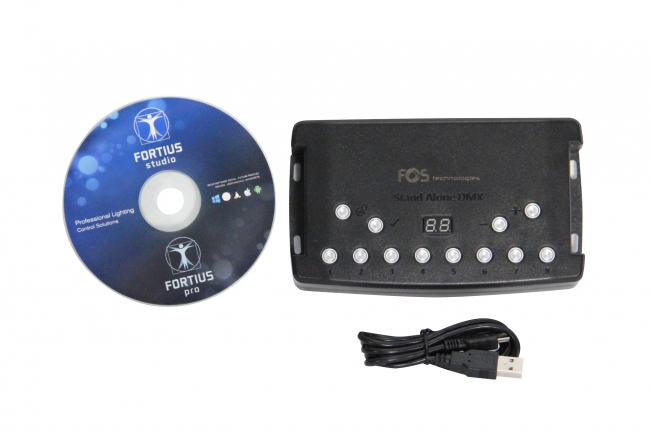

FORTIUS Stand alone L005009
512 Dmx channels stand alone interface , Pro DMX + Studio DMX compatible 2x512 Out PC and Stand Alone channels (using no PC)
Price
Please login to see the price.
  • Technical Details

    • Pro DMX + LED Player + Studio DMX compatible
    • 30 minutes loop of Audio and Video Timeline with Pro DMX
    • 1 ARTNET Universe
    • Windows, MAC Os X (10.6 and +) and Linux (64) compatible
    • 2x512 Out PC and Stand Alone channels (using no PC)
    • Splitter mode 2x512 out
    • DMX in record and DMX in triggers (PC)
    • DMX merging signal in Stand Alone (in/out mode)
    • 16 bits and fine channel management in Stand Alone
    • Automatic Scene Recovery if the power is accidently cut off
    • Cross Fade time between scenes in Stand Alone
    • Scene Speed, manual color (RGBW), page, Dimmer modes

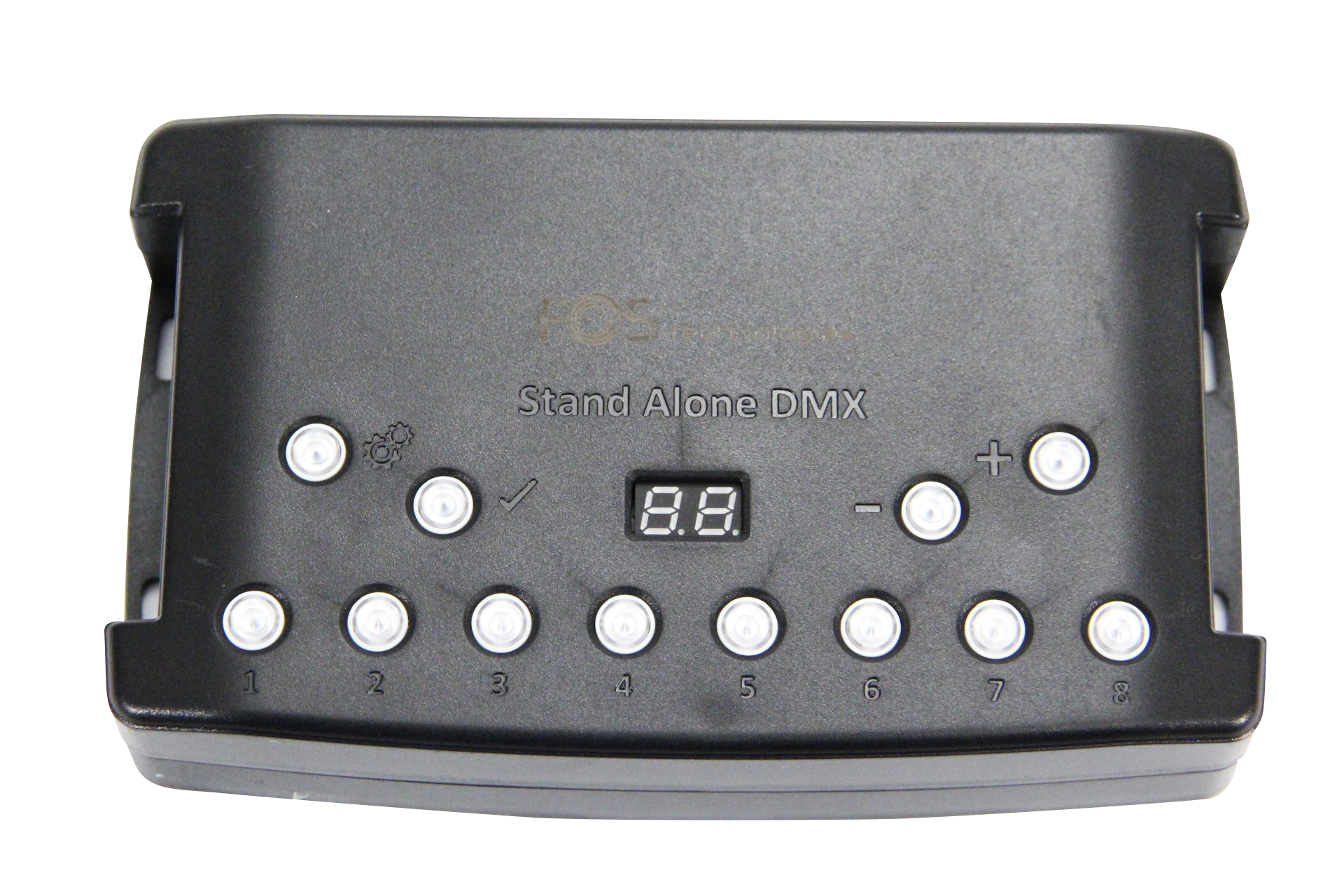

    • 8 trigger buttons with blue LED
    • 4 buttons for Mode, valid, + and -
    • 7 contact triggers to 5V (On, On/Off, Release or Restart scenes)
    • Real Time Clock triggers for scenes (Day, Week, Month, Year)
    • RS232 triggers in PC and Stand Alone
    • Master/Slave mode to interconnect and synchronize up to 32 interfaces in Stand Alone (32768 dmx channels without pc use)
    • Infrared Triggers via an external module + IR remote (Optional)
    • 4 Mb of internal memory (min. capacity: 6,000 steps/512 ch)
    • Power input of 9 to 36V. (standard DC connector)
    • Black housing with 4 mounting holes, ABS Plastic
    • Mini USB 2.0 - 5V. DC

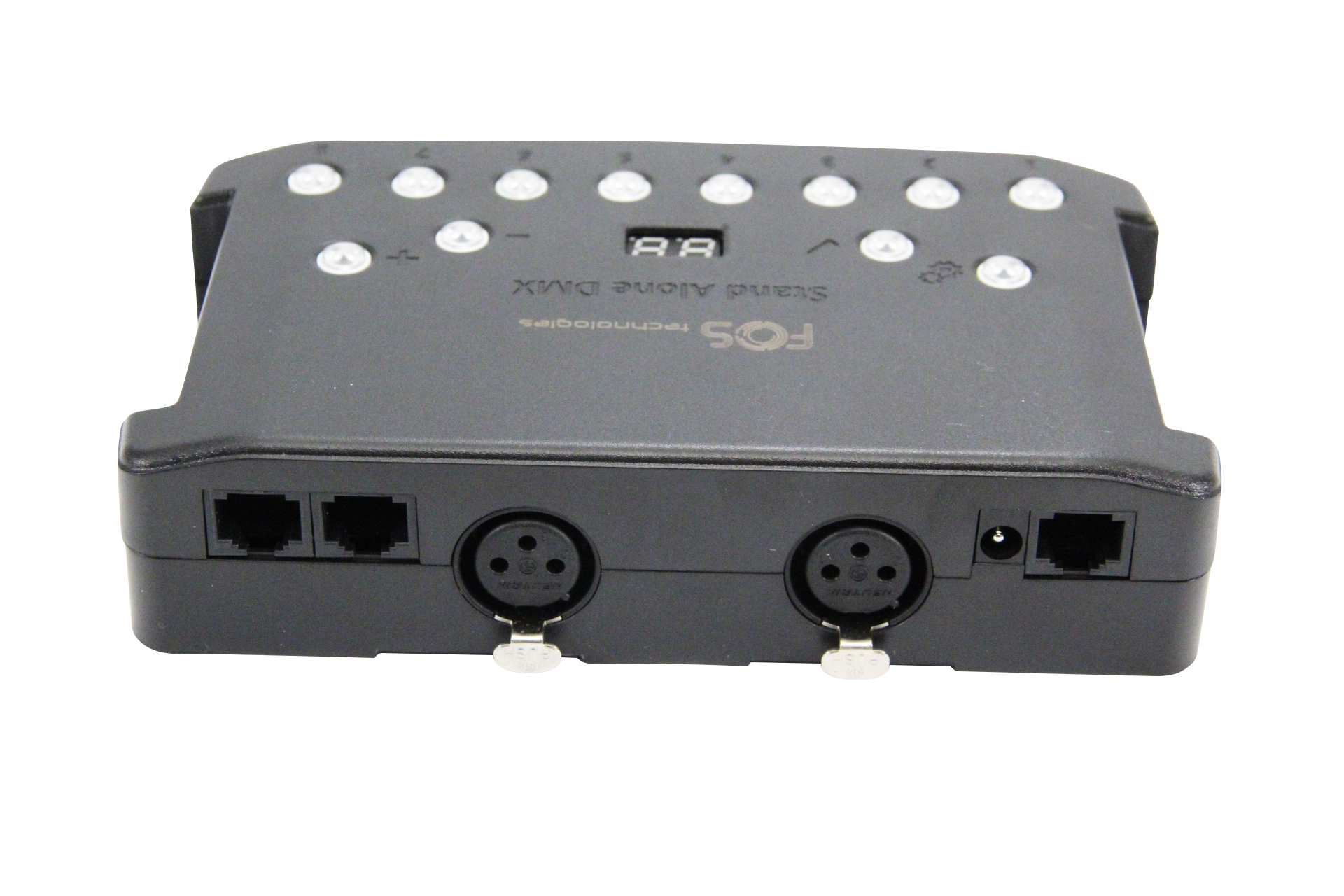

    • 3 Pins XLR (XLR5 optional)
    • RJ45 connectors for I/O and triggers
    • Dimensions and Weight: H: 4 cm ; W: 14 cm ; L: 9 cm ; 0.2 Kgs
    • Operating temperatures: -25 to +70 Cº
    • Certifications: CE, RoHS
