D Class Amplifier: 2ch and 4ch D class high-performance amplifier, led VU meter, temperature control fans, frequency response 20Hz - 34Kz, adjustable VPL.
Take a Look
D2600 L005744
Scroll on photo to zoom in or Click to enlarge
D2600 L005744

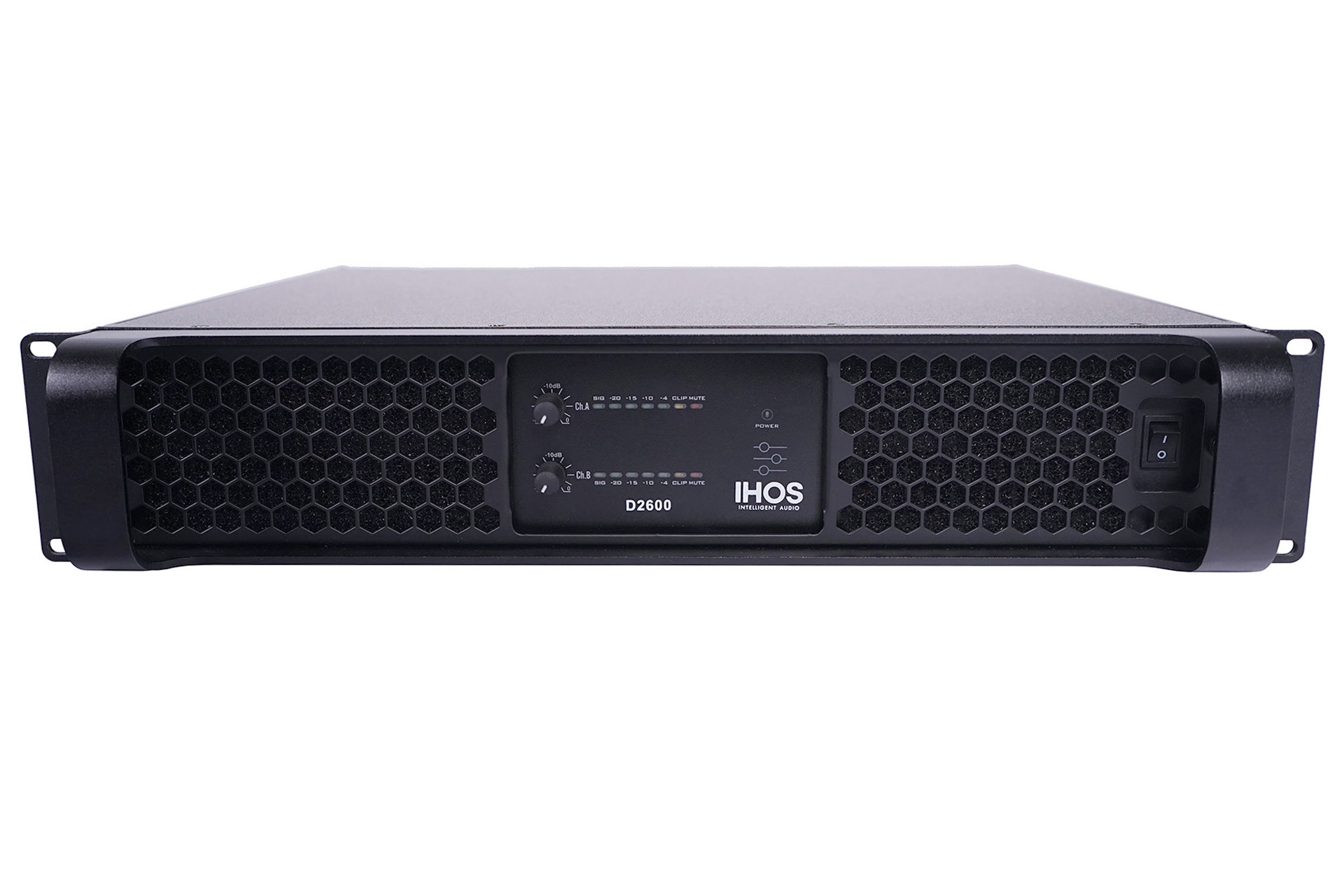

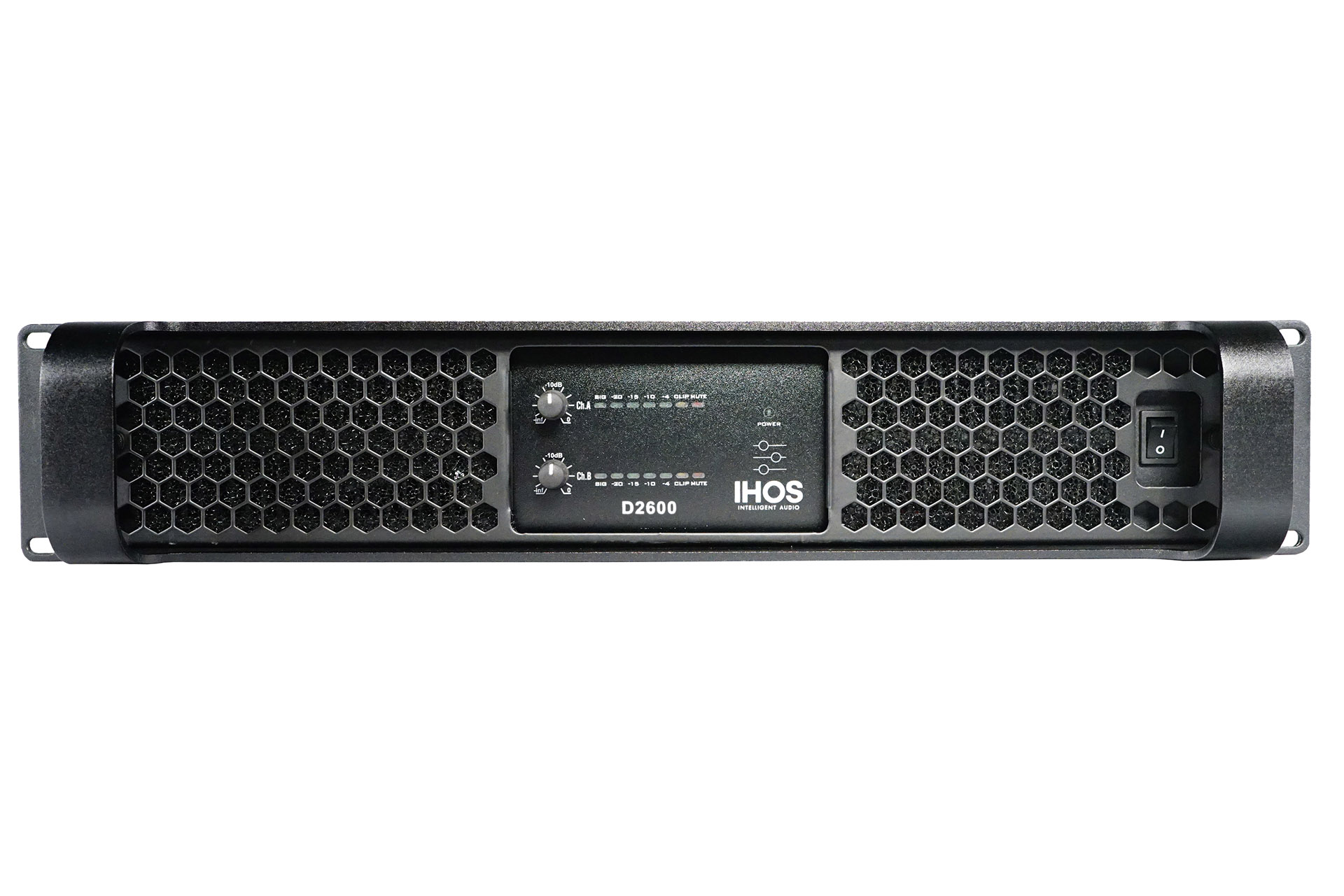

D class high performance 2 channels amplifier, 2 x1300 w/8ohms , 2 x 2600w/4 ohms, XLR input, speakon output, led VU meter, temperature control fans, frequency responce 20Hz - 34Kz,adjustable VPL, 10kg.
Price
Please login to see the price.
  • Technical Specifications

    8 ohms stereo power: 2x 1250 W.
    4 ohms stereo power: 2x 2500 W.

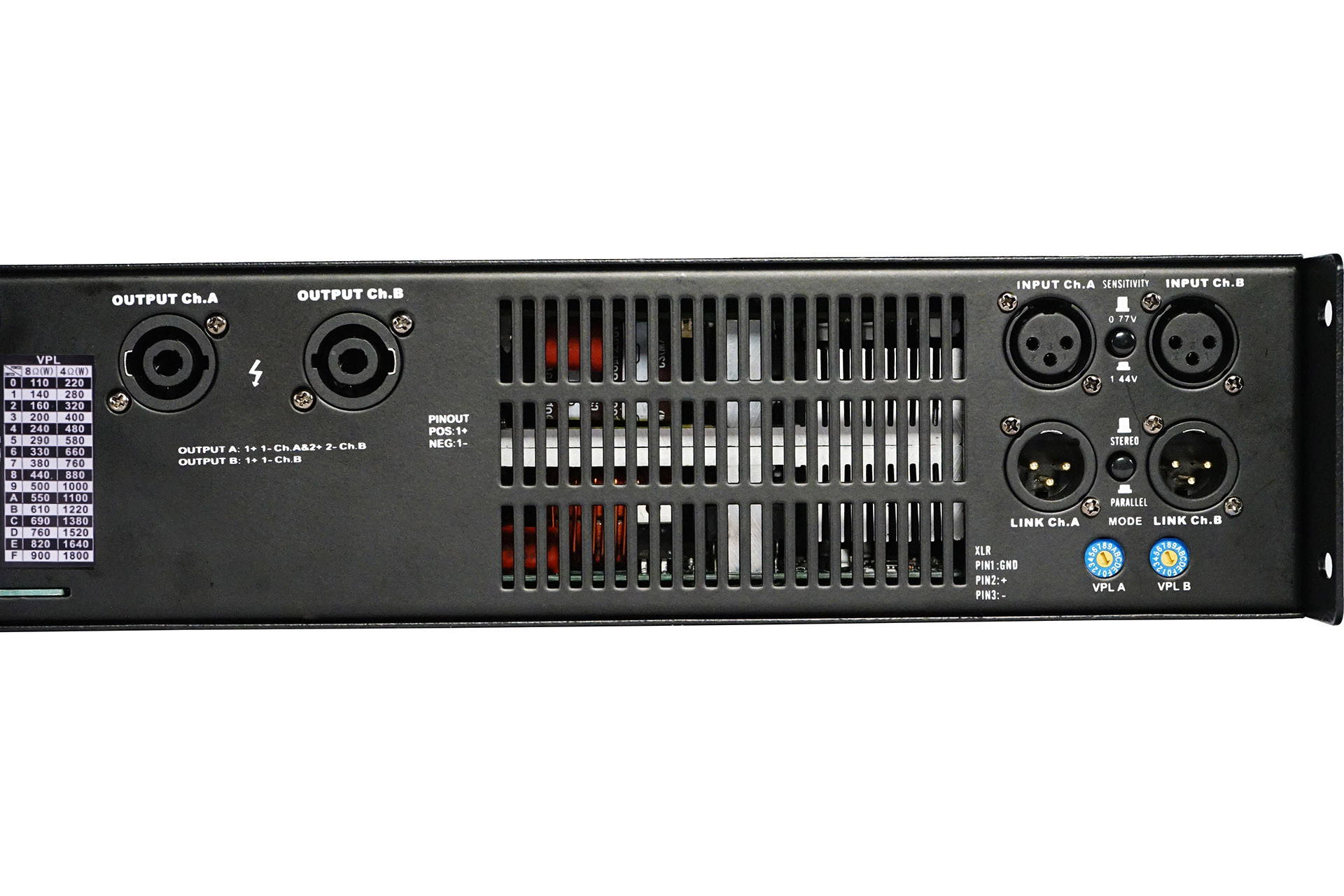

    Input connetor: XLR female
    Input impedance: 20k ohms balanced
    Input Sensitivity: 0.77V 1.44V
    Input CMRR: >80dB
    Output connector: Speakon
    Hum&Noise: >112dB
    Damping Factor: >1000 @ 8 ohms
    THD: <0.1% (20Hz-20kHz 1W)
    Frequency Response: 20Hz-34KHz,(+0/-0.3dB, 1W/8ohms)
    Level control: front level meter, from negative infinity to 0dB
    Cooling: variable speed fans, front to rear airflow
    Power Requirement: AC voltage 180-240V 50-60Hz
    Amplifier dimensions: 88mmX488mmX438mm
    Packing dimensions: 150mmX600mmX550mm
    Net weight: 11.5 Kg.
    Gross weight: 14.6 Kg.
