ICON PTZ Controller NDI PRO

Product code:L008007
Universal PTZ Camera NDI Controller,4D precise Joystick+3D knobs ergonomic zoom button, built-in 3-inch color screen, supports HDMI output for large screen display,7 cameras selection shortcuts,White Balance/Exposure/Focus Control,7 tally channels, VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif, and NDI?|HX3.
TEXT_PRODUCT_DESCRIPTION
Physical & Control Interface

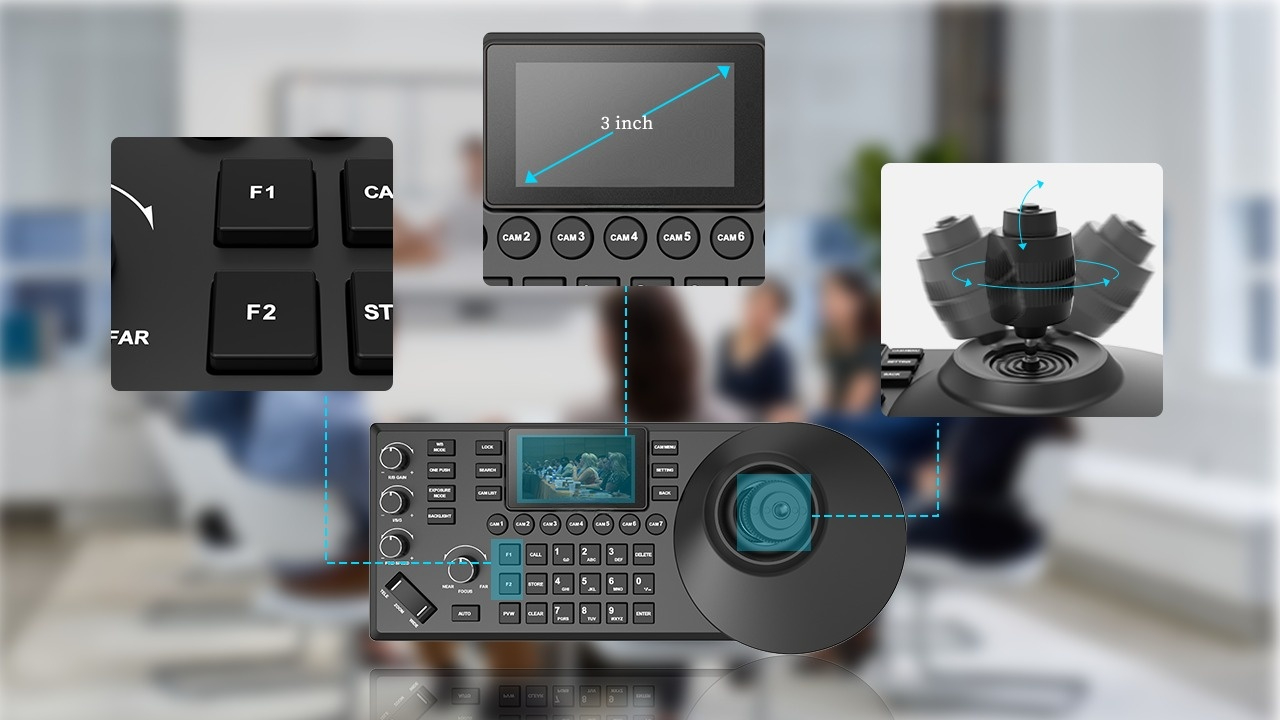

  • Joystick: 4D precision joystick for PTZ control.
  • Knobs: Three 3D knobs that support mode selection by pressing and parameter adjustment by rotating.
  • Buttons: High-quality silicone buttons with white and red dual-color backlighting for low-light operation.
  • Screen: 3-inch LCD color display for real-time preview and settings.
  • Video Output: HDMI interface supporting up to 4K@30 resolution for external large screen display.

  • Camera Capacity: Supports 7 quick-selection camera shortcuts .
  • Preset Positions: Supports up to 255 preset positions.
  • Real-time Preview: Supports up-streaming preview via NDI®|HX3.
  • Customization: Includes customizable buttons (F1, F2, PVW) to set preferred operations.
  • Safety Features: One-click button lock function to prevent accidental misoperation.

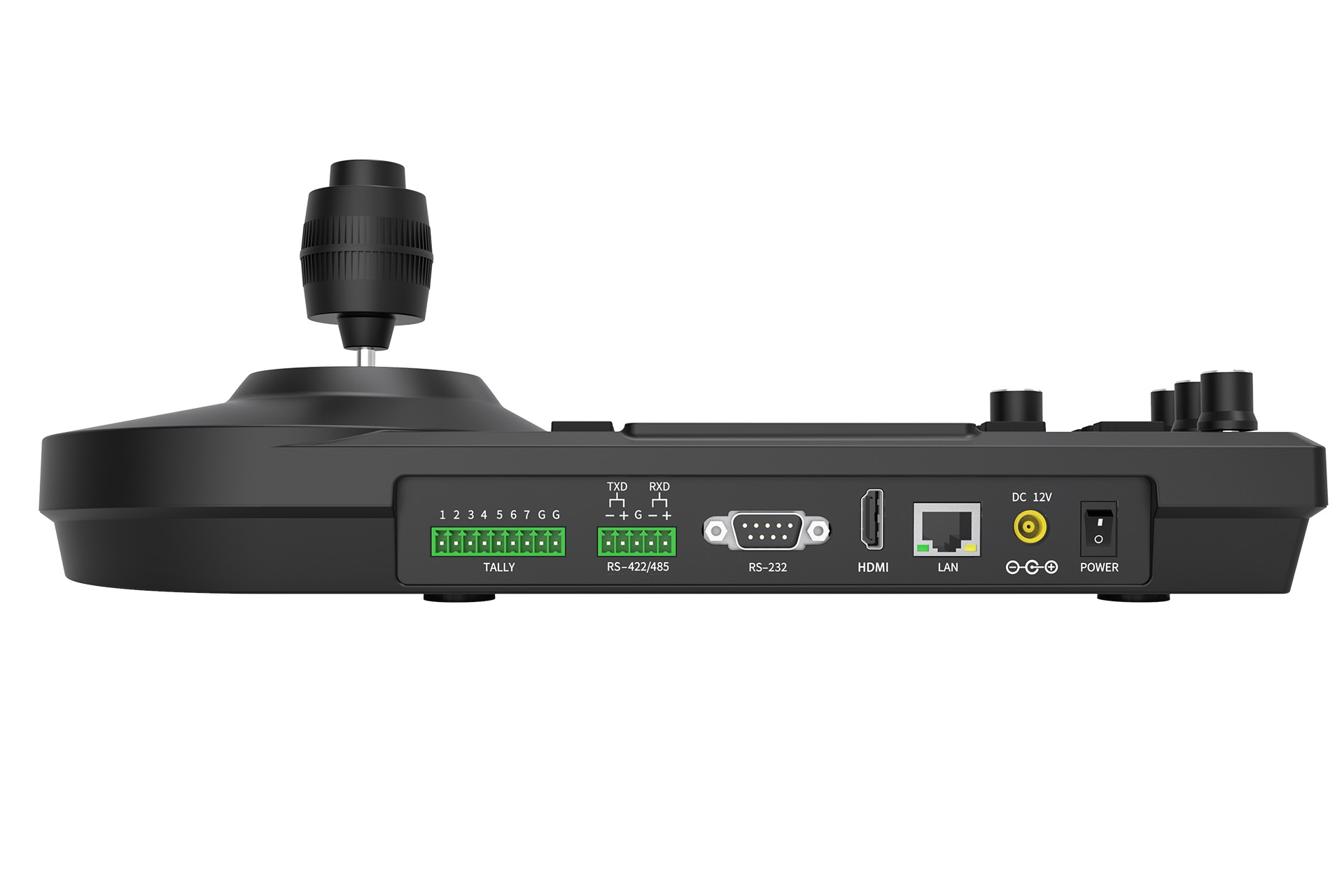

  • IP Protocols: ONVIF, VISCA Over IP, VISCA TCP, and NDI®HX3.
  • Serial Protocols: VISCA, Pelco-D, and Pelco-P.
  • Tally: External tally interface supporting up to 7 channels

  • Input Voltage: 12V DC.
  • Input Current: 0.25A.
  • Rated Power: 3W.
  • Operating Temperature: 10C 40C
