D Class Amplifier: 2ch and 4ch D class high-performance amplifier, led VU meter, temperature control fans, frequency response 20Hz - 34Kz, adjustable VPL.
Take a Look
TINOS System L005918
Scroll on photo to zoom in or Click to enlarge
TINOS System L005918

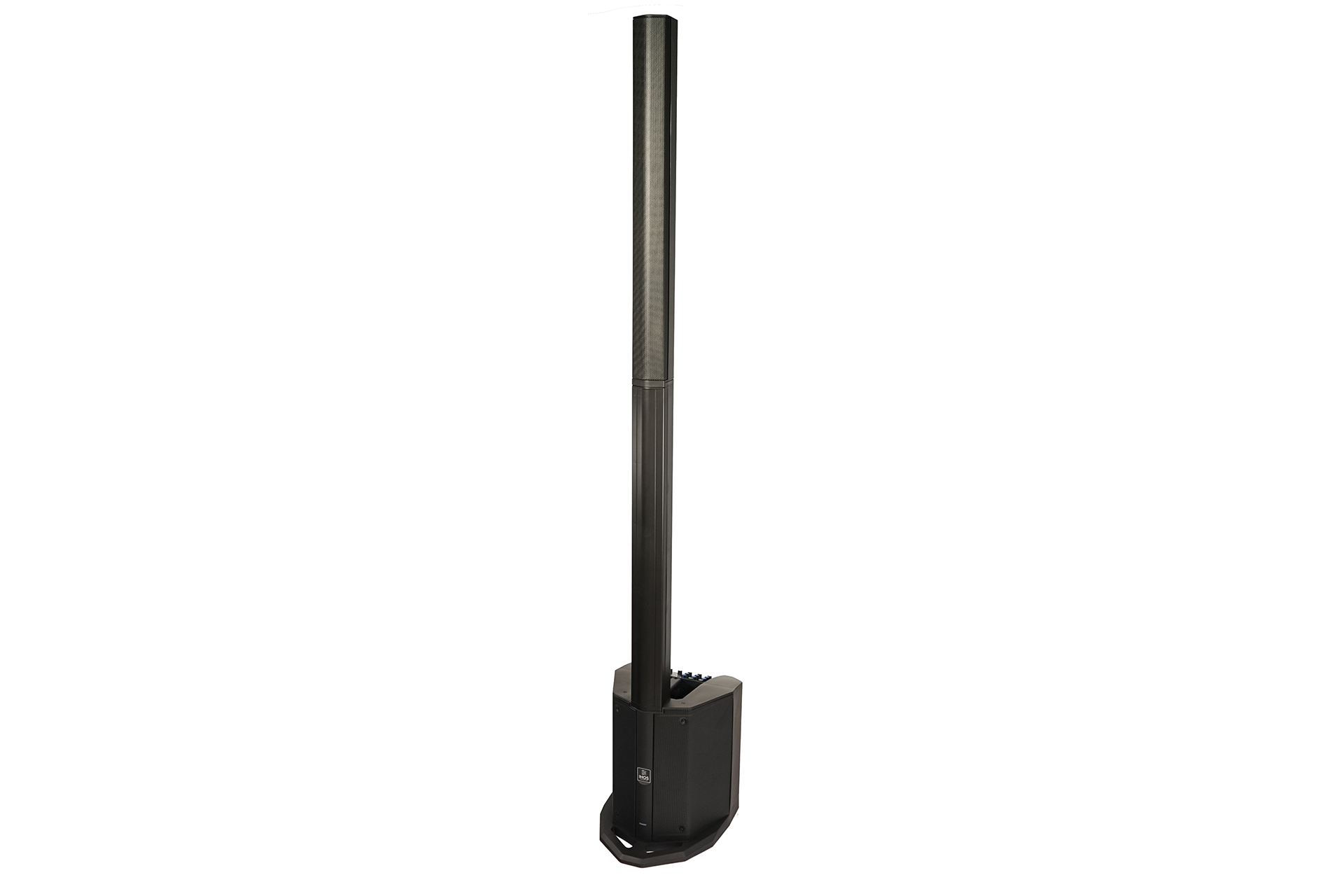

Column PA system, lightweight portable and feature packed. speaker 1x8 sub, 6x2.75 hf, 120 dB SPL , 125W (sub)+125w (sat), Frequency response 50-20KHZ, German Engineering Class D amplifier, internal mixer with reverb and bluetooth,
Price
Please login to see the price.
  • Technical Specifications

    Inputs: XLR/TRS combo jack, stereo RCA & 1/8" AUX input / Bluetooth.

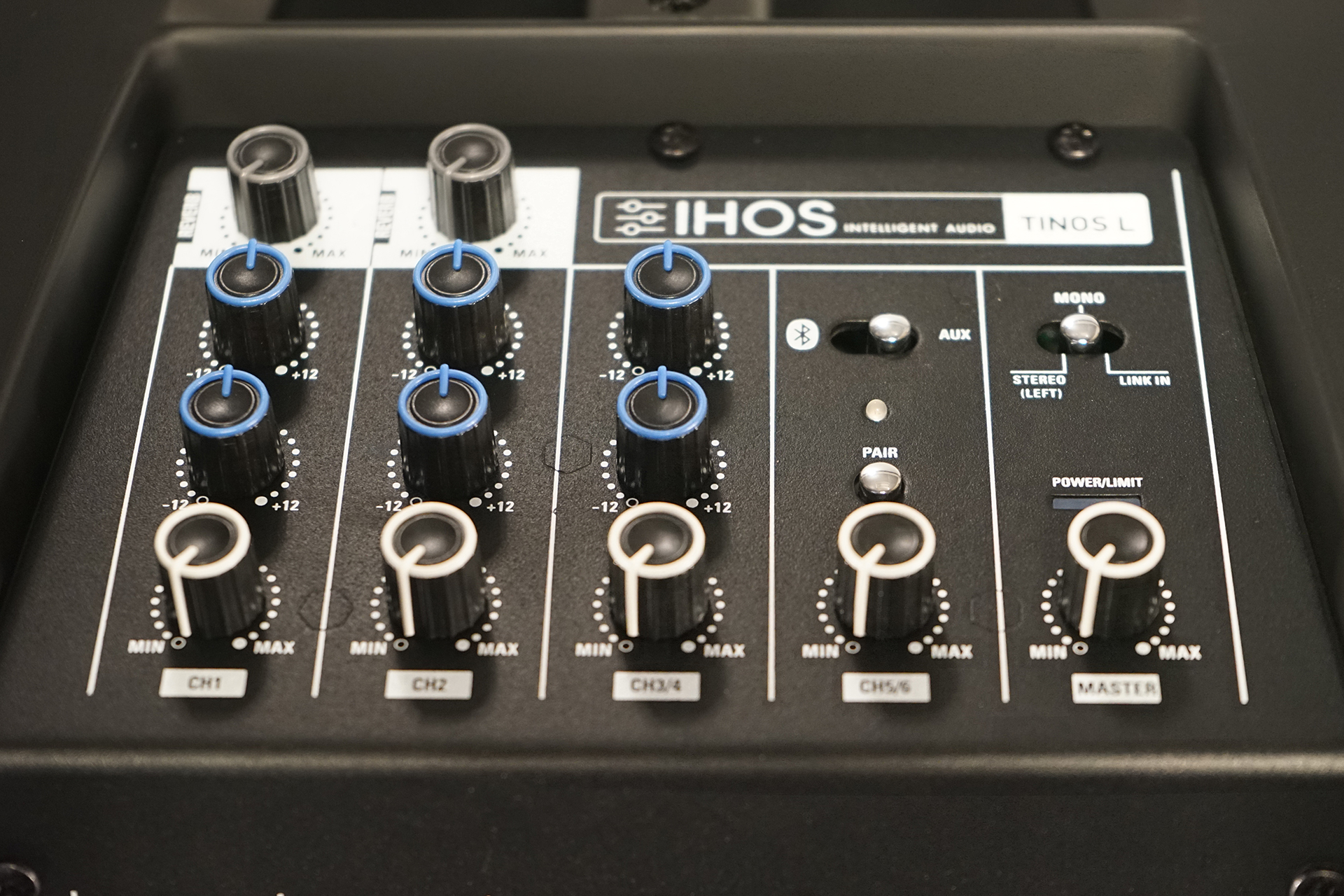

    Line out: XLR balanced 3 channel mixer.
    RMS 125 Watt (sub) 7 125 Watt (sat).
    Volume control for each channel.
    Power input: 100 /240 Volt, 50/60 Hz.
    German Engineering Class D amplifier + switching power supply.
    2 band EQ.
    Excellent compressor.
    Power / clip indicator.
    Frequency response: 55 / 200 Hz.
    Max output SPL: 114 dB (at max. amp output).

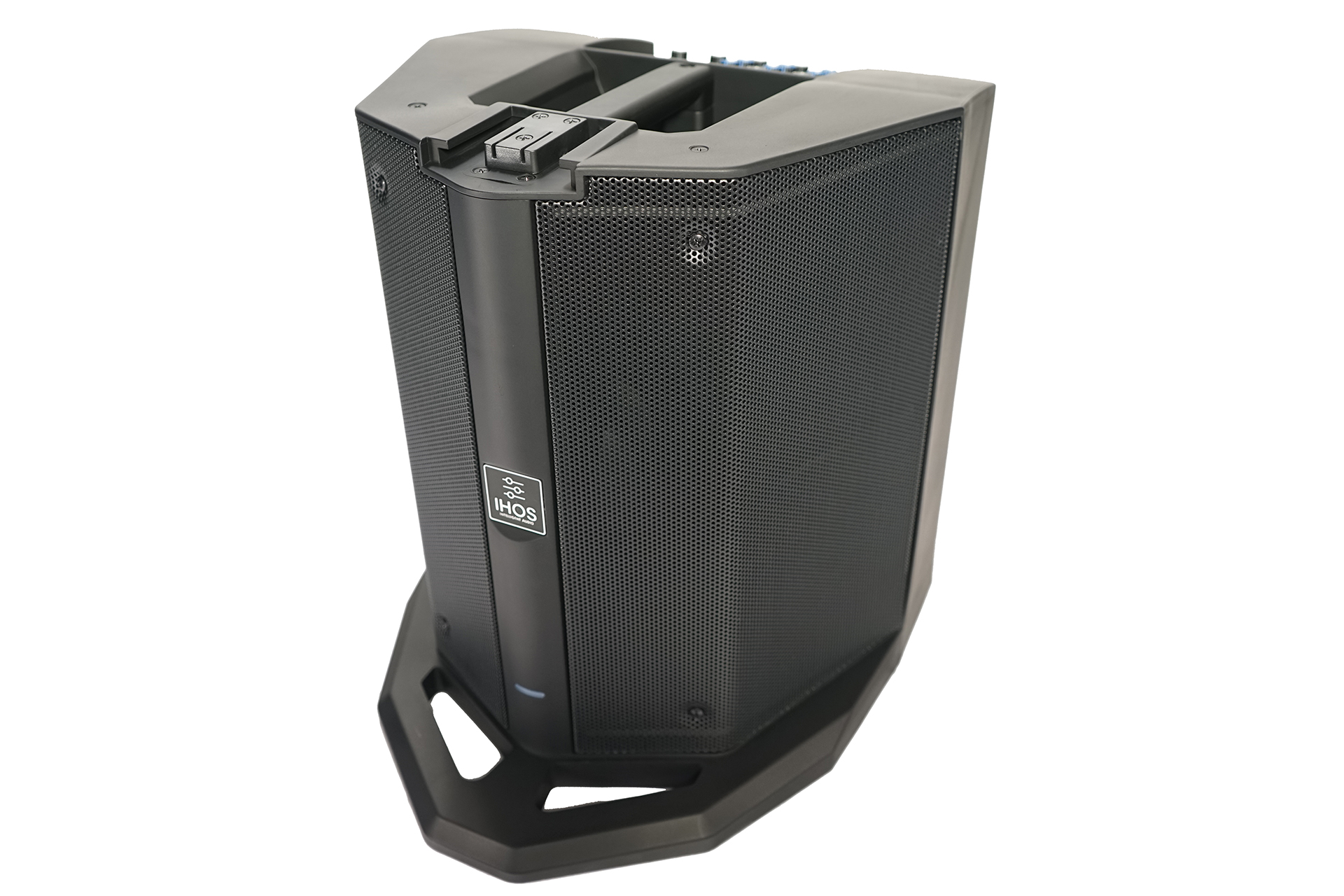

    Subwoofer

    Active vented subwoofer.
    Driver: 8" subwoofer, 1,5" vc 33oZ (T1SW8).
    PP plastic cabinet.
    1 mm steel mesh.

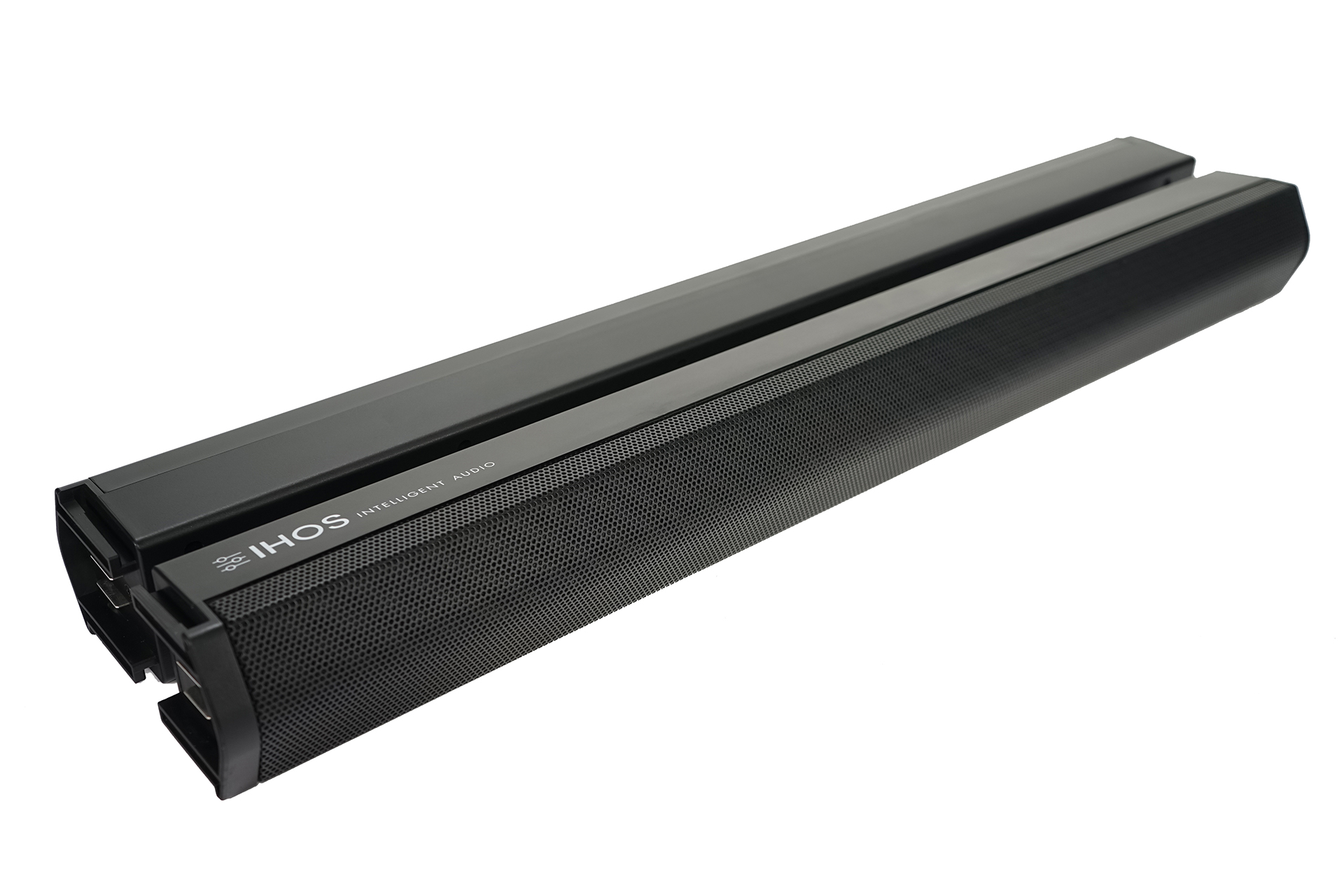

    Satellite

    Passive full-range speaker
    Frequency response: 180 - 20 kHz.
    Directivity: 90° H x 10° V
    Max. output SPL: 114 dB.
    Impedance: 4 Ohms.
    Driver: 6x 2.75" full range line array.
    PP plastic cabinet.
    1 mm steel mesh.

    Satellite dimensions: 11 x 20 x 85 cm, 5 Kg.
    Subwoofer dimensions: 51 x 40,5 x 51 cm, 13 Kg.


  • Packing Details

    Tinos S: 20 x 11 x 86 cm, 4,5 Kgs.
    Tinos L: 51 x 41 x 51 cm, 13 Kgs.

Manual
