HYDOR WASH - old

Product code:L005881
Innovative outdoor IP66 Led Wash, 19x40 watt RGBW OSRAM LE RTDUW S2WN led source, Zoom range?9.8°-48.8°, Color temperature correction: 3200K~6500K, Control channels (DMX): 21/21/37. Protocol: DMX-512 RDM.
TEXT_PRODUCT_DESCRIPTION
Light Source / Optics

Light source: OSRAM LE RTDUW S2WN
Expected average lifetime: 20000 h
Color temperature correction: 3200K~6500K

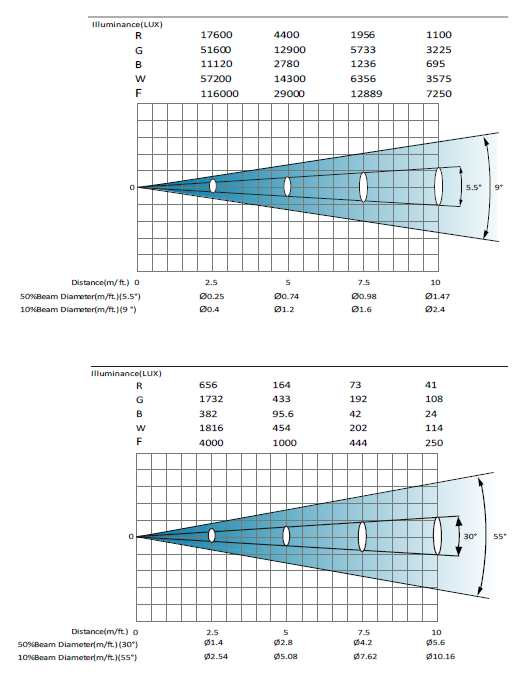

Lumen (max. zoom):13000lm
Zoom range:9.8°-48.8°(10%)/6.6°-33.6°(50%)Linear high speed zoom
CRI:Ra≥70





RGBW color mixing.
Motorized zoom.
Linear dimming & Strobe 1-25Hz.
Pan/Tilt movement: 540˚/230°.

DMX control channels: 21 / 21 / 37.
LCD display for accesing the options menu.

Operating range: 5˚F to 113˚F (-15˚C to 45˚C)
Startup range: -12.9˚F to 113˚F (-25˚C to 45˚C)
Storage range: -39.9˚F to 140˚F ( -40˚C to 60˚C)
Cooling: Active fan
Humidity: ≤75%

Weight: 50.70 lbs (23kg)
IP rating: IP66
Material: Aluminum, copper, steel, plastic, iron.

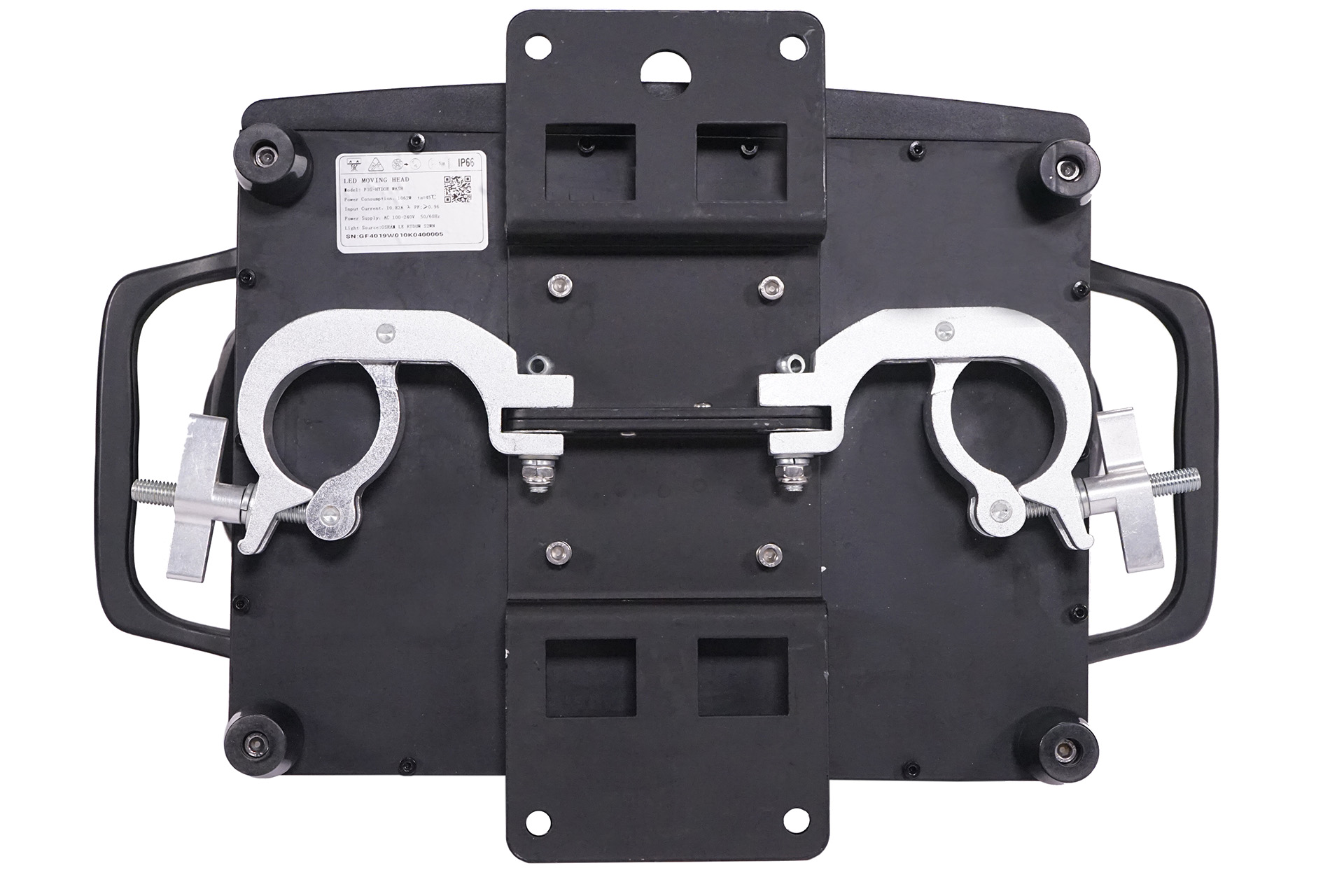

Mounting points: 4 fixed folding lamp(1/2 type) + attachment points for safety wire.





EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,
GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008

Filters
