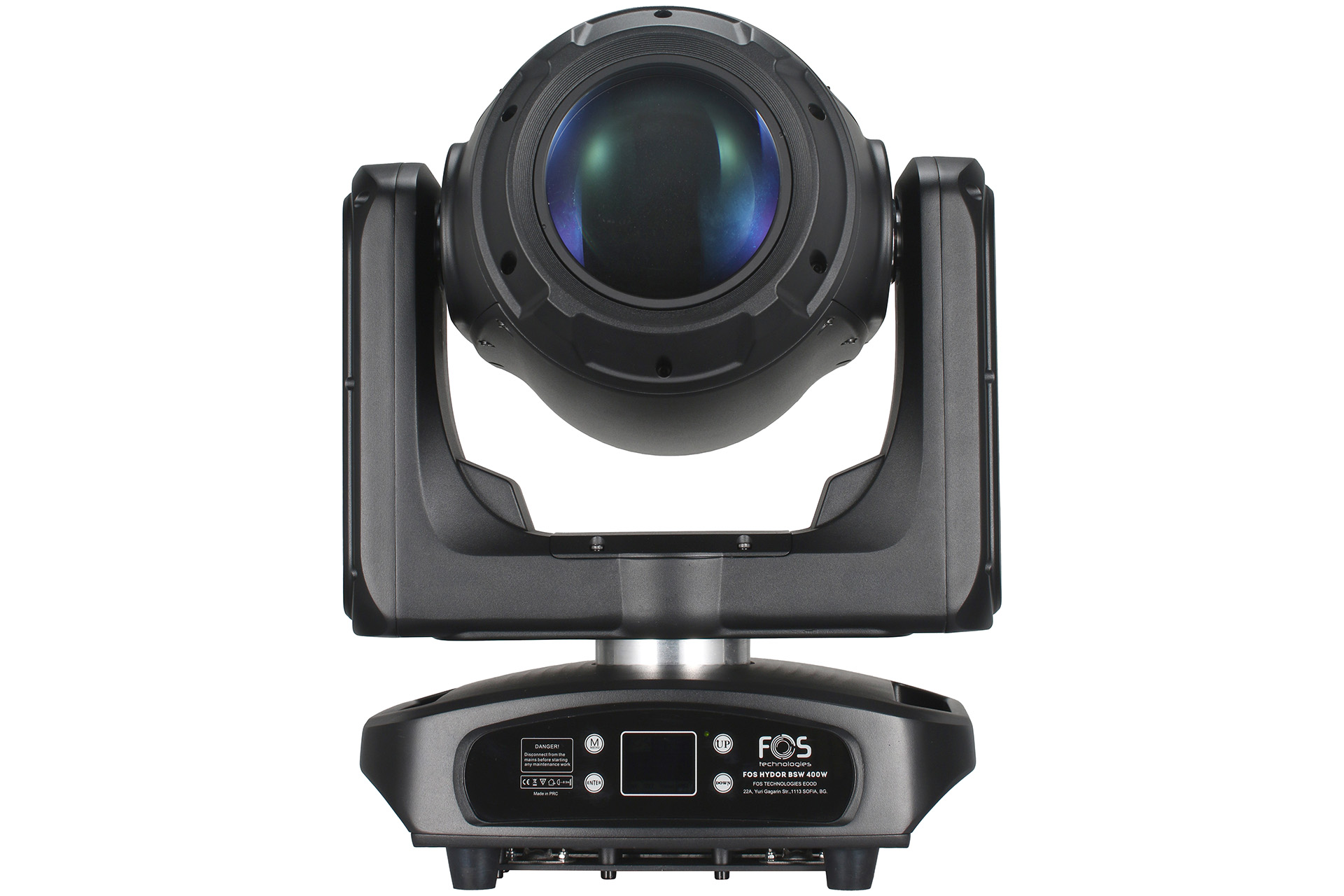

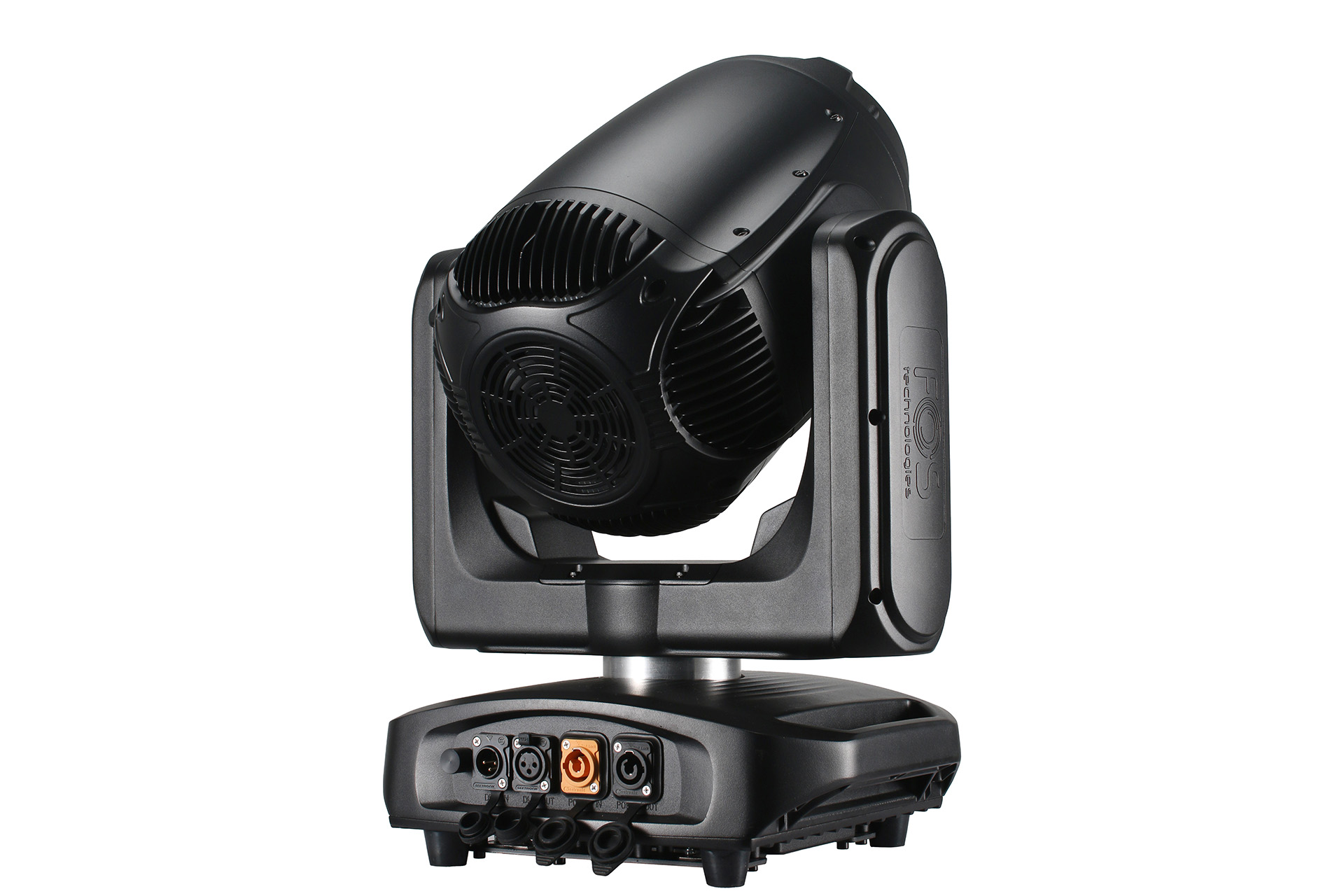

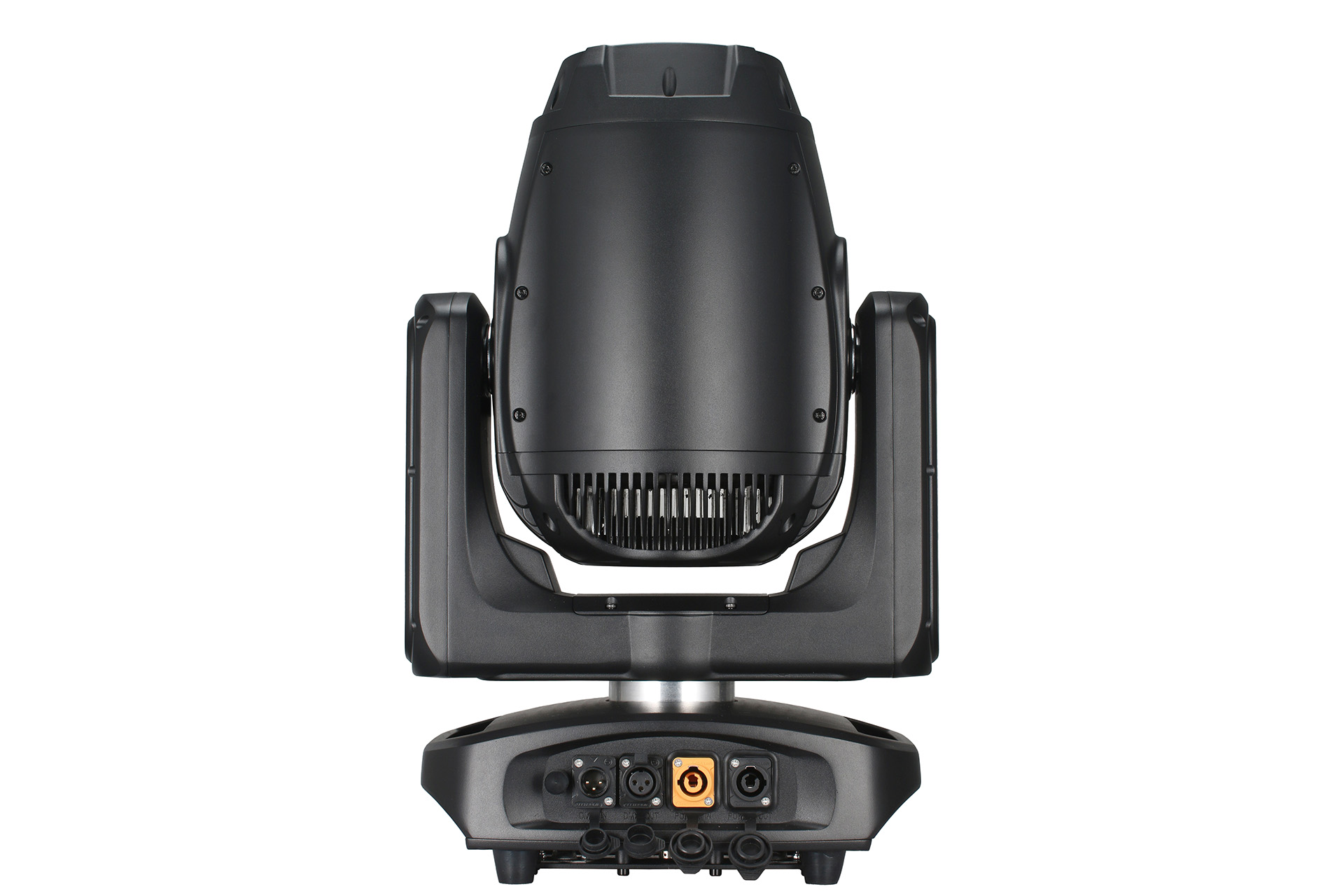

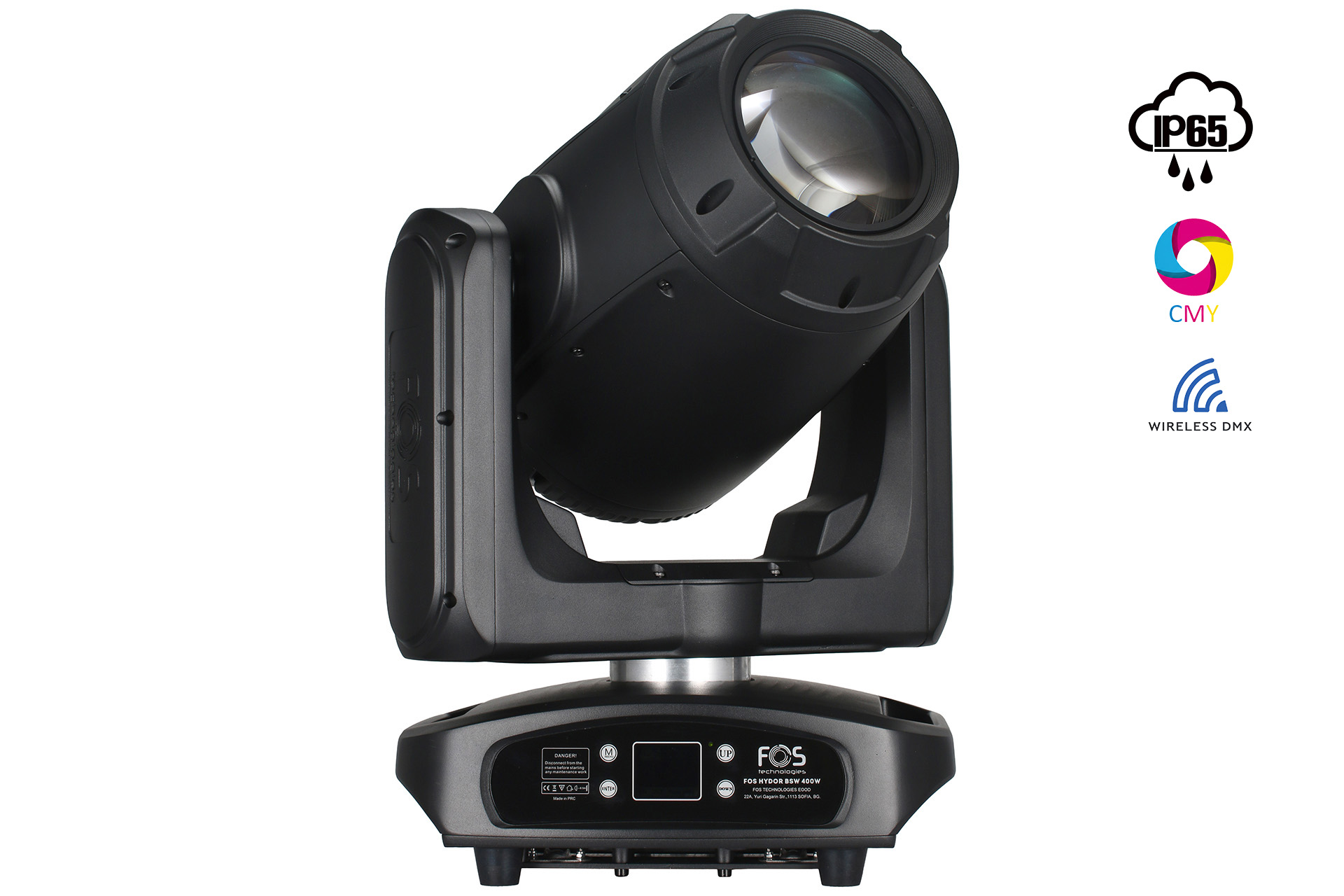

FOS Hydor BSW 400

Product code:L007955
Multifunctional IP65 BSW led moving head, 400 watt 7000K led engine module, CRI 70, CMY color mixing, linear CTO, 10 fixed color wheel, motorized zoom 4-38 degrees, electronic focus, gobo morphing overlay, 7 rotating interchangeable gobos, 12 static gobos, frost filter, prism, 16bit 0-100% linear dimmer, light weight Magnesium alloy housing, LCD display with 4touch buttons, wireless DMX and RDM function, silent fan operation, weatherproof powercon, 28kg.
TEXT_PRODUCT_DESCRIPTION
Description

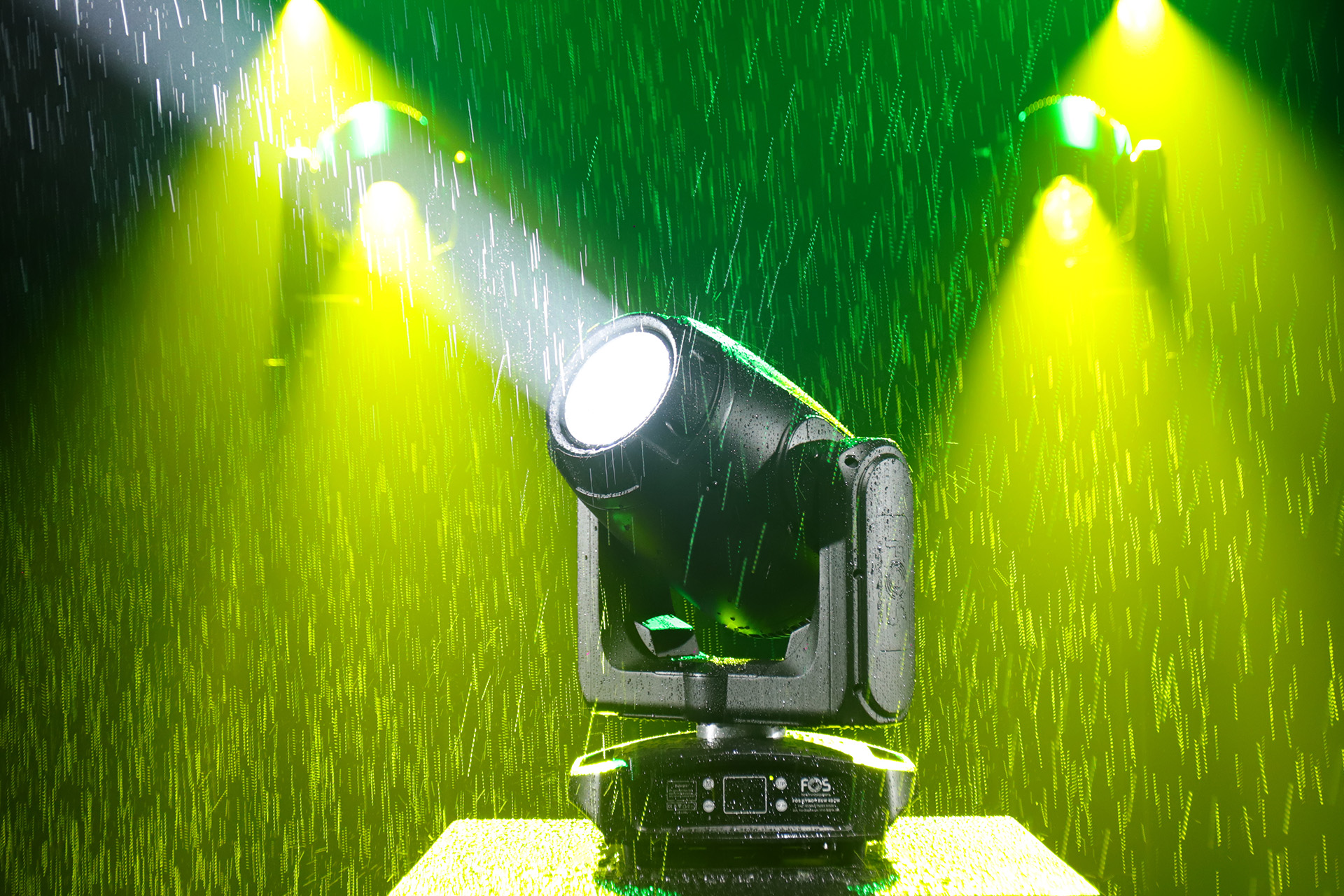

Engineered to dominate the elements without sacrificing performance, this IP65-rated BSW (Beam, Spot, Wash) moving head is the definitive solution for large-scale outdoor festivals, architectural installations, and high-end touring. At its core lies a potent 400W 7000K LED engine, delivering a piercing cool-white beam that cuts through the atmosphere with surgical precision.

Masterful Color & Texture
Craft the perfect atmosphere using the sophisticated CMY color mixing system and a linear CTO, allowing for seamless transitions from vibrant, saturated hues to warm, natural tones. The optical versatility is unmatched, featuring a massive 4° to 38° motorized zoom range. Whether you need a razor-sharp beam or a soft, expansive wash via the integrated frost filter, this fixture adapts instantly. Creative possibilities are further expanded by gobo morphing capabilities, utilizing 7 rotating and 12 static gobos alongside a rotating prism to create stunning mid-air textures and complex projections.

Pro-Grade Engineering
Despite its rugged, weatherproof construction, this unit defies the industry standard for weight. Housed in a lightweight Magnesium Alloy chassis, it weighs in at only 28kg, making it significantly easier to rig than traditional outdoor fixtures. Control is effortless and flexible, featuring Wireless DMX and RDM integration, a 4-button touch LCD interface, and ultra-smooth 16-bit linear dimming.

Reliability in Any Environment
Built for the rigors of the road, the fixture features:
Silent fan operation for noise-sensitive environments like theaters or corporate galas.
Weatherproof PowerCON and data connections to ensure a secure, moisture-free signal path.
IP65 certification, guaranteeing total protection against dust and high-pressure water jets from any direction.



IP65 Multifunctional BSW LED Moving Head:

Light Source & Optics
LED Engine: 400W White LED Module
Color Temperature: 7000K (Cool White)
CRI: 70 (Optimized for high-output stage brightness)
Zoom Range: 4° – 38° (Motorized Linear Zoom)
Focus: Electronic Motorized Focus
Dimmer: 16-bit Linear Dimming (0–10%)

Color & Effects
Color Mixing: Full CMY Color Mixing system
CTO: Linear CTO (Color Temperature Orange) for warm-white correction
Fixed Colors: 10 Colors + Open (on a dedicated color wheel)
Gobo Wheel 1: 7 Rotating, indexable, and interchangeable gobos
Gobo Wheel 2: 12 Static gobos (fixed)
Gobo Morphing: Supports gobo overlay and morphing effects
Prism: Rotating Prism (3-facet)
Frost: Independent Frost Filter for wash effects

Control & Programming
Protocols: DMX512, RDM (Remote Device Management)
Wireless: Built-in Wireless DMX receiver
Resolution: 16-bit Pan/Tilt movement and dimming
Interface: LCD Display with 4 touch-sensitive buttons
Silent Mode: Fan speed control for quiet operation

Physical & Environmental
IP Rating: IP65 (Weatherproof / Outdoor Rated)
Housing: Lightweight Magnesium Alloy (Durable and high heat dissipation)
Weight: 28kg
Connectors: Weatherproof PowerCON ) and 3-pin/5-pin XLR
Cooling: High-efficiency silent fans
