DM8 L005638
Scroll on photo to zoom in or Click to enlarge
DM8 L005638

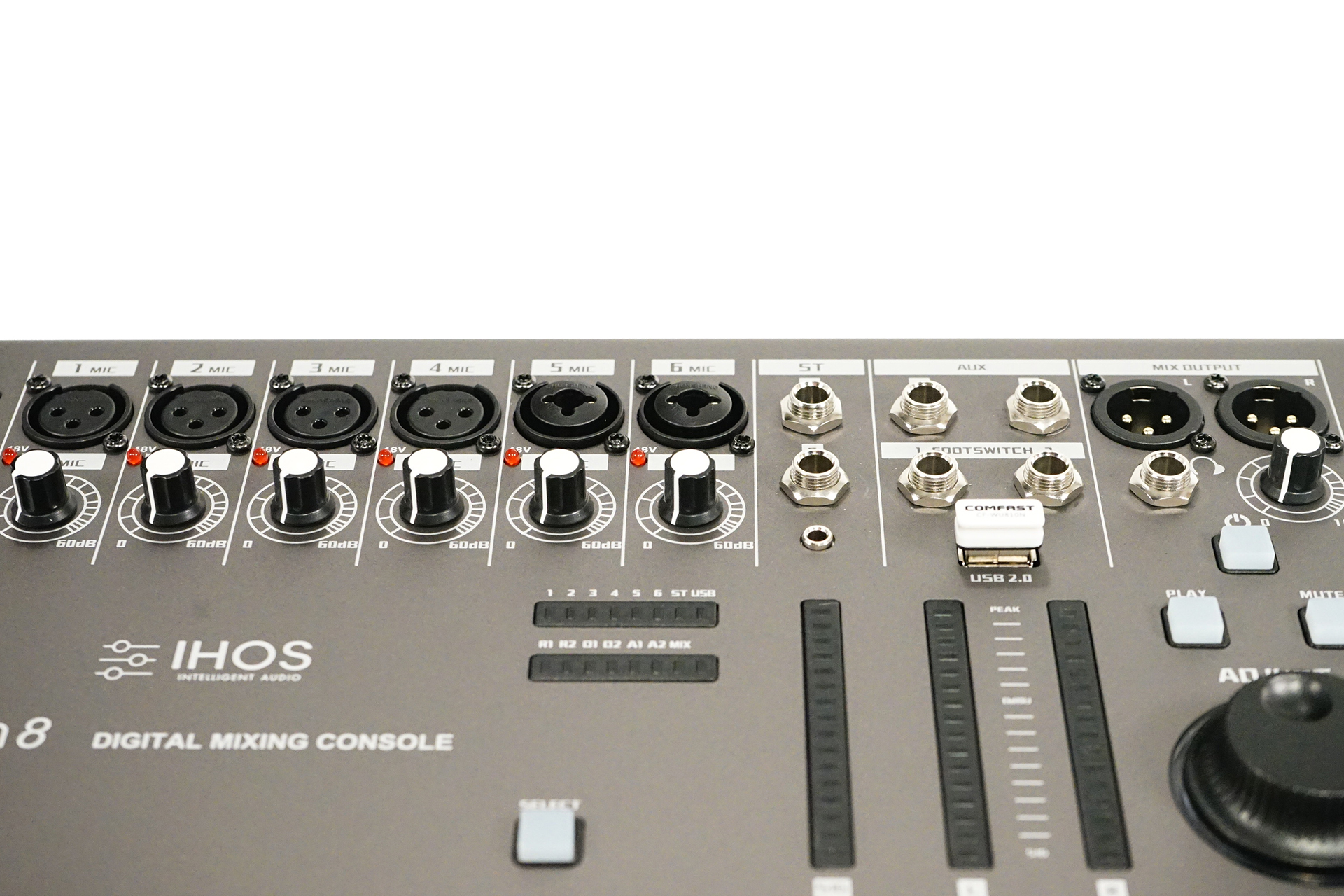

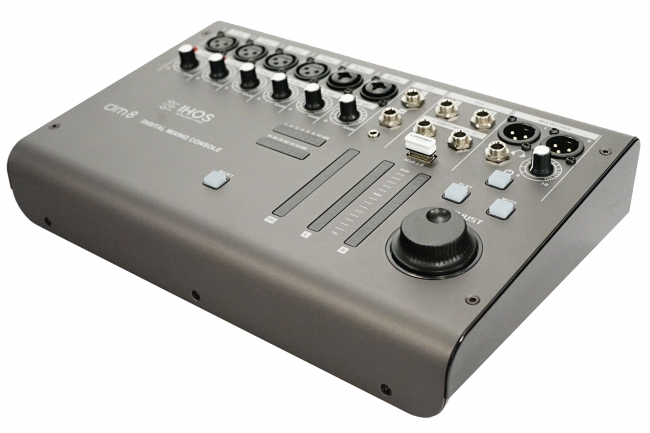

Digital mixing console , 8 channel - 6 mic inputs, 1stereo inputs, 2 XLR outputs, 2 bus, 4 Effects Modules ,2 reverb ,2 Delay, WIFI connecting to USB wireless module,1 LAN interface
Price
Please login to see the price.
  • Technical Specifications

    Microphone input: 6 channels, 2 Combo XLR.
    Channel input: 1 pair of stereo, 2 jacks.
    Main output: 2 XLR.
    AUX output: 2 jack outputs.
    Footswitch: 2 jacks.
    Monitor: 1 jack.
    Mic input impedance: 3K.
    Line input impedance: 20K.
    Output impedance: 75Ω.
    Headphone output impedance: 100Ω.
    BUS remaining output noise: -90 dBu.
    Maximum voltage gain: 80dB input to output.
    Dynamic Range: 106dBu (20Hz - 20 kHz).
    AD/DA: Maximum 24bit / 48 kHz supported.
    Signal processing: 40bit floating point processor.
    Signal latency: <1.8 msec input to output.
    Phantom power supply: 48V, each channel can be switched individually.
    Crosstalk @1kHz: -85dB.
    USB interface: 2 USB 2.0 interface, maximum 32G supported, can be used for USB disk playbak and recording, supports WAV & MP3 formats
    Network: WiFi connecting to USB wireless module, 1 LAN interface.
    Effects: 4x effect modules, 2 reverb, 2 delay.
    Power supply: DC adapter (AC 100/240 Volt AC, 50/60 Hz).
