FOS Splitter Quadro

Product code:L007918
4 independent channels DMX Splitter, 4x DMX IN and 16x OUT, separate optical and electronic isolation, strong anti-interference ability, and stable signal, black aluminum housing, M12 hole for clamp and safety cables to install on truss, DMX signal LED indicators, channel link and termination option, powercon IN/OUT, 2kg.
TEXT_PRODUCT_DESCRIPTION
Technical Description

The FOS Splitter Quadro is a professional-grade DMX-512 signal distributor designed for stable, high-quality signal regeneration and distribution in stage lighting environments. It effectively functions as four integrated splitters in a single unit, allowing for independent control of four separate input channels.

Core Functionality

Signal Isolation: All inputs and outputs feature individual optical and electronic isolation.

Interference Resistance: Engineered with strong anti-interference capabilities to ensure stable signal control across all channels.

Multi-Channel Architecture: Supports 4 DMX input channels and 16 DMX output channels that operate without affecting one another.

Hardware Specifications

Physical Construction: Features a black aluminum profile pane

Rack Mount: Supports installation into a standard 19-inch 1U rack.
Truss Mount: Includes an M12 hole for truss clamps and dedicated points for safety cables.
Dimensions: 482.6 mm x 44.5 mm x 143 mm Weight: 1.9 Kg.

Electrical & Connectivity

Power Requirements: $100-240Vac$, $50/60Hz$.

Power Consumption: Maximum 10W.

I/O Connectors:

Power: PowerCon IN and OUT for daisy-chaining.

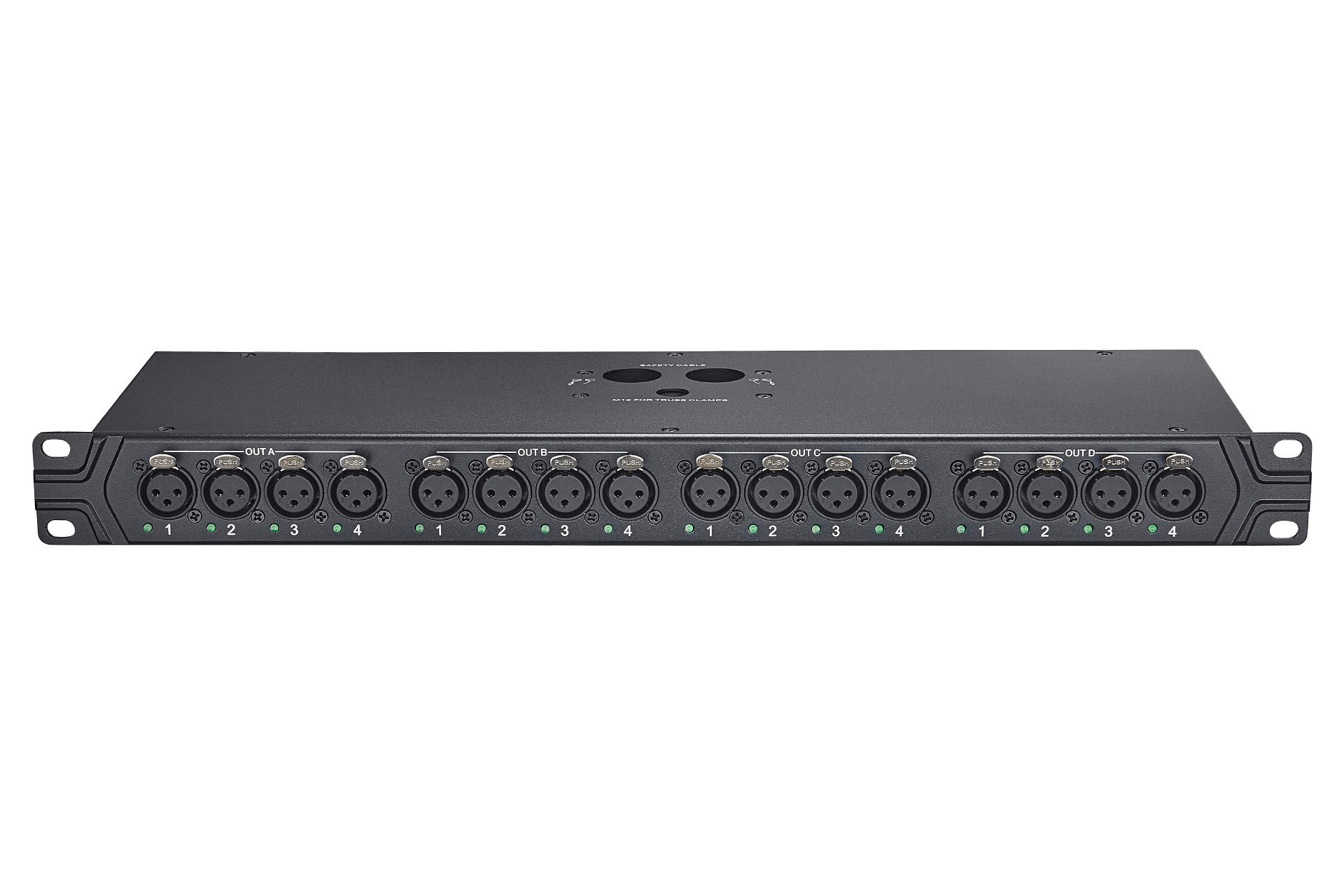

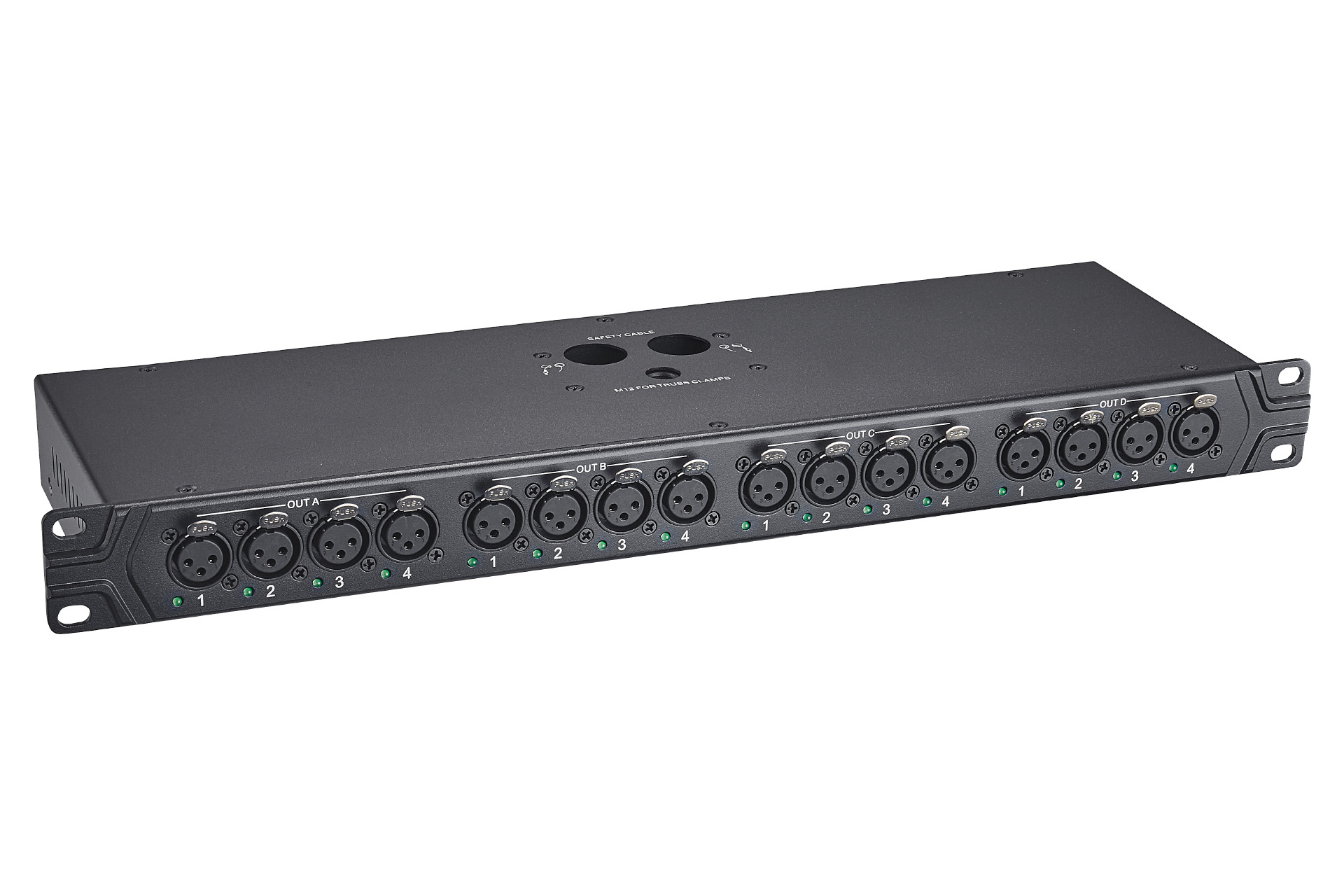

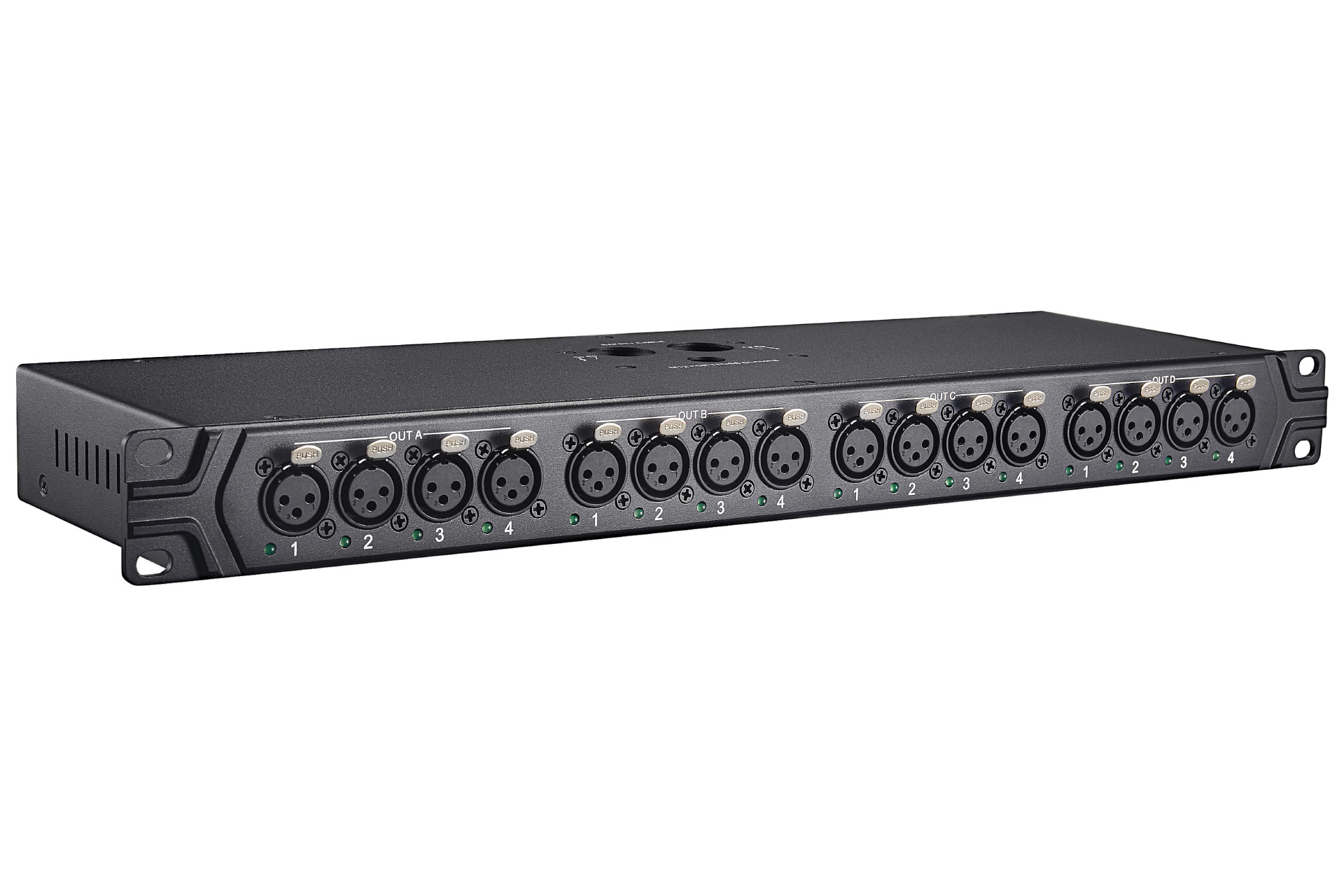

Data Front: 16 DMX outputs divided into four groups (A, B, C, and D), each with 4 outputs.

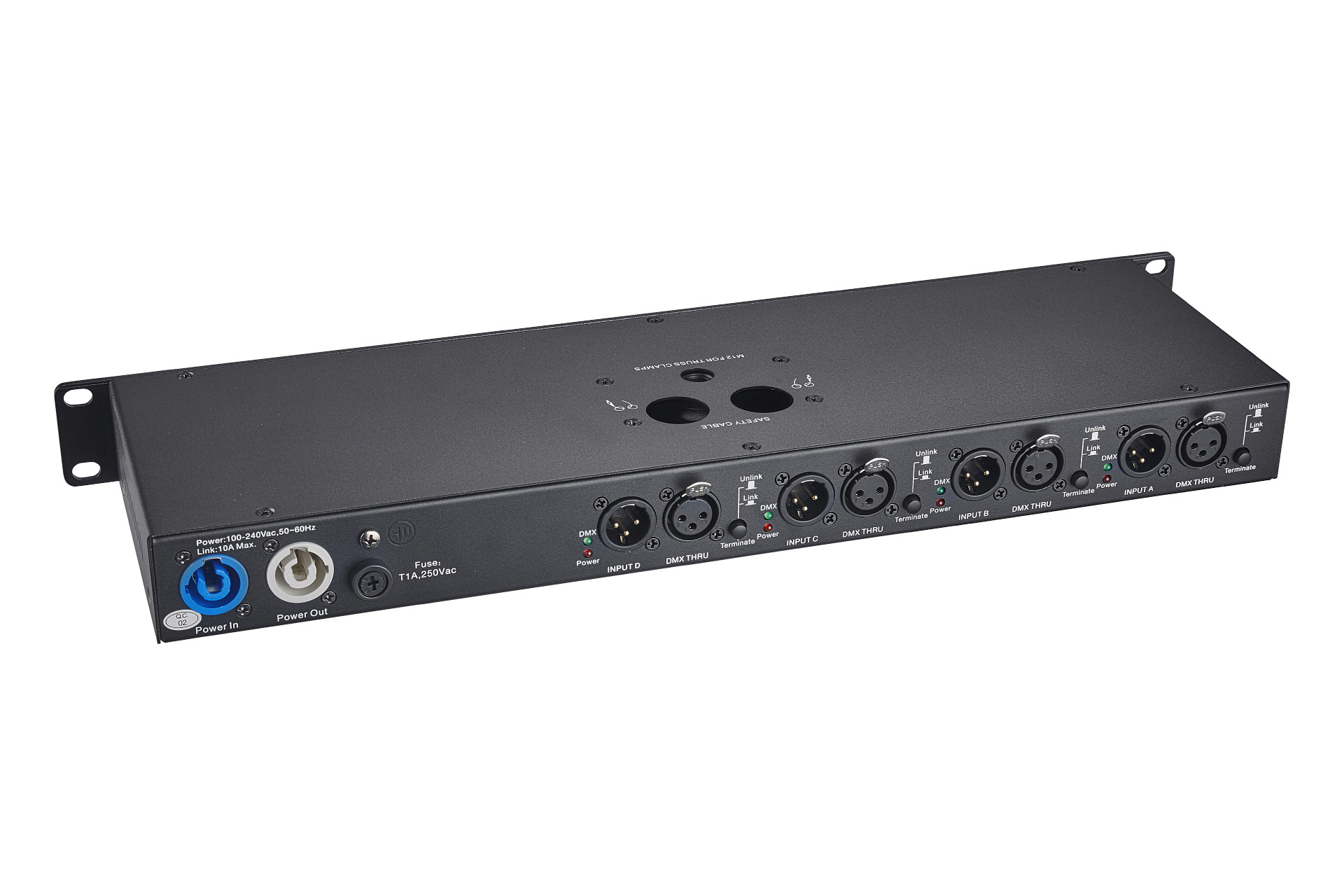

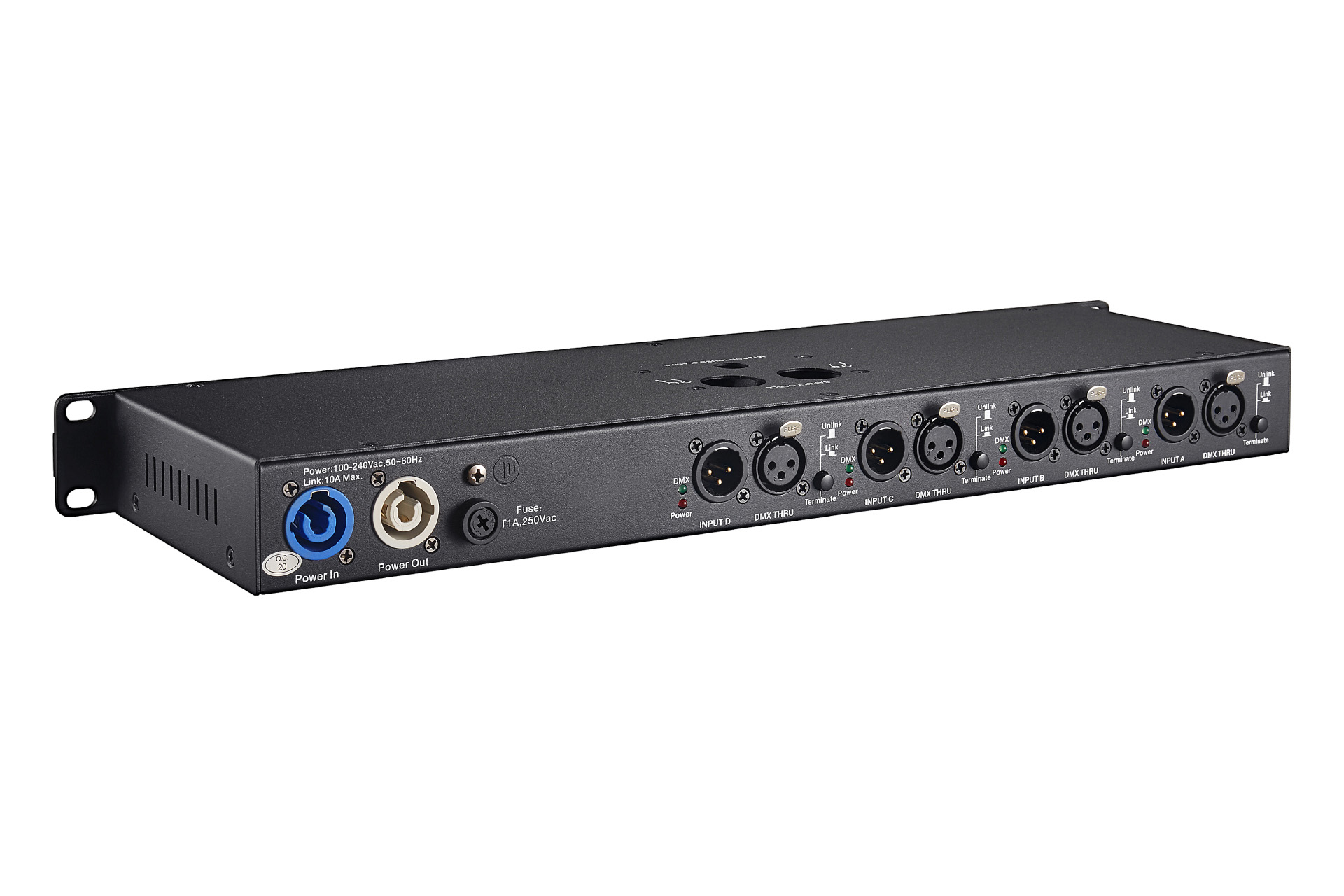

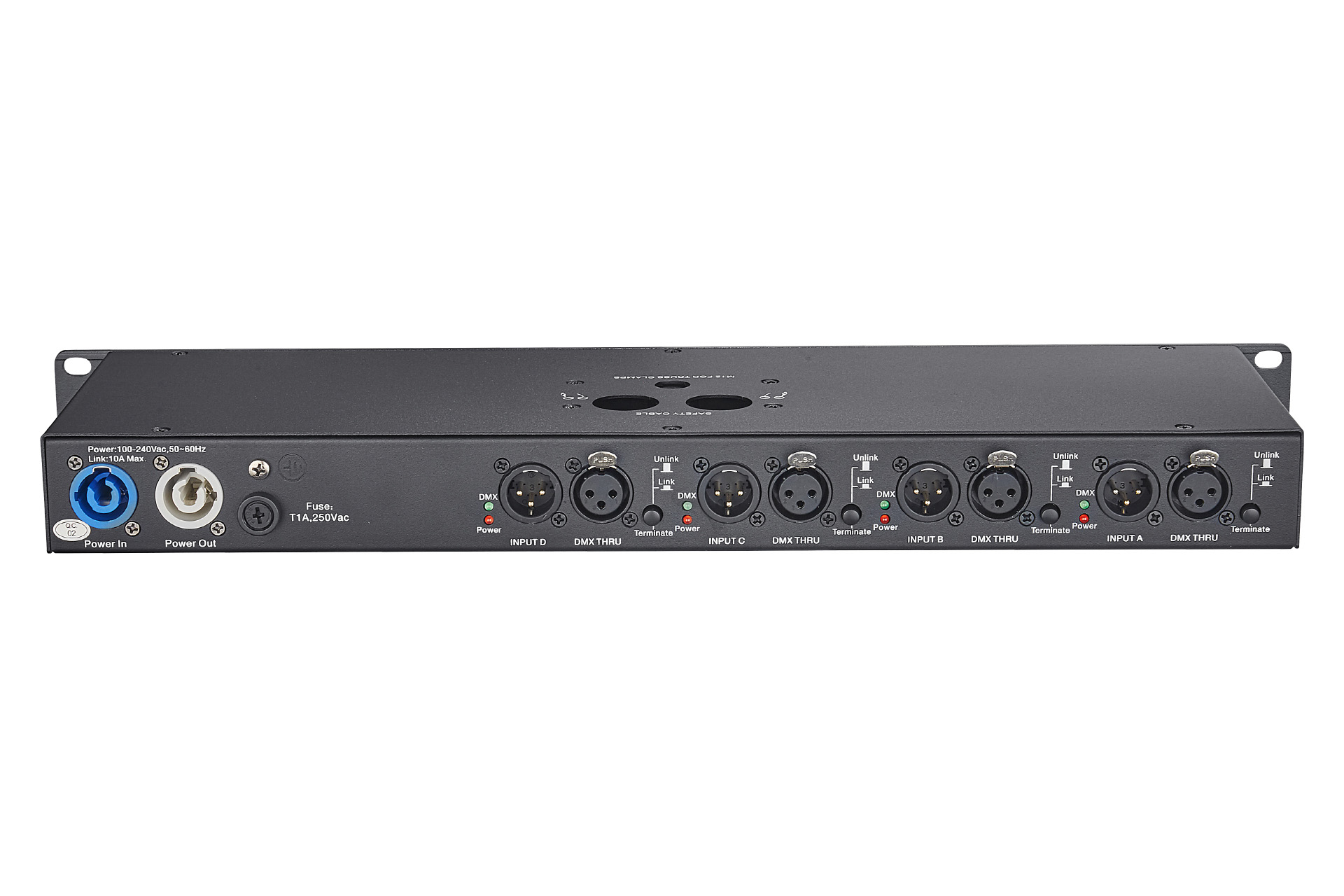

Data Back: 4 DMX inputs (A, B, C, D) featuring THRU ports and Terminate switches.

Circuit Protection: Includes a T1A, 250Vac fuse.
