Technical Specifications

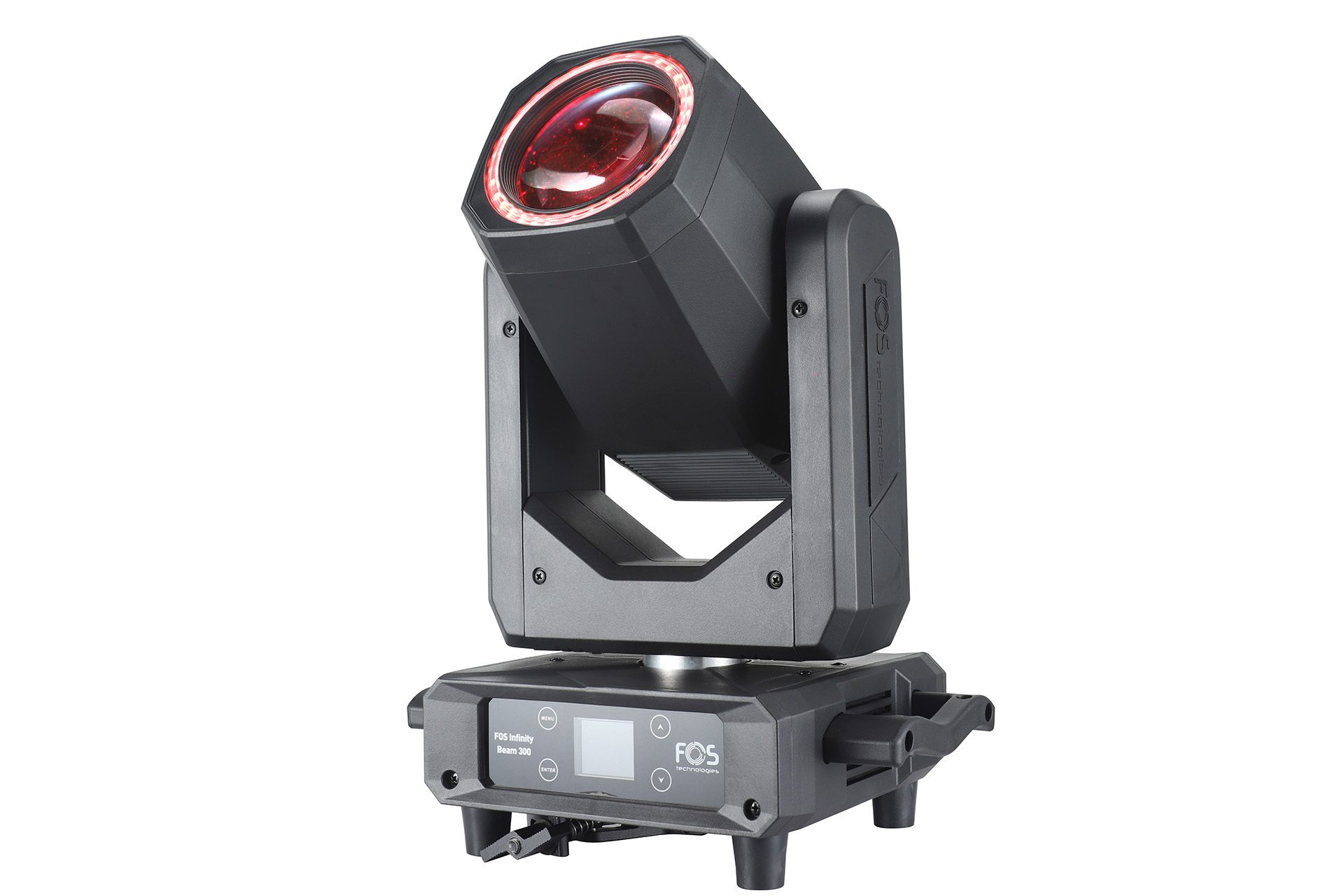

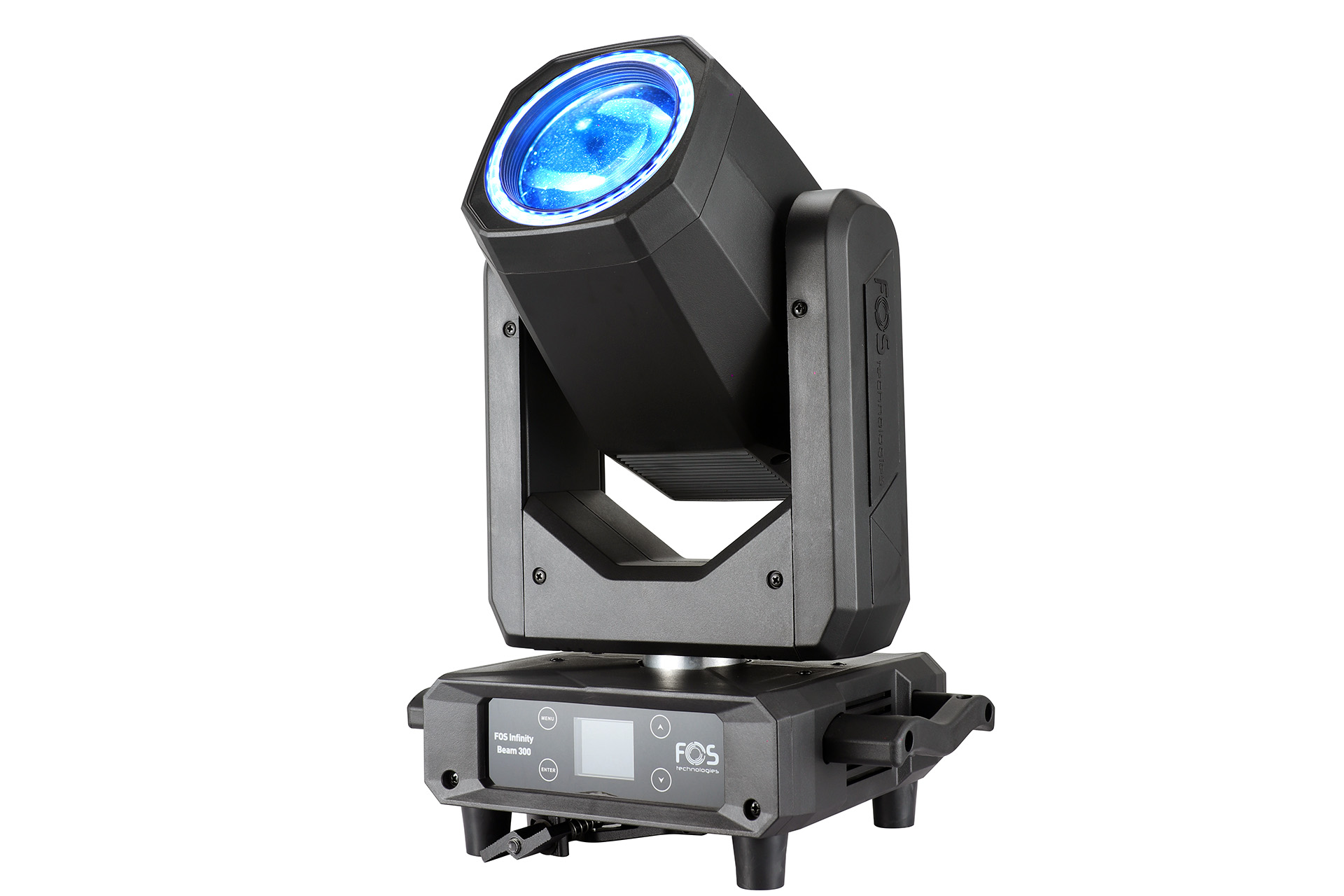

This hybrid moving-head light fixture combines a high-output beam engine with a decorative perimeter halo ring, engineered for high-impact visual performance in stage lighting environments. Its primary light source relies on a PHILIPS MSD Bronze 10R lamp coupled with a large 100mm front lens to deliver an ultranarrow, punchy 2∘ beam angle. Encircling the optics is an independently controllable halo ring made of 33x0.3W RGB LEDs behind an acrylic lens, allowing for dual-layer lighting effects.
Built for continuous, dynamic movement, the fixture features infinite continuous Pan and Tilt rotation, eliminating end-stop restrictions during motion programming. Optical effects include an electronic focus function, dual circular prisms (12-facet and 48-facet) for wide multi-beam splitting, a color wheel with 7 colors plus a yellow gradient, and a gobo wheel with 3 colors and 10 static gobos. The fixture draws 300W of power, operates via 27 DMX channels, and sits in a compact housing measuring 304×222×446mm at 8.50 kg.
Effects

1) Pan/Tilt: Infinite Pan/Tilt Rotation
2) Color Mixing/Gradients: 7 Colors and Yellow gradient
3) Gobo System: 3 Colors and 10 Static Gobos
4) Optical Effects: Circular 12-facet and Circular 48-facet Prisms
5) Beam Adjustment: Electronic Focus function

Light Source: BEAM: PHILIPS MSD Bronze 10R Lamp
HALO: 33x0.3W RGB LEDs (Acrylic+lens)
Beam Angle: 2 degrees 100mm Front lens
Power Consumption: 300W
Color Wheel : 7 Colors and Yellow gradient
Gobo Wheel : 3 Colors and 10 Static Gobos
Prisms Circular: 12-facet and Circular 48-facet Prisms
Other Effects : Electronic Focus function
Input Voltage : AC 100 – 240V, 50/60Hz
Movements: Infinite Pan/Tilt Rotation
Channels: 27-Channels
Weight: 8.50 KGs
Dimension: 304×222×446 mm
