Analog Mixing Consoles

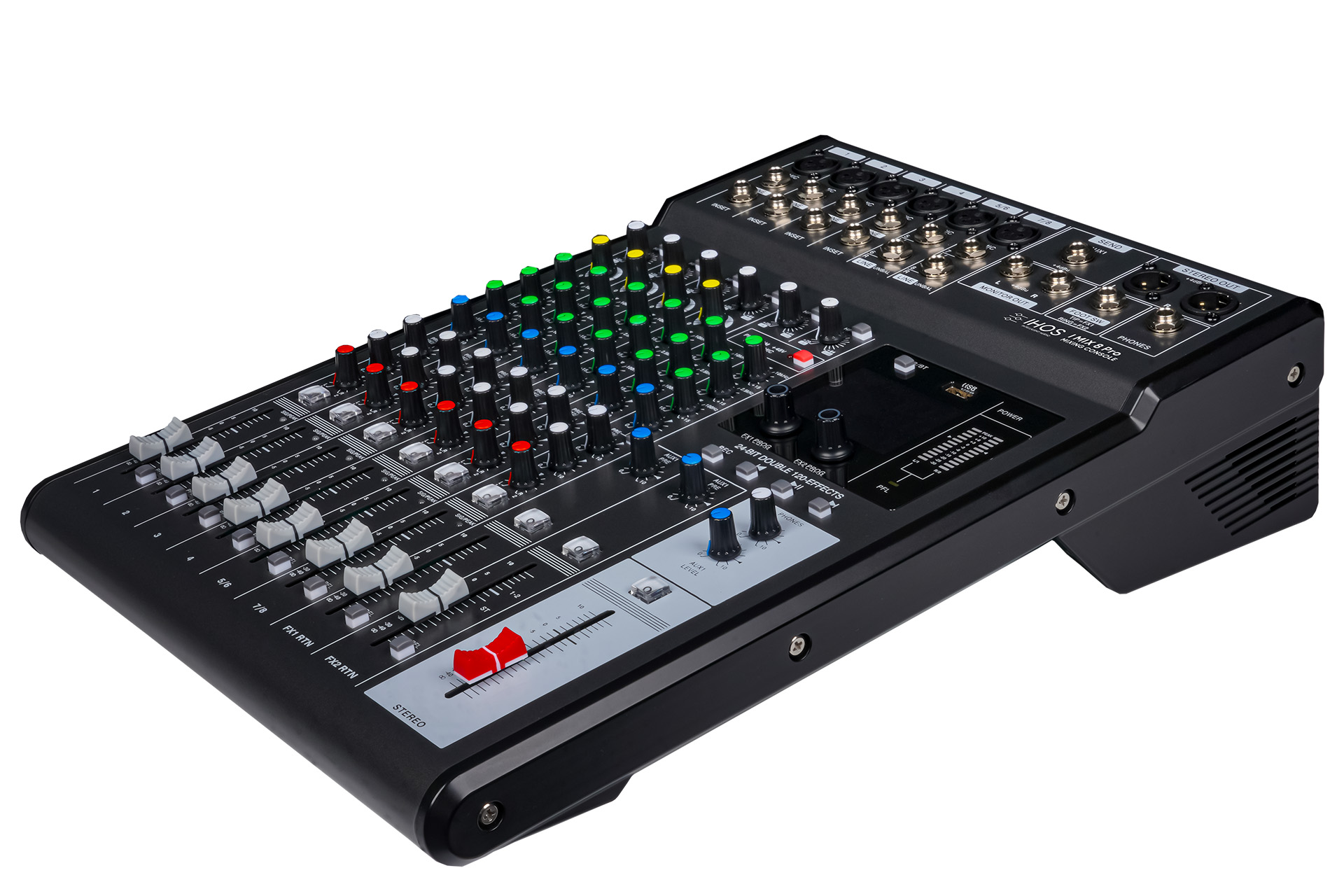

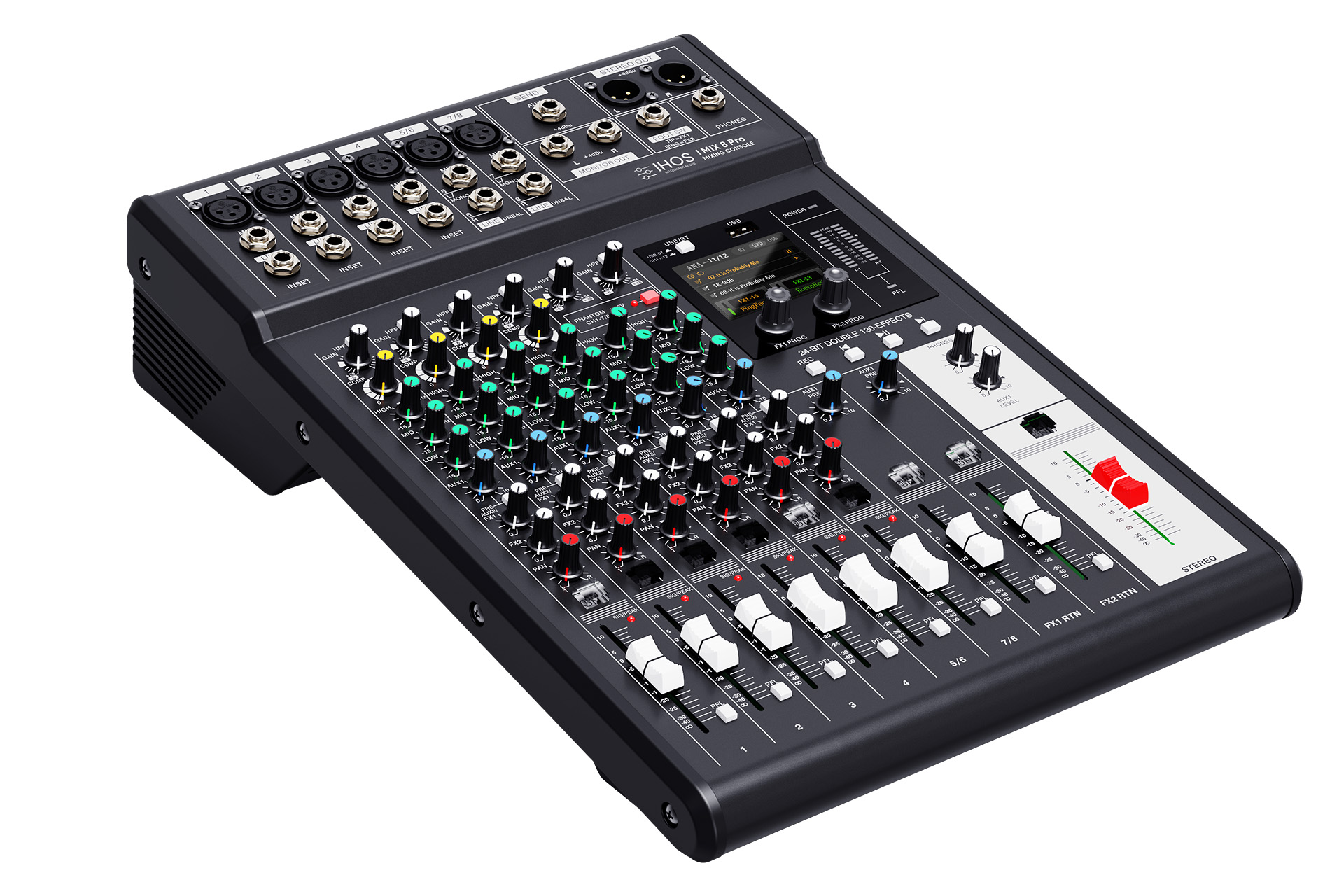

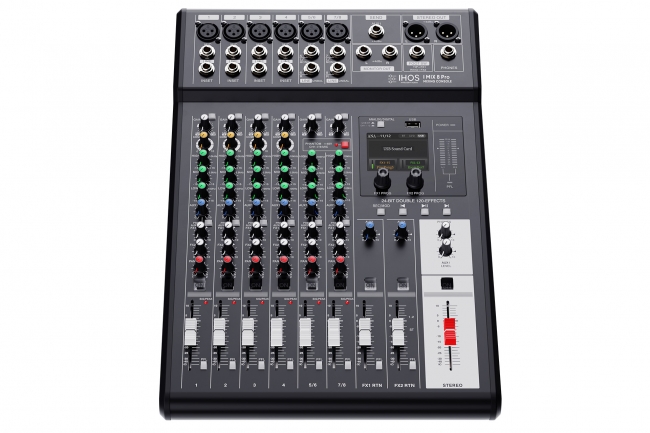

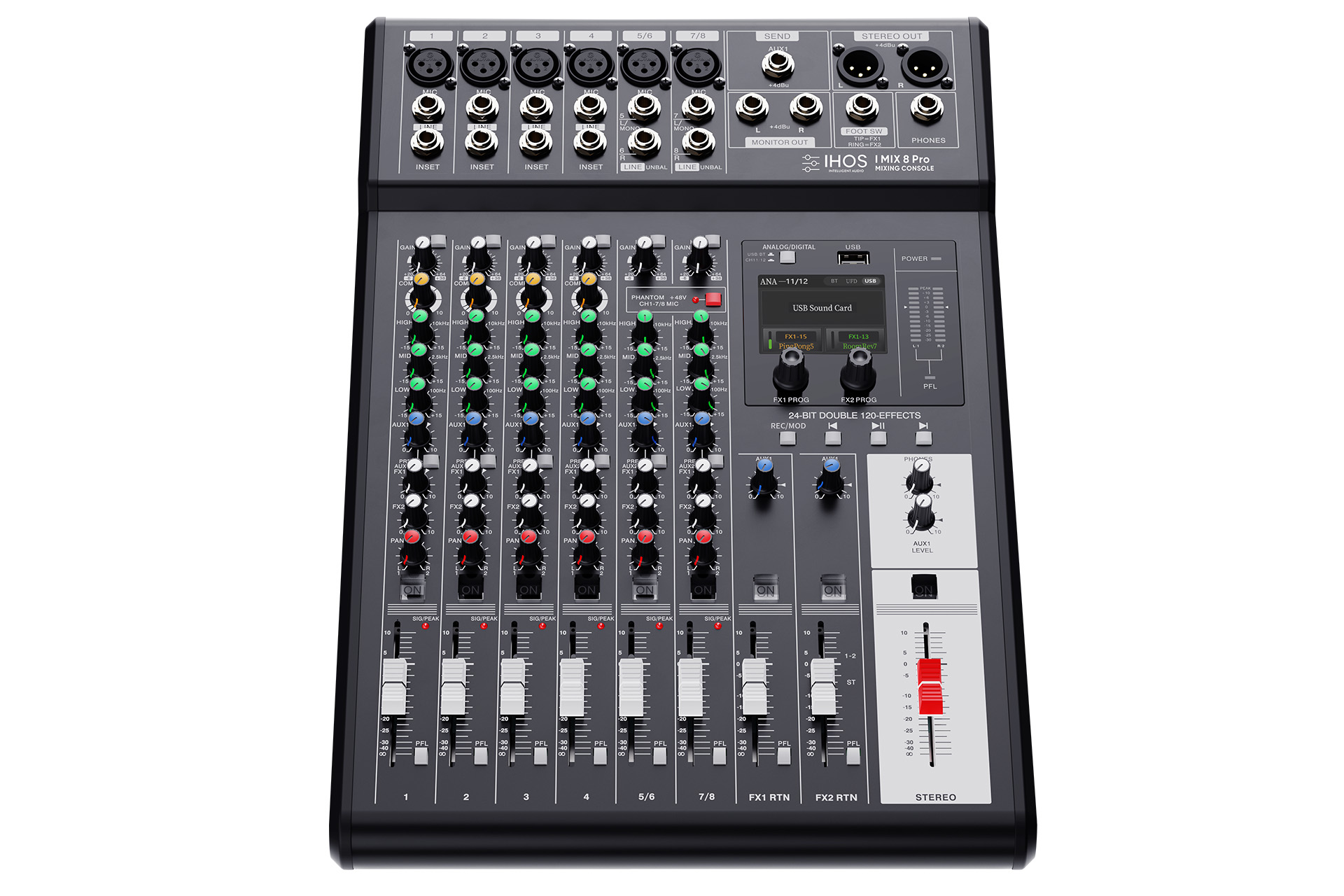

The IMix PRO combines the tactile reliability of analog mixing with modern digital processing. Featuring a vibrant 2.8-inch color LCD and a dual-effects engine, these consoles are engineered for high-fidelity sound reinforcement in small-scale live performances, conferences, and studio environments.
Key Features
Dual-Effects Bus: Two independent FX processors with 9 effect types (including Reverb, Delay, Chorus, and Distortion) and 120 presets for professional-grade spatial processing.
Precision Control: Equipped with premium 60mm-throw faders and a 3-band EQ per channel for nuanced tonal shaping.
Integrated Dynamics: Built-in compressors (COMP) on Channels 1–4 to manage peaks and protect your signal chain, paired with an 80Hz High-Pass Filter (HPF) to eliminate low-end muddiness.
Versatile Connectivity: Support for XLR/TRS combos, dedicated "Tri-mode" inputs (Analog/USB/Bluetooth), and a 24-bit/192kHz A/D-D/A converter for pristine audio transparency.
Rugged Design: Stress-tested knobs and buttons ensure stability in demanding mobile or fixed-install scenarios.
Dual-Effects Bus: Two independent FX processors with 9 effect types (including Reverb, Delay, Chorus, and Distortion) and 120 presets for professional-grade spatial processing.
Precision Control: Equipped with premium 60mm-throw faders and a 3-band EQ per channel for nuanced tonal shaping.
Integrated Dynamics: Built-in compressors (COMP) on Channels 1–4 to manage peaks and protect your signal chain, paired with an 80Hz High-Pass Filter (HPF) to eliminate low-end muddiness.
Versatile Connectivity: Support for XLR/TRS combos, dedicated "Tri-mode" inputs (Analog/USB/Bluetooth), and a 24-bit/192kHz A/D-D/A converter for pristine audio transparency.
Rugged Design: Stress-tested knobs and buttons ensure stability in demanding mobile or fixed-install scenarios.
Converters: 24-bit/192kHz resolution.
Dynamic Range: 116dB (A-weighted).
Frequency Response: 20Hz to 20KHz ($pm$0.5dB).
THD (Line): 0.0013% (at 0dB Gain).
Phantom Power: +48V available for condenser microphones.
USB Interface: UAC 2.0 protocol, 48KHz recording/playback.
Supported Formats: MP3, WAV, FLAC.
Bluetooth: Integrated for wireless playback.
Footswitch: ¼-inch TS port for hands-free FX toggling.
Display: 2.8-inch color LCD.
Power Supply: AC 100~240V, 50/60Hz (Global compatibility).
Consumption: 50W.
Operating Temp: -10°C to 40°C.
