FOS Ares PRO

Product code:L008090

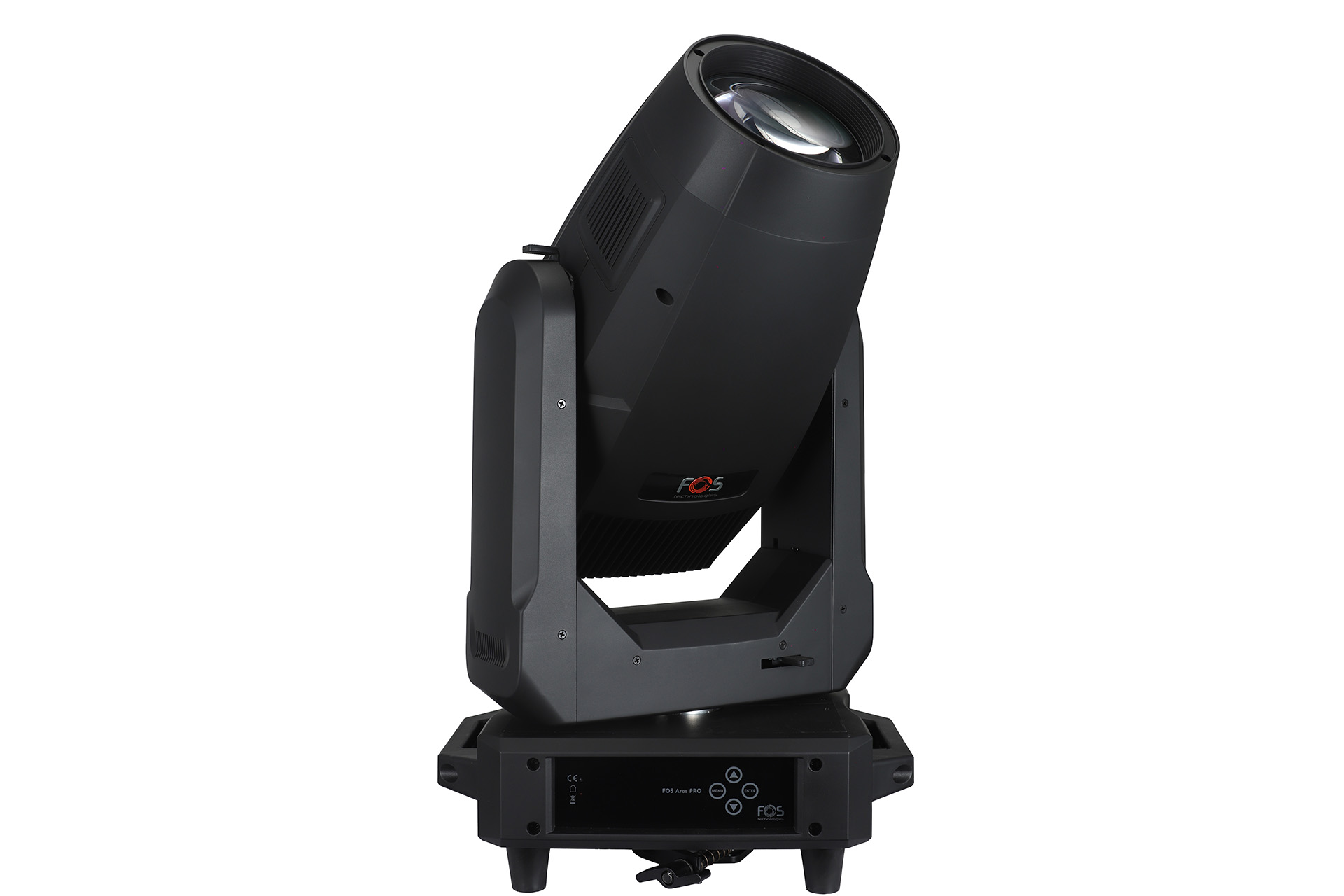

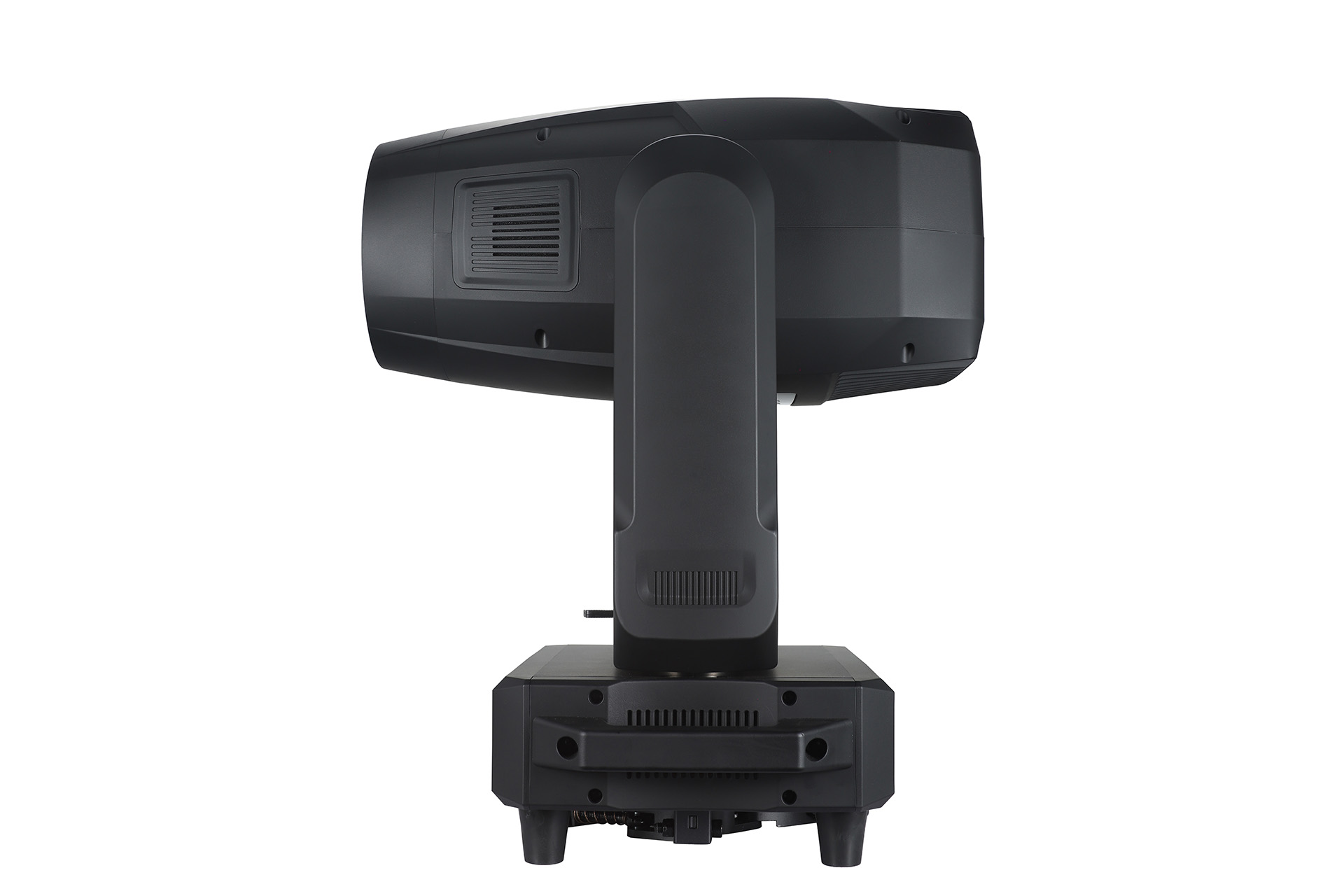

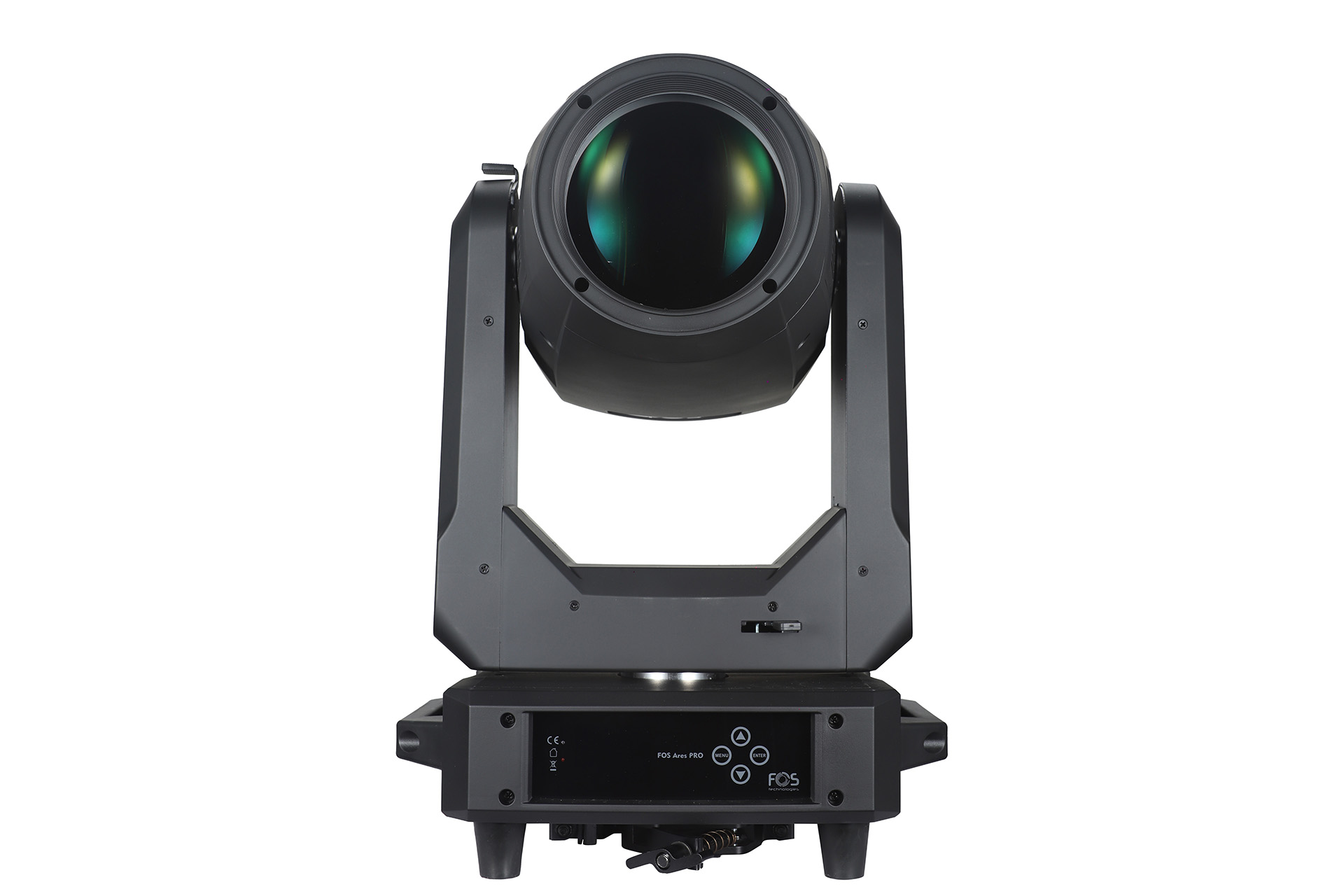

The FOS Ares PRO is a 600W LED moving head profile BSW hybrid fixture designed for professional stage and event lighting. It features a wide 3° to 40° zoom range, a built-in 4-blade framing system with 120° rotation, and full CMY + CTO color mixing. High-output standard CRI of 70 and an onboard filter to boost color rendering to CRI 90, animation wheel, iris, frost, 4-facet linear/row prism, 3-pin and 5-pin XLR DMX ports, Seetronic PowerCon in/thru, 25kg.
Product description

The FOS Ares PRO is a professional 600W LED moving head profile fixture engineered for demanding stage, theater, and large-scale event applications. Operating as a versatile Beam, Spot, and Wash (BSW) hybrid + Profile, it combines high-output optics with comprehensive beam-shaping capabilities to deliver maximum creative flexibility in a single unit.

Key Features & Operational Capabilities

  • Optical Output & Color Control: Powered by a 600W white LED engine (~20,000-hour rated lifespan), the fixture features a wide 3° to 40° continuous motorized zoom range. It provides smooth, full CMY color mixing alongside linear CTO color temperature correction. Output operates natively at a high-brightness CRI ≥ 70, with a selectable internal filter to boost color rendering to CRI ≥ 90 for broadcast, TV, and theatrical work.

  • Precision Beam Shaping: Equipped with an internal 4-blade framing shutter system featuring 120° module rotation, allowing operators to precisely cut and angle the beam.

  • Dynamic Effects Engine: Features dual gobo wheels (6 static textured/water-effect gobos + 7 indexable, rotating gobos), an animation wheel for continuous dynamic motion, a motorized iris, a linear frost filter, and a dual-prism setup combining a 4-facet linear prism with a dedicated 4-row prism.

  • Rigging & Connectivity: Includes 3-pin and 5-pin XLR DMX/RDM ports for control, alongside Seetronic PowerCon In/Thru AC loop connections. Weighing 25 kg, its housing is designed for efficient handling and rigging in professional lighting setups.

Light Source & Lifespan: 600W LED module with ~20,000 hours rated life.
Color Rendering Index:  Standard CRI ≥ 70 (high output); remotely selectable filter for CRI ≥ 90
Optics & Zoom Range: 3° to 40° continuous motorized zoom.
Linear focus.

Color System: Full CMY color mixing + linear CTO + 1 Color Wheel (5 colors + white)
Gobo / Pattern Wheels: Fixed Wheel: 6 static gobos +  animation wheel section
Rotating Wheel: 7 indexable, rotating gobos
Framing System: 4-blade framing shutter module with 120° module rotation
Prism & Effects:  4-facet linear prism + single 4-row prism
Linear dimming and strobe effects up to 25Hz
Motorized Iris


Power Supply & Consumption: 100–240V AC, 50/60Hz; 800W rated power @ 220V
Pan & Tilt: 540° Horizontal Pan / 270° Vertical Tilt
Control Modes & Channels: DMX512, RDM, Master/Slave, Standalone (self-walking), Single Scene; 37 DMX Channels

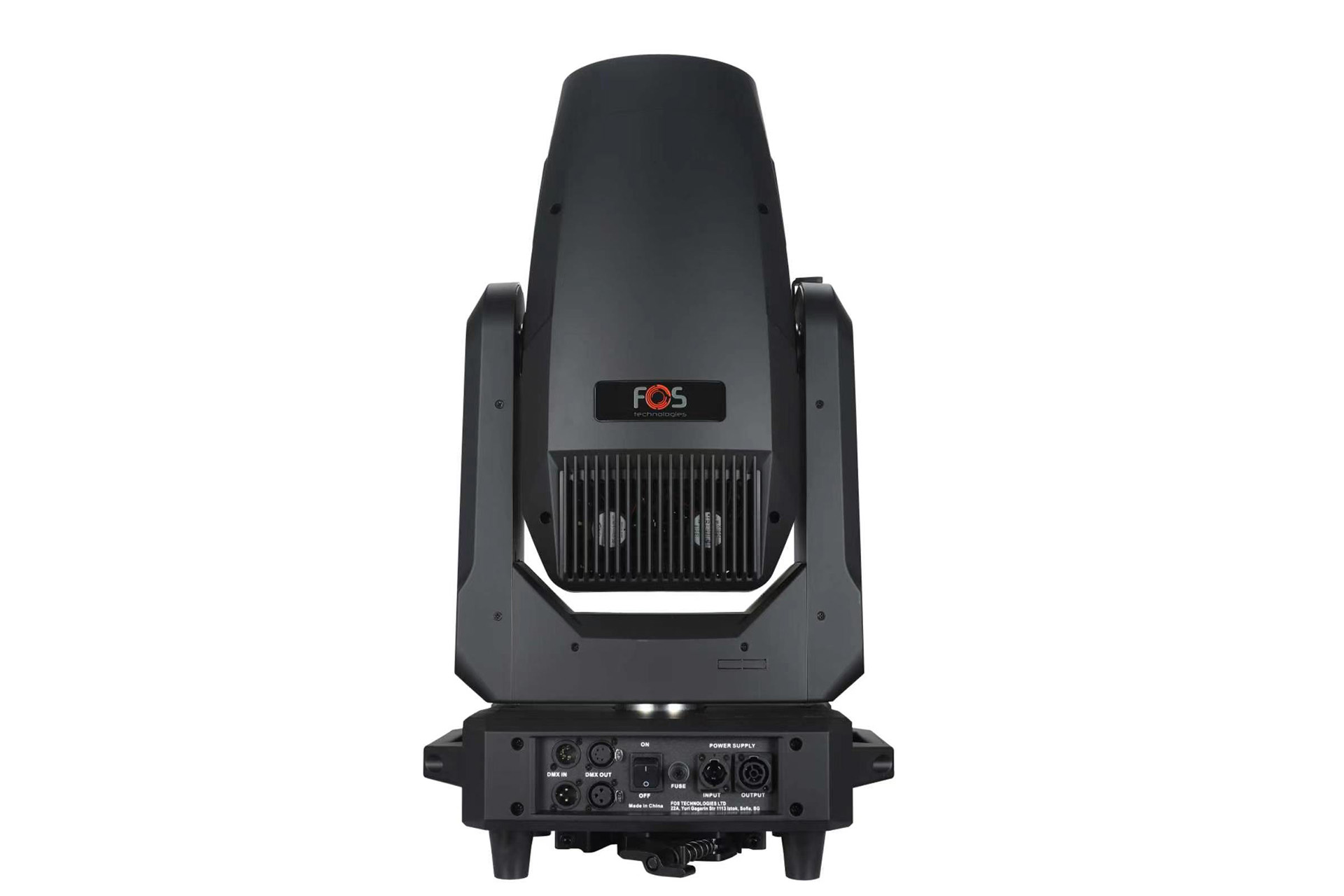

Data & Power Connectors: 3-pin & 5-pin locking XLR DMX in/thru; Seetronic PowerCon AC in/thru
Build & Environment:  High-temp flame-retardant plastic housing; IP20 indoor rating; -20°C to 40°C operating temp
Dimensions & Weight : 387 x 272 x 683 mm; 25 kg
