FOS Orion L005439
Scroll on photo to zoom in or Click to enlarge

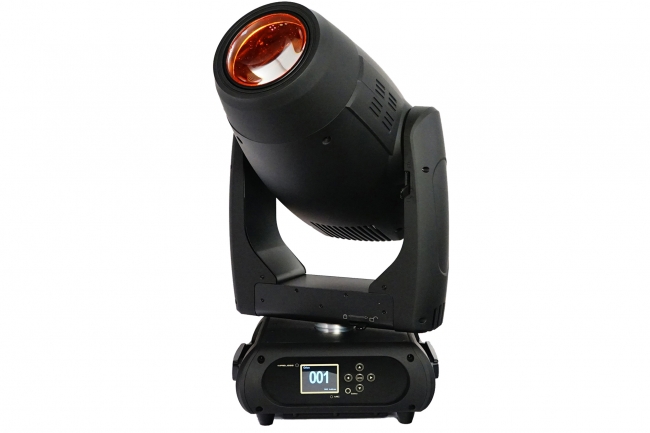

FOS Orion L005439
Professional Beam/Spot/Wash moving head, 420w High BrightnessWhite Led, Beam angle: 5° to 50 °,Linear CMY+CTO, Color wheel: 8+1 colors, 7 custom interchangeable rotating gobo, 7 fixed gobos,Fast speed iris, Rotating 3 facets prism, RDM
Price
Please login to see the price.
  • Light Source / Optics

    Light source: 420 Watt White LED.
    Life span: 20,000 hours.
    Beam angle: 5° - 50°.
    Life span: 50,000 hours (approximate).

  • Effects

    CMY + CTO color mixing system.
    Color wheel with 8 dichroic filters plus open.
    Rotating gobo wheel with 7 gobos plus open.
    Rotating Gobos Dimensions : external diameter: 27mm  , internal diameter:22mm
    Static gobo wheel with 7 gobos plus open.
    Motorized zoom from 5° to 50°.
    Motorized focus with autofocus function.
    Full range dimming from 0 to 100%.
    Variable strobe speed.
    Frost filter.
    Rotating 3F prism.
    Motorized Iris.

  • Control

    DMX control with 19 / 21 / 28 & 29.
    RDM function for DMX addressing, display flip, X/Y reverse.
    Lamp monitoring via RDM, reading voltage, current and power consumption.
    Software upgrade via DMX.
    Hibernate function when DMX signal is lost.
    Temparature indication for head, arm and base.
    Cooling fans with temperature controlled speed.

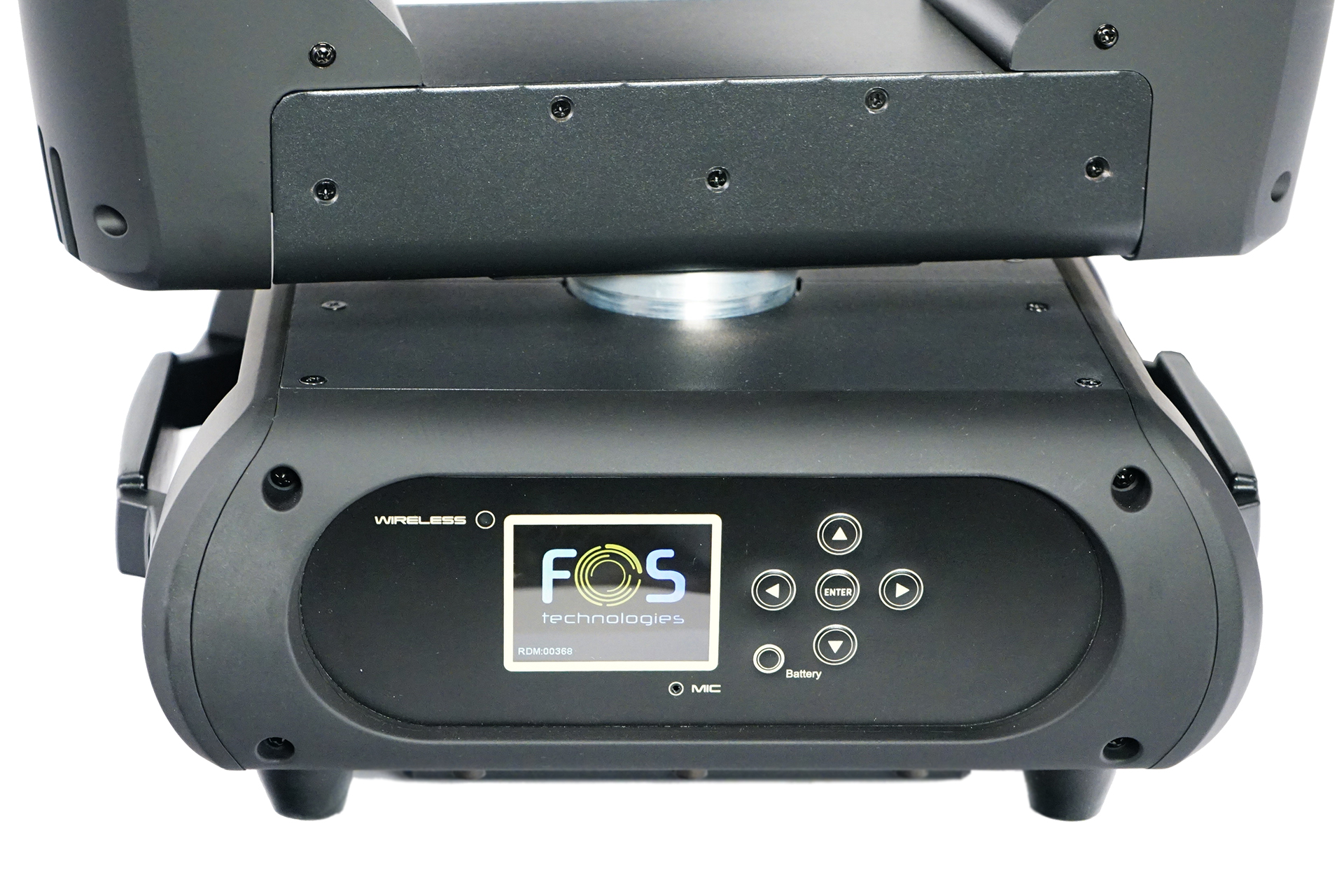

    2,4 inch LCD display for accessing the options menu.

  • Dimension / Installation details

    Power supply: 100 / 240 Volt, 50 / 60 Hz.
    Power Consumption: 590 Watt.
    Noise level at 1 meter: 39dB.
    Fuse: T 8 A, 250 Volt.

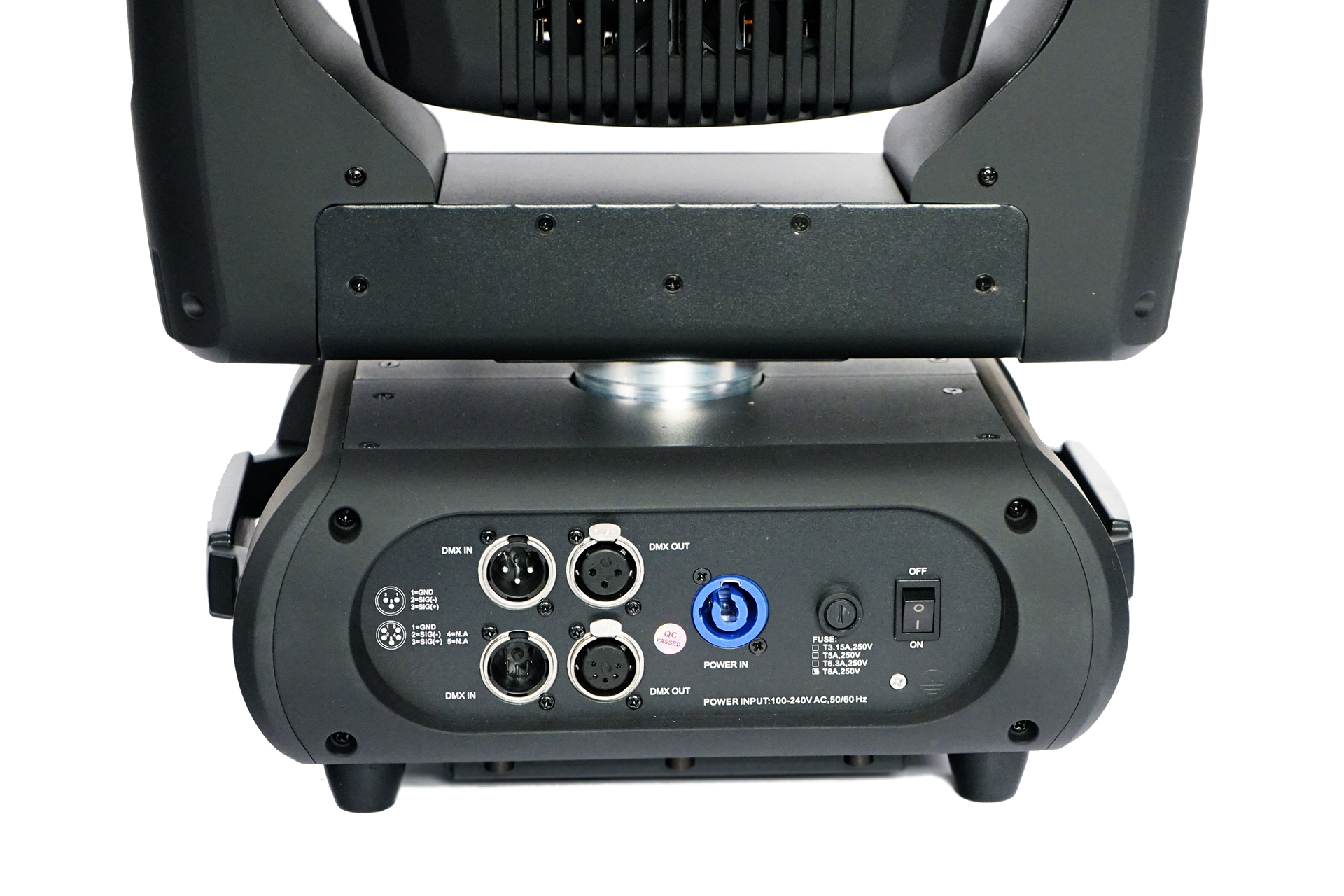

    PowerCON connector, 3 & 5 pin XLR.
    Weight: 25 Kgs.
    Dimensions: 369 x 250 x 658 mm.

  • Photometric & Noise data (FOS measures)

    Measuring Distance: 5 meters

    Minimum Zoom 5°

    Color Temperature (K): 6339
    Illuminance (lx): 29913
    CRI (Ra): 74
    TLCI (Qa): 53,2
    Flicker Frequency (Hz): 186
    Flicker(%):1

    Maximum zoom 50°

    Color Temperature (K): 6446
    Illuminance (lx): 1385
    CRI (Ra): 74
    TLCI (Qa): 53.2
    Flicker Frequency (Hz): 52
    Flicker(%): 0


    For detailed documentation, check the file on the Documents tab.
