FOS RDL3.9 Indoor 50x100 L005577
Scroll on photo to zoom in or Click to enlarge

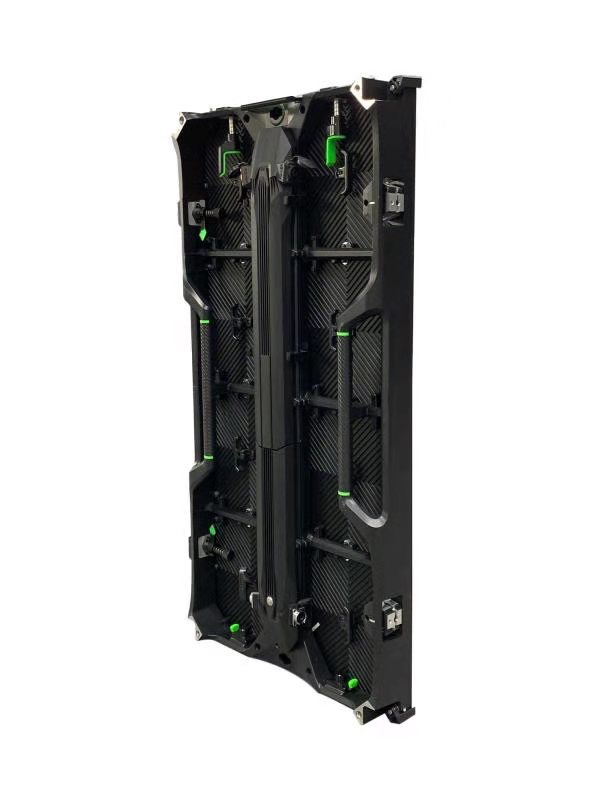

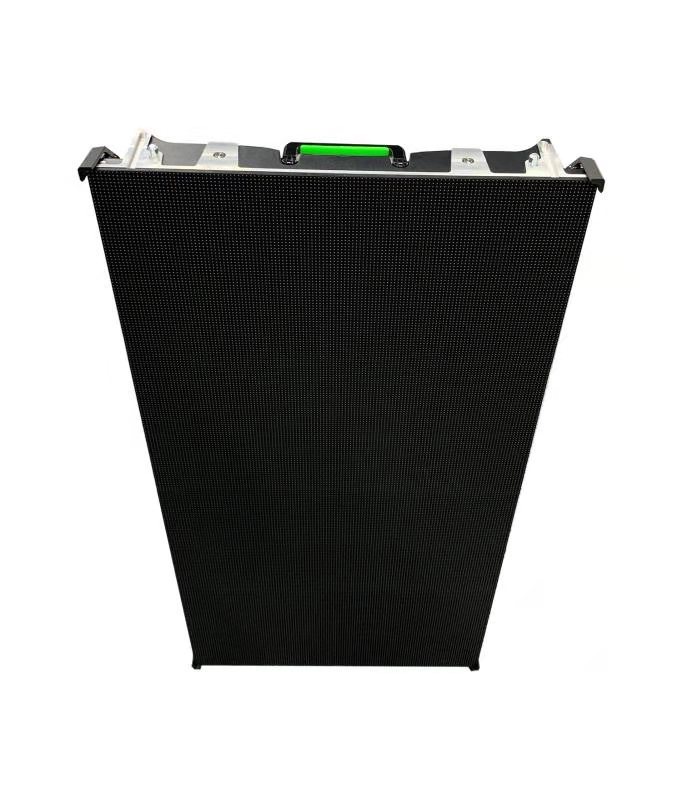

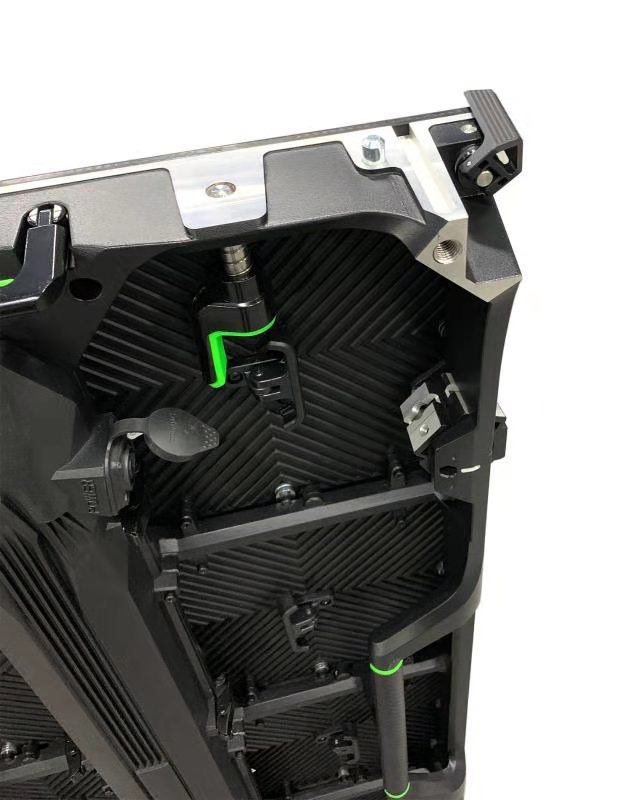

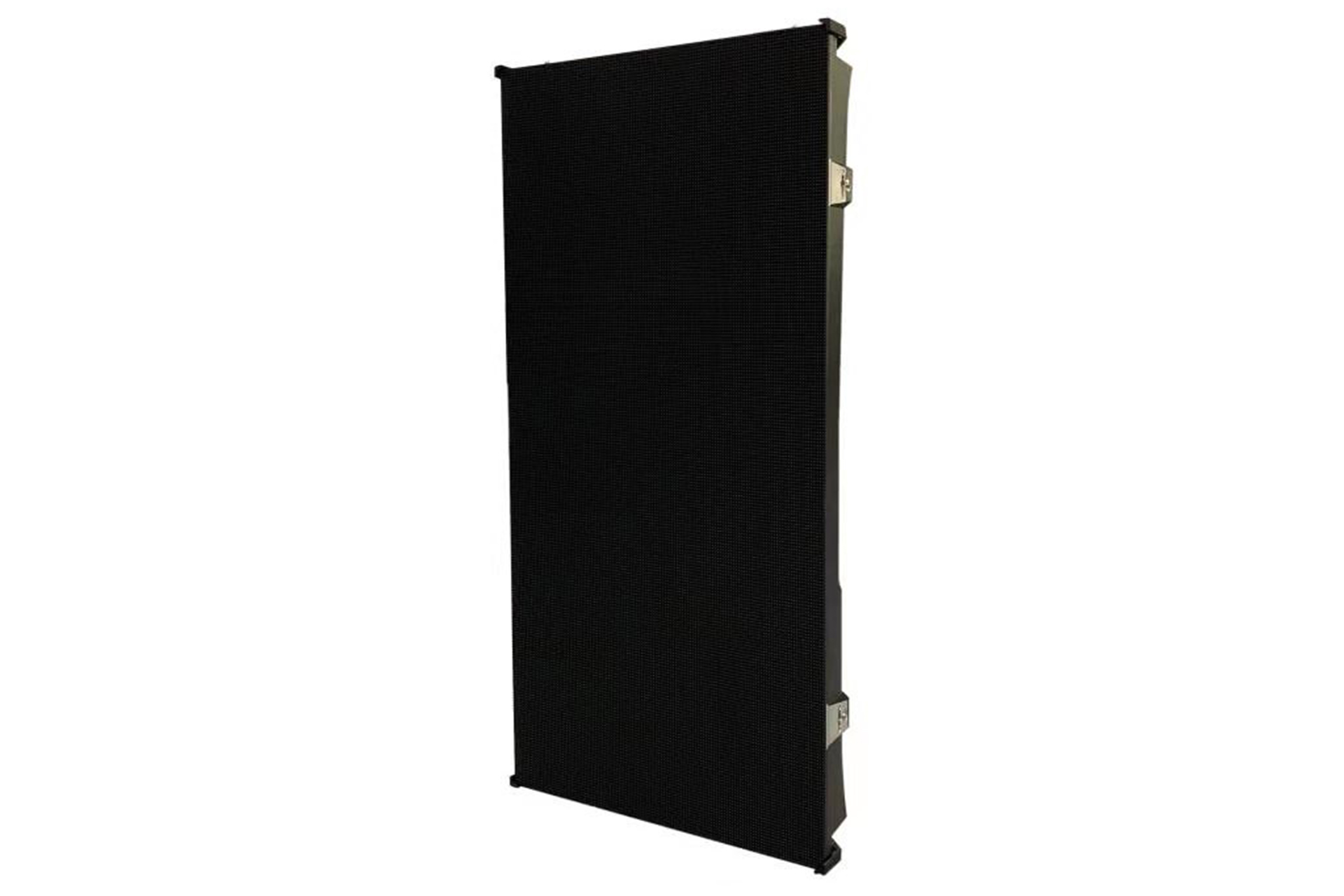

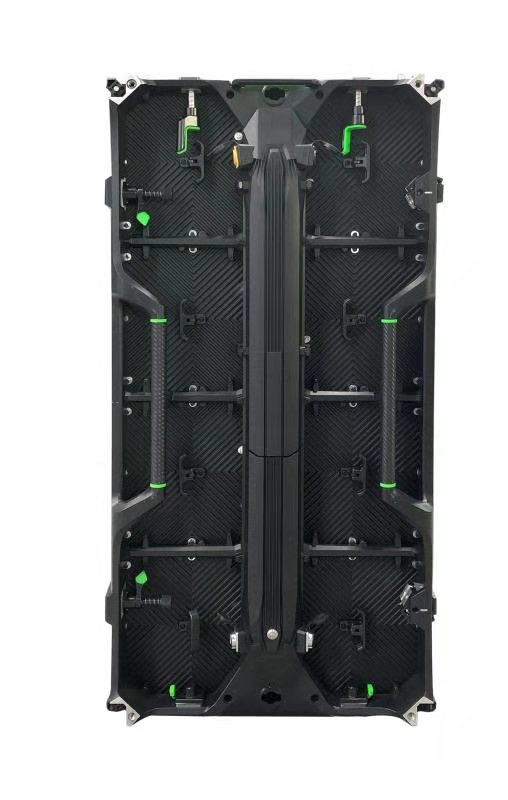

FOS RDL3.9 Indoor 50x100 L005577
Indoor Led Screen 3 in 1 SMD 2020 , pixel pitch 3.9 mm , panel size 50 x 100 cm, 14kg Brightness: 900 cd/m2, Resolution of module: 64 x 64 , Gray scale 16bits . Refresh Freq 3840 Hz , Nova star Input card inluded .
Price
Please login to see the price.
  • Specifications

    Pixel Pitch:3.9 mm
    LED type: SMD2020 .
    Pixel configuration: 1 Red, 1 Green, 1 Blue
    Module size: 250 x 250 mm
    Module resolution: 88 x 88
    Density (Dots/m2): 123.904
    Cabinet material: Die casting
    Size of cabinet: 500 x 100 mm
    Weight of cabinet: 14 Kg.
    Support hanging: Yes
    Power consumption: 600 Watt / m2 maximum, 200 Watt / m2 average.
    Colors: 16,7 milions
    Grayscale: 16bits
    Color temperature: 3000 - 10,000K.
    Driving method: 1/22 scanning.
    Refresh frequency: 3000 Hz.
    Brightness: 900cd/m2
    Brightness control: 256 grade.
    IP protection: IP30 (indoor use).
