FOS Wash Q19 L005336
Scroll on photo to zoom in or Click to enlarge

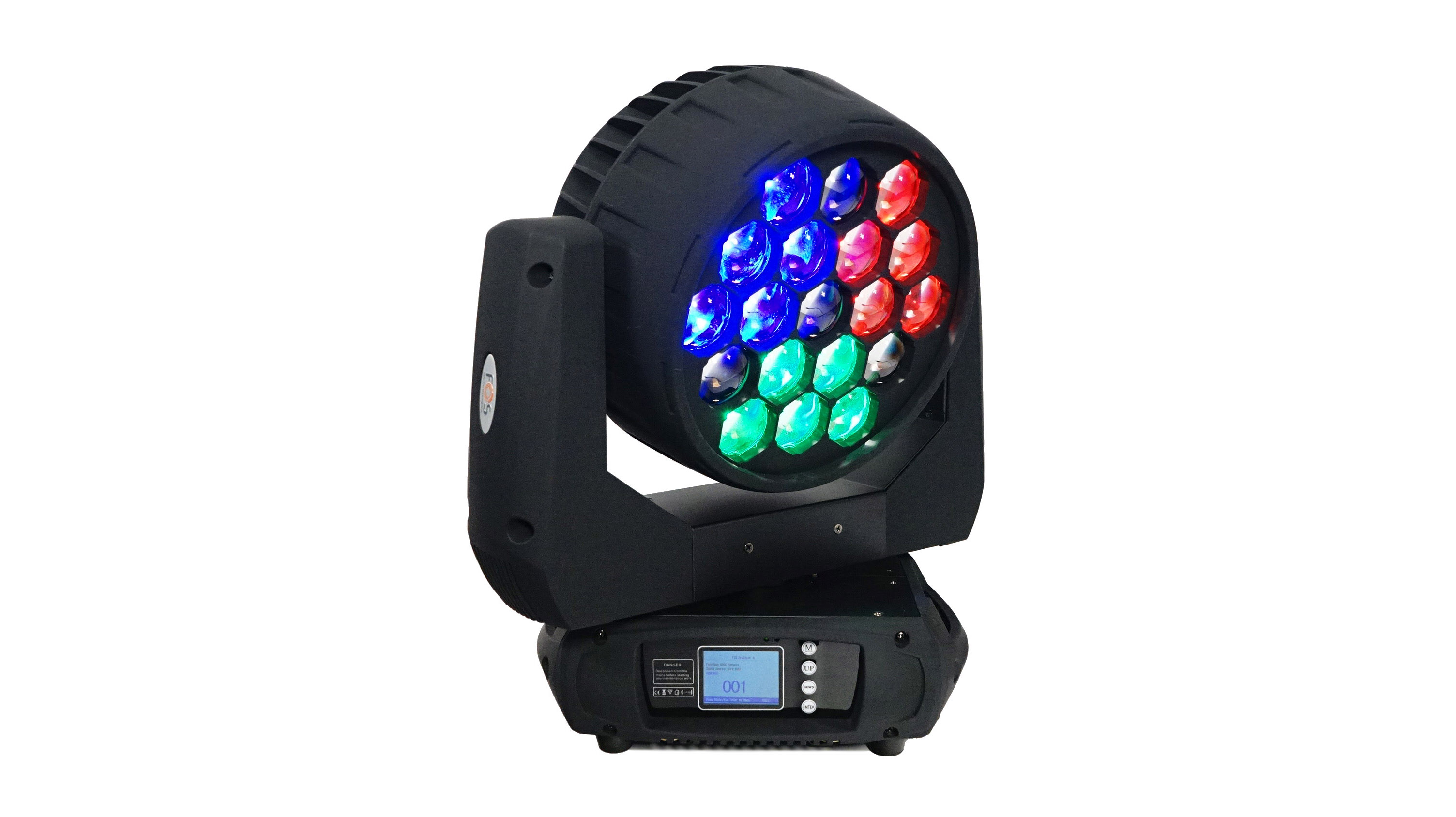

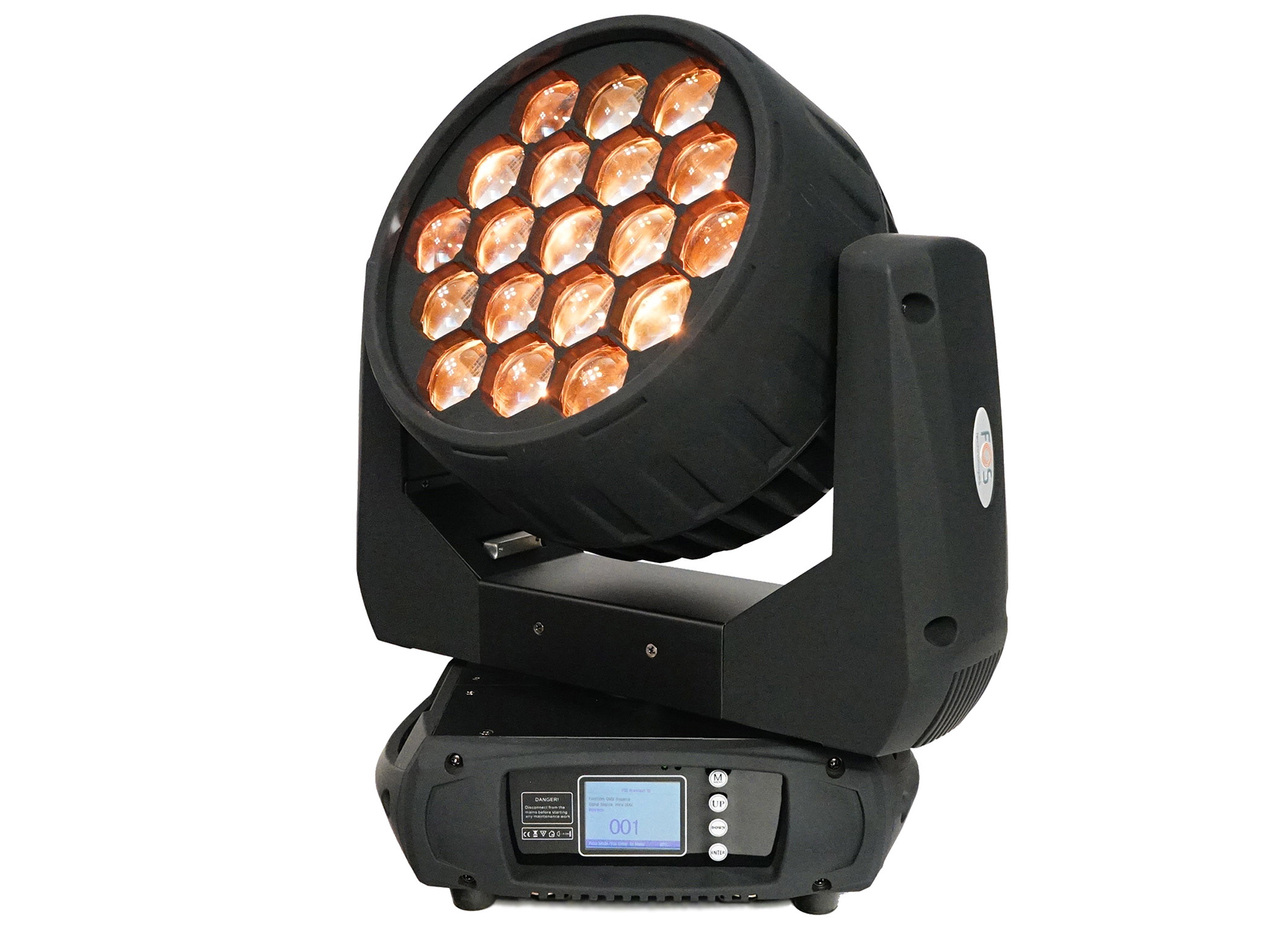

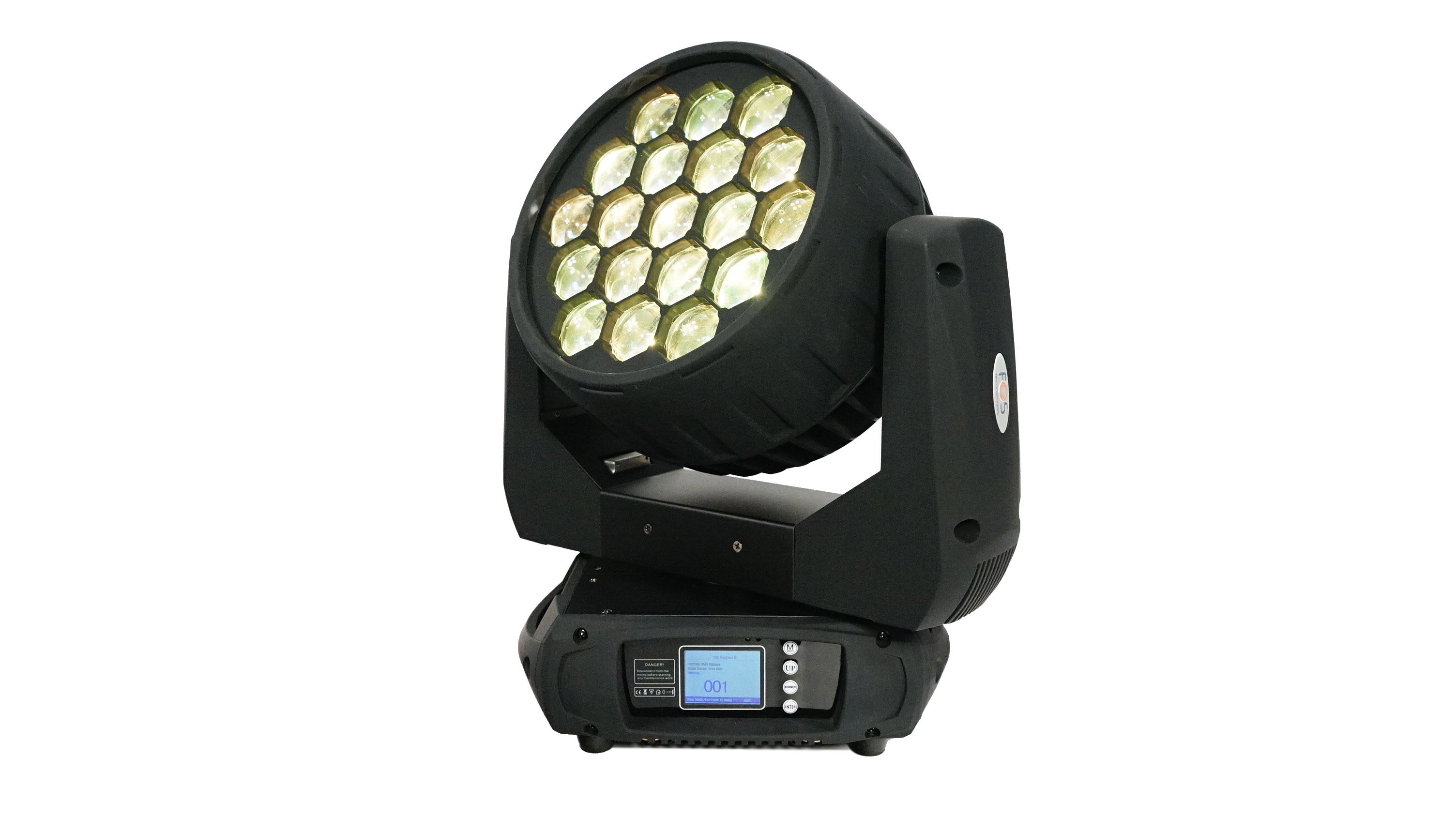

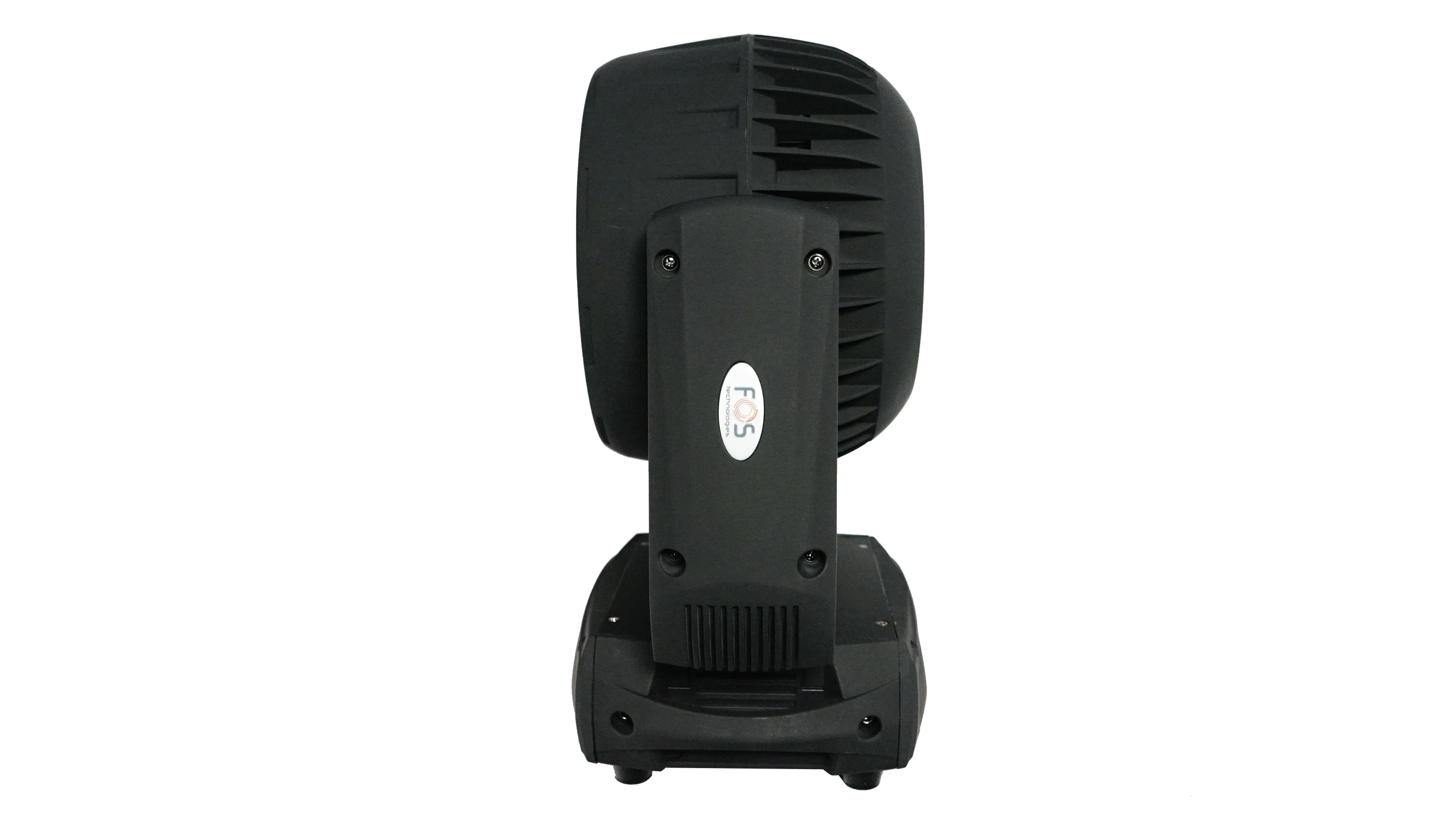

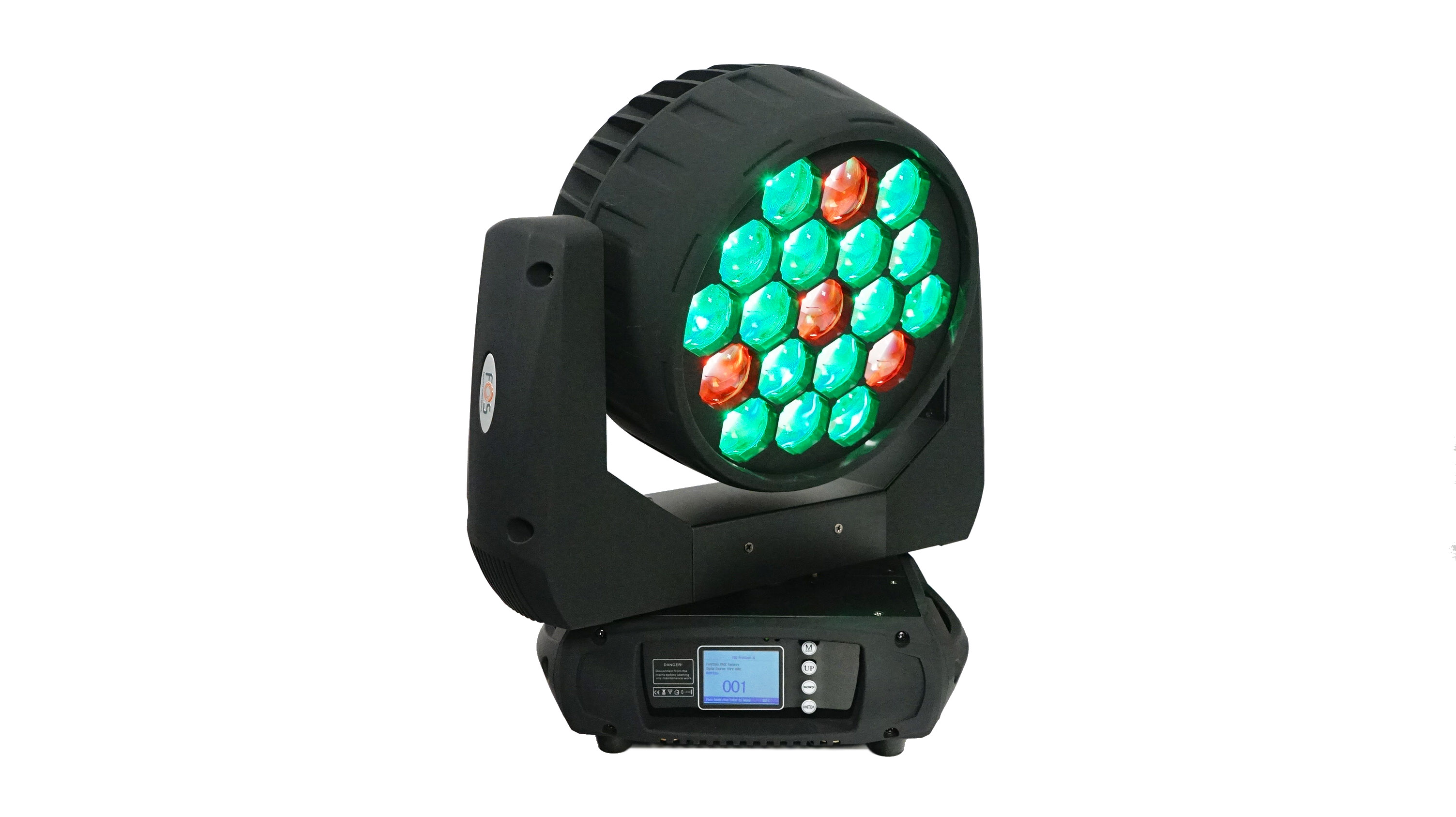

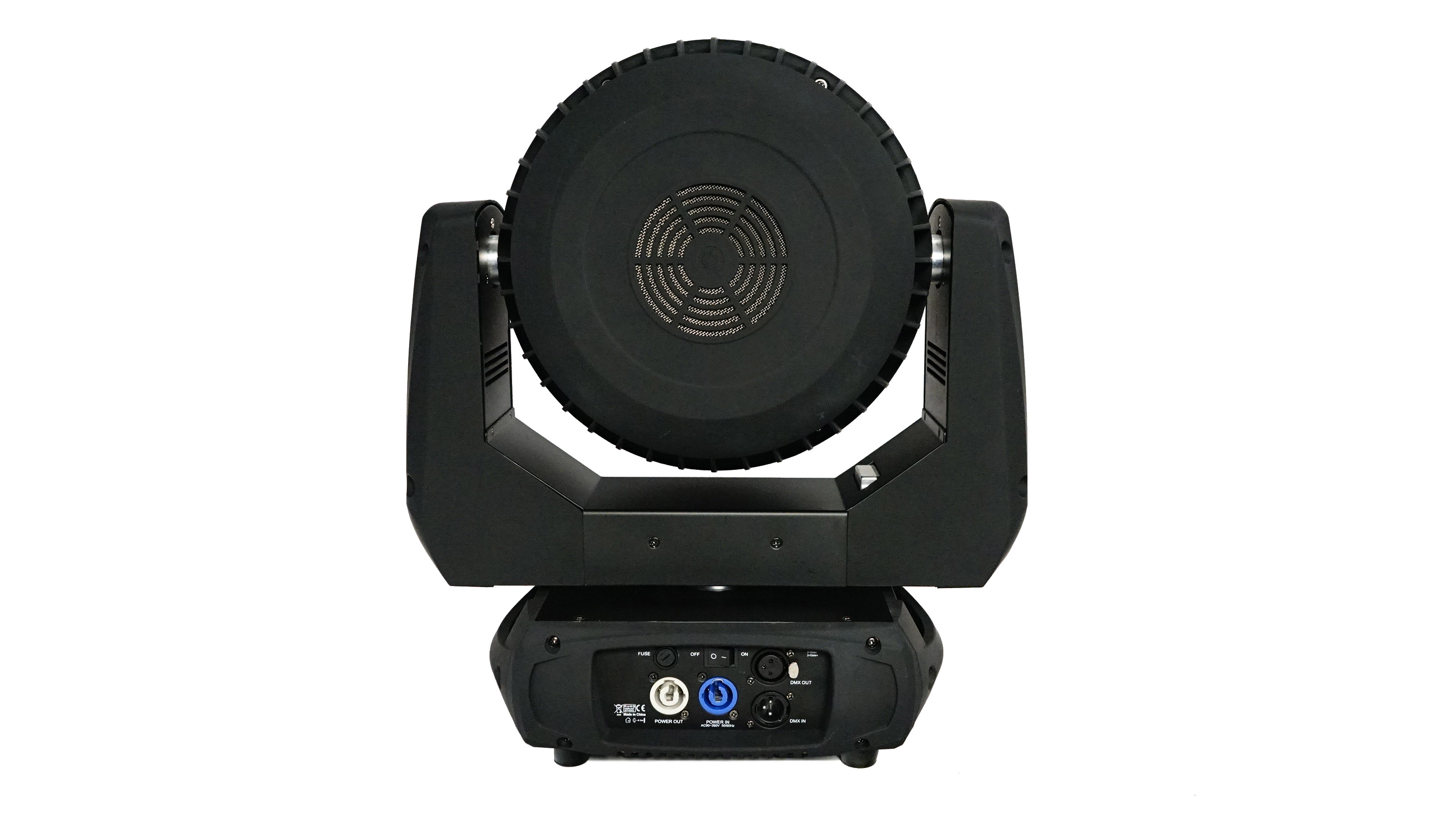

FOS Wash Q19 L005336
Wash / Beam moving head , 19 RGBW 15w 4in1 LEDs zoom 6-60°, 4 sections pixel control, Preset color macros RGBW mixing with or without DMX controller , TFT display.
Price
Please login to see the price.
  • Light Source

    Sources: 19x 15 Watt 4 in 1 RGBW LEDs
    Lifespan: 50000 hours approx.
    6° - 60° motorized linear zoom.


  • Effects

    Linear color temperature change from 2800 to 8000 K.
    LEDs can be controlled in 4 independent groups.
    Linear dimmer 0 - 100%.
    Built in Macros and Auto Programs.
    Pulse and strobe effects.

  • Control

    DMX512, master/slave, auto & sound control.
    16 / 22 / 38 DMX control channels.
    8 & 16 bit Pan & Tilt movement resolution, with movement feedback function.
    630°/540°/360°PAN optional and 270°/180°/90°TILT optional.
    TFT screen for accessing the options menu.

  • Installation / Dimension details

    Power supply: AC90 / 260 Volt, 50 / 60 Hz AC.
    Power consumption: 350 Watt.
    Power input & output with PowerCON connectors.
    Signal inpout & output with 3 pin XLR.
    Ambient operating temperature: -35 / + 45°C.
    IP20, for indoor use only.
    DB rating@1M=54.18dB, with temperature controlled cooling fans.
    Dimensions: 411(D) x 280(W) x 410(H)mm
    Packing Dimensions: 490(D) x 280(W) x 560(H)mm
    Net Weight: 11.2kg
    Gross Weight: 13.9kg
