FOS Pixel/Blinder Panel L005322
Scroll on photo to zoom in or Click to enlarge
FOS Pixel/Blinder Panel L005322

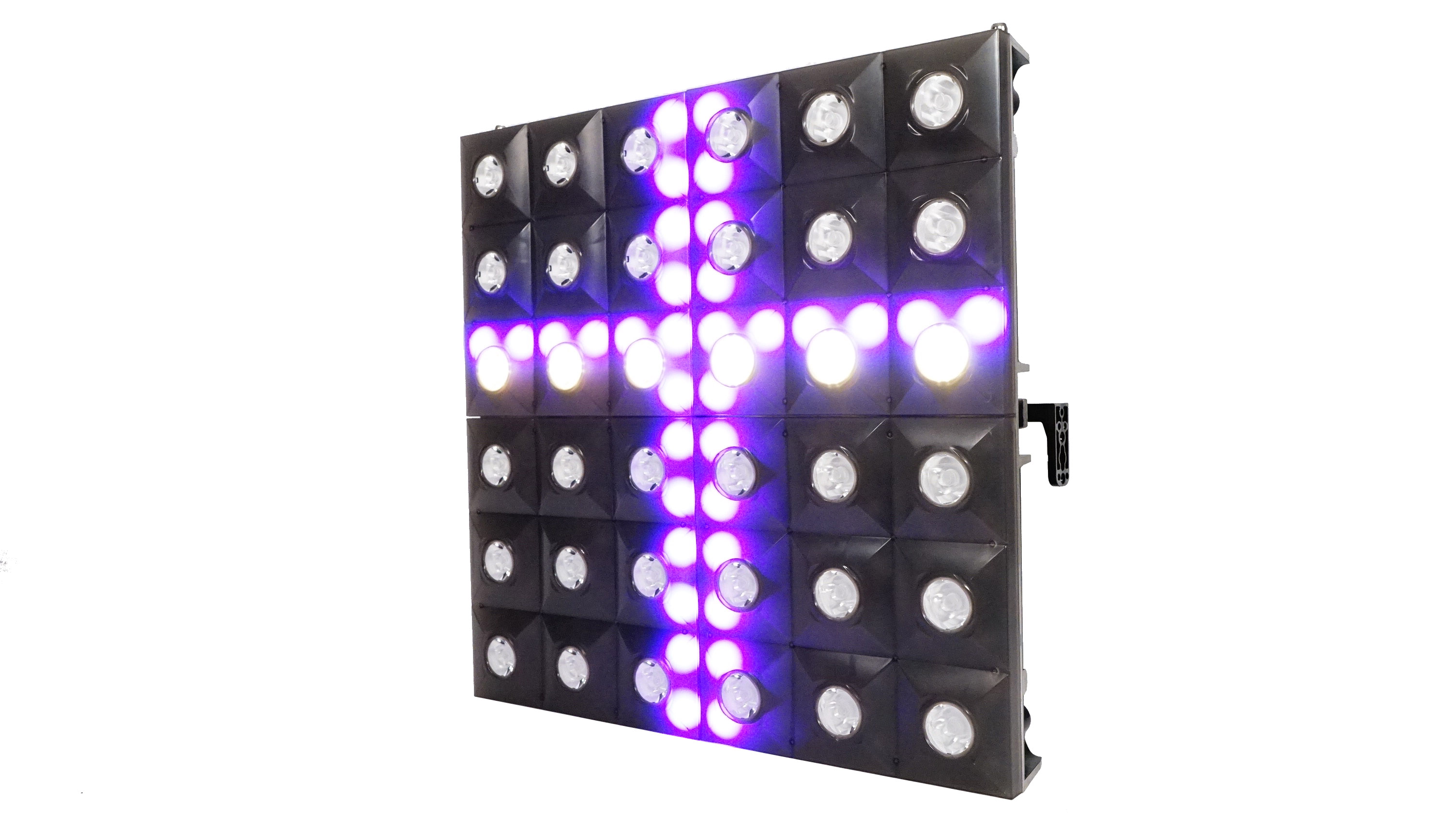

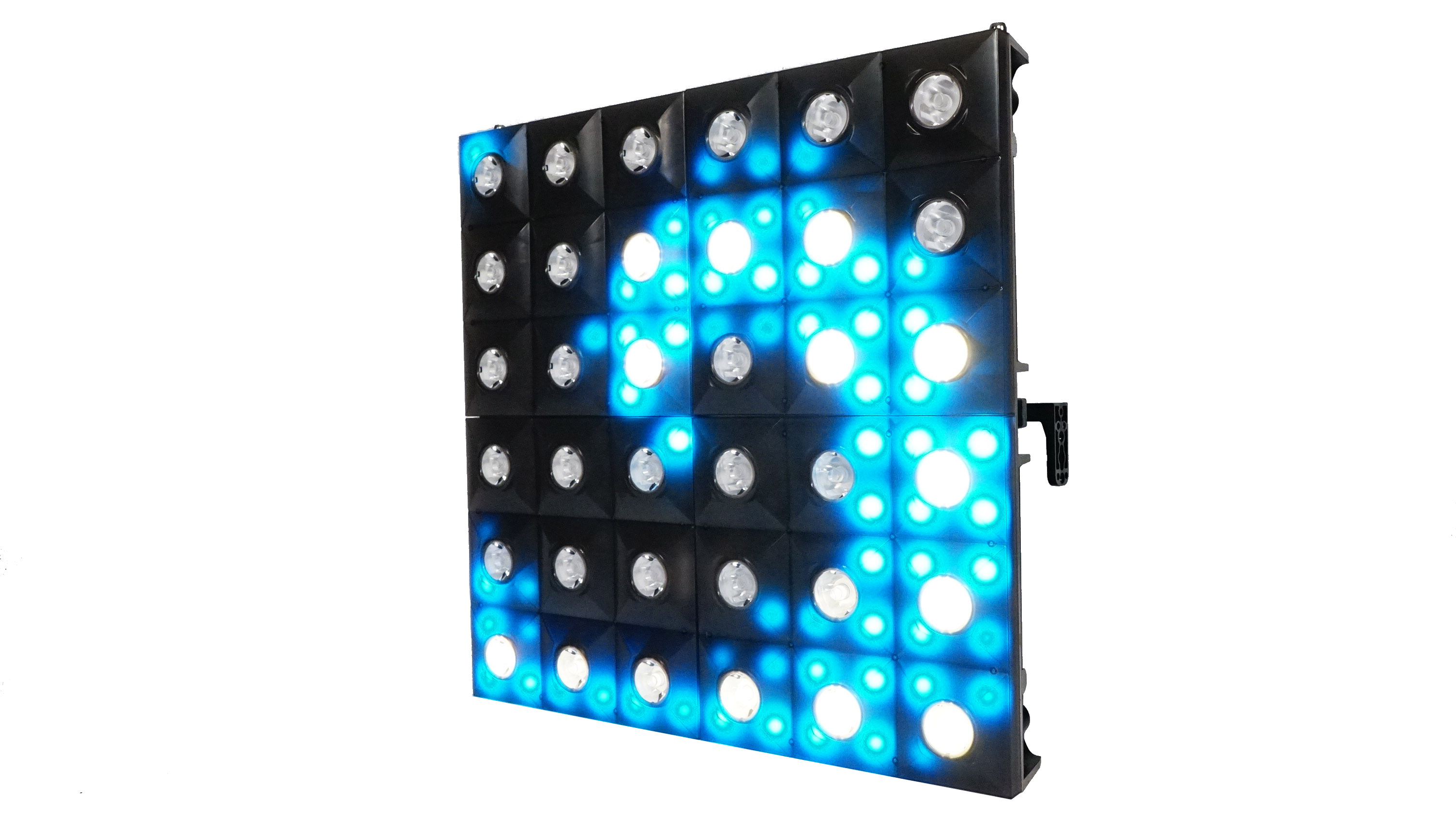

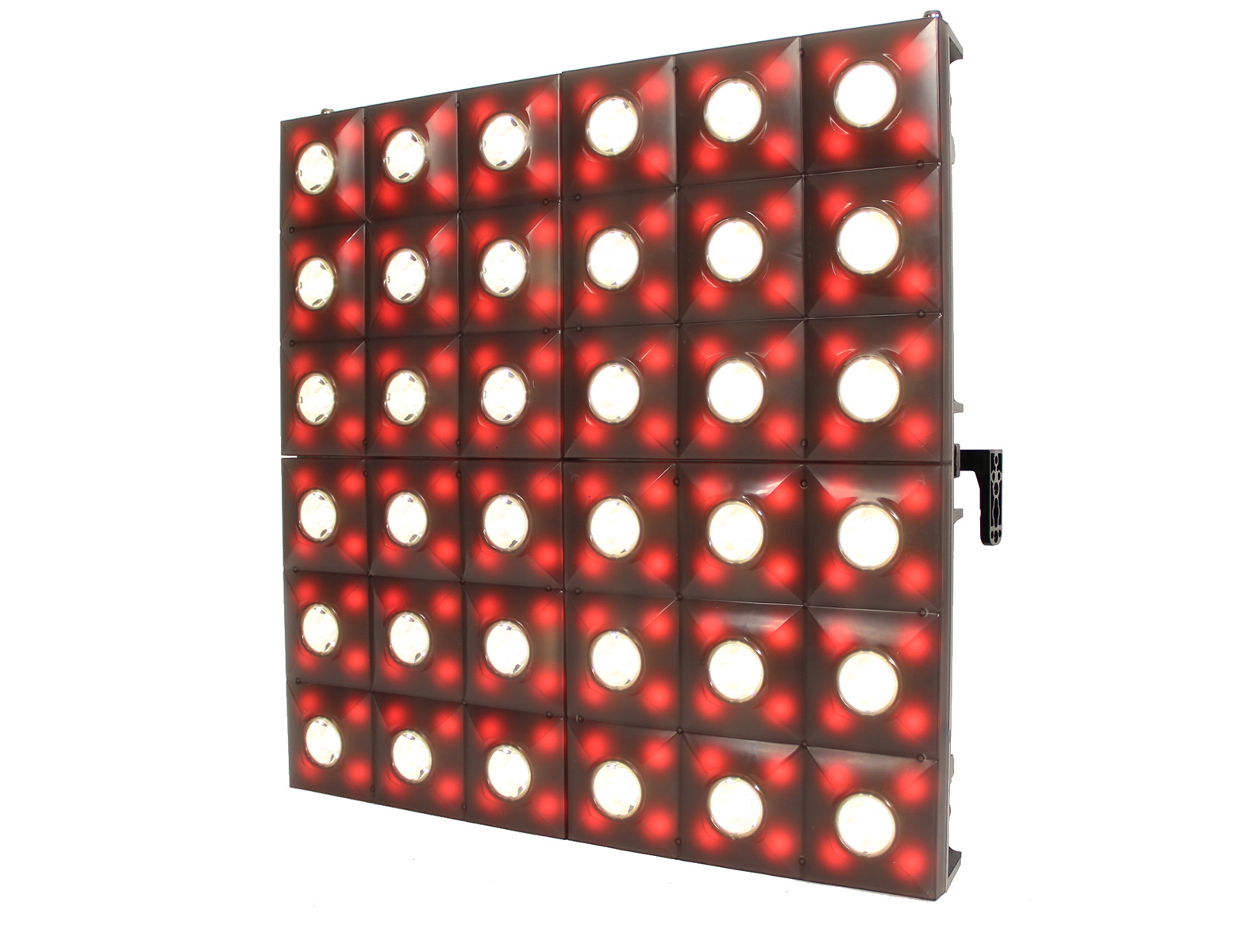

Led Pixel/Blinder panel, 6pcs 3W CREE Warm White LED (narrow beam 4°) and 144pcs 5050SMD RGB 3in1LEDs, LEDs can pixel control With Artnet, RDM, Klingnet and DMX,Size: 50x50x8.7cm, 7.8kg.
Price
Please login to see the price.
  • Light Source / Optics

    36x Warm White LEDs, 3 Watts each, with 4° beam angle.
    144x 5050 SMD RGB background LEDs, independently controlled.

  • Effects

    Parallel tight warm white beams.
    RGB color mixing on the background of the panel.
    Pre-Programmed pixel effects and chases, accessible via DMX.
    Dimmer & Strobe.
    Independent control of each Warm White and RGB LED for pixel mapping via console or software.

  • Control

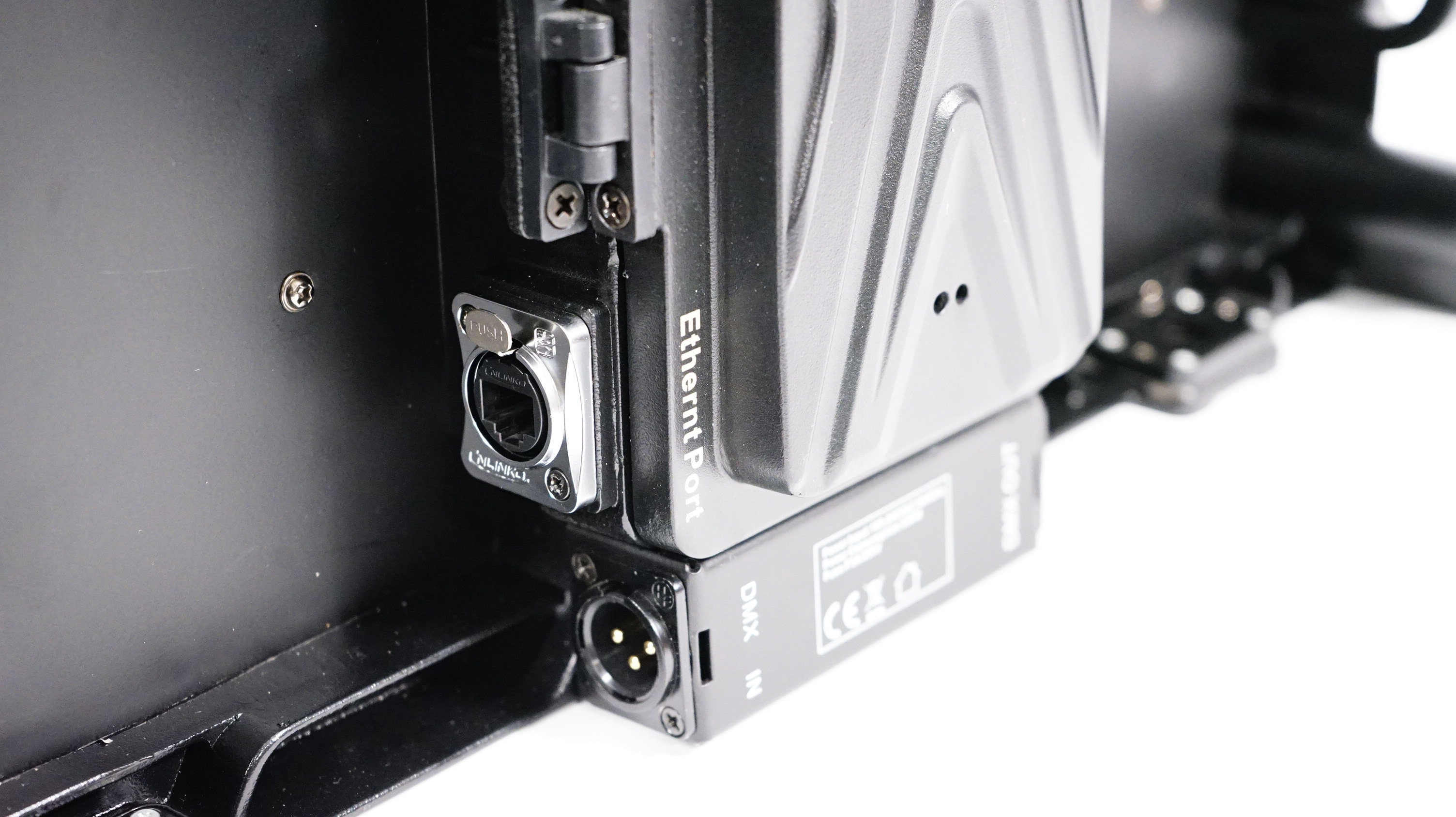

    Supports RDM, ArtNET, KlingNET and DMX512 control.
    Auto and sound modes accessible from the on board menu.
    10, 45, 146 and 468 DMX control channels.

  • Installation / Dimension details

    Power Supply: 90 / 240 Volt, 50 / 60 Hz.
    Power Consumption: 180 Watt.
    IP20, for indoor use only.
    Dimmensions: 500 x 500 x 100 mm
    Weight: 8,8 Kg.

Manual
